User Manual for BB&S Lighting Pipeline Remote Phosphor 1' LED 4-Bank Click to enlarge the picture
Contents of the user manual for the BB&S Lighting Pipeline Remote Phosphor 1'
- Product category: LED Lights BB&S Lighting
- Brand: BB&S Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BB&S Lighting LED Lights
 |
User manual for the BB&S Lighting Pipeline Remote Phosphor 1' contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BB&S Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BB&S Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BB&S Lighting product will considerably shorten its lifespan!
|

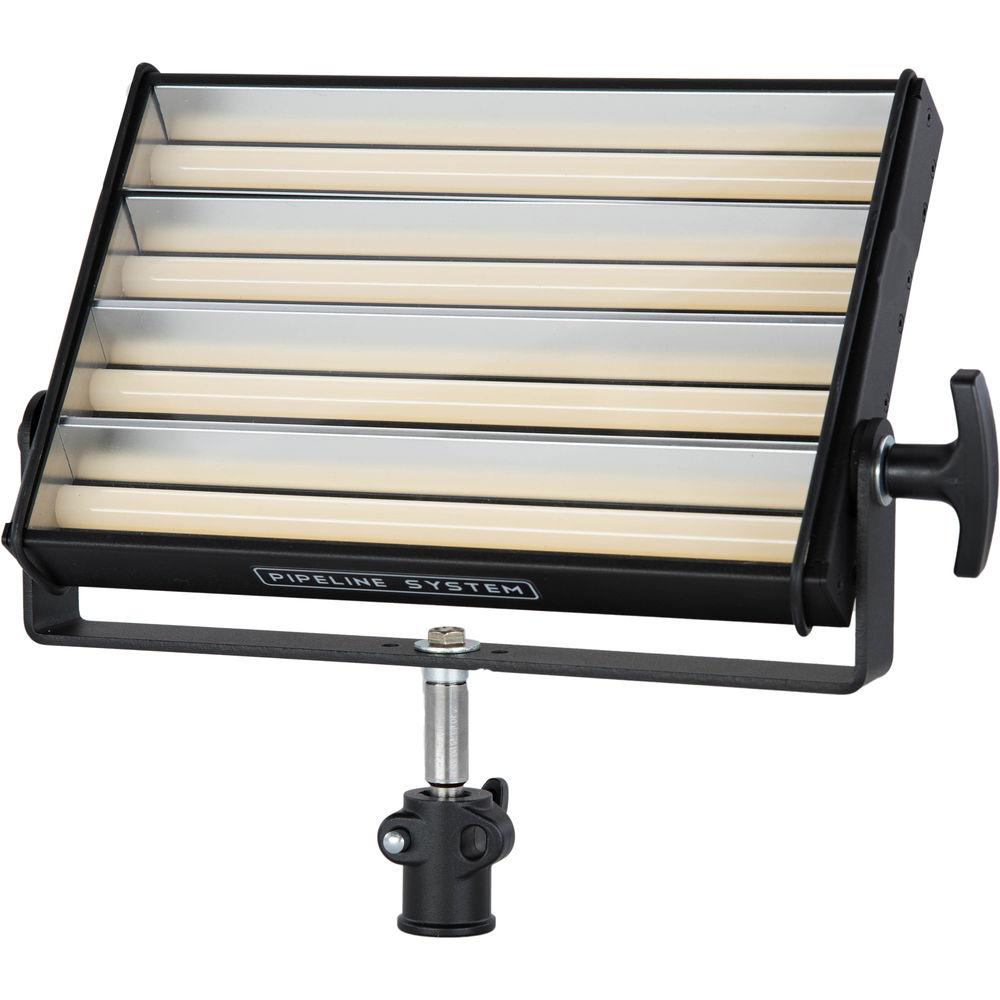

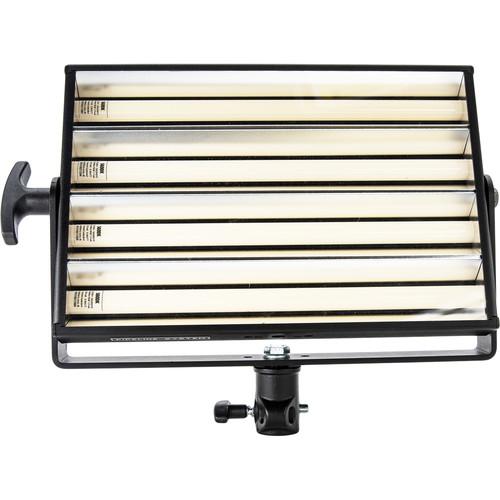

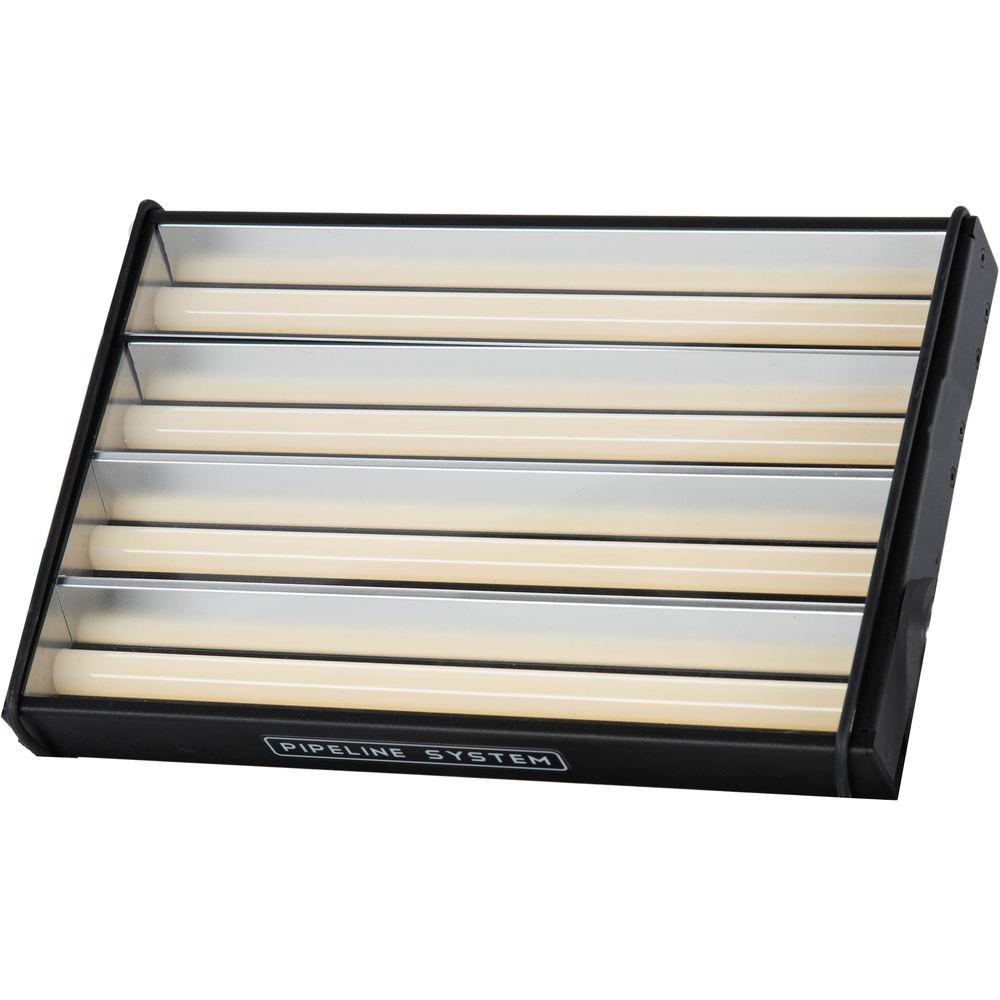

Product description Designed for small studios, remote broadcast, and EFP, the 5600K Pipeline Remote Phosphor 1' LED 4-Bank from BBS Lighting packs four 1' Pipeline LEDs within a sturdy small-factor reflecting enclosure. Remote phosphor technology enables the 1' LED 4-Bank to yield soft and color-accurate light with a TLCI rating of 98+. With a brightness of 4000 lumens and a wrap-around coverage of 180°, this bank's light output is great for modelling faces and illuminating backgrounds.
The bank's 3-pin XLR connector allows for plug-and-play functionality with the 4-Way Controller (available separately). The controller can power up to four 1' LED 4-Banks, allowing for full-range smooth dimming, either on-board or via DMX, with no color shift or flickering. Compact and lightweight, the Pipeline 1' LED 4-Bank can be mounted flush against a wall or ceiling, or suspended using the included yoke or optional hardware accessories. A honeycomb is also included. - High light output of 4000 lumens on 40W max draw
- Extremely accurate color rendition at TLCI 98+
- Space-saving 12 x 8 x 1.5" format
- 4-Way Controller with DMX can handle four of these banks, or three of these banks plus several 1' pipelines, or combinations of 2' 2-Banks and 1' 4-Banks
- Aluminum back channel for ruggedness
- Short cable with 3-pin XLR fits flush in back channel
UPC: 650135020208 In the Box BB&S Lighting Pipeline Remote Phosphor 1' LED 4-Bank (5600K) Honeycomb Yoke Limited 2-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BB&S Lighting Pipeline Remote Phosphor 1' LED 4-Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBB&S Lighting Pipeline Remote Phosphor Specs | Light Source | 4 x 1' remote phosphor LED pipes | | Brightness | 4000 lumens | | TLCI | 98+ | | Dimming | 100-0% via 4-Way Controller (available separately) | | Color Temperature | 5600K | | Dispersion | 180° | | Operating Temperature Range | 14 to 104°F (-10 to 40°C) | | Connectors | 3-pin XLR male on short cable | | Power | 100 to 240 VAC, 50/60 Hz via 48 V 4-Way Controller (available separately) | | Power Consumption | 40 W max | | Dimensions | 12 x 8 x 1.5" (30.48 x 20.32 x 3.81 cm) | | Weight | 3 lb (1.36 kg) |
