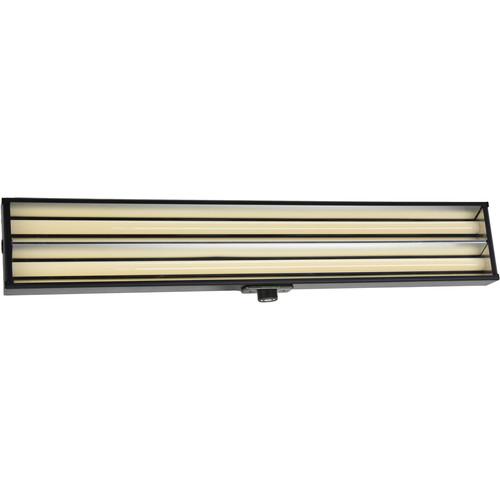

Product description Designed for small studios, remote broadcast, and EFP, the 5600K Pipeline Remote Phosphor 2' LED 2-Bank from BBS Lighting packs two 2' Pipeline LEDs within a sturdy small-factor reflecting enclosure. Remote phosphor technology enables the 2' LED 2-Bank to yield soft and color-accurate light with a TLCI rating of 98+. With a brightness of 4000 lumens and a wrap-around coverage of 180°, this bank's light output is great for modelling faces and illuminating backgrounds.

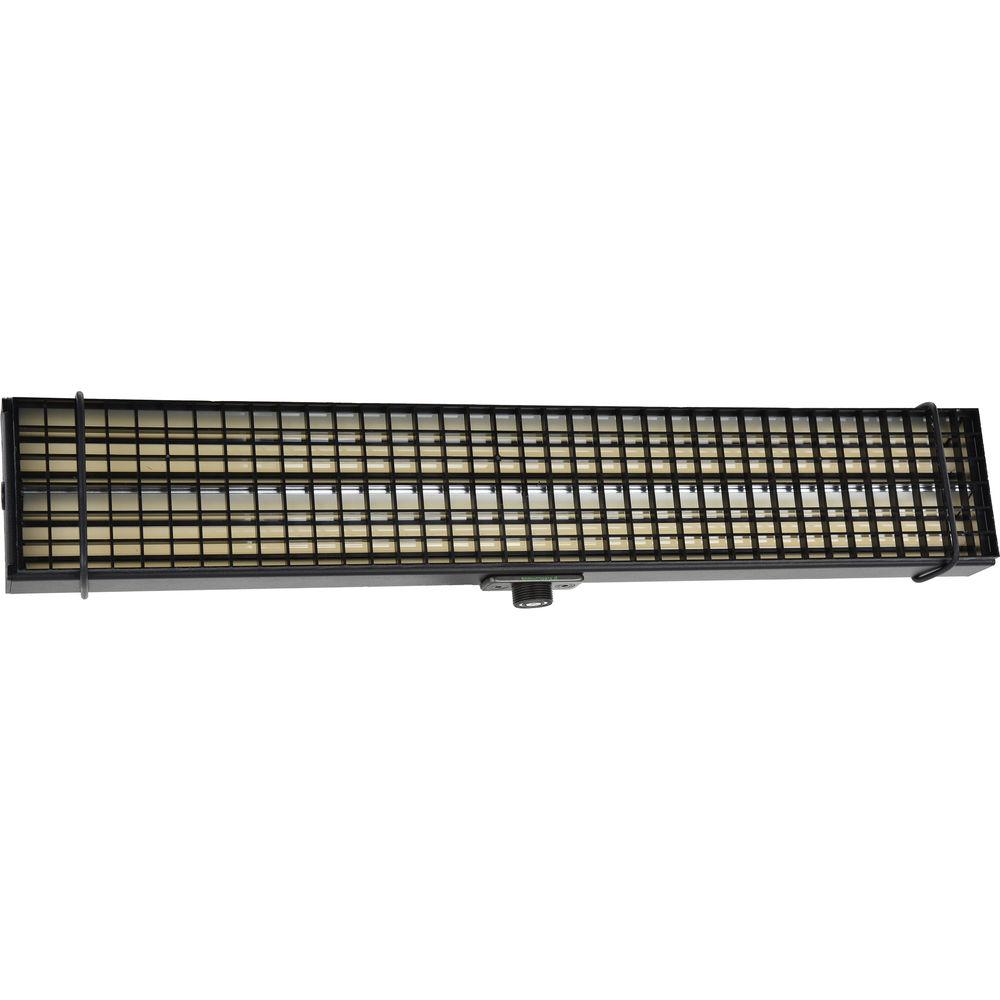

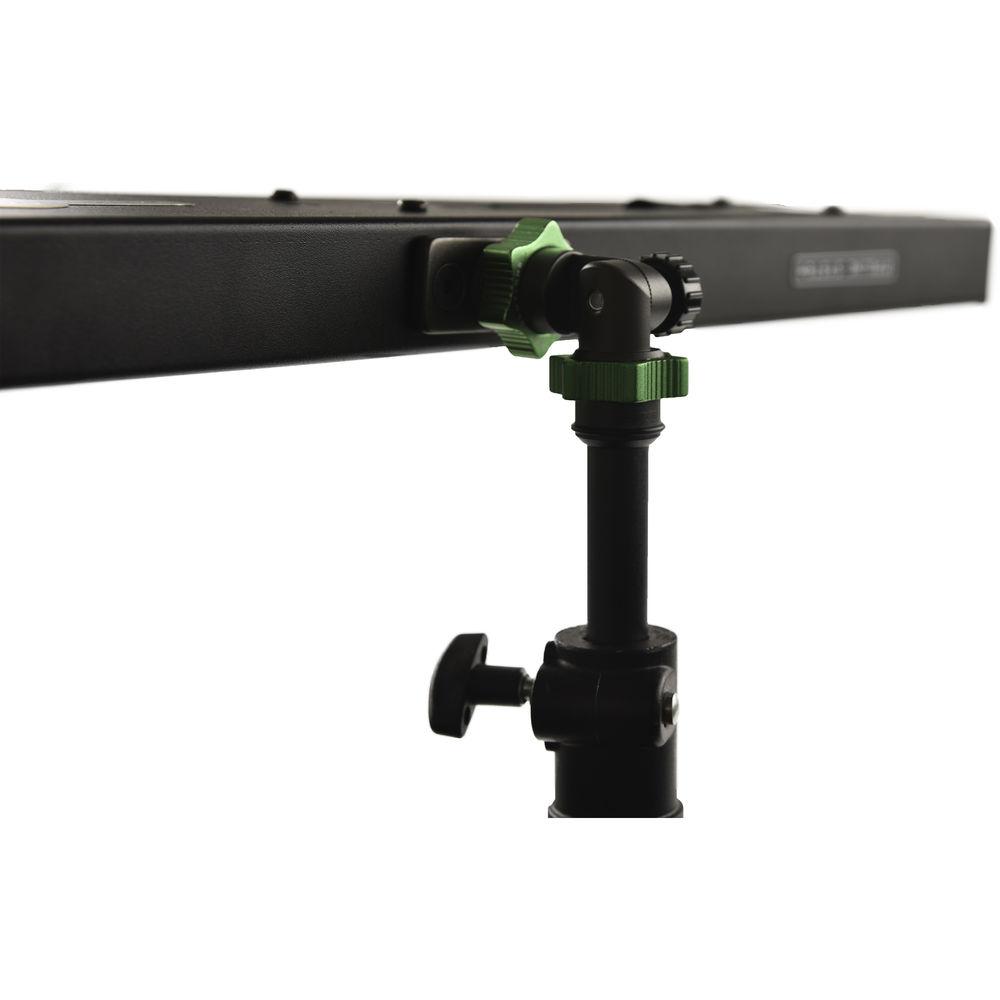

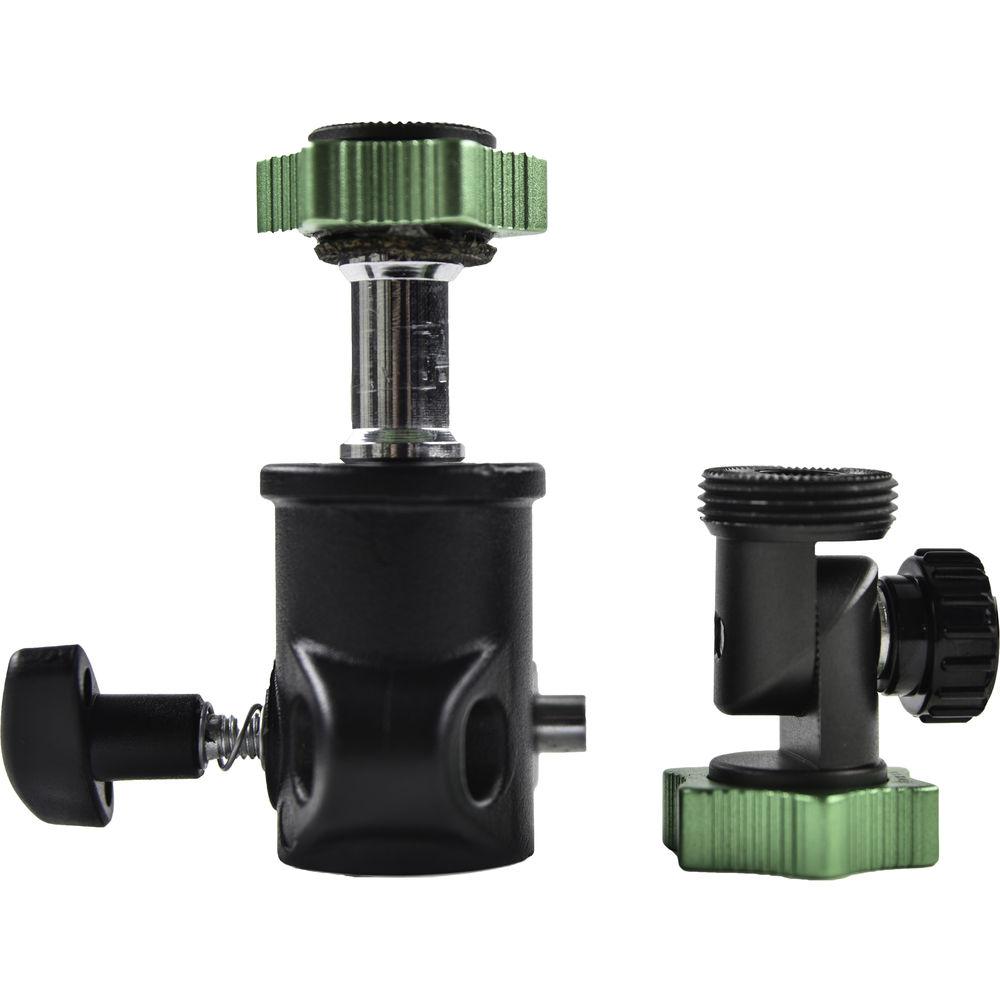

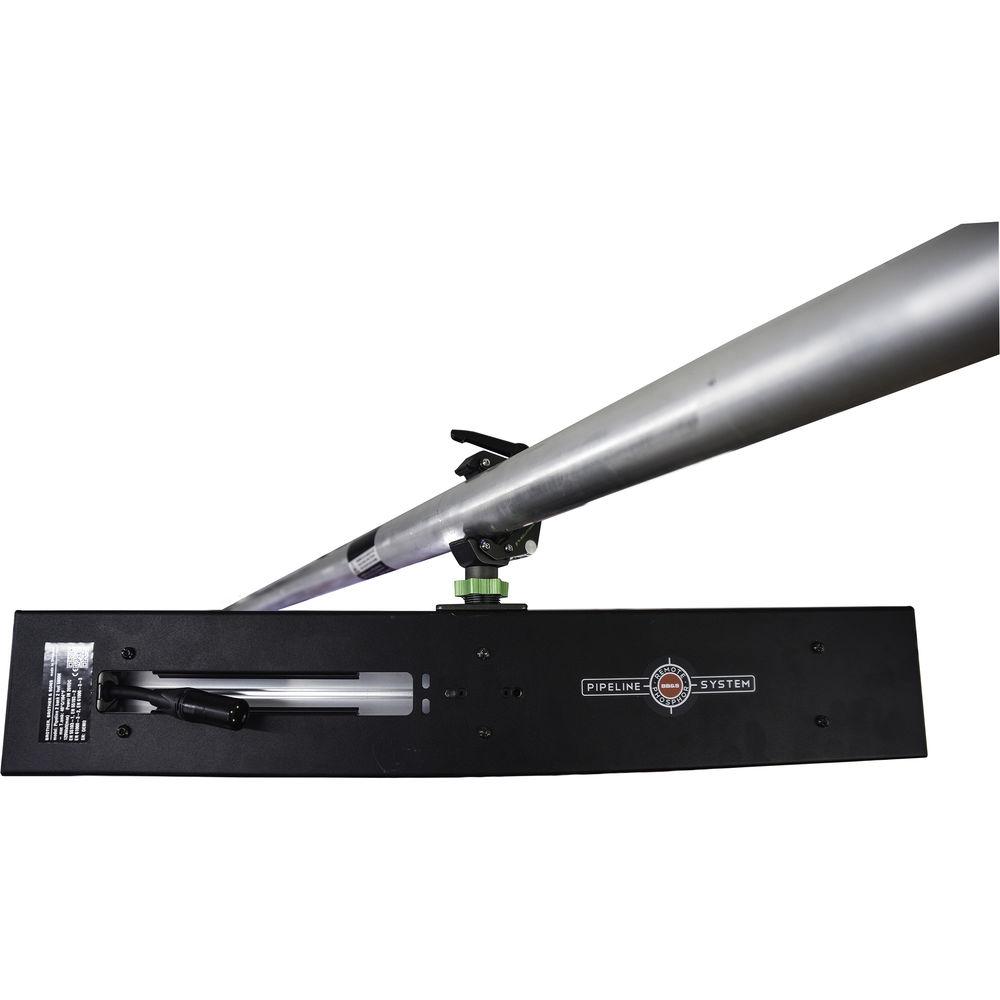

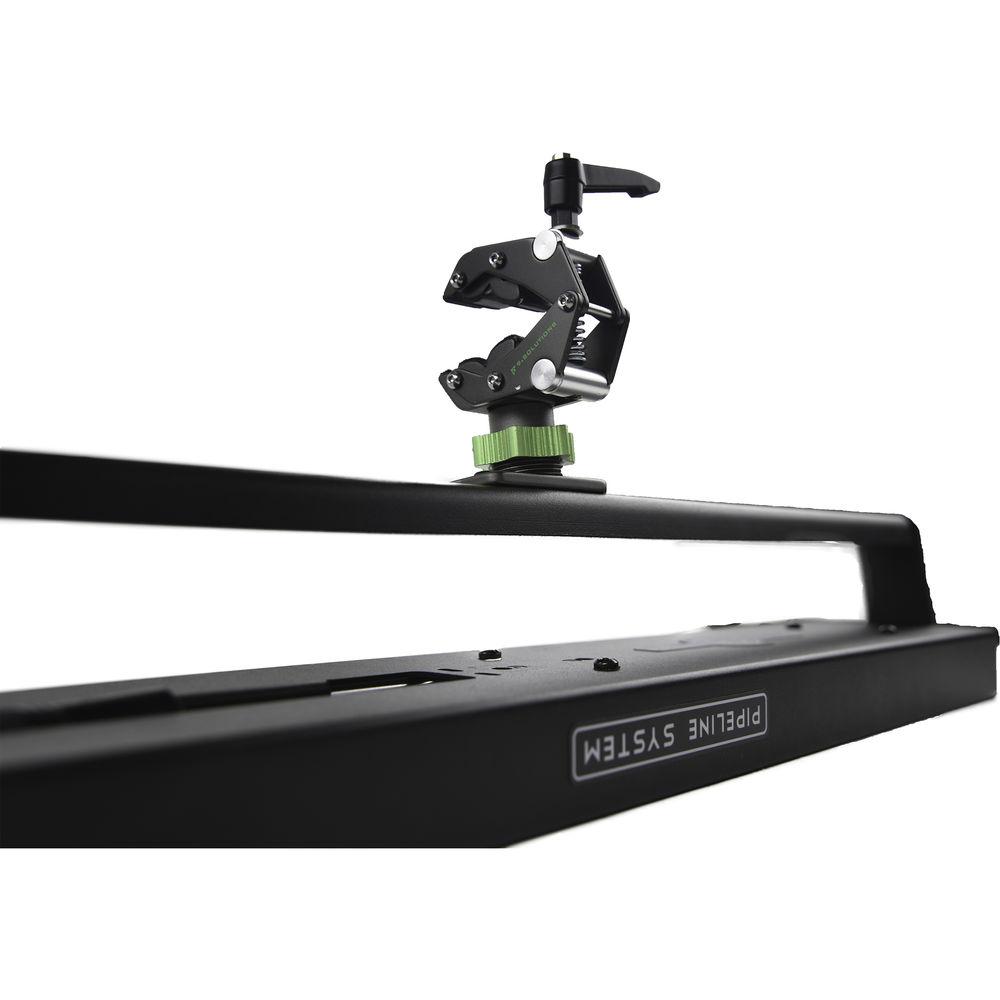

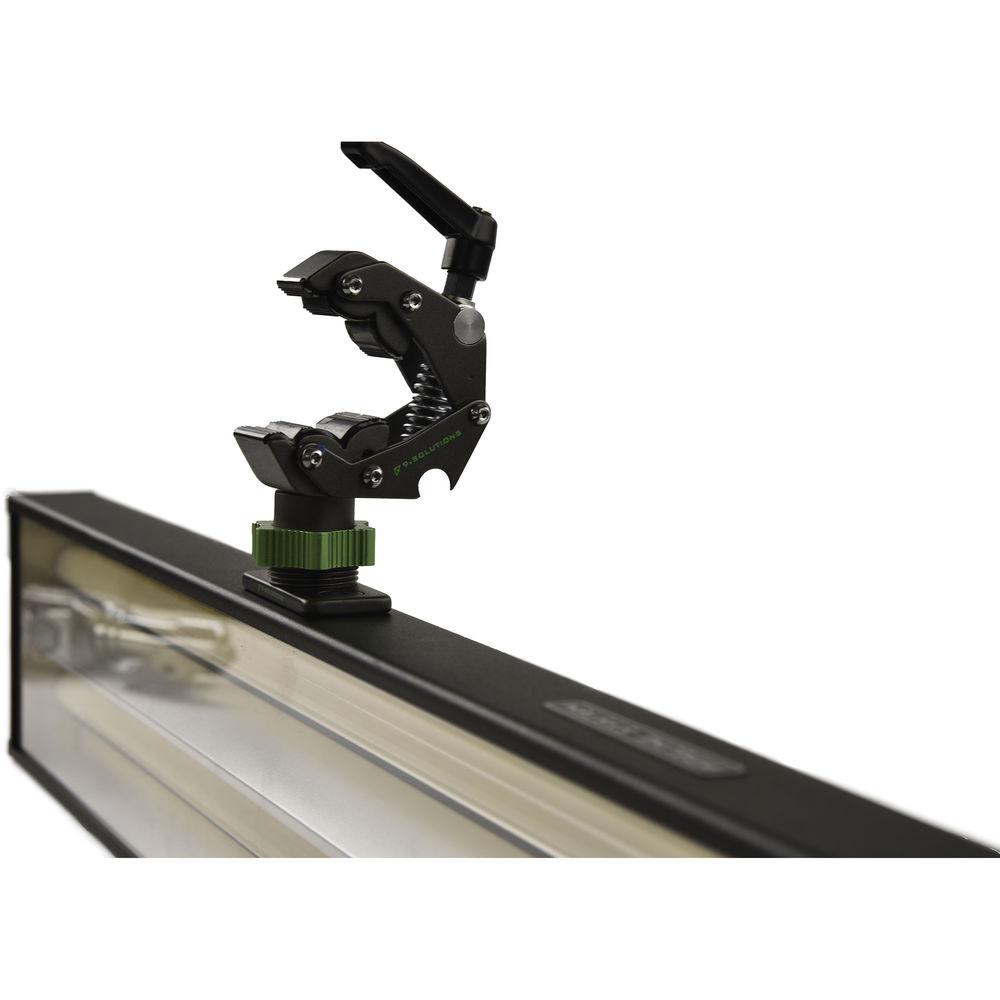

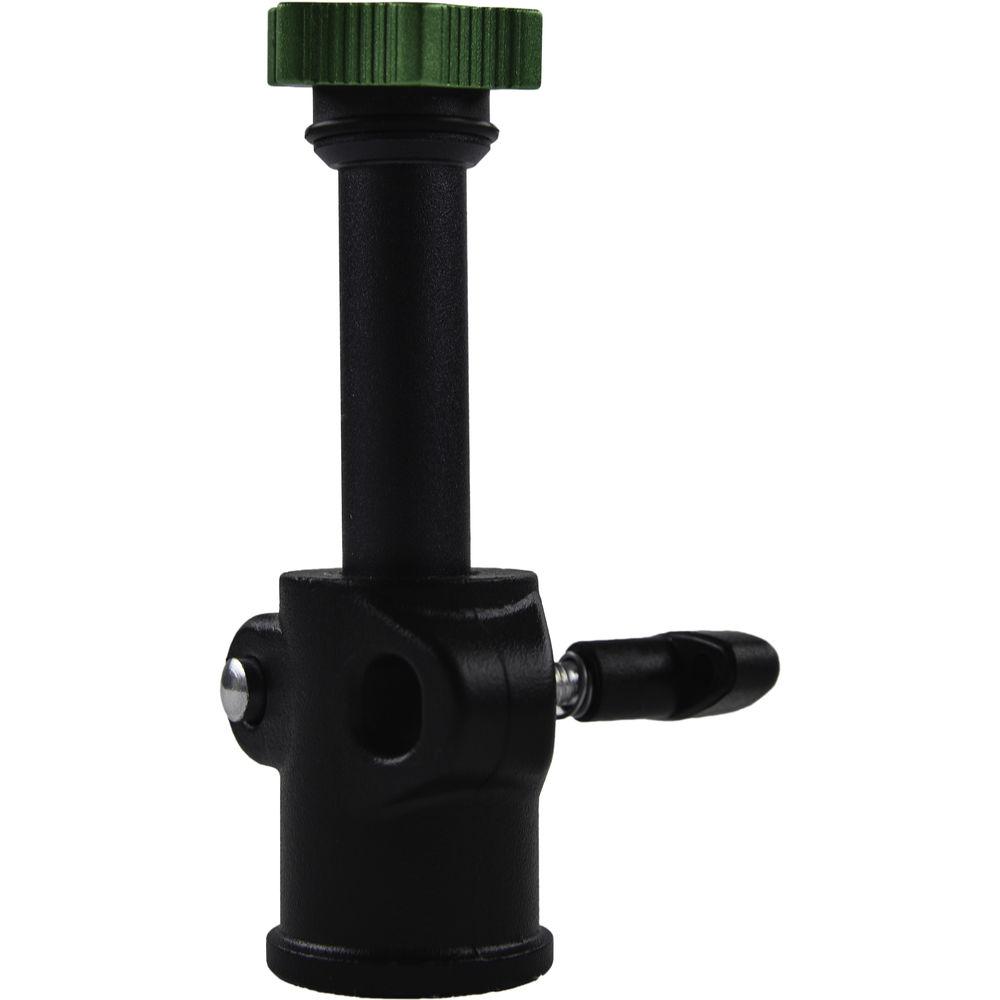

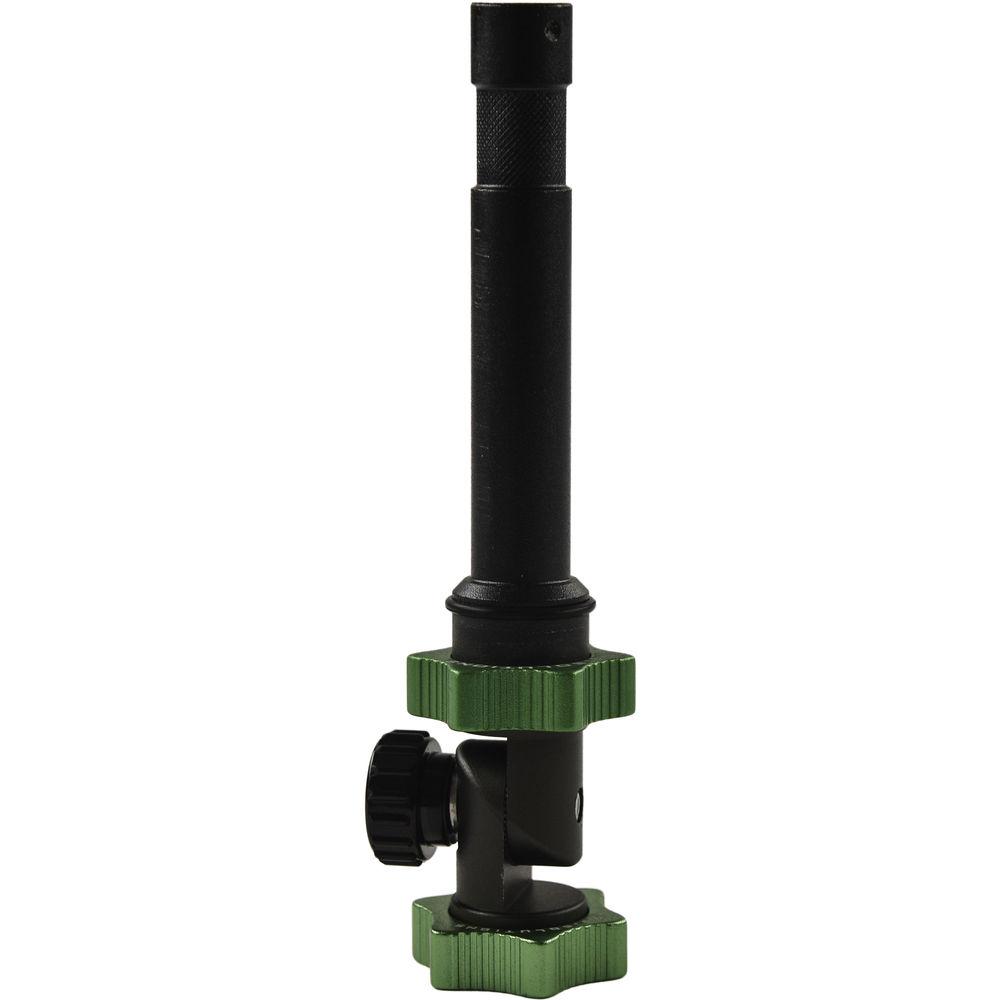

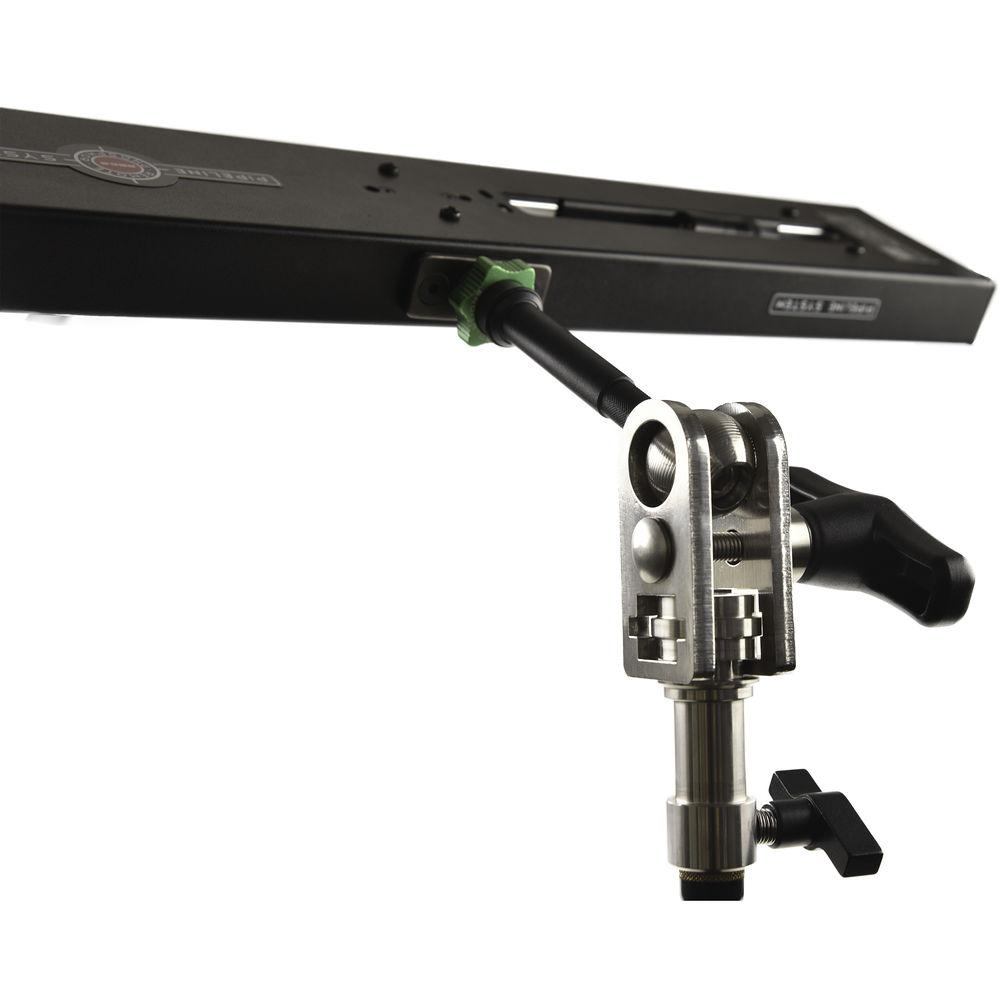

The bank's 3-pin XLR connector allows for plug-and-play functionality with the 4-Way Controller (available separately). The controller can power up to four 2' LED 2-Banks, allowing for full-range smooth dimming, either on-board or via DMX, with no color shift or flickering. Compact and lightweight, the Pipeline 2' LED 2-Bank can be mounted flush against a wall or ceiling, or suspended using the included yoke or optional hardware accessories. A honeycomb is also included. - High light output of 4000 lumens on 40W max draw
- Extremely accurate color rendition at TLCI 98+
- Space-saving 24 x 4 x 1.5" format
- 4-Way Controller with DMX can handle four of these banks, or three of these banks plus several 1' pipelines, or combinations of 2' 2-Banks and 1' 4-Banks
- Aluminum back channel for ruggedness
- Short cable with 3-pin XLR fits flush in back channel
UPC: 650135020178 In the Box BB&S Lighting Pipeline Remote Phosphor 2' LED 2-Bank (5600K) Honeycomb Yoke Limited 2-Year Warranty Data Sheet PDF 2.5mbazzeavfaecsswetddwtsyywze Table of Contents
|
Upload User Manual
Have you got an user manual for the BB&S Lighting Pipeline Remote Phosphor 2' LED 2-Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBB&S Lighting Pipeline Remote Phosphor Specs | Light Source | 2 x 2' remote phosphor LED pipes | | Brightness | 4000 lumens | | TLCI | 98+ | | Dimming | 100-0% via 4-Way Controller (available separately) | | Color Temperature | 5600K | | Dispersion | 180° | | Operating Temperature Range | 14 to 104°F (-10 to 40°C) | | Connectors | 3-pin XLR male on short cable | | Power | 100 to 240 VAC, 50/60 Hz via 48 V 4-Way Controller (available separately) | | Power Consumption | 40 W max | | Dimensions | 24 x 4 x 1.5" (60.96 x 10.16 x 3.81 cm) | | Weight | 3 lb (1.36 kg) |
