User Manual for be quiet! Dark Base 700 RGB LED Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Base 700 RGB
- Product category: Desktop Computer Cases be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Desktop Computer Cases
 |
User manual for the be quiet! Dark Base 700 RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Base 700 | be quiet!
- be quiet! Dark Base 700: Product presentation

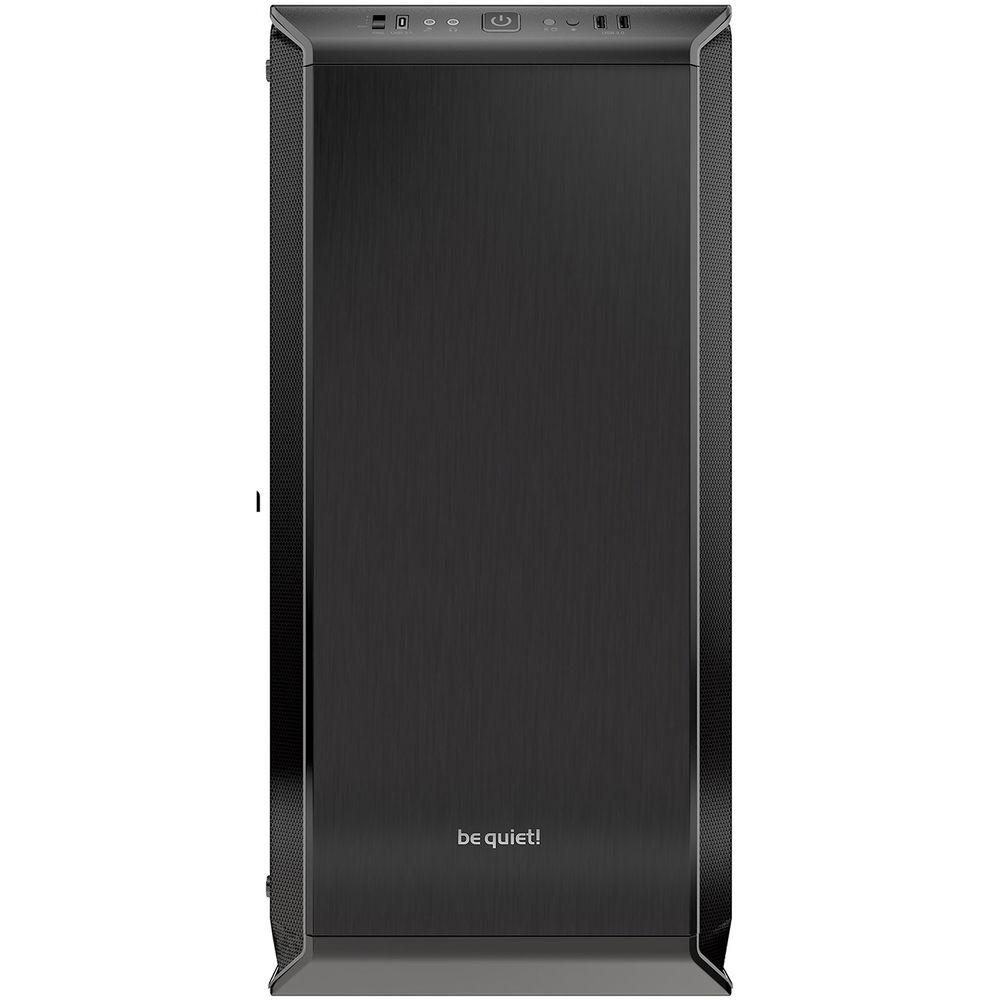

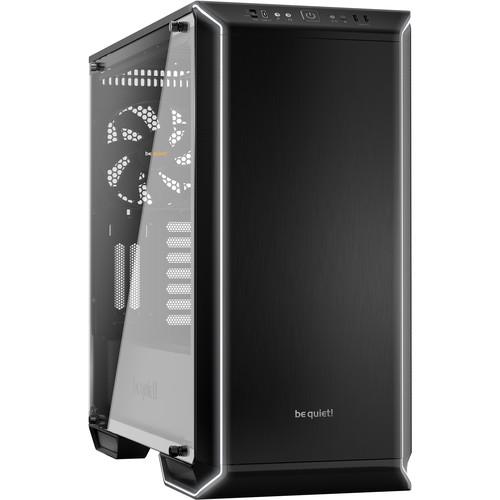

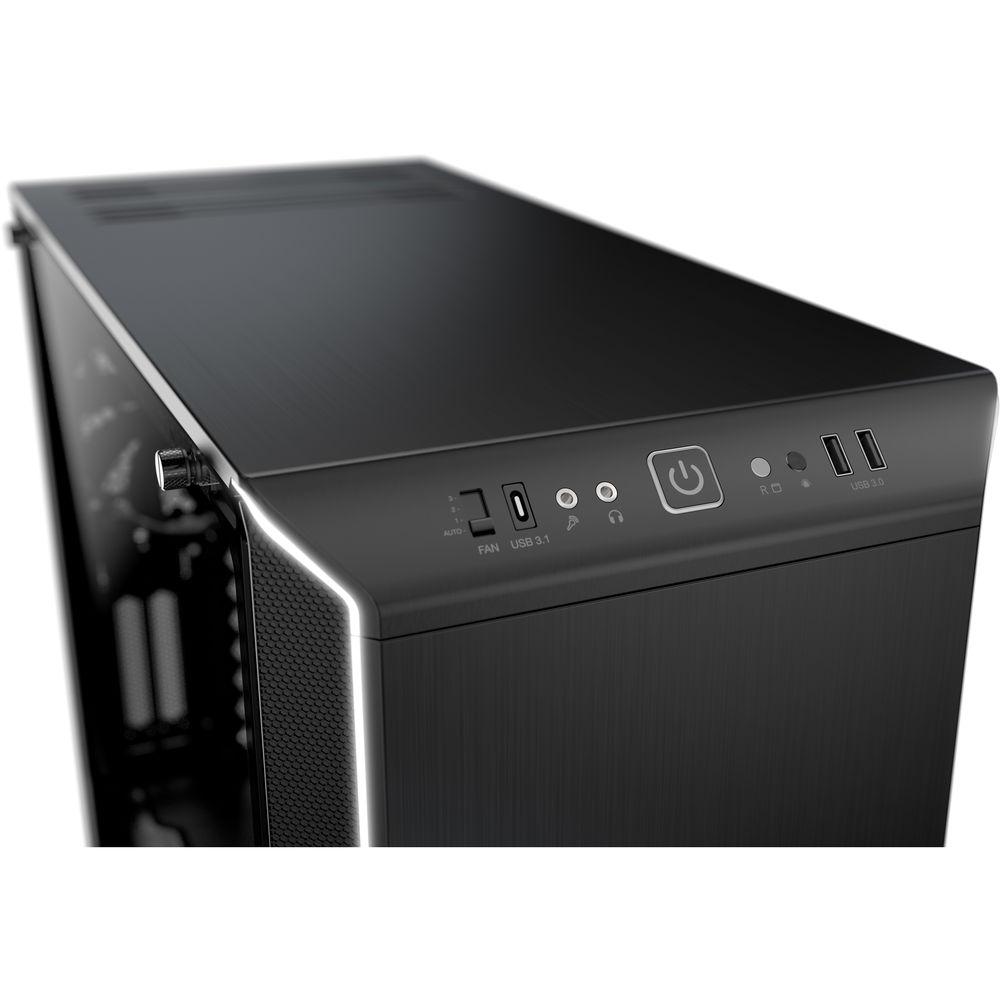

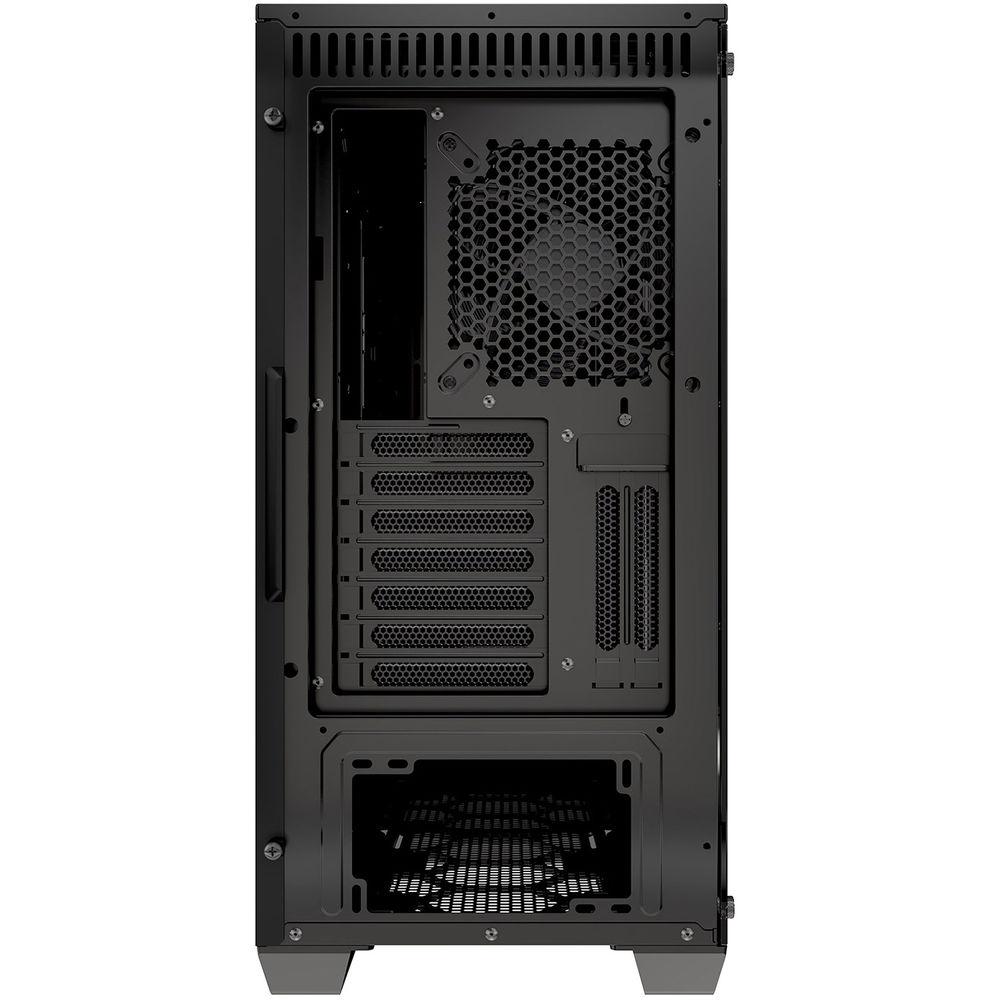

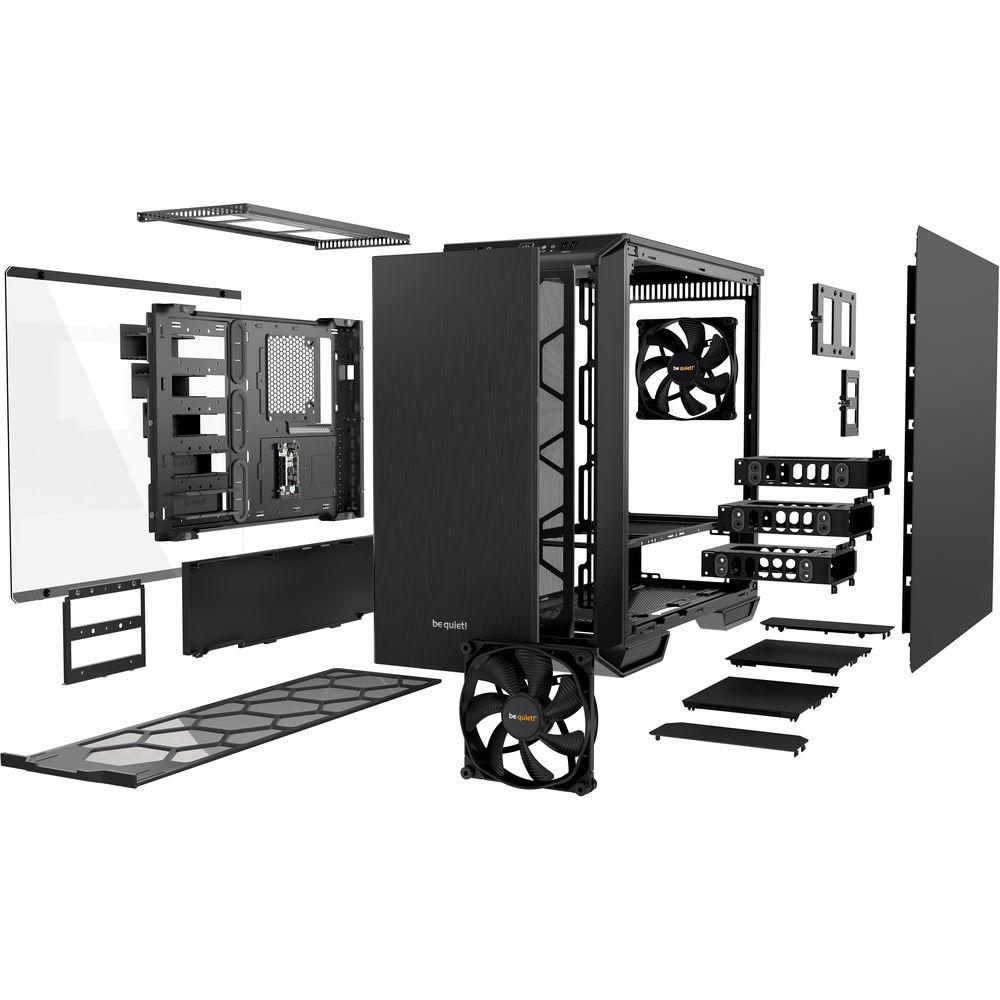

The Dark Base 700 RGB LED Mid-Tower Case from be quiet! is designed for quiet operation and efficient cooling. It can support up to an E-ATX motherboard with room to spare for additional storage drives, graphics cards and other PCIe-based expansion cards, and water-cooling hardware. There are also plenty of fan mounting spots and it comes with two pre-installed SilentWings 3 fans to keep things cool. To simplify hardware installation, be quiet! has designed this case with adjustable drive bays, which let you reposition them to fit a longer graphics card. Aesthetics-wise, it has a windowed side panel and built-in RGB LED lighting that you can customize and sync with other compatible lighting products. Once everything's in place, you'll have quick and easy access to USB ports, audio in/out jacks, as well as fan and lighting controls located at the front panel. - Versatile Motherboard Tray
- The motherboard tray can be installed in an inverted layout for an alternate airflow pattern. It can also be completely removed for a test bench setup.
- Modular HDD Slots

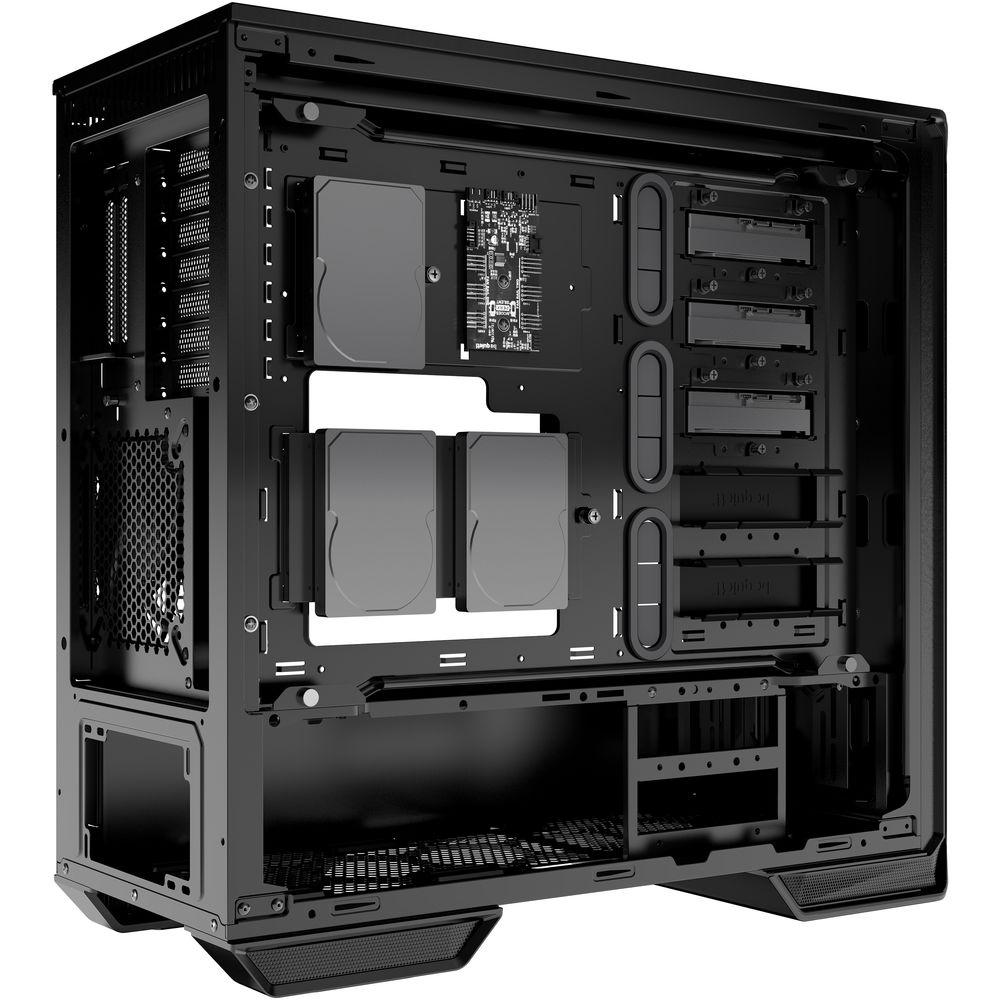

- This case has three modular HDD drive bays that can be reposition as needed. There are also slot covers to hide unused slots to keep the interior looking neat.
- RGB LED Lighting
- Aside from the windowed side panel, this case also features RGB LED lighting on the front panel. Switch from six colors, three lighting modes, and even sync it with your other compatible RGB products.
- SilentWings 3 Fans
- Included with this case are two SilentWings 3 140 mm PWM fans, which feature a six-pole motor, fluid-dynamic bearing, and optimized fan blades. They're designed to generate high air pressure and can reach up to 1600 rpm.
- Dual Rail Fan Controller
- Located on the back is a fan controller that supports up to six PWM fans divided over two rails. Each can be switched between performance and silent mode to create two cooling zones if needed. It's controlled by a slider on the front panel with four speed settings.
- Liquid-Cooling

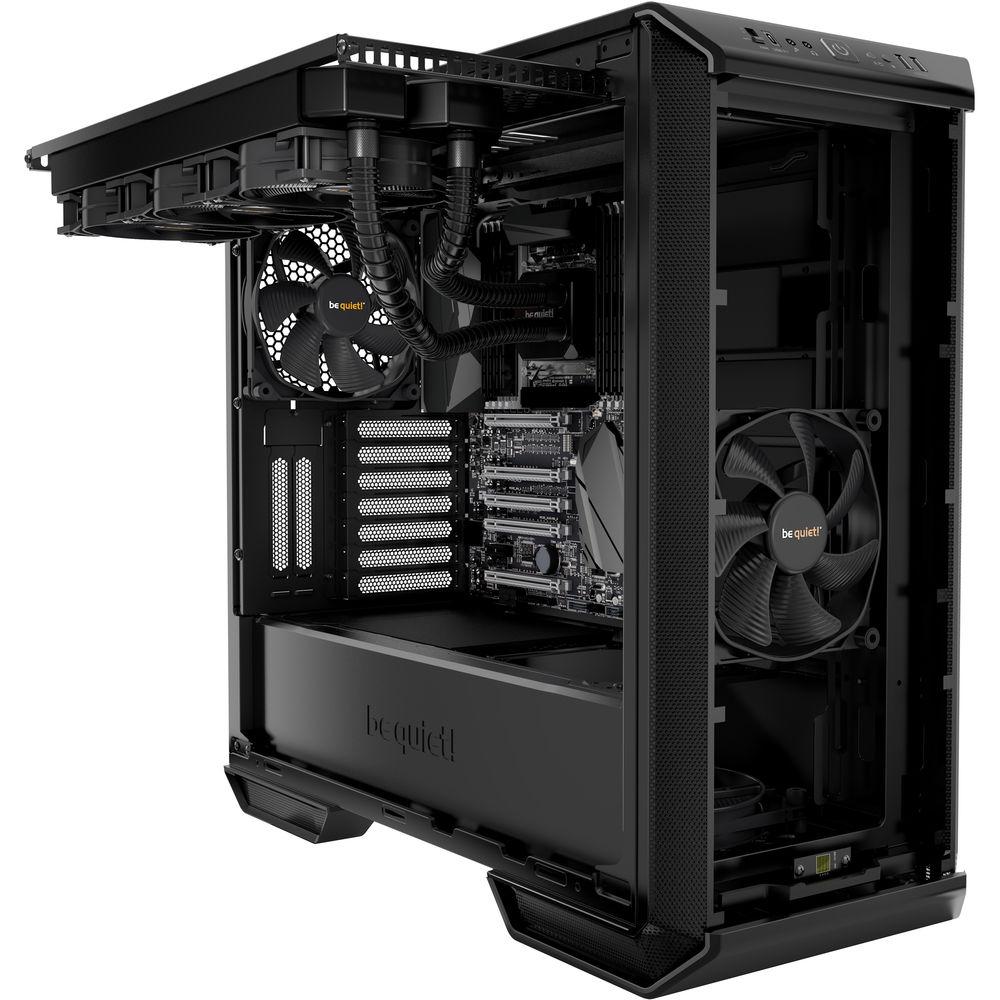

- For your convenience, the top bracket is detachable, so you can install radiators and fans before mounting them as a complete unit into the case.
- PSU Shroud
- The PSU shroud not only hides your PSU from view, but also can be removed when not needed. Additionally, it supports up to a 120 or 140 mm fan for extra cooling.
In the Box be quiet! Dark Base 700 RGB LED Mid-Tower Case Accessories Kit Limited 3-Year Warranty User Manual PDF 15mbwsstryaqtdadfzzzqfvwzsdbzeayuexas Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Base 700 RGB LED Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Base 700 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 3 x 3.5"
9 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 16.93" / 430 mm | | CPU Cooler Height | 7.09" / 180 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.22" / 285 mm | | | | Fan Mounting (Front) | 2 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Rear) | 1 x 140 mm
1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Bottom) | 1 x 140 mm
Or
1 x 120 mm
| | Fans Included (Front) | 1 x 140 mm (1600 Variable rpm) | | Fans Included (Rear) | 1 x 140 mm (1600 Variable rpm) | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Fan Mounting (Internal) | 1 x 140 mm
Or
1 x 120 mm
| | Noise Level | 28.1 dBA | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front, Side | | | | Connections | 2 x USB Type-A (USB 3.0)
1 x USB Type-C (USB 3.1) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Aluminum, Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 9.5 x 20.4 x 21.4" / 241.0 x 519.0 x 544.0 mm | | Weight | 29.1 lb / 13.2 kg | | | | Package Weight | 32.7 lb | | Box Dimensions (LxWxH) | 25.8 x 23.3 x 13.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to be quiet! Dark Base 700 RGB LED Mid-Tower Case
| Subject: Can I install a DVD player | | Date: 25.01.2021 10:00:19 | Name: George Scerri | | Can I install a DVD player | | Post reply |
