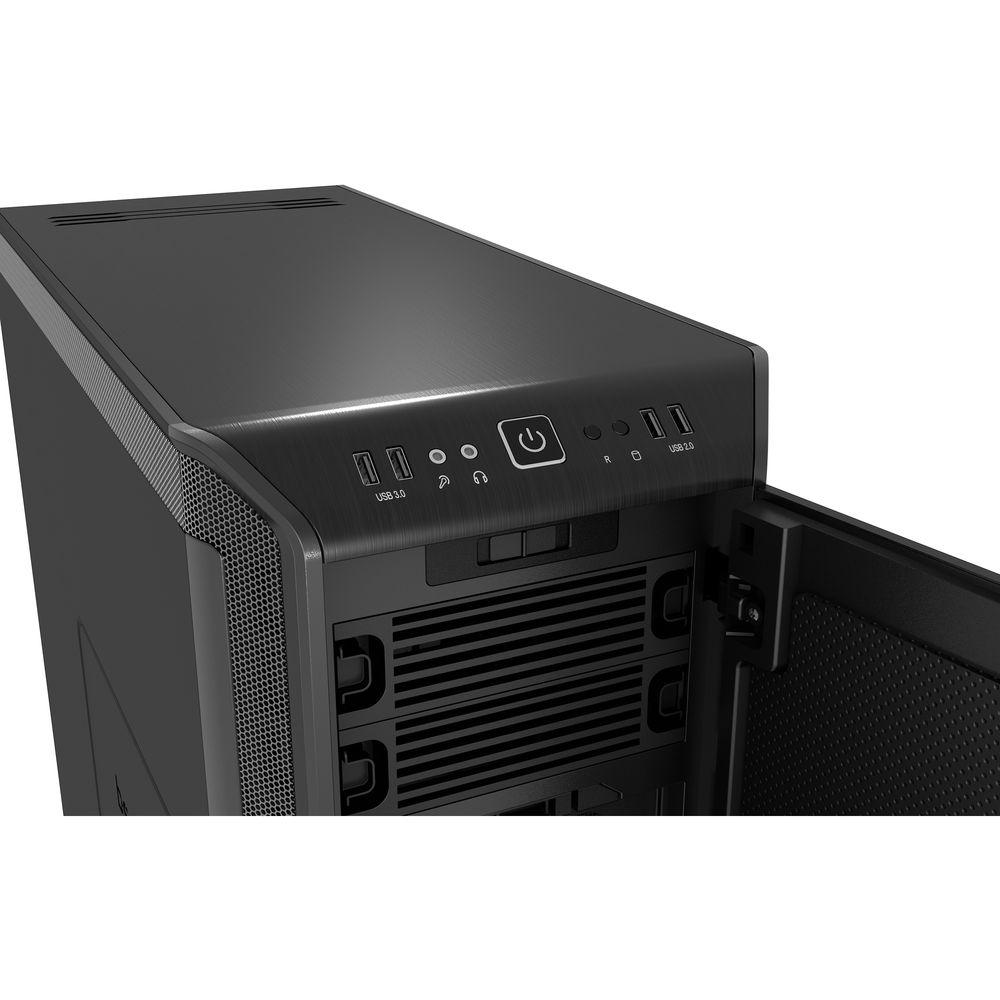

User Manual for be quiet! Dark Base 900 Full-Tower Case Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Base 900 Full-Tower
- Product category: Desktop Computer Cases be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Desktop Computer Cases
 |
User manual for the be quiet! Dark Base 900 Full-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Base (Pro) 900 | be quiet!

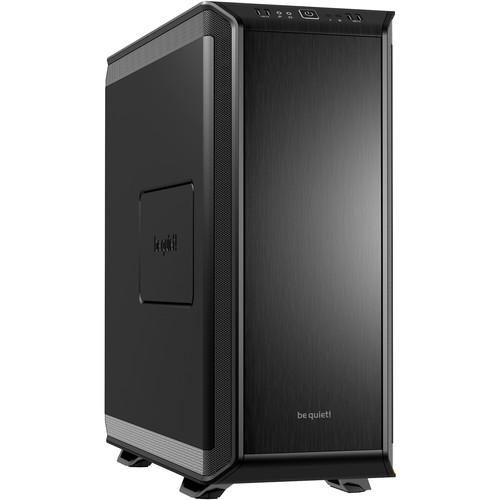

The Dark Base 900 Full-Tower Case from be quiet! is a large case designed for enthusiasts looking to pack as much power as they can into a cool yet quiet chassis. It can fit up to an E-ATX motherboard, two 5.25" optical drives, seven 3.5" and fifteen 2.5" storage drives, and eight PCIe expansion cards. With that much room for hardware, the Dark Base 900 has plenty of fan mounting slots to help keep your system at manageable temperatures. Moreover, you can install all-in-one or custom liquid-cooling hardware for even lower temperatures. Once everything is in place, you'll have access to four USB ports and audio in/out jacks located at the front panel. - Relocatable Motherboard Tray

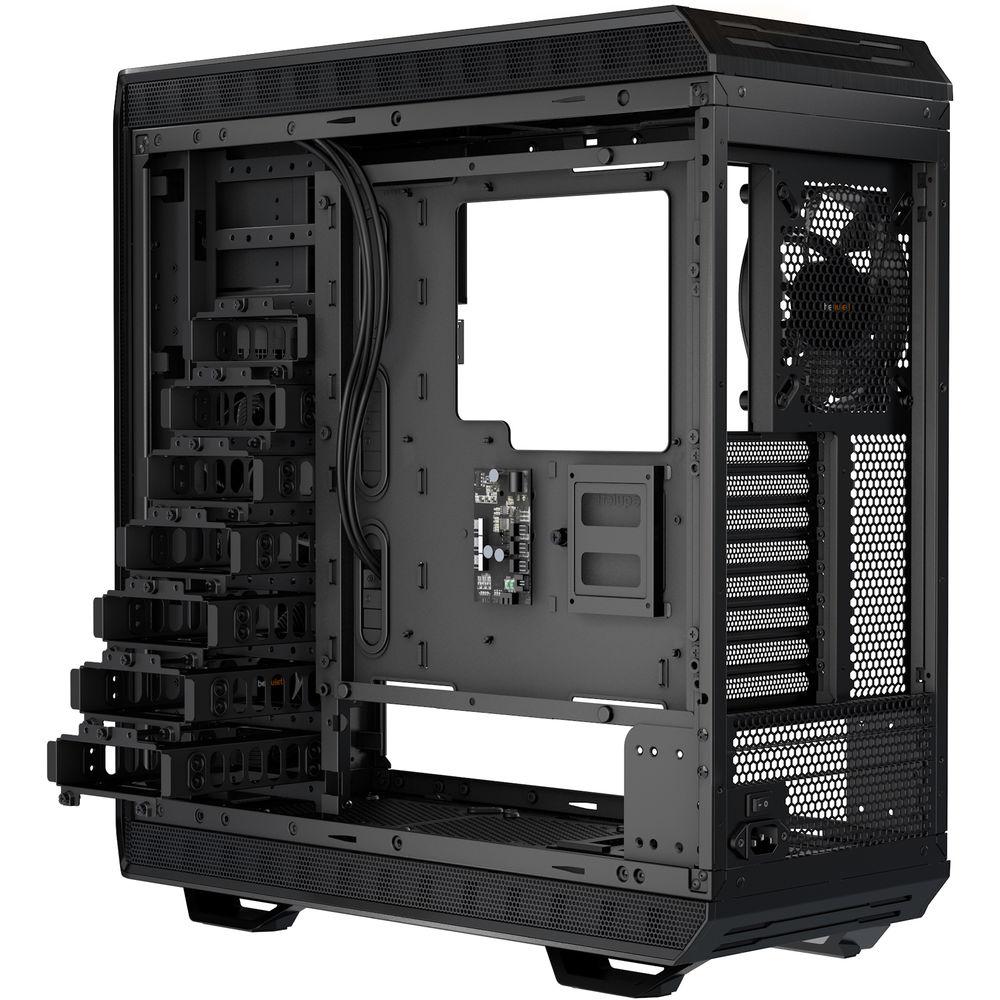

- The motherboard case within this case can be adjusted to three different heights or installed along the left panel in an inverted airflow. It's compatible with E-ATX and XL-ATX motherboards for enthusiast builds.
- Silent Wings 3

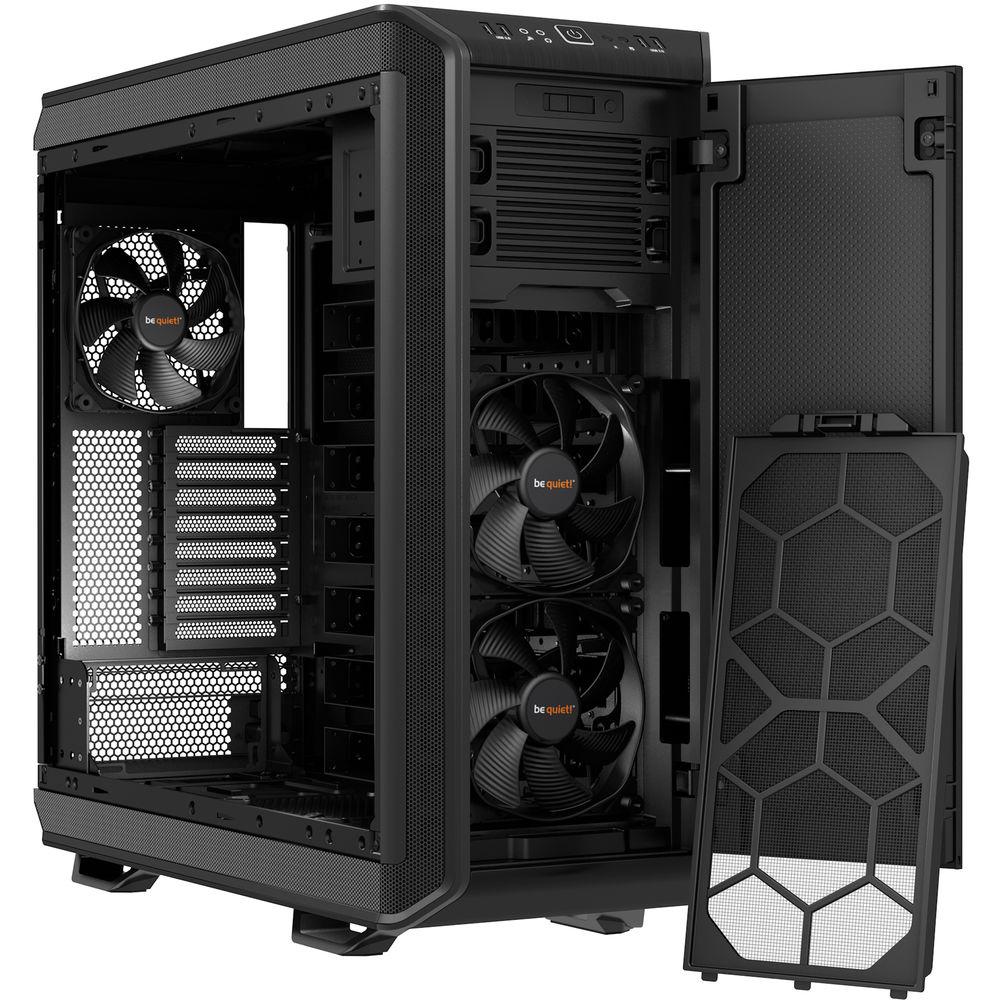

- Three pre-installed 140mm Silent Wings 3 fans help keep your system operating smoothly. They are built with a smooth-running 6-pole motor, durable fluid-dynamic bearings, and an airflow-optimized fan blade design. Furthermore, the frame has funnel-shaped air inlets to help increase air pressure.
- Modular HDD Slots
- Install as many drives in whatever configuration you need. This case supports up to seven HDDs, 15 SSDs, and 2 optical drives.
- Full Circuit Airflow System
- To keep things cool, the Dark Base 900 supports up to nine additional fans and up to four radiators for custom liquid-cooling setups.
- Adjustable Side Panel
- The side panel is fully adjustable, allowing you to close it for silence, partially open it for more air intake, or completely removed to mount up to two additional 120mm fans.

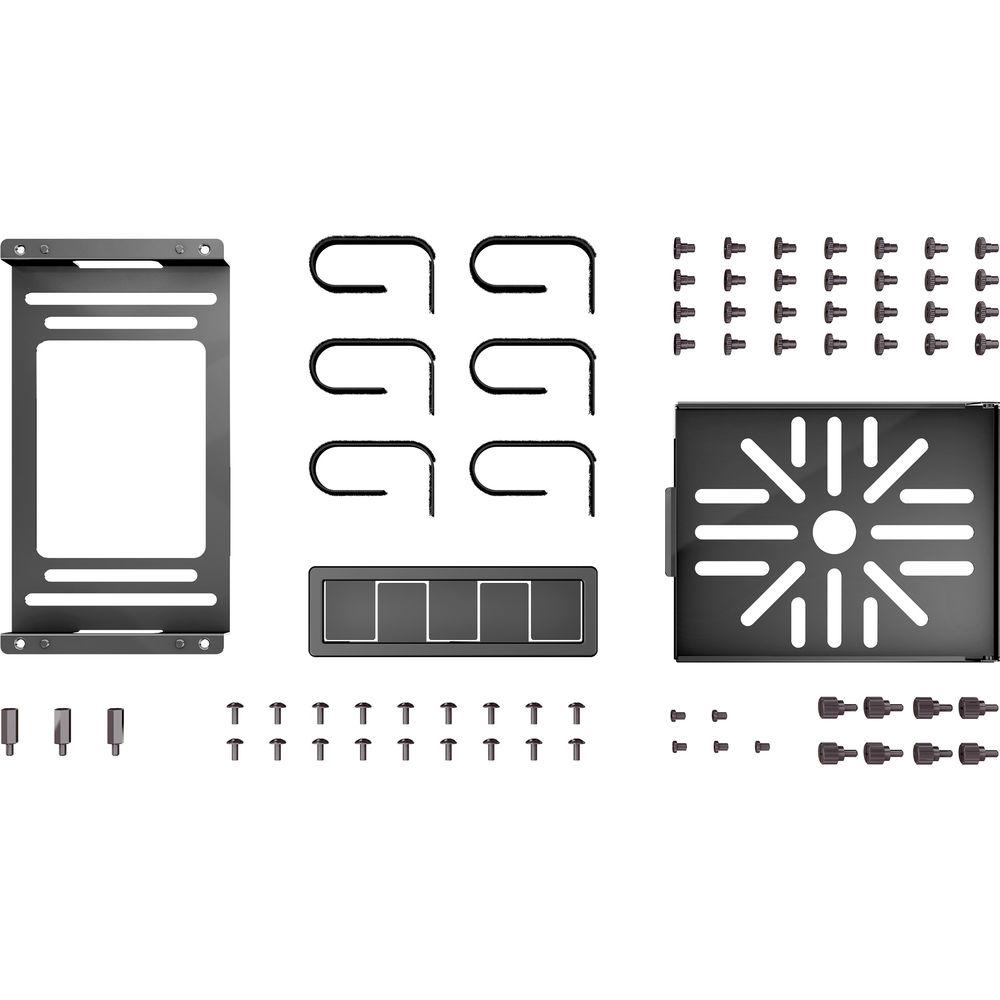

In the Box be quiet! Dark Base 900 Full-Tower Case (Black) Screw Kit Limited 3-Year Warranty User Manual PDF 36.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Base 900 Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Base 900 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, XL-ATX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 7 x 3.5"
15 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 18.58" / 472 mm | | CPU Cooler Height | 7.28" / 185 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.18" / 284 mm | | | | Fan Mounting (Front) | 3 x 140 mm
| | Fan Mounting (Rear) | 1 x 140 mm
| | Fan Mounting (Side) | 2 x 120 mm
| | Fan Mounting (Top) | 3 x 140 mm
Or
4 x 120 mm
Or
1 x 180 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 2 x 140 mm (1000 Variable rpm) | | Fans Included (Rear) | 1 x 140 mm (1000 Variable rpm) | | Maximum Radiator Size (Front) | 1 x 420 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 420 mm | | Maximum Radiator Size (Bottom) | 1 x 280 mm | | Fan Mounting (Internal) | None | | Noise Level | 15.5 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Side | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 9.6 x 23.0 x 22.7" / 243.0 x 585.0 x 577.0 mm | | Weight | 31.3 lb / 14.2 kg | | | | Package Weight | 38.85 lb | | Box Dimensions (LxWxH) | 27.0 x 26.0 x 13.1" |
