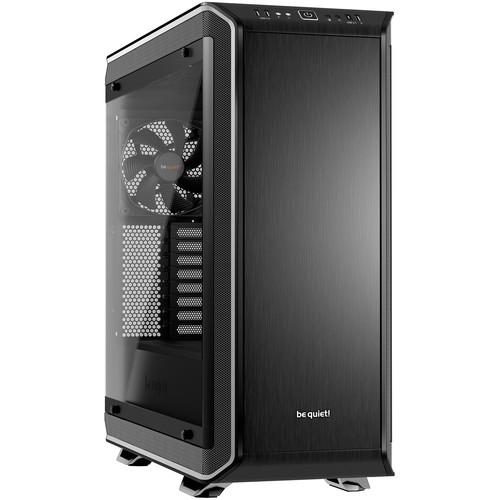

User Manual for be quiet! Dark Base Pro 900 rev. 2 Full-Tower Case Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Base Pro 900
- Product category: Desktop Computer Cases be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Desktop Computer Cases
 |
User manual for the be quiet! Dark Base Pro 900 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Base Pro 900 rev.2 | Product presentation | be quiet!
- Installation: How to invert a Dark Base Pro 900 rev.2

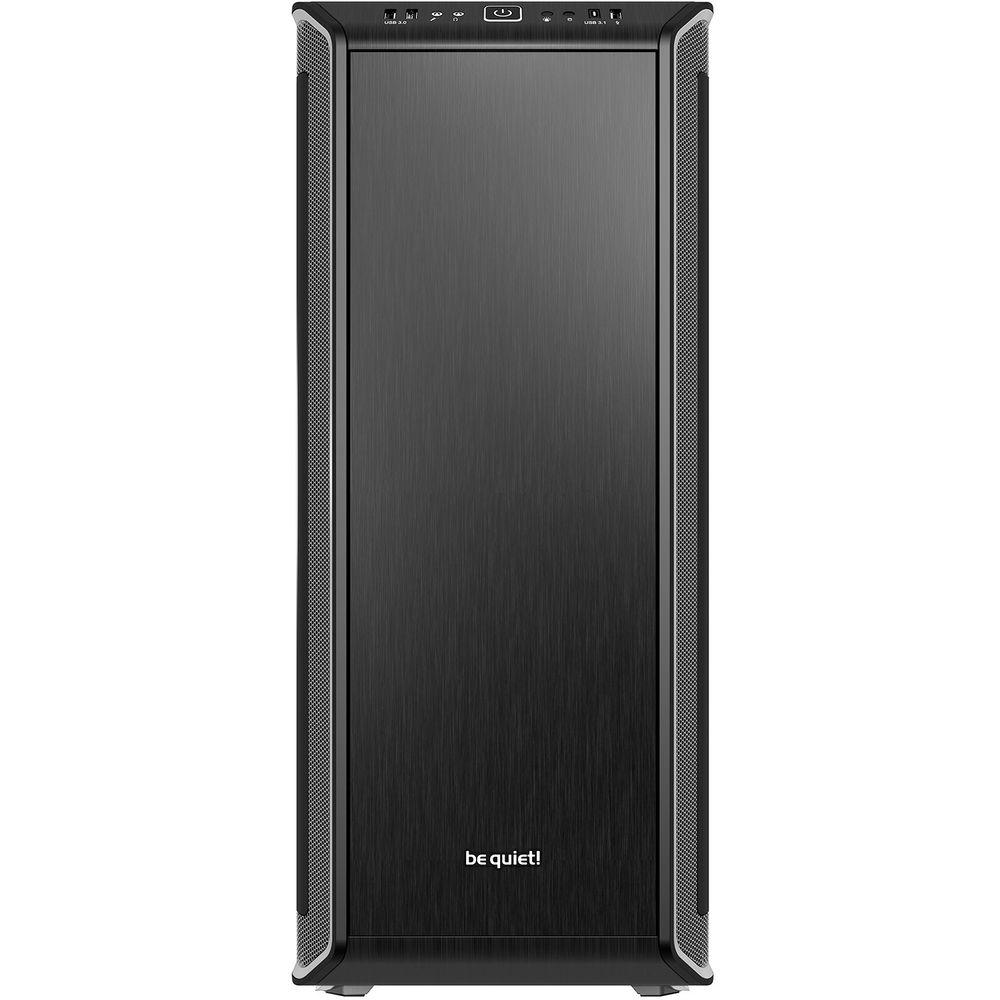

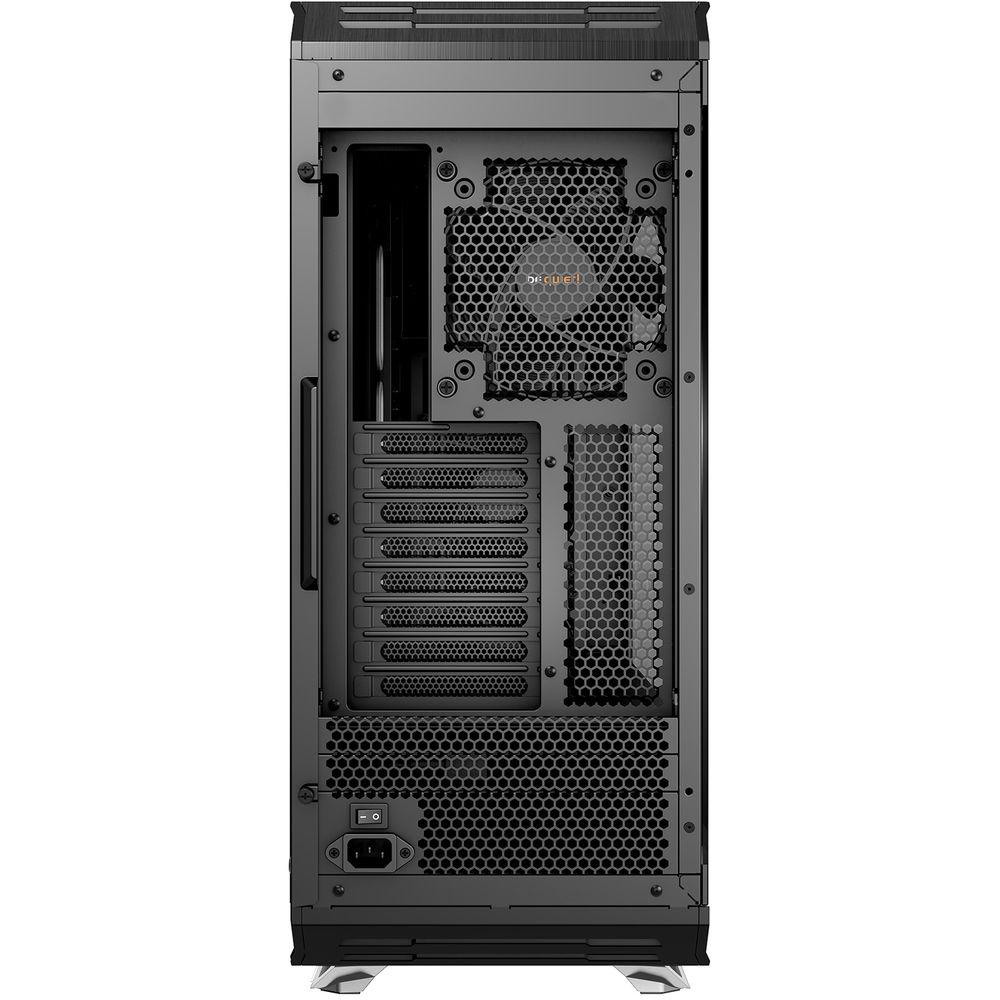

Build an eye-catching PC that's designed to stay cool while keeping noise to a minimum with the Dark Base Pro 900 rev. 2 Full-Tower Case from be quiet!. Compatible with E-ATX, XL-ATC, ATX, Micro-ATX, and Mini-ITX motherboards, the Dark Base Pro 900 rev. 2 comes with two 5.25" drive bays, five 3.5" drive bays, and ten 2.5" drive bays. The silver case has room for front, top, and rear radiators, and three 140mm fans are included. Noise-reducing vents help to ensure quiet operation, while a dual-rail fan controller lets you create two cooling zones that can be controlled using a front-panel switch. The case also features a tinted tempered-glass side window, internal LED lighting with six switchable colors, and an integrated Qi wireless charger. - Relocatable Motherboard Tray

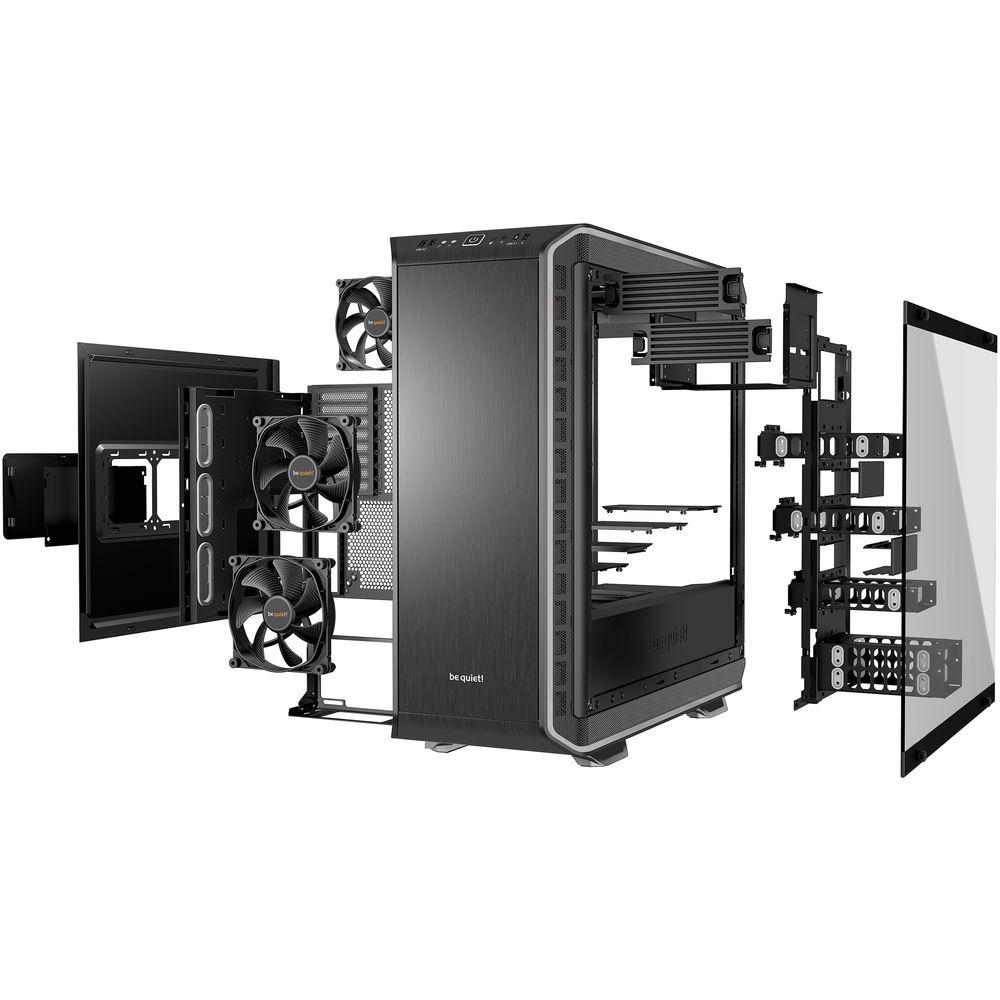

- The decoupled motherboard tray adapts to suit individual requirements. You can adjust it to three different heights, install it alongside the left panel in an inverted layout with redefined airflow, or use it as a test bench. It is fully compatible with E-ATX and XL-ATX motherboards.
- Pre-Installed Fans

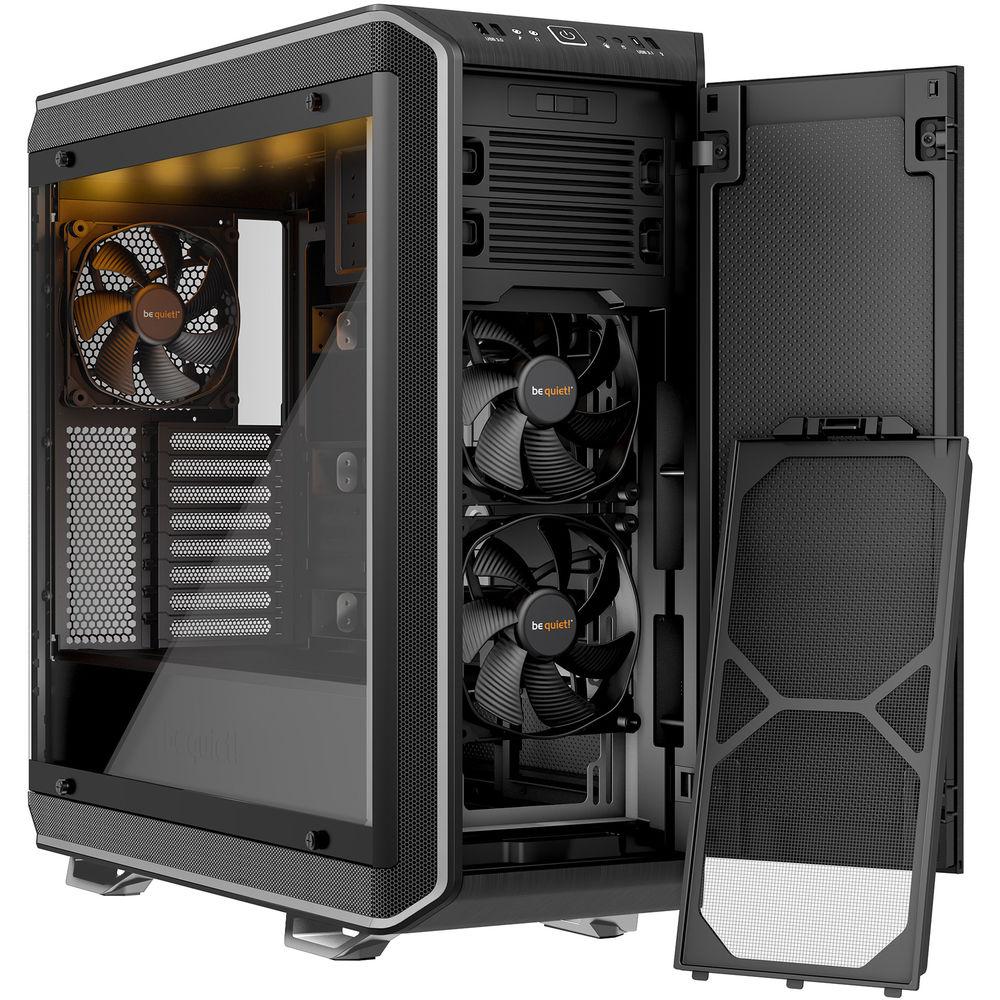

- The three pre-installed Silent Wings 3 140mm PWM fans offer virtually inaudible operation. They are equipped with a smooth-running 6-pole motor, a durable fluid-dynamic bearing, and airflow-optimized fan blade design. The frame has funnel-shaped air inlets that generate high air pressure.
- Modular HDD Slots

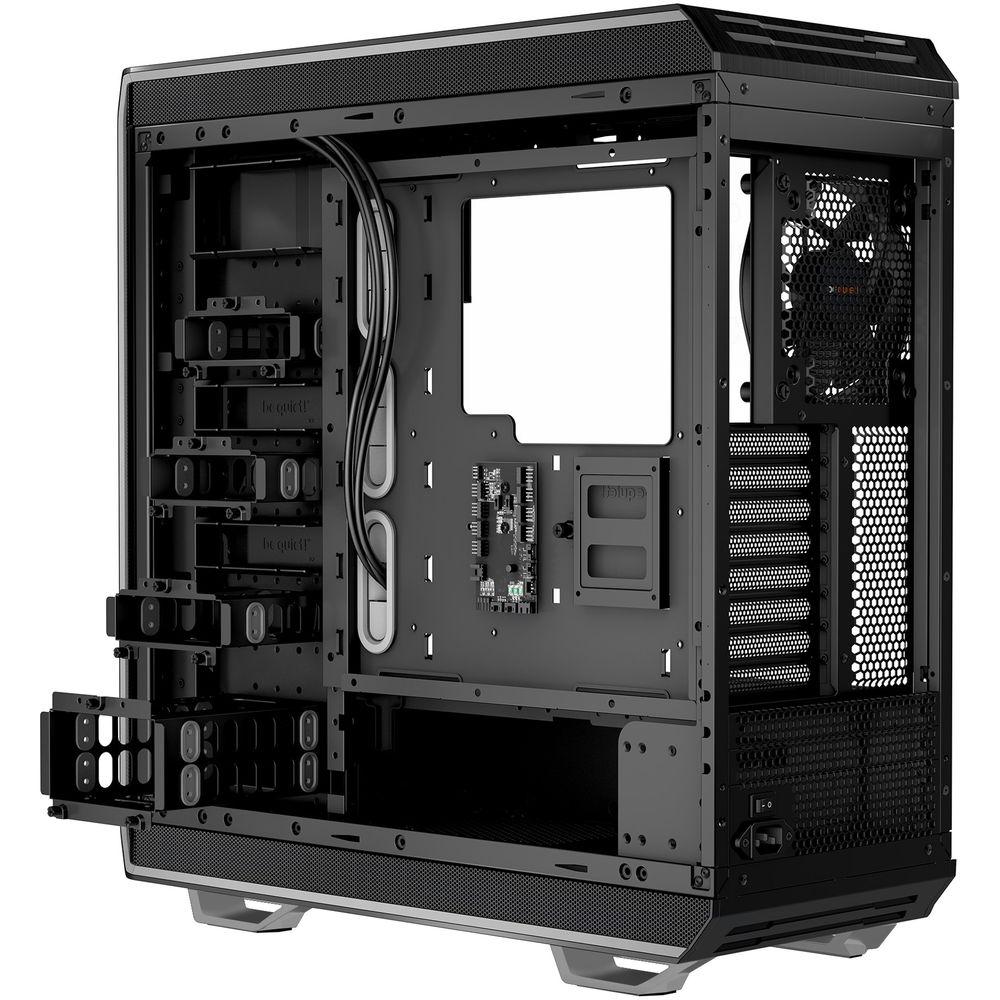

- Drive bay installation options are flexible thanks to repositionable single HDD slots. Supports up to 5 HDDs, 10 SSDs, and 2 optical drives out of the box. The practical slot covers serve to hide any unused HDD slots and keep the inner workings neat and tidy.
- Functional PSU Shroud
- The PSU shroud offers a variety of solutions besides simply hiding the PSU and keeping the system tidy. The cover plates are separately detachable, making it possible to install a fan or an SSD on the top of the PSU shroud while leaving enough space for a radiator in the front.
- Full-Circuit Airflow System
- With its smart silence concept, the Dark Base Pro 900 rev. 2 is an ideal case for the requirements of overclocked systems and super-silent water-cooled PCs. It can carry up to seven additional fans, up to four radiators, and has noise-reducing vents all around the case that provide full-circuit airflow.
- Dual-Rail Fan Controller
- The eight PWM fan connectors are divided over two rails, and each is switchable between Silence and Performance modes. This makes it possible to create two cooling zones that can be controlled using the front panel switch. If you want all fans to run at the same speed, you can switch both channels to the same mode.
- Tempered Glass and LEDs

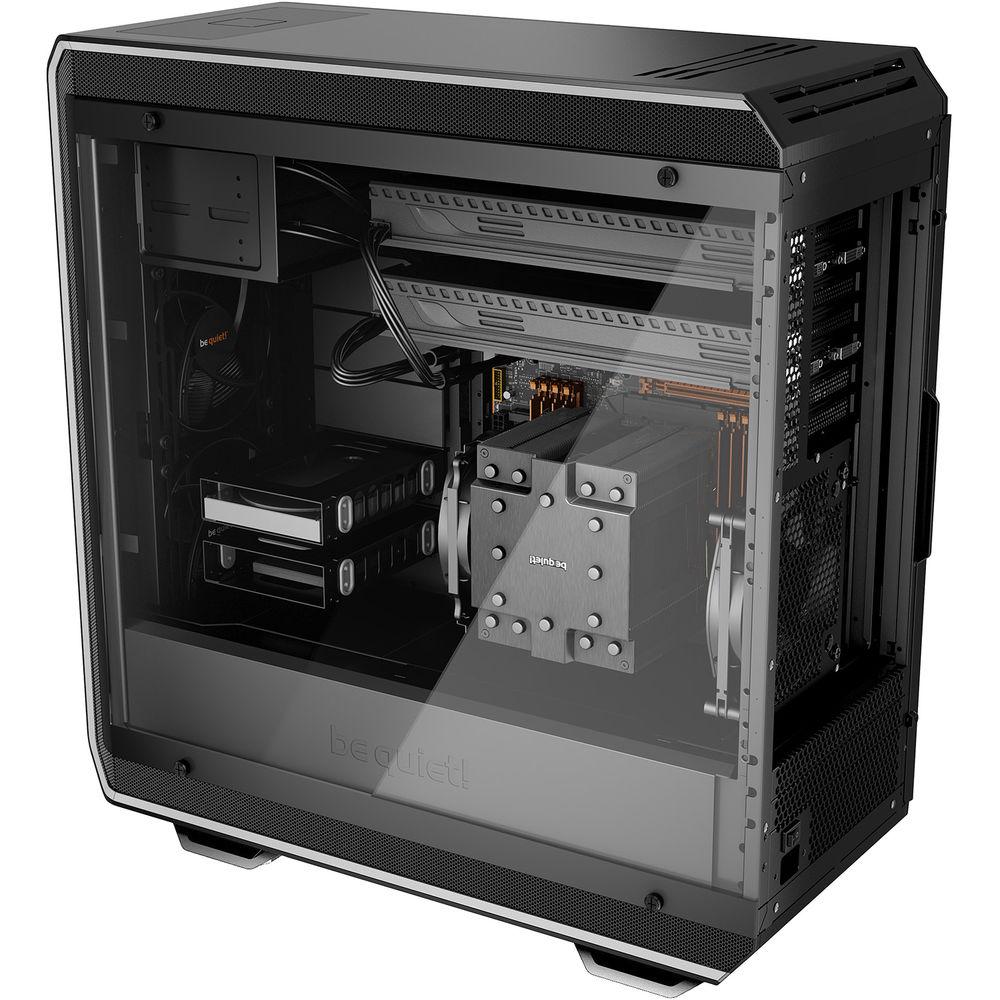

- The case is equipped with a windowed side panel that is made of tinted and tempered glass. The eye-catching internal LED illumination comes in six switchable colors. You can position the LED strips freely inside the PC case.
- Smart I/O Port and Qi-Enabled Charger

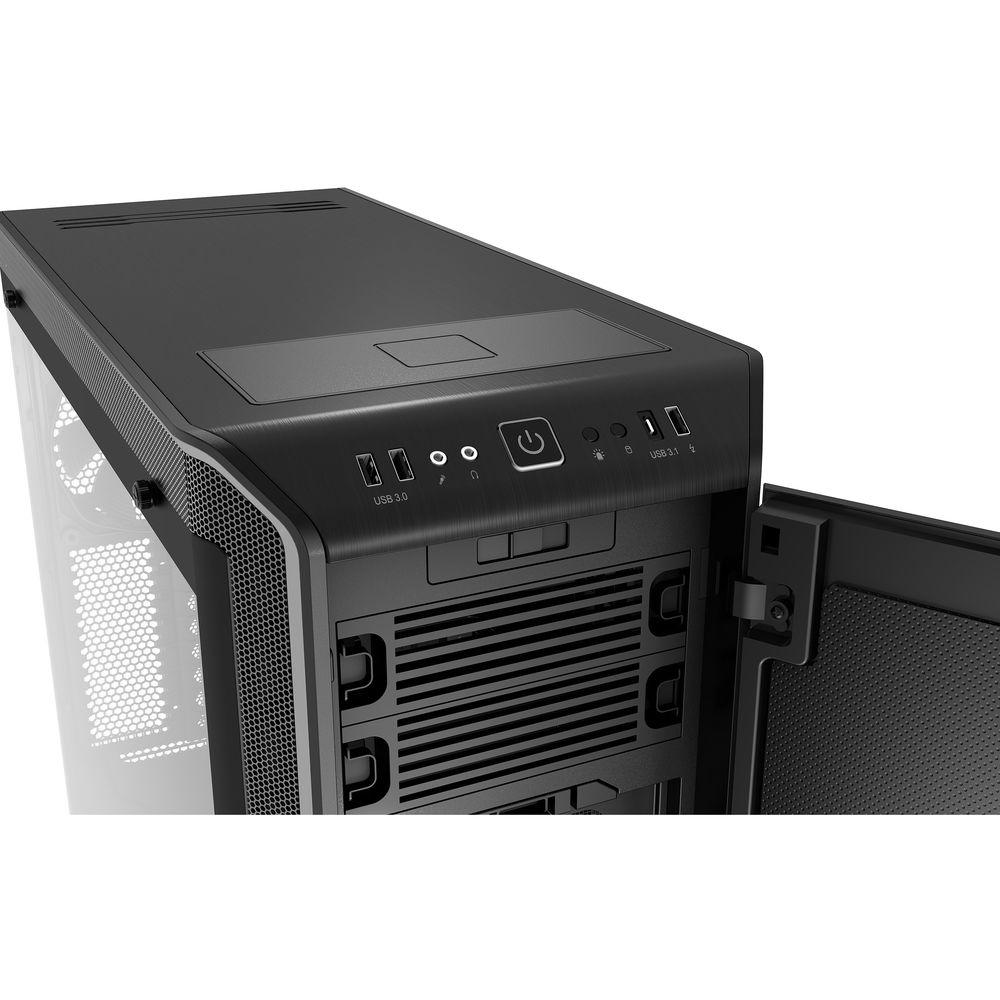

- The front I/O port includes a USB 3.1 Gen 2 Type-C port, while an integrated Qi-enabled charger allows for wireless charging of phones and other compatible devices.

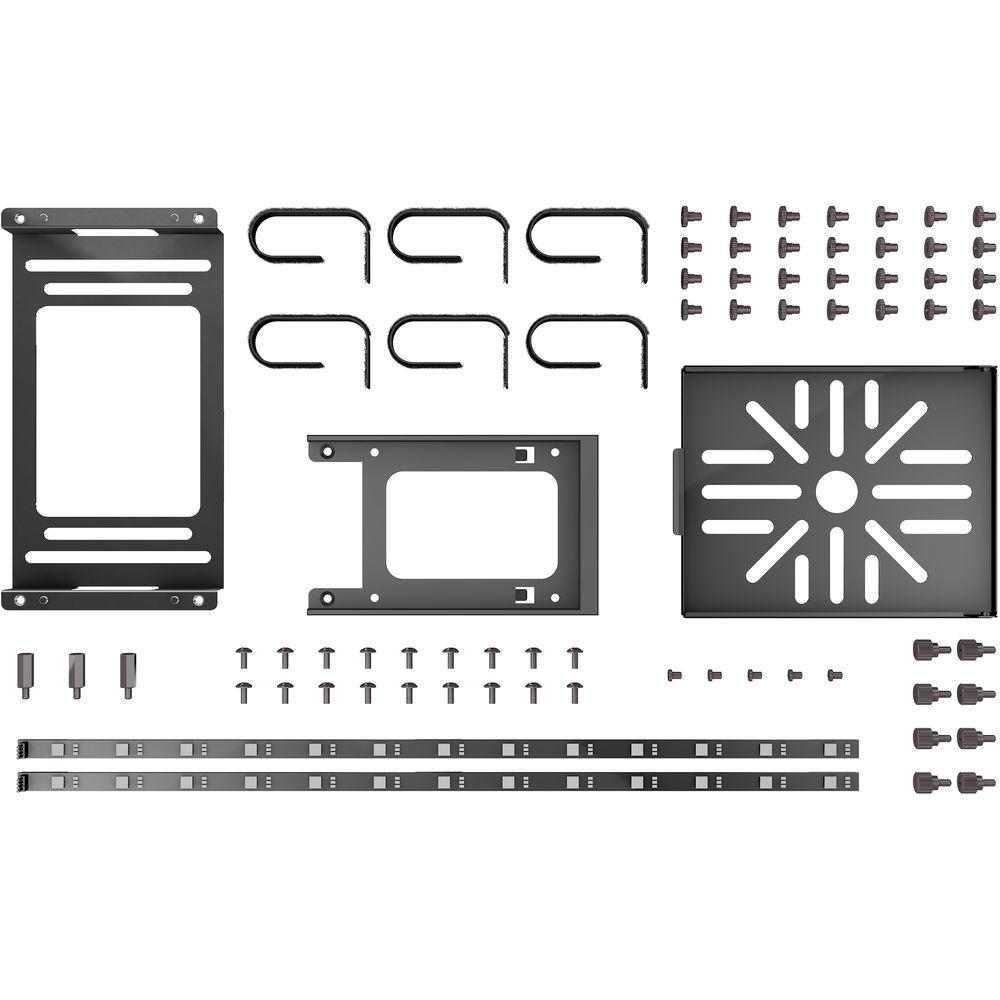

In the Box be quiet! Dark Base Pro 900 rev. 2 Full-Tower Case (Silver) Screw Kit 3 x Motherboard Standoffs (for E-ATX) LCS Bracket 6 x HDD Slot Covers Upper Fan Bracket SSD Bracket for PSU Shroud LED Strip 6 x Cable Ties Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Base Pro 900 rev. 2 Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! BGW16 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, XL-ATX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 5 x 3.5"
10 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 18.58" / 472 mm | | CPU Cooler Height | 7.28" / 185 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.18" / 284 mm | | | | Fan Mounting (Front) | 3 x 140 mm
| | Fan Mounting (Rear) | 1 x 140 mm
| | Fan Mounting (Top) | 3 x 140 mm
Or
4 x 120 mm
| | Fan Mounting (Bottom) | 2 x 140 mm
Or
2 x 120 mm
| | Fans Included (Front) | 2 x 140 mm (1600 rpm) | | Fans Included (Rear) | 1 x 140 mm (1600 rpm) | | Maximum Radiator Size (Front) | 1 x 420 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 420 mm | | Fan Mounting (Internal) | 1 x 120 mm
| | Noise Level | 28.1 dBA | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front, Side | | | | Connections | 2 x USB Type-A (USB 3.0)
1 x USB Type-C (USB 3.1) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Aluminum, Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 22.7 x 9.6 x 23.1" / 577.0 x 243.0 x 586.0 mm | | Weight | 31.7 lb / 14.4 kg | | | | Package Weight | 41.36 lb | | Box Dimensions (LxWxH) | 26.7 x 25.9 x 12.9" |
