Product description - Dark Power Pro 11 | be quiet!
- Putting Dark Power Pro 11 to the test: The be quiet! mining PC

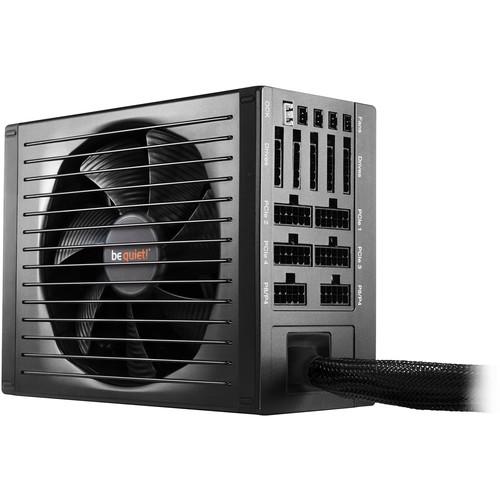

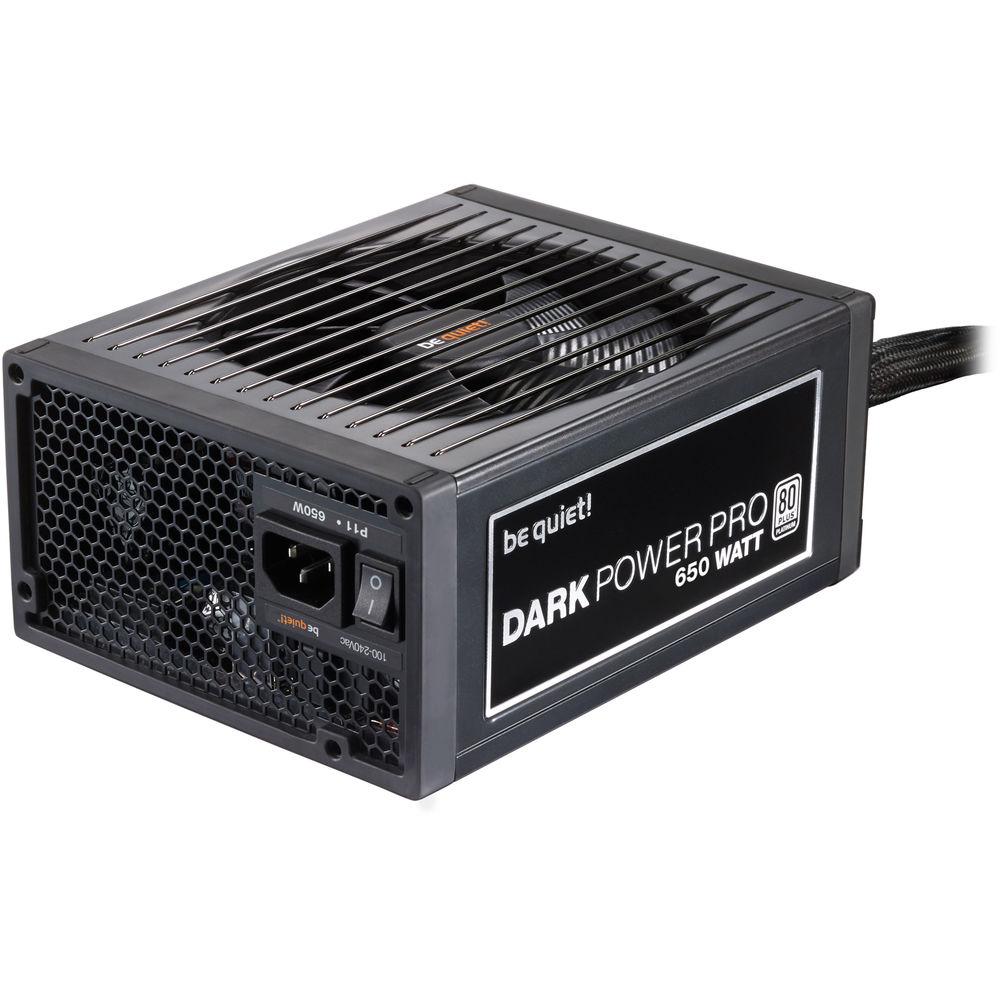

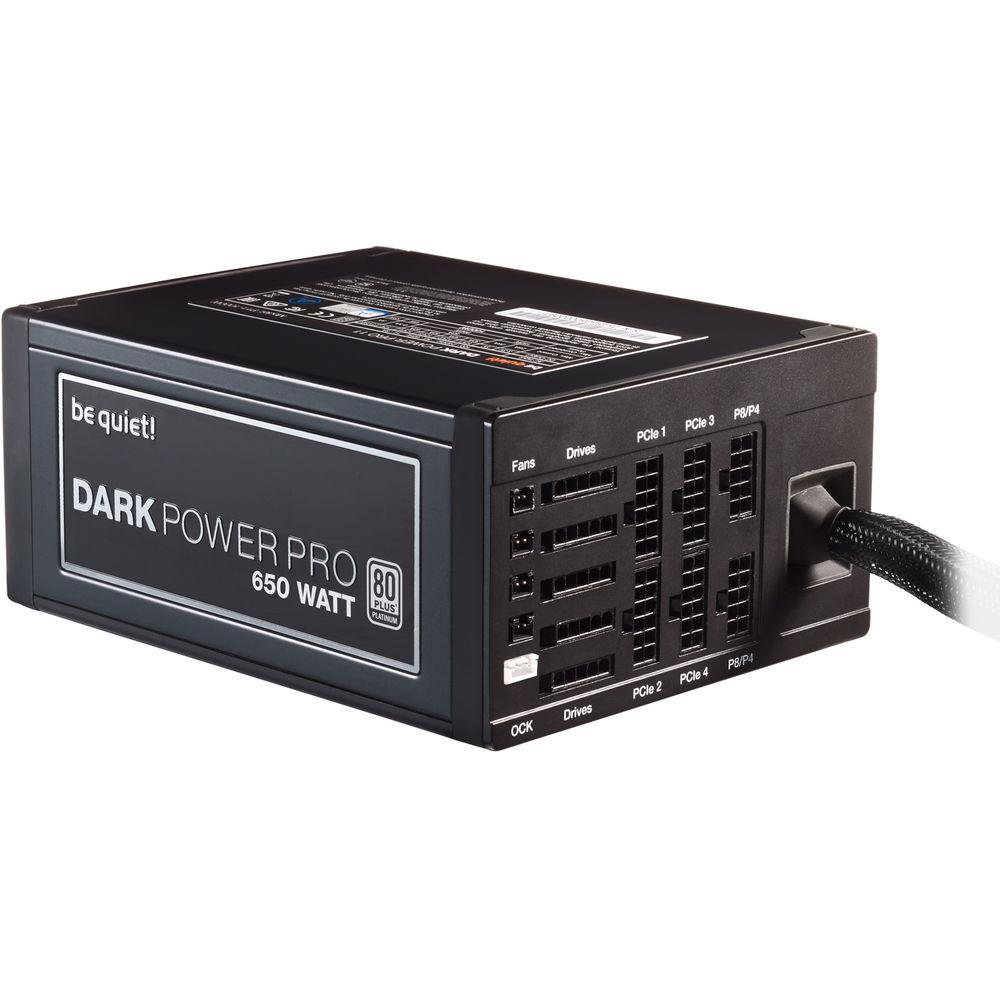

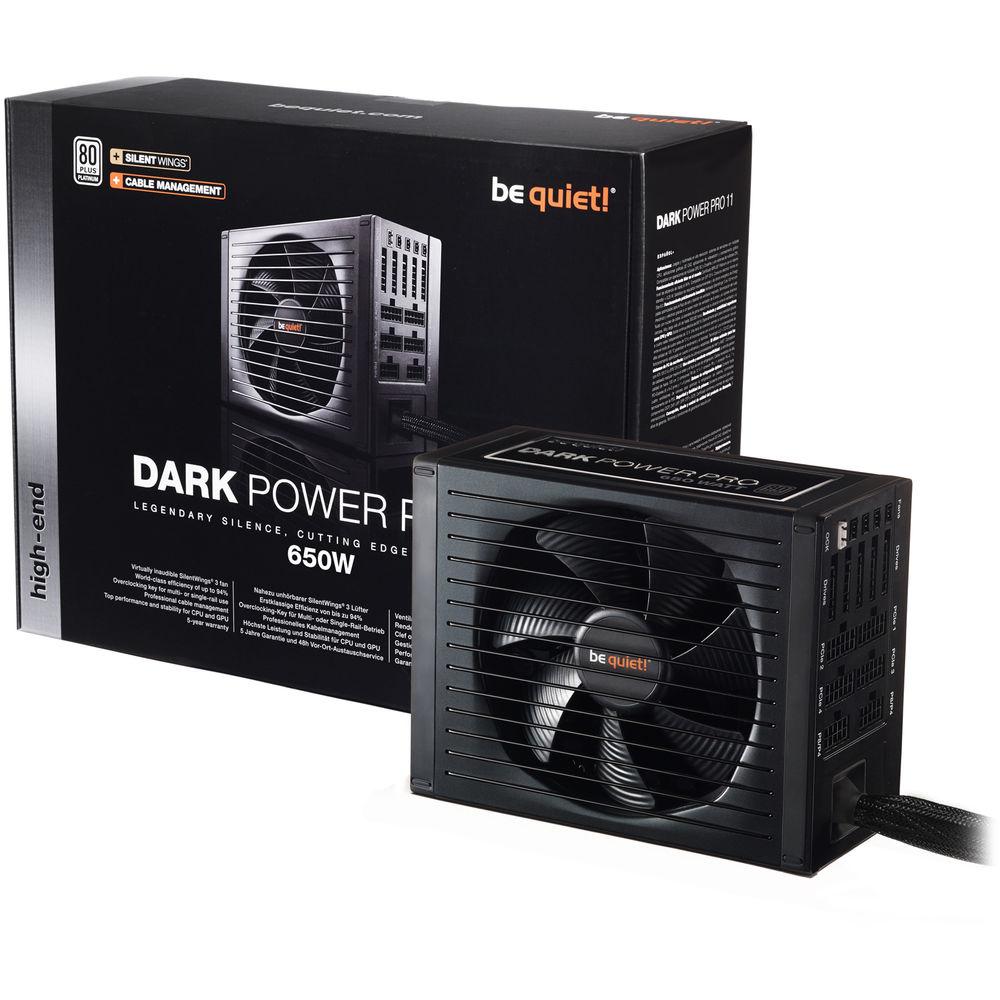

The Dark Power Pro 11 650W 80 Plus Platinum Modular Power Supply from be quiet! is an efficient, high-powered unit designed for enthusiasts. It delivers up to 650 watts of power and utilizes four +12V rail. Cooling is handled by a 135mm fan with an 1500 max rpm. Moreover, it's semi-modular, so you can use only the cables you need and store the rest. With less cable clutter, your system can benefit from improved airflow for lower temperatures. Included are enough cables for multiple storage drives, accessories, and even dual-slot graphics cards. - 80 Plus Platinum
- The Dark Power Pro 11 is 80 Plus Platinum certified, ensuring up to a 94% energy efficiency rating.
- Silent Wings 3 Fan
- The built-in Silent Wings 3 fan features an airflow-optimized fan blade design, advanced fluid-dynamic bearings, and a 6-pole fan motor. Combined, these features provide the power supply with quiet and efficient cooling.

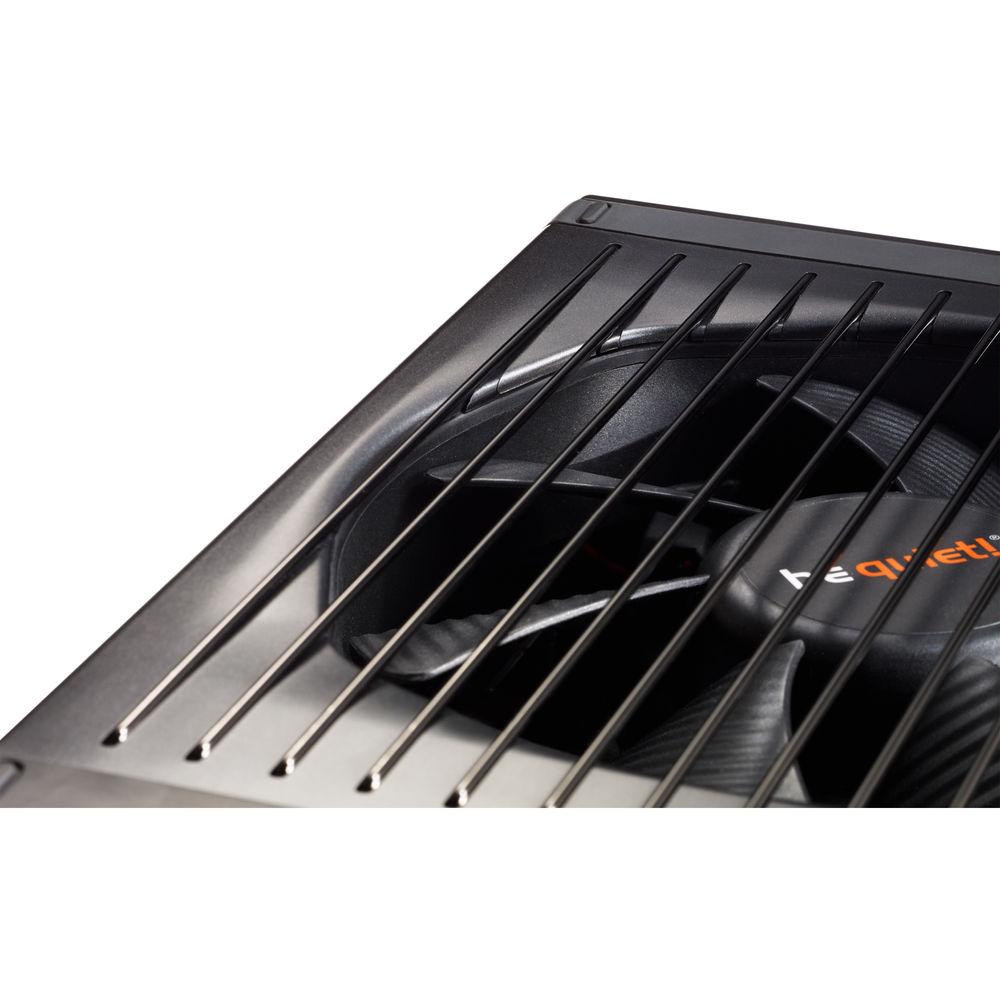

- Funnel-Shaped Fan Opening
- The fan inlet on this power supply features a funnel-shaped opening for increased airflow.
- Overclocking-Ready
- The Dark Power Pro 11 comes with an overclocking key, which lets you switch between the default four 12V rail mode and the alternative single-rail operation.
- Stable and Efficient
- The Dark Power Pro 11 uses an advanced full bridge and LLC and Synchronous Rectifier (SR) technology for signal stability and power efficiency. It's also equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)

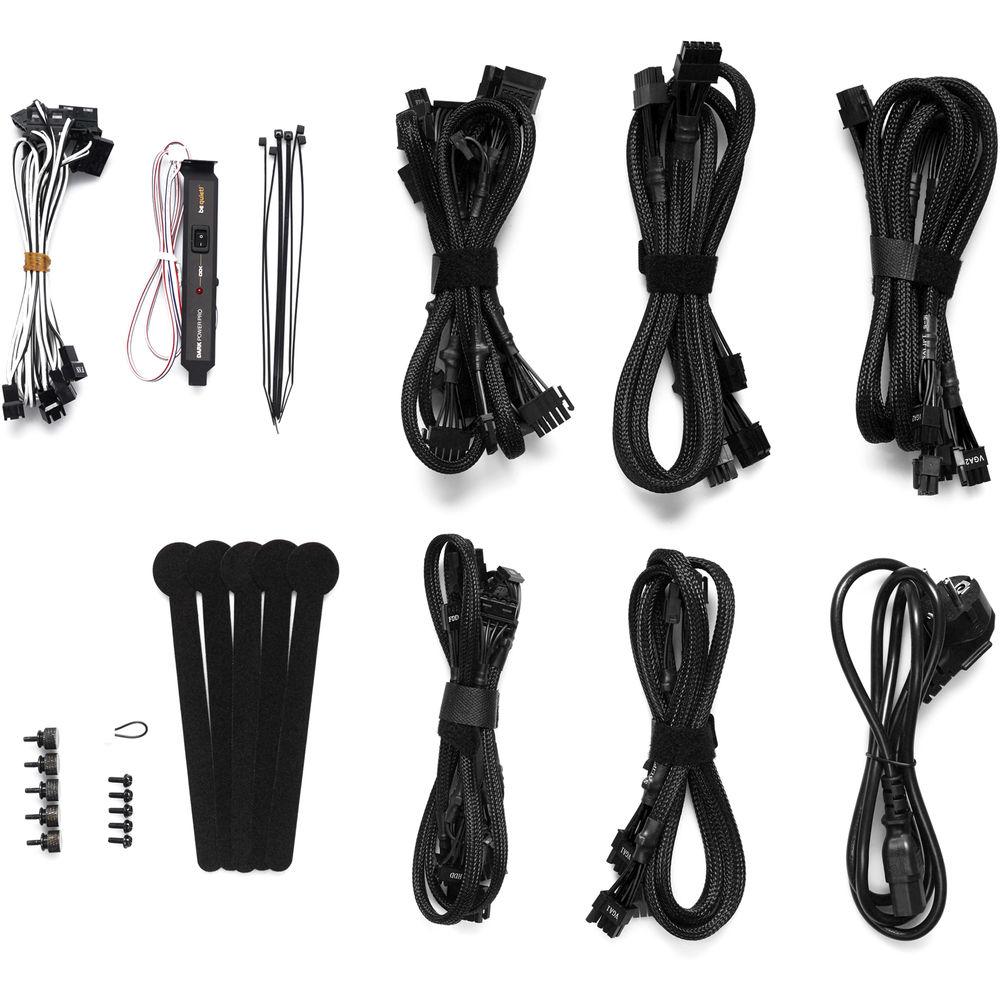

OPP (over power protection) In the Box be quiet! Dark Power Pro 11 650W 80 Plus Platinum Modular Power Supply 20+4-Pin ATX Motherboard Cable 8-Pin CPU Cable 4+4-Pin CPU Cable 4 x 6+2-Pin PCIe Cable 6-Pin PCIe Cable SATA/4-Pin Cable 2 x SATA Cable 4-Pin Peripheral Cable 4 x Fan Cable Thumb Screws Screws Cable Ties Box/Bag for PSU Cables Overclock Slot Bracket with Switch / Overclock Jumper Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Power Pro 11 650W 80 Plus Platinum Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Power Pro 11 Specs | Form Factor | ATX | | Input Voltage | 100 to 240 VAC | | Input Frequency | 50 to 60 Hz | | Input Current | 8 to 4 A | | Cable Length | ATX: 23.62" / 600 mm
CPU 8-Pin: 29.53" / 750 mm
CPU 4+4-Pin: 29.53" / 750 mm
4-Pin/SATA: 47.24" / 1200 mm
SATA: 41.34" / 1050 mm
4-Pin: 41.34" / 1050 mm
MB Connector: 23.62" / 600 mm
PCIe: 23.62" / 600 mm
Fan: 29.53" / 750 mm
Overclock Key: 29.53" / 750 mm | | Connectors | 1 x 20+4-Pin ATX Motherboard
1 x 8-Pin CPU
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
1 x 6-Pin PCIe
8 x SATA
5 x 4-Pin Peripheral
2 x FDD
4 x Fan
1 x Overclocking Key | | Output | +3.3 V - 25 A
+5 V - 25 A
+12V 1 - 20 A
+12V 2 - 20 A
+12V 3 - 25 A
+12V 4 - 25 A
-12 V - 0.5 A
+5 Vsb - 3 A
Max combined power 12 V - 648 W
Max combined power 3.3 V + 5 V - 125 W | | | | Size | 135 mm | | Fan Bearing Technology | Fluid-dynamic | | Fan Speed | 1500 rpm | | Noise Levels | 9.2 dBA at 20% load 10 dBA at 50% load 14.6 dBA at 100% load | | | | 80 PLUS Certification | Platinum | | Dimensions (L x W x D) | 7.09 x 5.91 x 3.39" / 180 x 150 x 86 mm | | Weight | 4.63 lb / 2.1 kg | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 13.7 x 10.7 x 4.7" |
