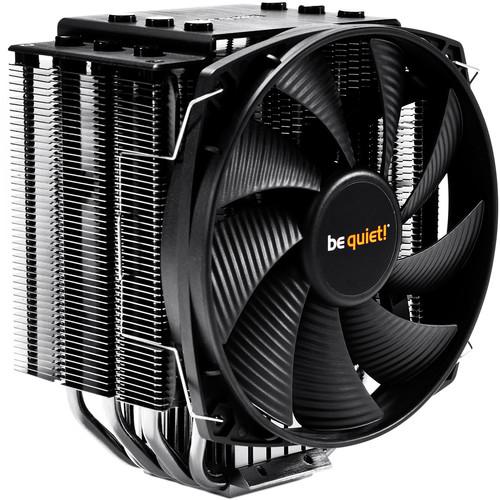

User Manual for be quiet! Dark Rock 3 Air Cooler Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Rock 3 Air
- Product category: Fans & CPU Coolers be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Fans & CPU Coolers
 |
User manual for the be quiet! Dark Rock 3 Air contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Rock (Pro) 3 | be quiet!
- Installation Dark Rock series (AM3(+)) | be quiet!
- Installation Dark Rock 3 series (115x) | be quiet!
- Installation Dark Rock series (LGA 2011(-3)) | be quiet!

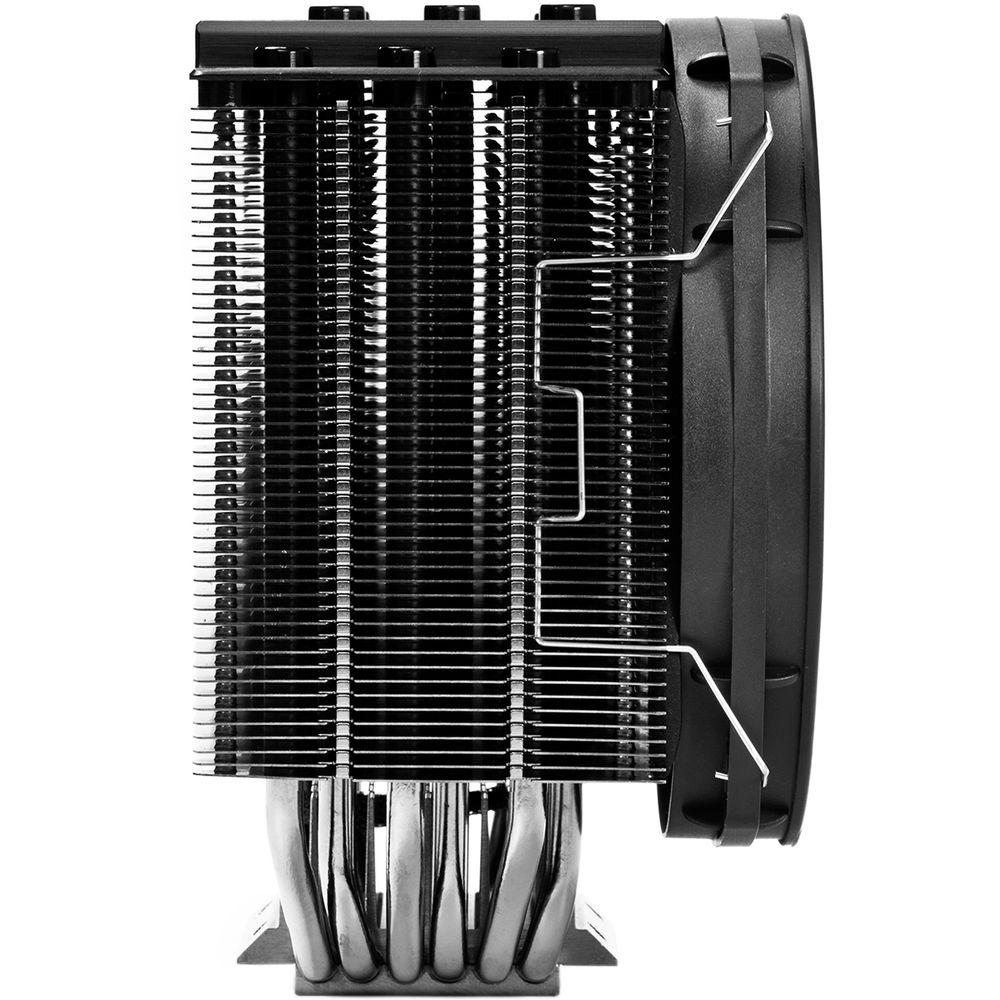

Built to cool overclocked systems and multi-graphics platforms, the Dark Rock 3 Air Cooler from be quiet! features six heat pipes with copper lining and aluminum caps, fluid-dynamic bearings, and a 135mm SilentWings PWM fan with nine airflow-optimized blades and a six-pole motor. In order to help increase cooling efficiency, heat pipe placement has been redesigned, and users may also install an additional 120mm fan for even greater system cooling. To help with this installation, free fan clips are included. This product generates only 21.1 dBA of noise under 100% loads, yet offers a cooling capacity of 190W TDP. It can be used with most current Intel LGA and AMD sockets and also included are a backplate mounting set and thermal grease. General Features - A 135mm SilentWings PWM fan features copper core fluid dynamic bearings and a dynamically-balanced impeller to help provide effective cooling. The fan utilizes nine airflow-optimized fan blades and a 6-pole motor for smoother operations and reduced vibrations. Thanks to a decoupled fan mount with vibration-isolating elements on the heat sink, noise is capped at at 21.1 dBA, even at 100% PWM functionality, even while fan speeds max out at 1400 rpm with an airflow of 67.8 CFM.
- Improved dynamic wave-contour cooling fins with small dots on the surface help to increase air circulation and contribute to high convection efficiency without raising the overall noise.
- An additional 120mm fan may be installed for greater cooling performance.

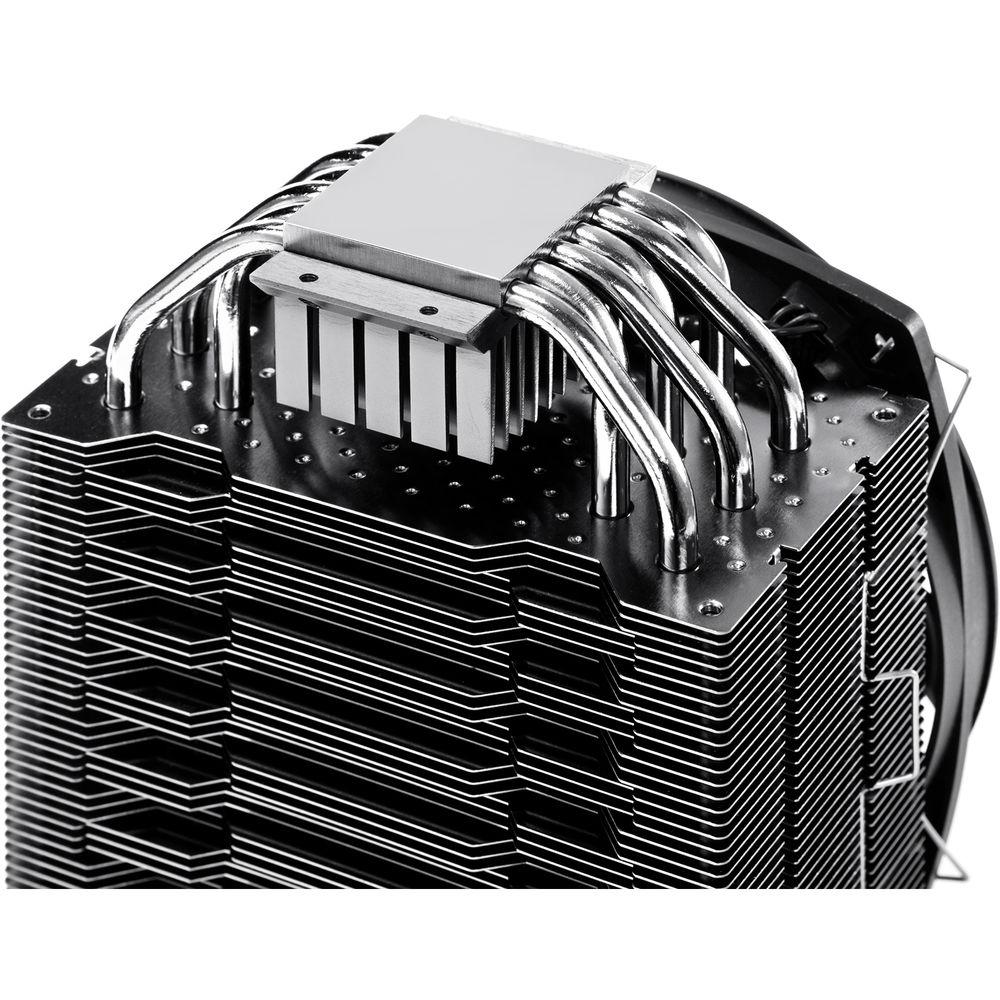

- Six high-performance heat pipes with copper lining and aluminum caps carry heat to specific locations on the cooling fins, helping to maximize heat conductance.
- A high cooling capacity of 190W TDP offers low temperature even at peak performance. The heat pipes have also been rearranged to enhance cooling capabilities of this unit.
- The Dark Rock 3 is compatible with most Intel and AMD sockets.

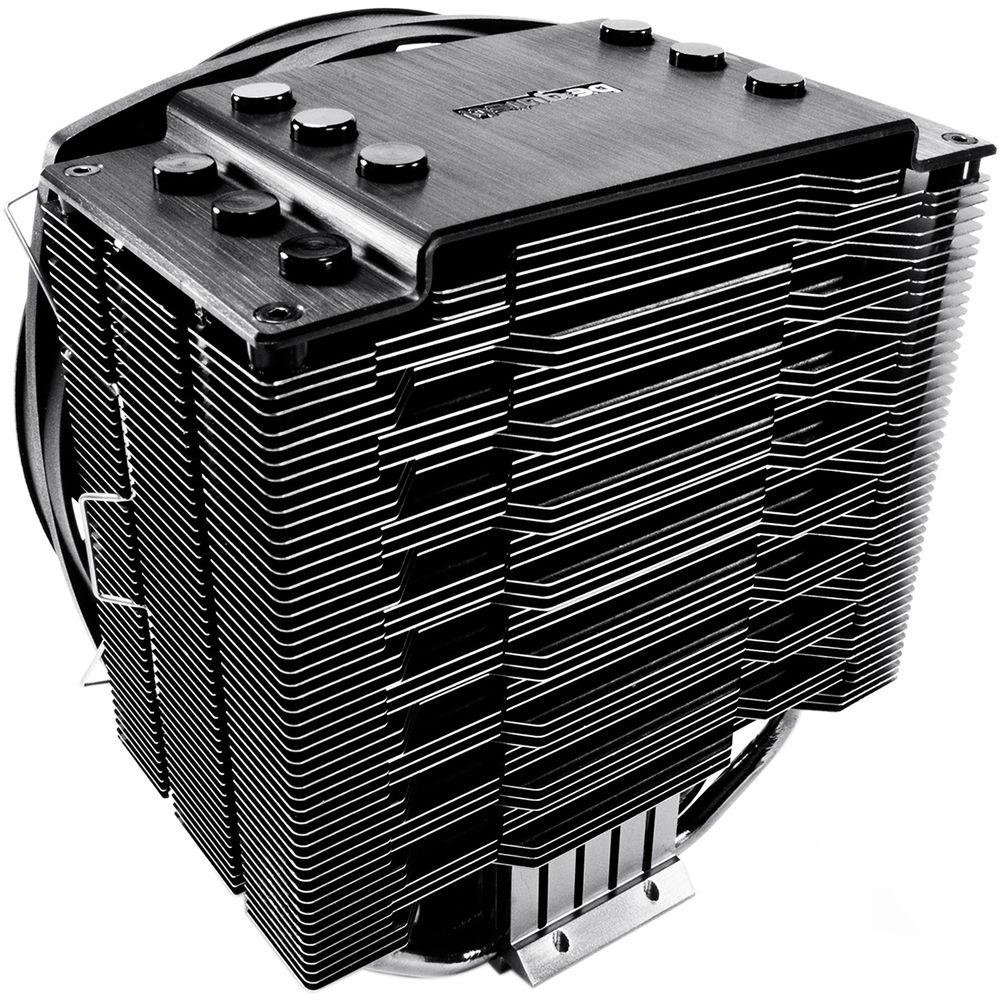

- Dark nickel-plated heat sink with a brushed aluminum top cover and a diamond cut finish.

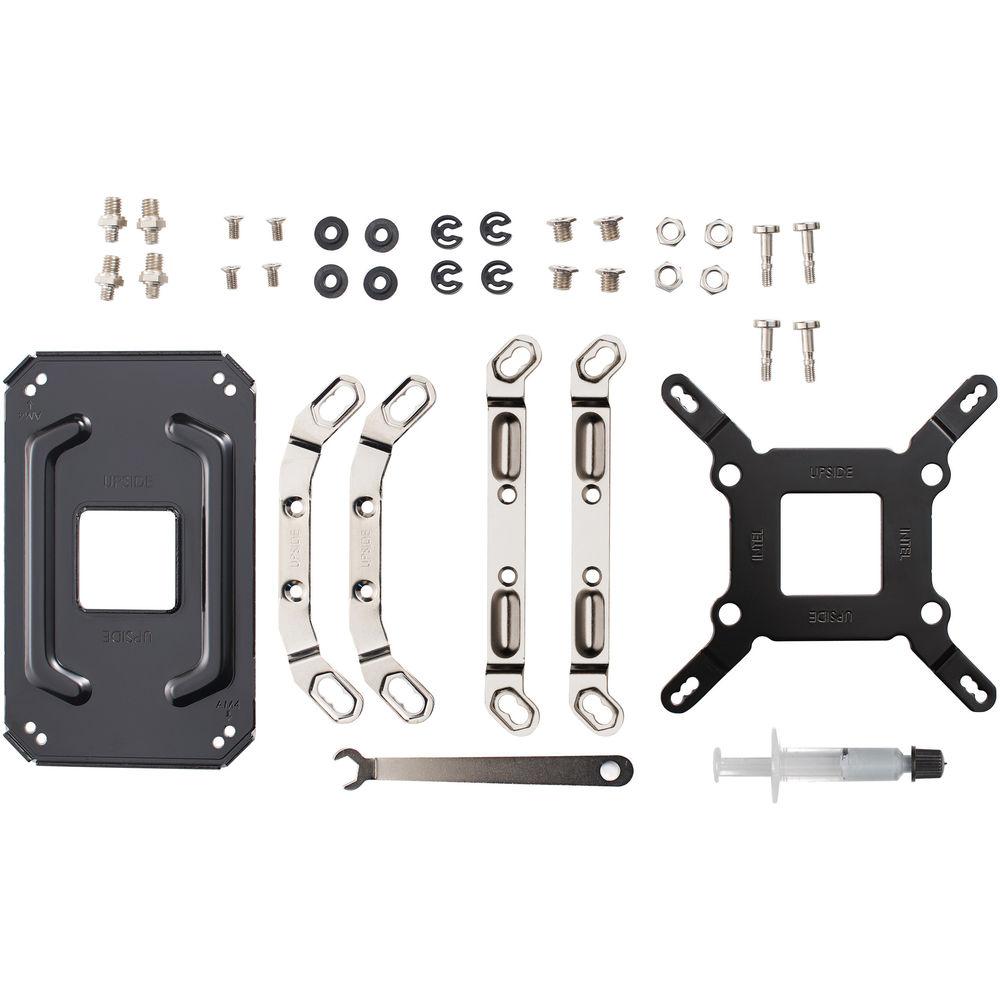

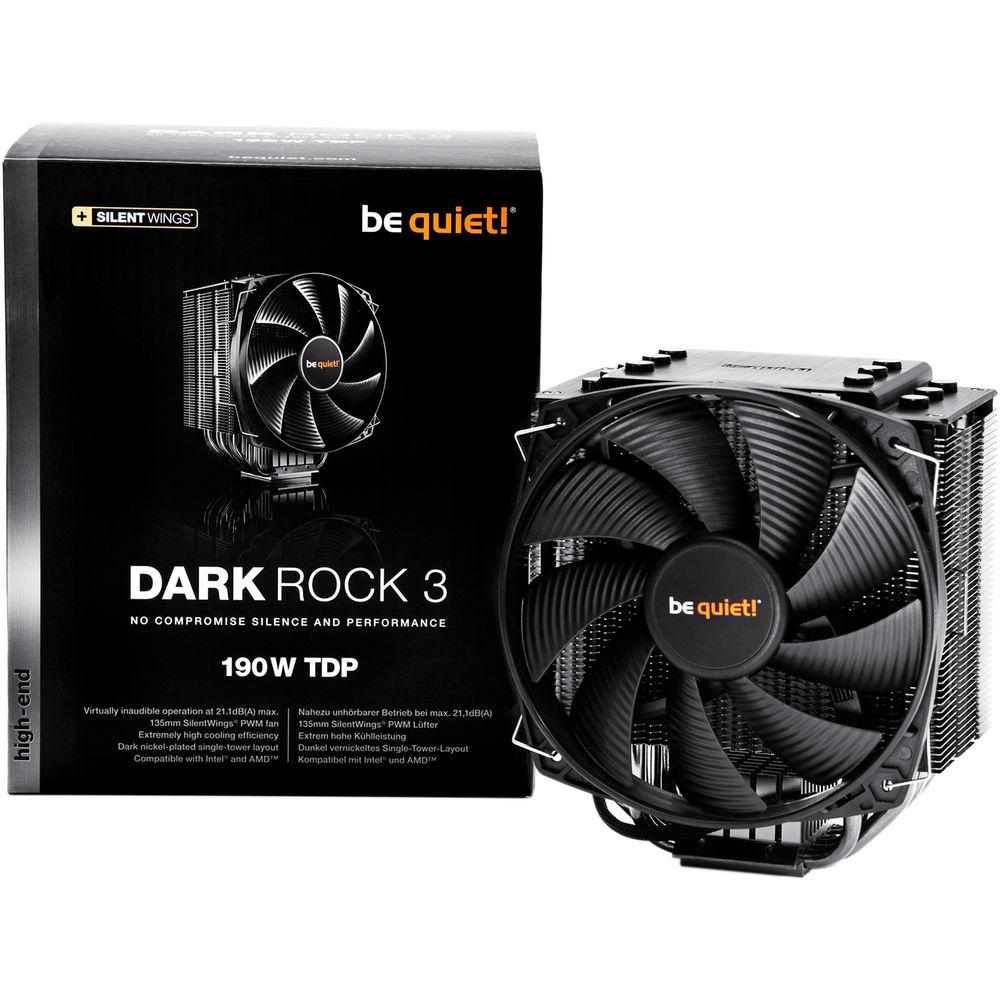

In the Box be quiet! Dark Rock 3 Air Cooler Fan Mounting Clips Backplate Mounting Set Thermal Grease Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Rock 3 Air Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Rock 3 Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 135 mm | | Fan Speed | 1400 rpm | | Noise Level | 8.4 to 21.1 dBA | | Maximum Airflow | 67.8 CFM | | Power Consumption | 190 W | | Dimensions (W x H x D) | 5.3 x 5.3 x 0.9" / 135.0 x 135.0 x 22.0 mm | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 6.0" |
