User Manual for be quiet! Dark Rock 4 Air Cooler Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Rock 4 Air
- Product category: Fans & CPU Coolers be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Fans & CPU Coolers
 |
User manual for the be quiet! Dark Rock 4 Air contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Rock 4 | be quiet!
- Dark Rock (Pro) 4 | Product presentation | be quiet!
- Installation: Dark Rock 4 (AMD & Intel) | be quiet!

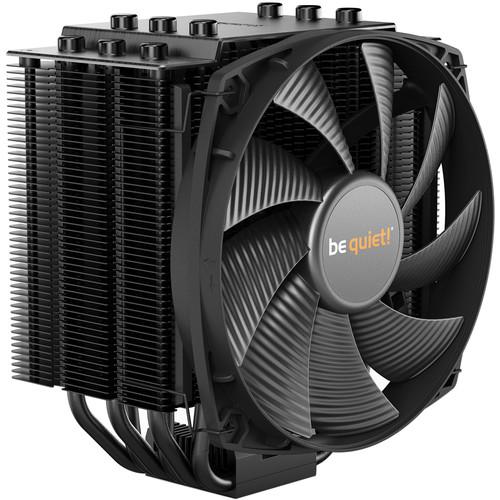

Built for overclocked systems and demanding workstations, the Dark Rock 4 Air Cooler from be quiet! features six 6mm copper heat pipes, a 135mm Silent Wings PWN fan with nine airflow-optimized blades and a speed of 1400 rpm, a six-pole motor, and a fluid-dynamic bearing. If you'd like to improve the Dark Rock 4's cooling efficiency, an additional 120mm fan can be added, and clips are included to accommodate this. Living up to its name, this be quiet! product generates only 10.5, 15.6, and 21.4 dBA of noise under 50, 75, and 100% loads, yet offers a cooling capacity of 200W TDP. It has a lifespan of up to 300,000 hours and can be used with select Intel and AMD sockets. General Features - Quiet Operation
- The 135mm Silent Wings PWM fan features nine airflow-optimized fan blades, a six-pole motor for less vibration, and a durable fluid-dynamic bearing. The heat sink also features a decoupled fan mounting with vibration-isolating elements.
- Extreme Cooling Power
- The Dark Rock 4 provides an TDP rating of 200W and achieves low temperatures even during periods of peak CPU performance.
- Advanced Design

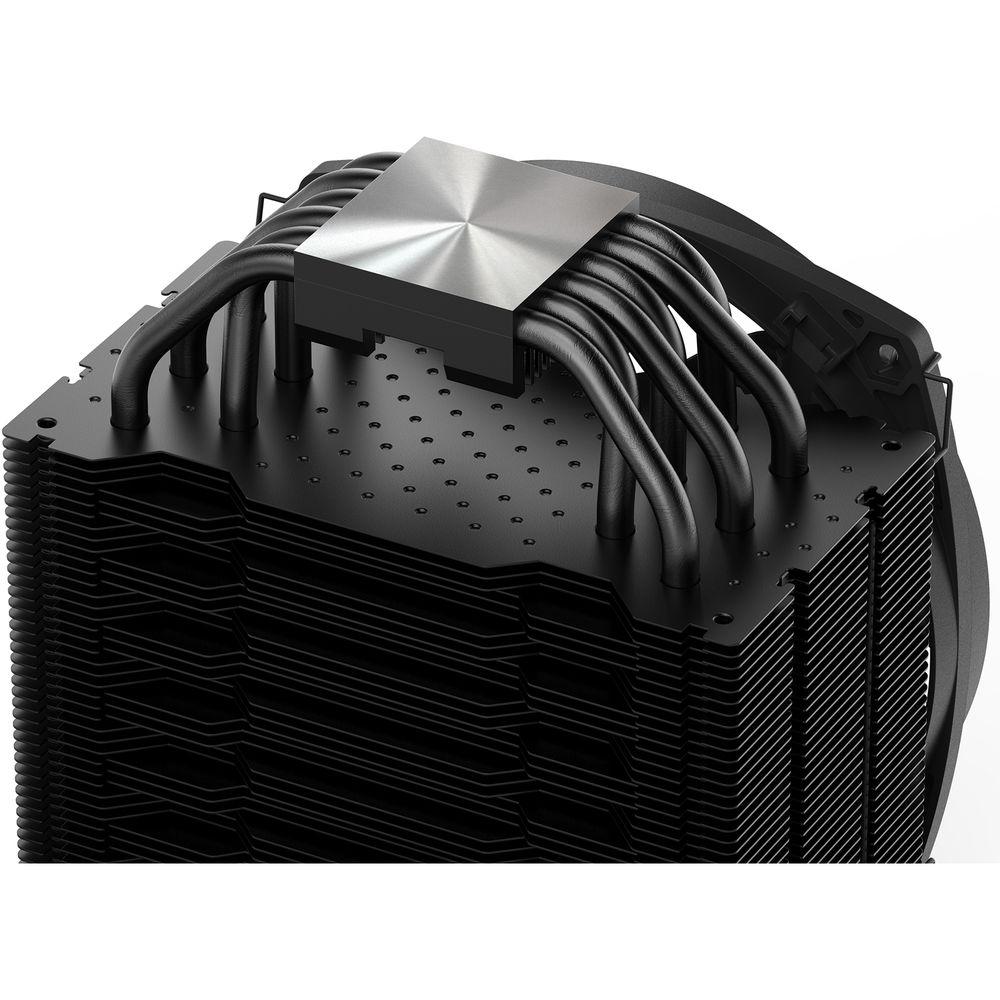

- The Dark Rock 4 is equipped with six advanced technology 6mm copper heat pipes that help to maximize heat conductance. Airflow-optimized and wave-contoured cooling fins with small dots on their surfaces help increase air circulation, and a special black coating with ceramic particles makes heat transfers possible.

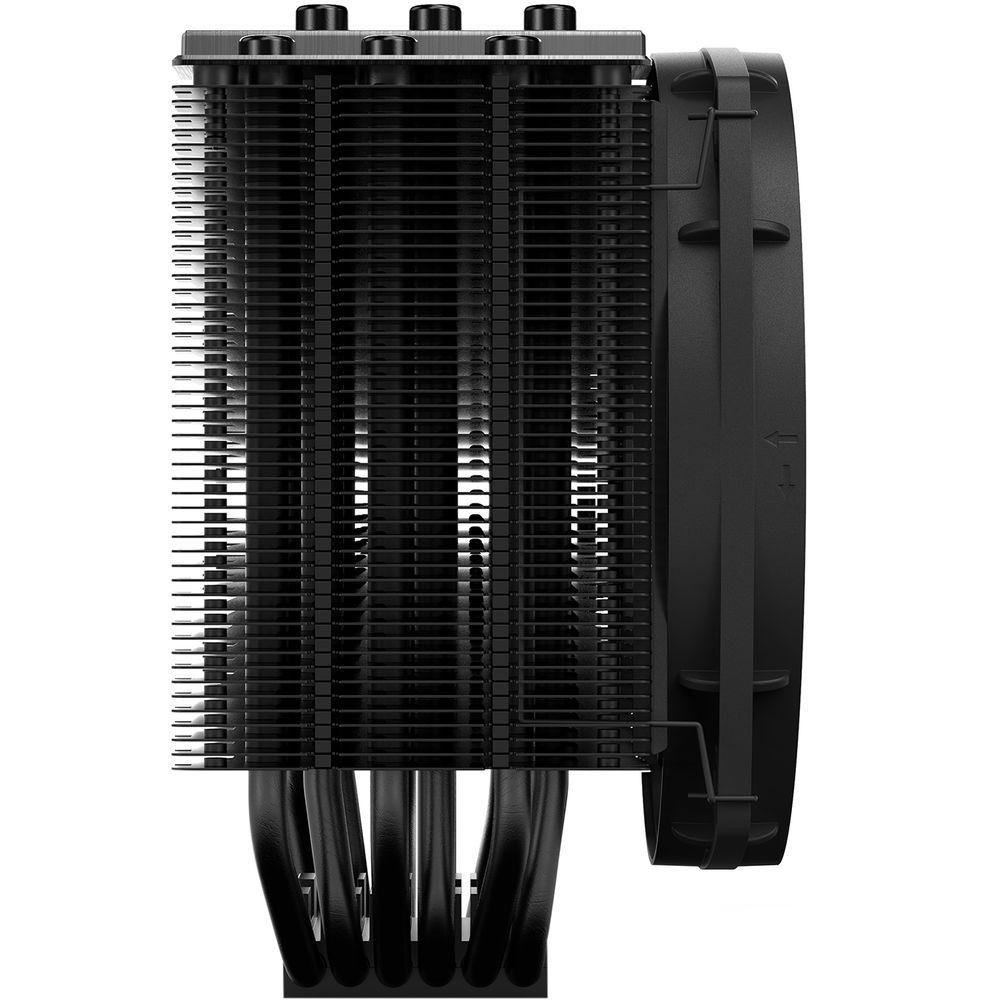

- Single-Tower Layout
- The compact single-tower design achieves strong heat dissipation in small spaces. While one fan is pre-installed, it is also possible to add another 120mm fan for improved cooling.
- User-Friendly

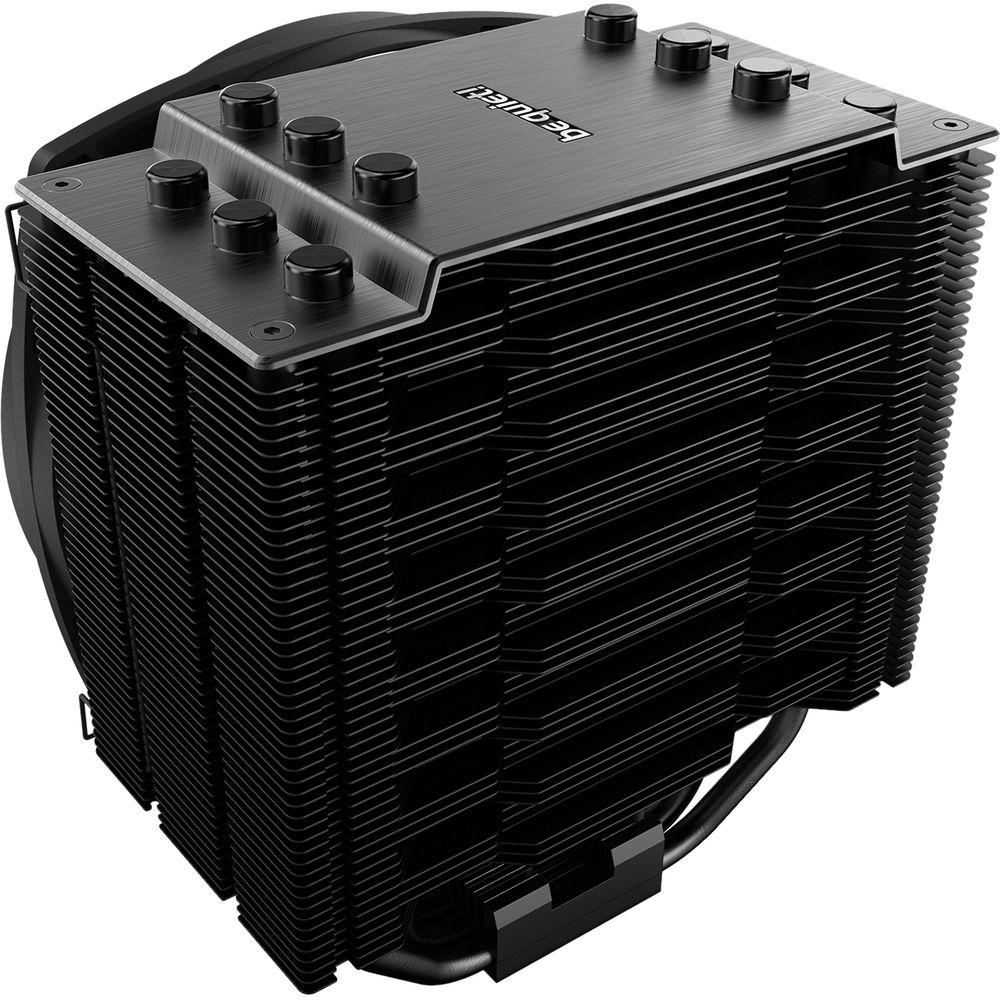

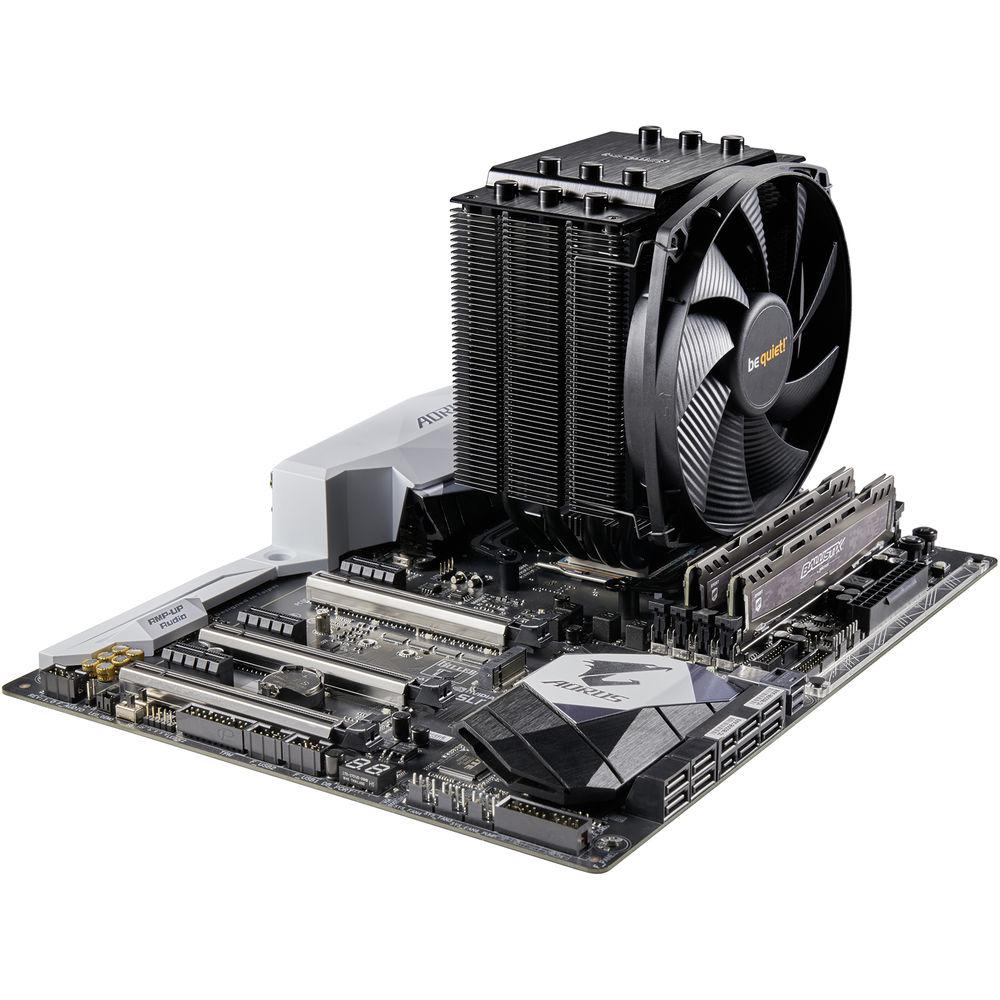

- The mounting kit for the Dark Rock 4 is completely black, matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above, and the brushed aluminum top cover with its diamond cut finish adds a touch of style.

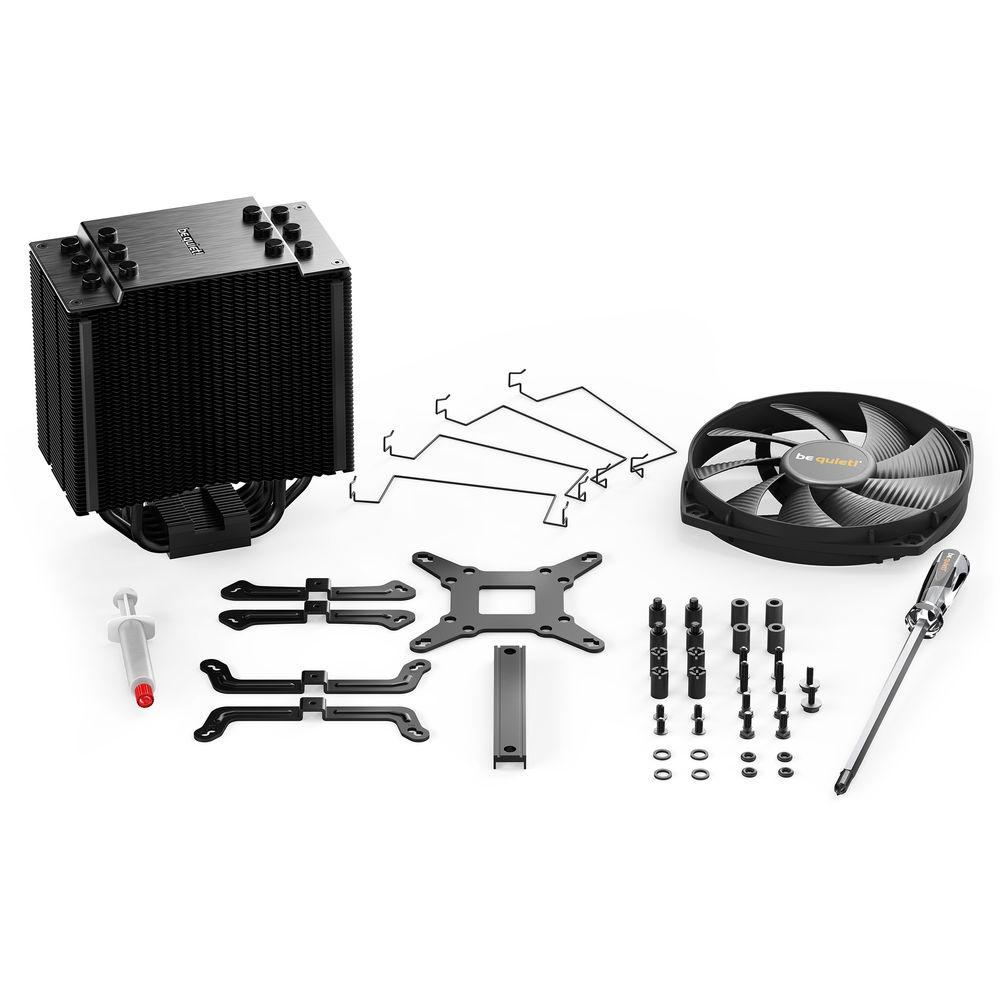

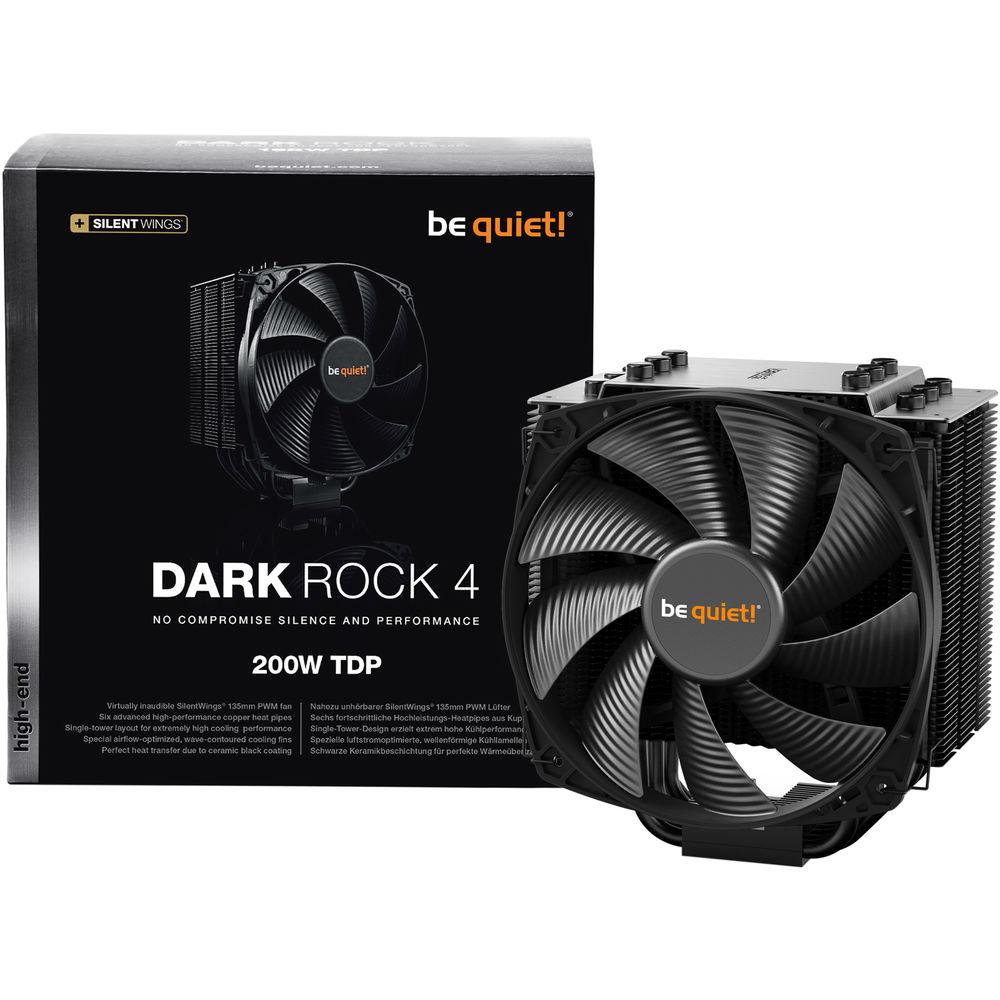

In the Box be quiet! Dark Rock 4 Air Cooler Intel & AMD Mounting Set Fan Clips Thermal Grease Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Rock 4 Air Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Rock 4 Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 135 mm | | Fan Speed | 1400 rpm | | Noise Level | 10.5 to 21.4 dBA | | Power Consumption | 1.32 W | | Dimensions (W x H x D) | 5.4 x 6.3 x 3.8" / 136.0 x 159.4 x 96.3 mm | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 8.4 x 8.3 x 5.6" |
