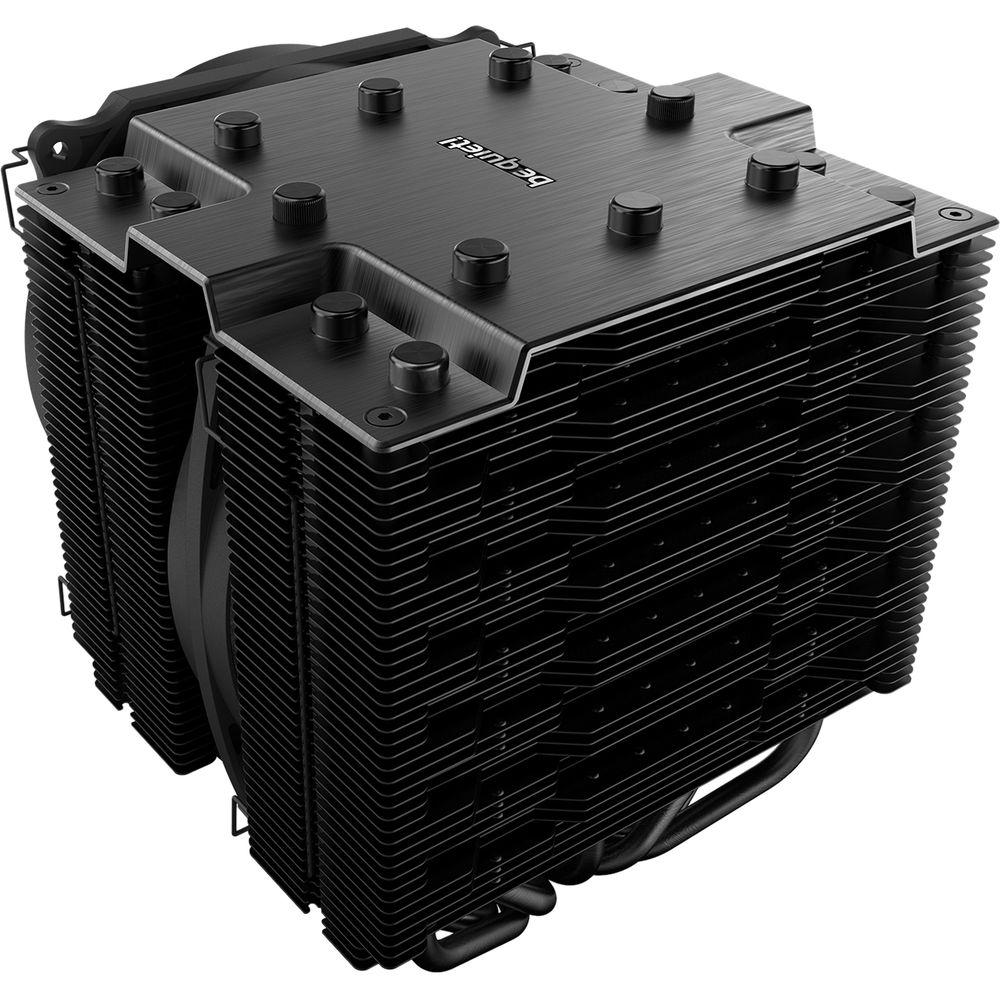

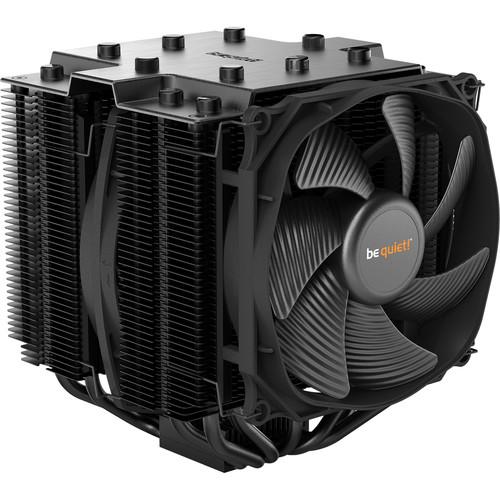

User Manual for be quiet! Dark Rock Pro 4 Air Cooler Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Rock Pro 4
- Product category: Fans & CPU Coolers be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Fans & CPU Coolers
 |
User manual for the be quiet! Dark Rock Pro 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Dark Rock 4 | be quiet!
- Dark Rock (Pro) 4 | Product presentation | be quiet!
- Installation: Dark Rock Pro 4 (AMD & Intel) | be quiet!
Built to provide immense cooling performance for overclocked systems and demanding graphics applications, the Dark Rock Pro 4 Air Cooler from be quiet! features seven 6mm copper heat pipes, a 120mm Silent Wings 3 PWM fan, and a 135mm Silent Wings PWM fan with airflow-optimized blades with speeds of 1200 / 1500 rpm, six-pole motors, and fluid-dynamic bearings. Thanks to a funnel-shaped air inlet on the front fan, it provides extremely high air pressure. If you'd like to improve the Dark Rock Pro 4's cooling efficiency, an additional 120mm fan can be added. Living up to its name, this be quiet! product generates only 12.8, 17.9, and 24.3 dBA of noise under 50, 75, and 100% loads, yet offers a cooling capacity of 250W TDP. It has a lifespan of up to 300,000 hours and can be used with select Intel and AMD sockets. General Features - Virtually Inaudible Operation
- The two Silent Wings PWM fans feature fluid-dynamic bearings, smooth six-pole motors, and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. There is also a decoupled fan mounting with vibration-isolating elements on the heat sink.
- Immense Cooling Power
- The Dark Rock Pro 4 does not compromise in regards to silence and performance for overclocked systems and demanding graphics applications. It provides a rating of 250W TDP and helps achieve low temperatures, even during periods of peak CPU performance.
- Advanced Design

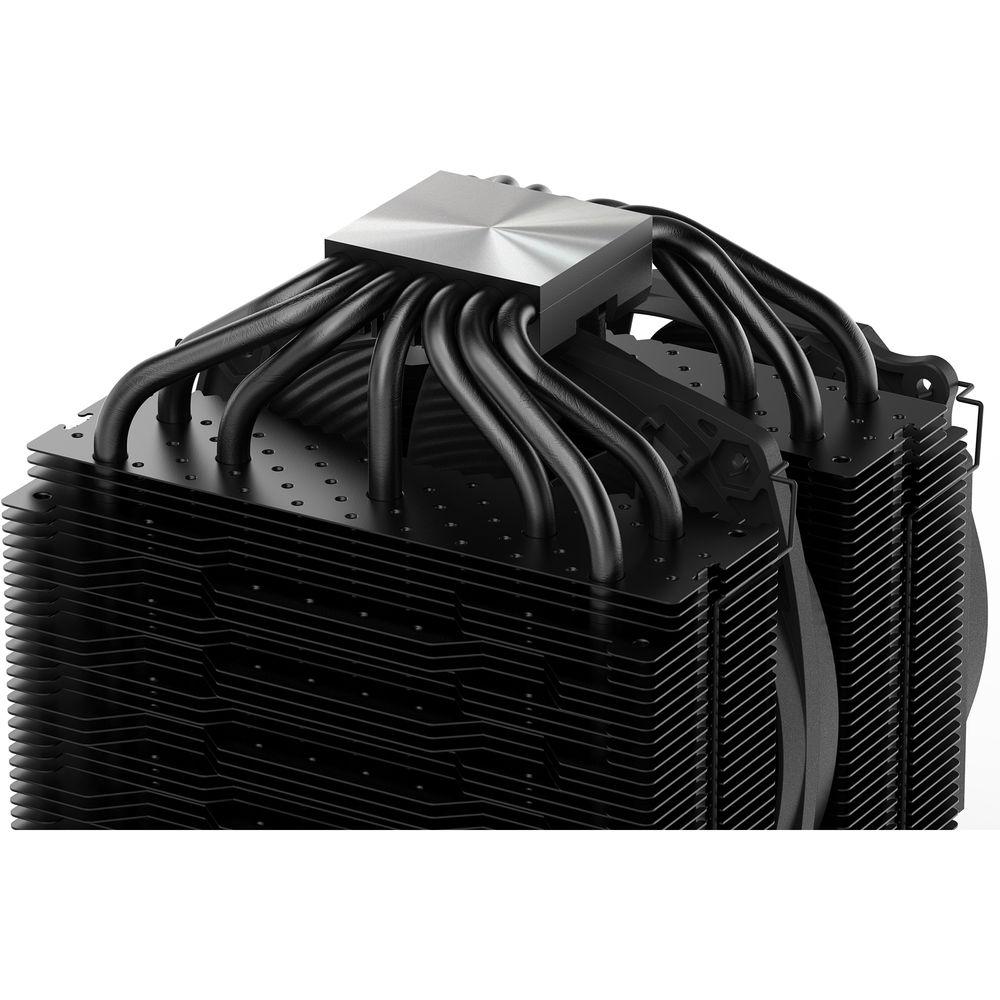

- The Dark Rock Pro 4 is equipped with seven 6mm copper heat pipes that help maximize heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation, and a special black coating with ceramic particles makes efficient heat transfers possible.

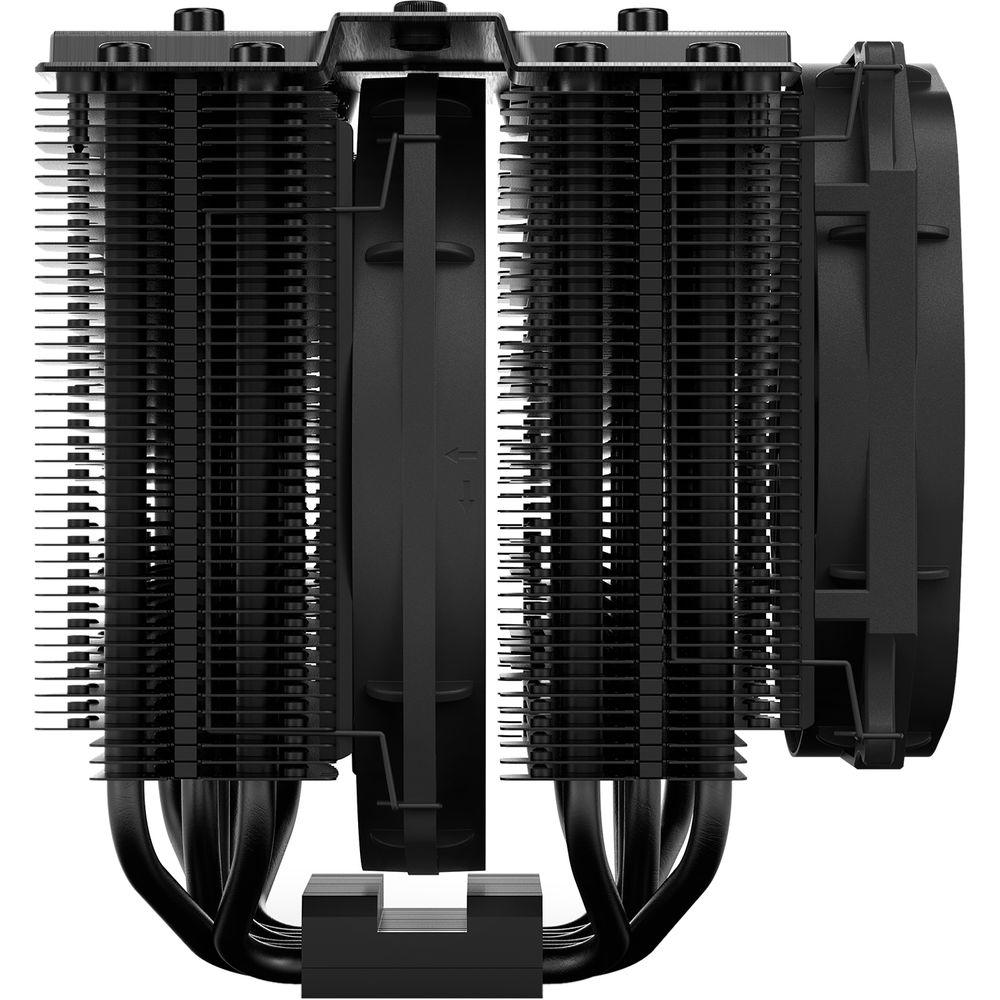

- Double-Tower Layout

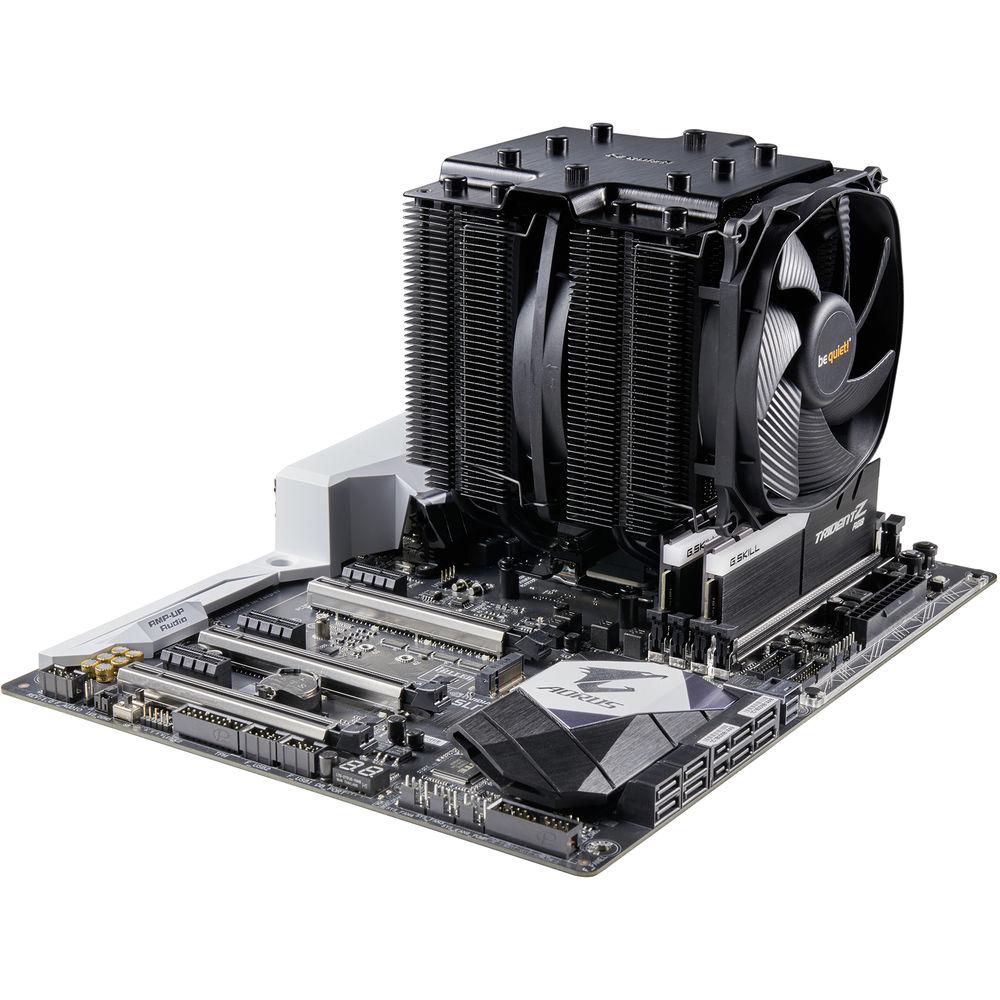

- The Dark Rock Pro 4 contains two aluminum heat sinks and the cutouts provided enhance its RAM compatibility. Two fans are pre-installed and it is also possible to add another 120mm fan for improved cooling.
- User-Friendly
- The mounting kit for the Dark Rock 4 is completely black, matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above, and the brushed aluminum top cover with its diamond cut finish adds a touch of style.

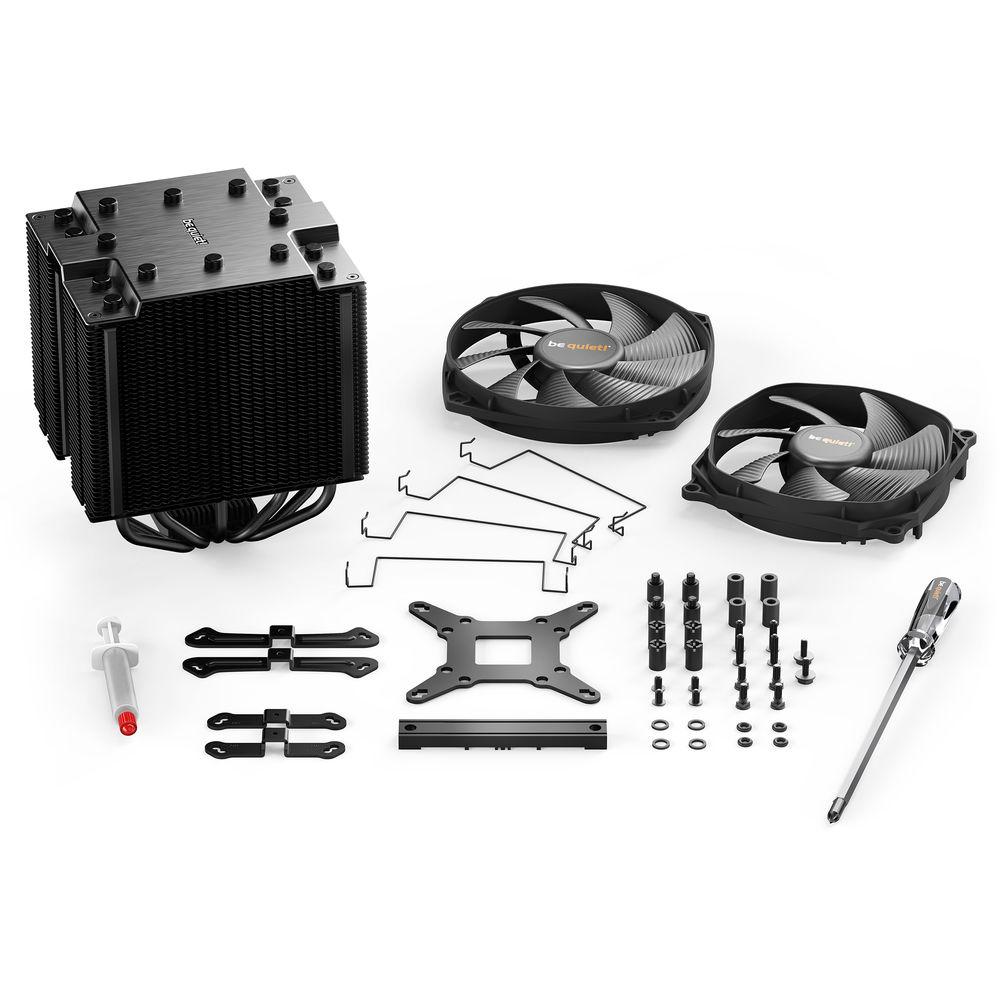

In the Box be quiet! Dark Rock Pro 4 Air Cooler Intel & AMD Mounting Set Y-Cable Thermal Grease Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Rock Pro 4 Air Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Dark Rock Pro 4 Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 135 mm
120 mm | | Fan Speed | 1500 rpm | | Noise Level | 12.8 to 24.3 dBA | | Power Consumption | 250 W | | Dimensions (W x H x D) | 5.4 x 6.4 x 5.7" / 136.0 x 162.8 x 145.7 mm | | | | Supported AMD Sockets | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ | | Supported Intel Sockets | LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011-v3, LGA 2066 | | Number of Fans | 2 | | Heatsink Material | Copper | | Heatsink Dimensions (W x H x D) | 5.4 x 6.4 x 4.9" / 136.0 x 162.8 x 123.7 mm | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 8.3 x 8.1 x 7.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
