User Manual for be quiet! Dark Rock Pro TR4 Computer CPU Air Cooler Click to enlarge the picture
Contents of the user manual for the be quiet! Dark Rock Pro TR4
- Product category: Fans & CPU Coolers be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Fans & CPU Coolers
 |
User manual for the be quiet! Dark Rock Pro TR4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Threadripper system with air cooling? | be quiet!
- Installation: Dark Rock Pro TR4 (Threadripper) | be quiet!

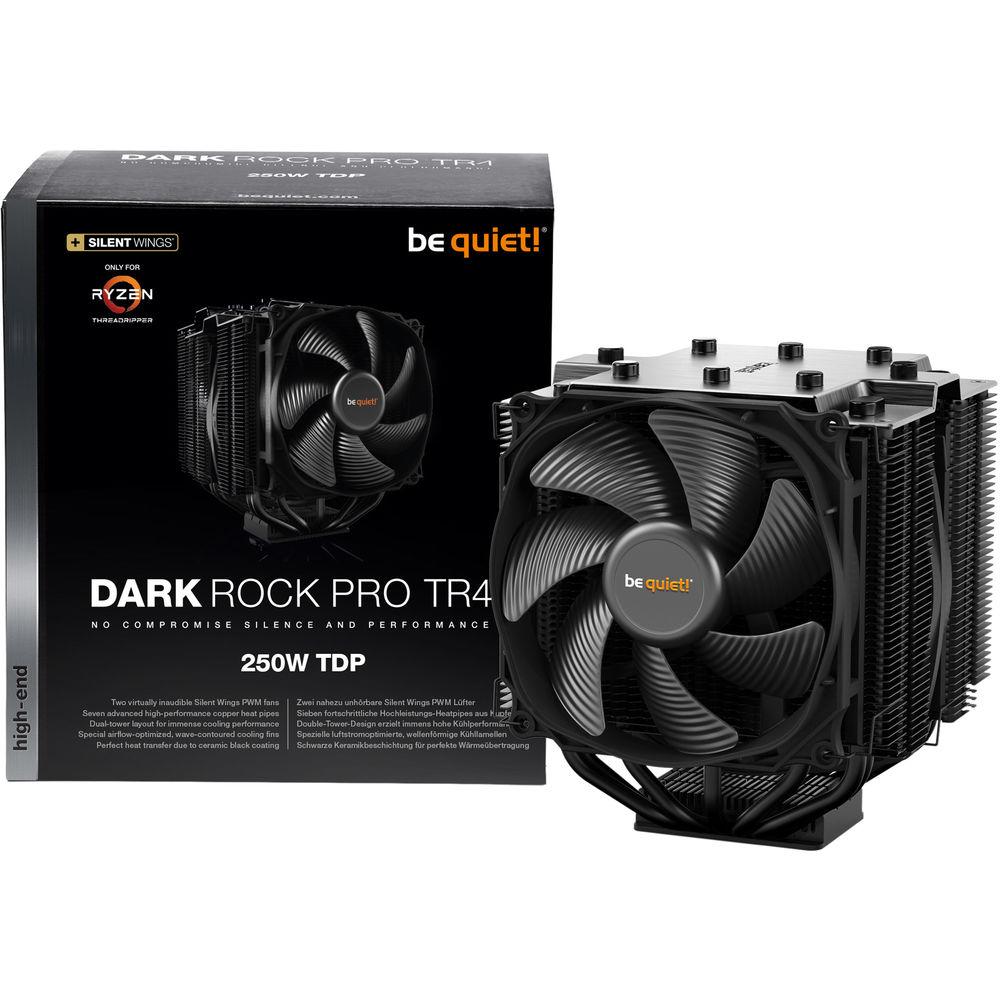

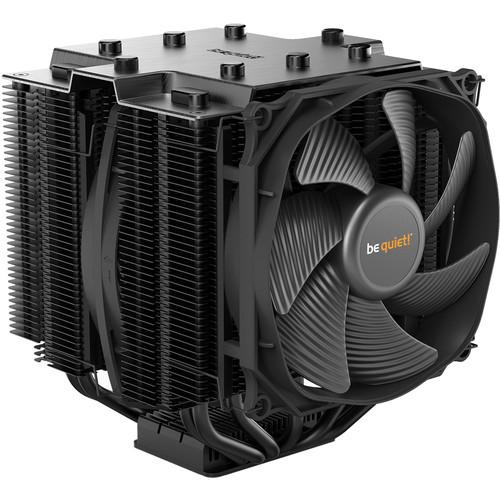

Keep your AMD processor cool while keeping fan noise to a minimum with the Dark Rock Pro TR4 Computer CPU Air Cooler from be quiet!. Designed exclusively for AMD TR4 sockets, the Dark Rock Pro TR4 is rated to cool up to 250W TDP processors. The cooler's 135mm and 120mm PWM fans are designed for quiet operation, and an optional third 120mm fan can also be mounted. Seven 6mm copper heat pipes help to boost heat conductance, while the two aluminum heat sinks are designed to further improve cooling performance. - Quiet Operation
- The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors, and airflow-optimized fan blades. The front Silent Wings 3 fan provides high air pressure thanks to a funnel-shaped air inlet in the frame. A decoupled fan mounting features vibration-isolating elements on the heat sink.
- Advanced Design

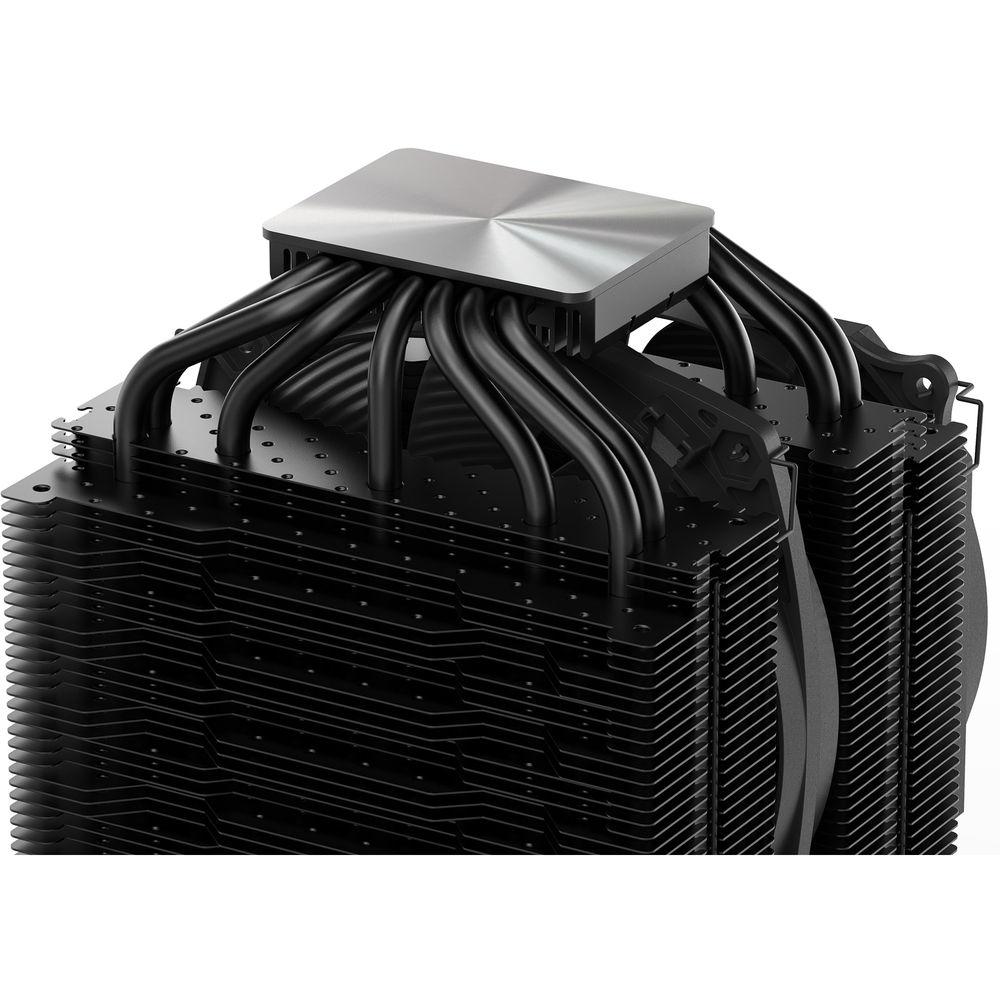

- Dark Rock Pro TR4 is equipped with seven 6mm copper heat pipes that help to optimize heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces are designed to increase air circulation. The special black coating with ceramic particles helps to further boost heat transfer.
- Double-Tower Layout

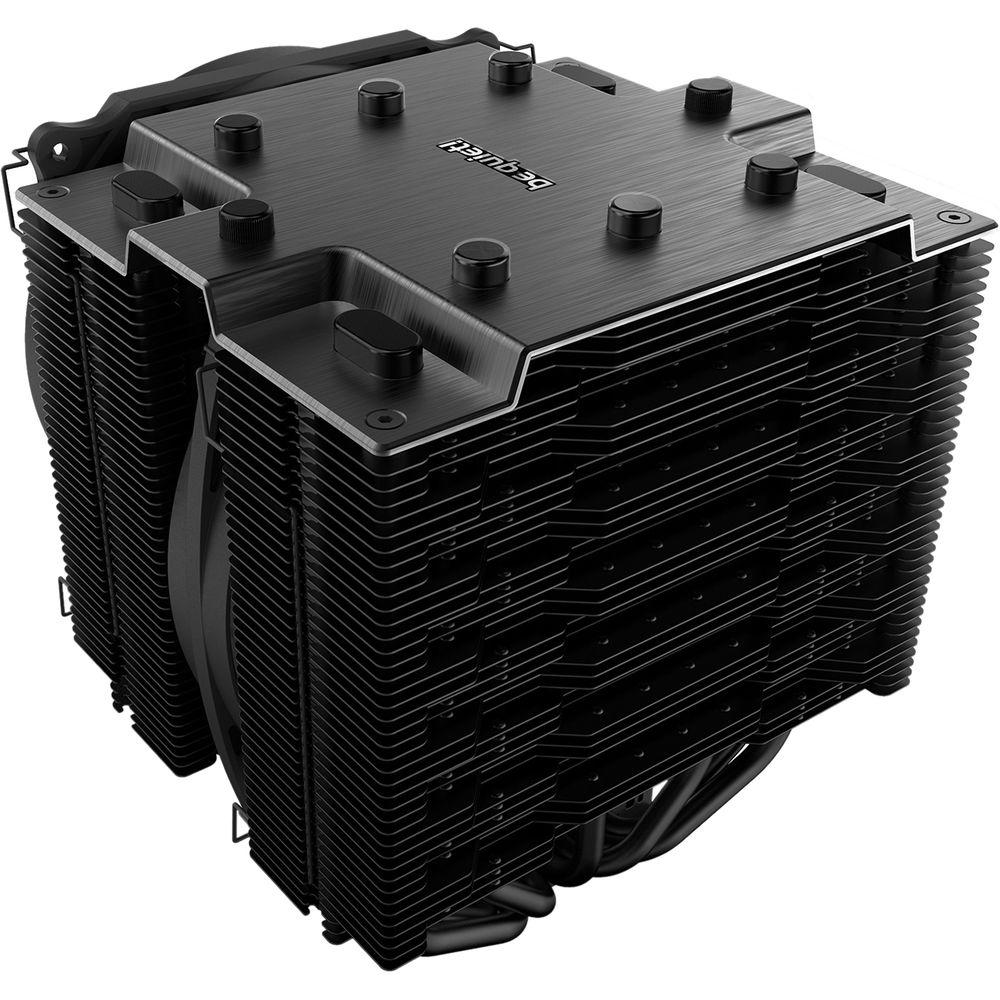

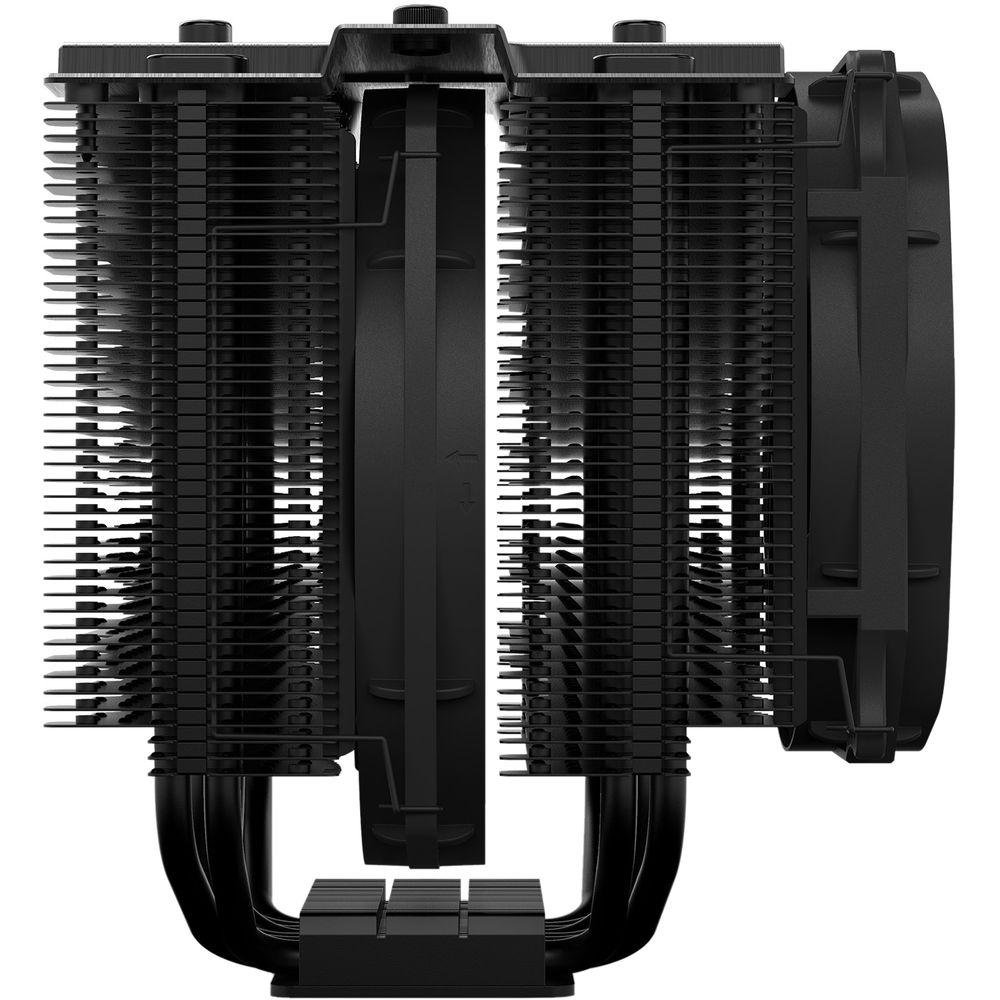

- Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.
- Easy Installation

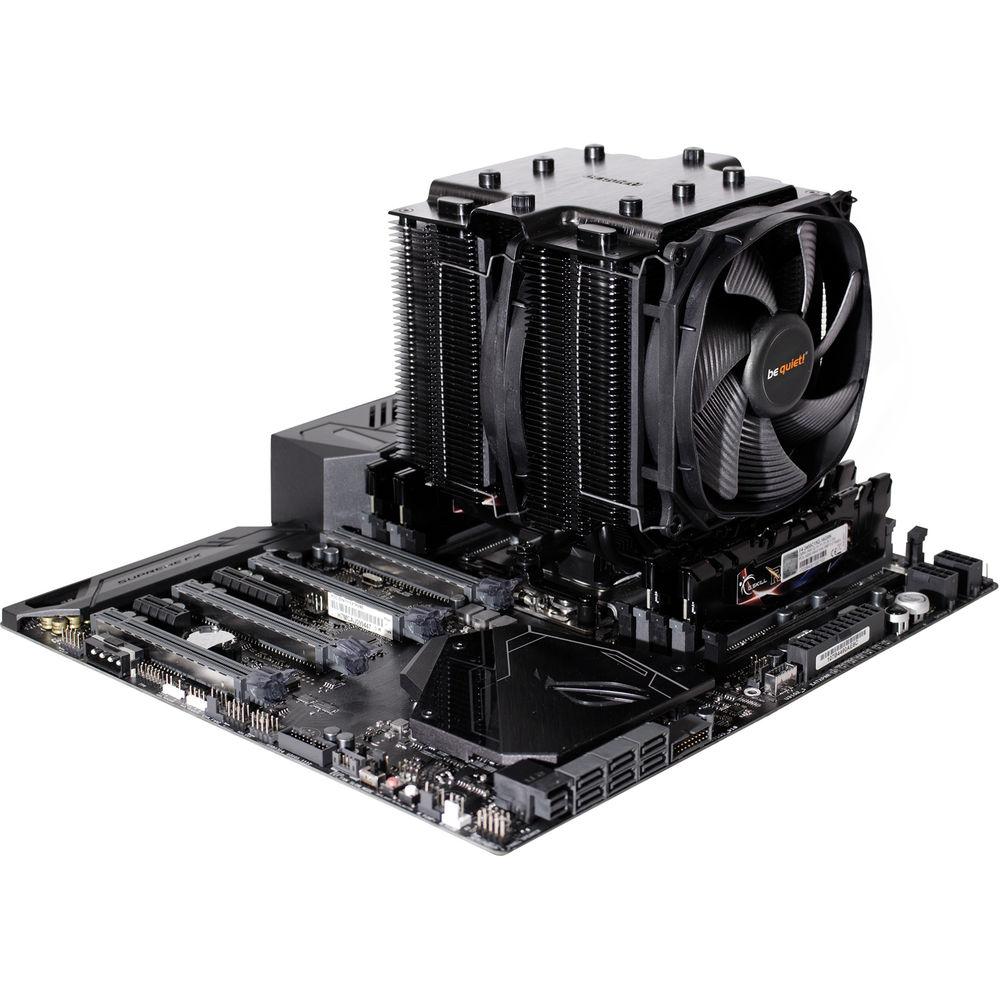

- The mounting kit for the Dark Rock Pro TR4 cooler is completely black, ideal matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed-aluminum top cover with its diamond-cut finish adds a touch of elegance to this high-end cooler.

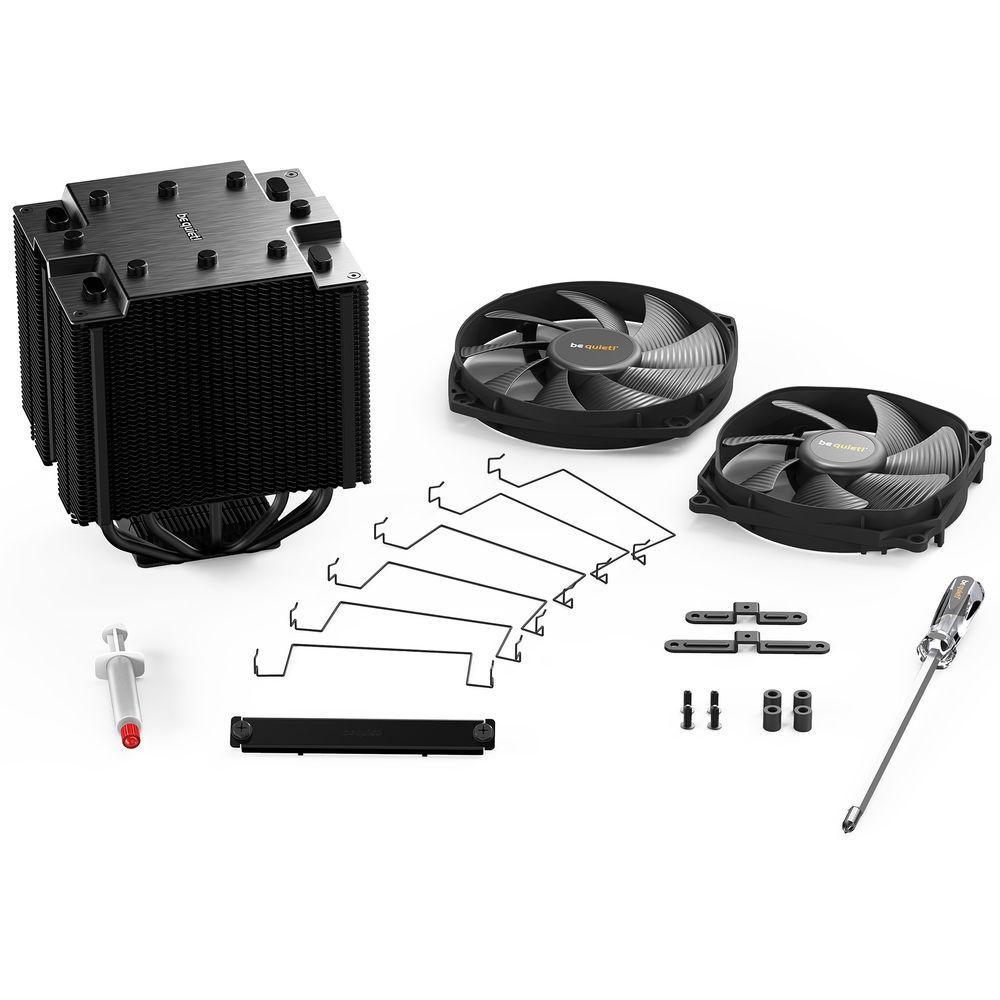

In the Box be quiet! Dark Rock Pro TR4 Computer CPU Air Cooler Thermal Grease Mounting Set Y-Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Dark Rock Pro TR4 Computer CPU Air Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! BK023 Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 120 mm
135 mm | | Fan Speed | 1200 to 1500 rpm | | Noise Level | 12.8 to 24.3 dBA | | LED | None | | Power Consumption | 1.92 W | | Dimensions (W x H x D) | 6.4 x 5.4 x 5.7" / 162.8 x 136.0 x 145.7 mm | | | | Supported AMD Sockets | TR4 | | Number of Fans | 2 | | Heatsink Material | Copper, Aluminum | | Heatsink Dimensions (W x H x D) | 6.4 x 5.4 x 4.8" / 162.8 x 136.0 x 120.7 mm | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.0 x 8.1 x 6.9" |
