Product description - Pure Base 600 | be quiet!

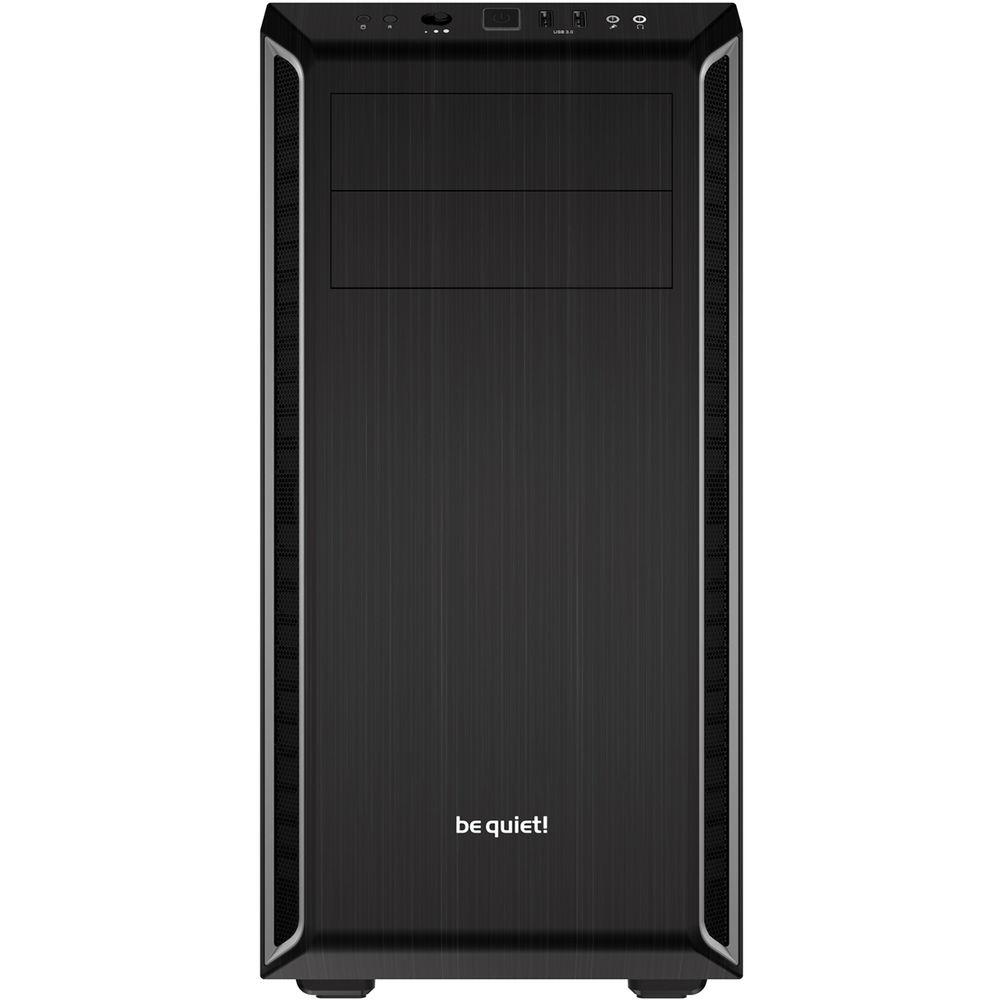

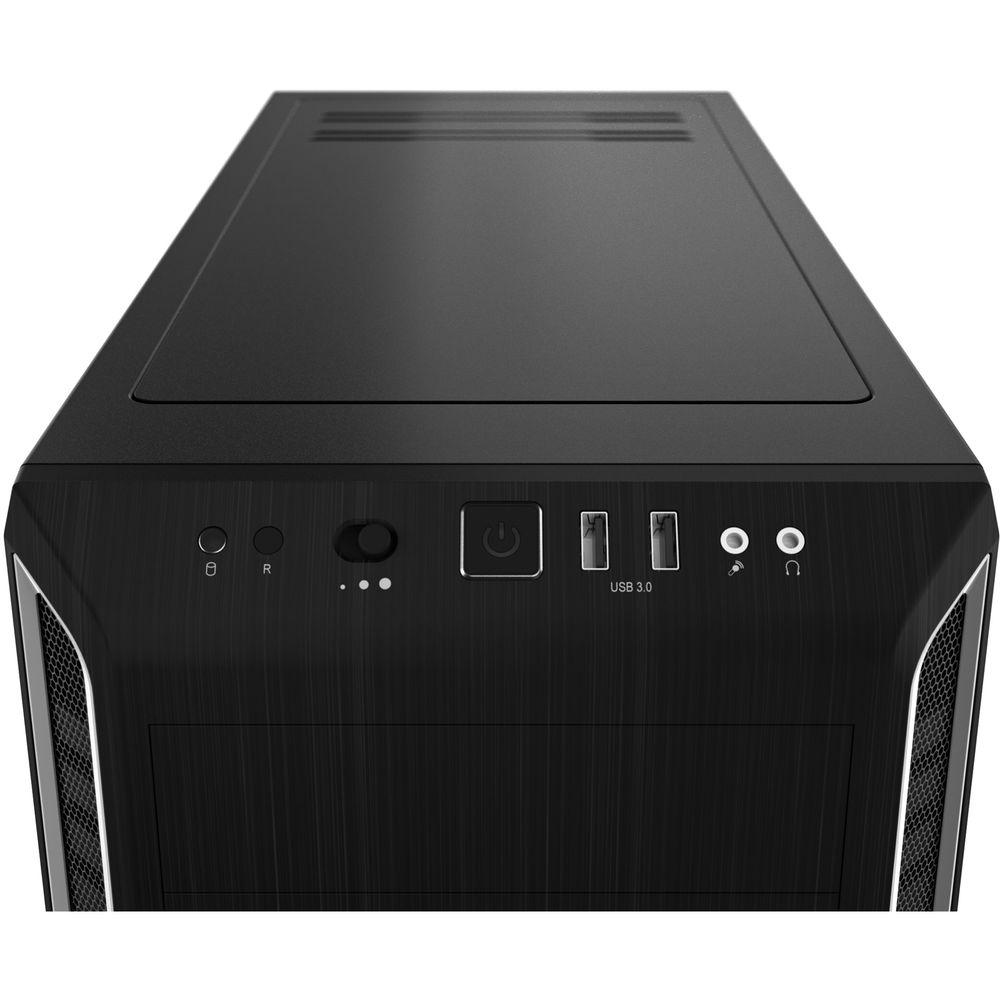

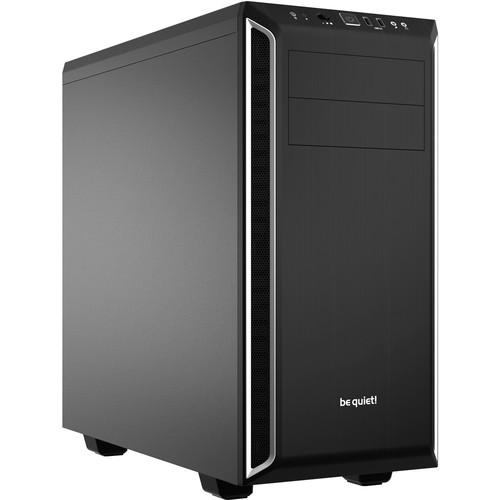

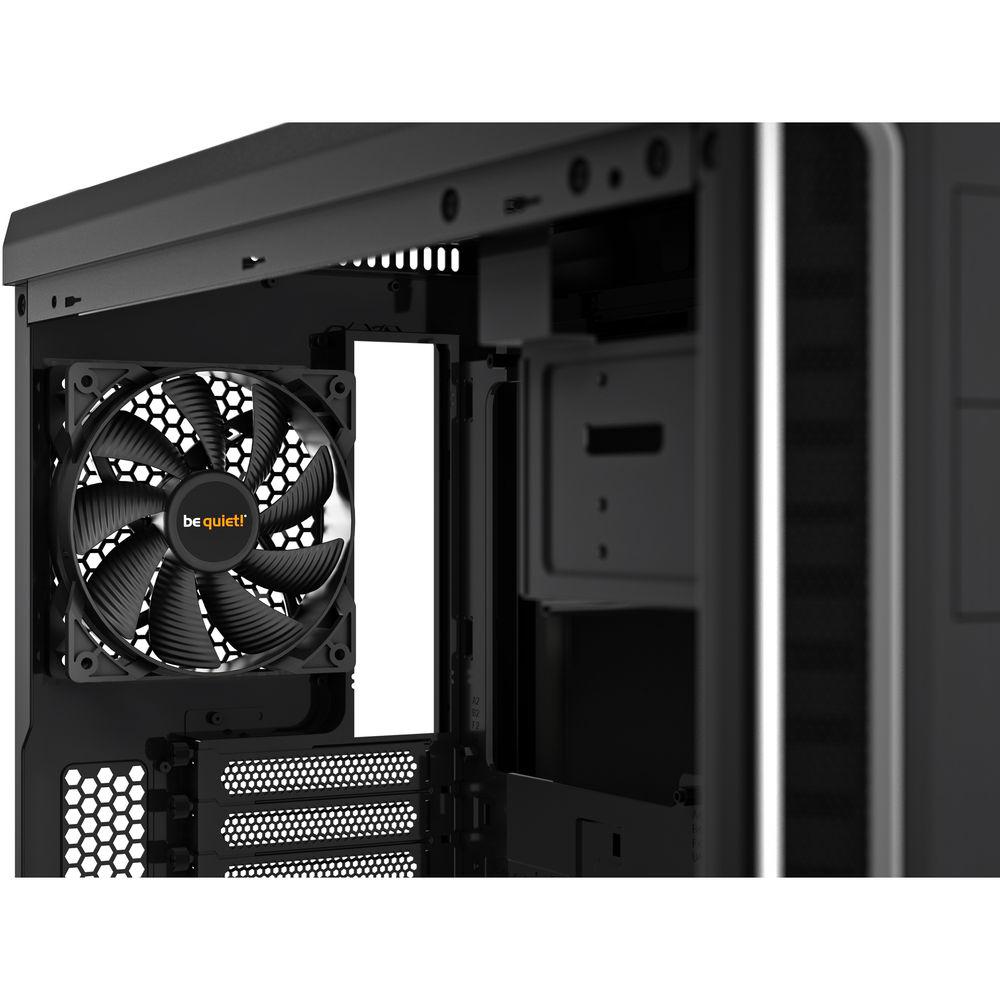

The Pure Base 600 Mid-Tower Case from be quiet! is designed for quiet operation and efficient cooling. As a mid-tower case, it can support up to a standard sized ATX motherboard with room to spare for additional storage drives, graphics cards and other PCIe-based expansion cards, and water-cooling hardware. There are also plenty of fan mounting spots and it comes with two pre-installed Pure Wing 2 fans to keep things cool. To simplify hardware installation, be quiet! has designed this case with adjustable drive bays, which let you reposition them to fit a longer graphics card. Once everything's in place, you'll have quick and easy access to two USB ports, audio in/out jacks, as well as a three-speed fan controller located at the front panel. -

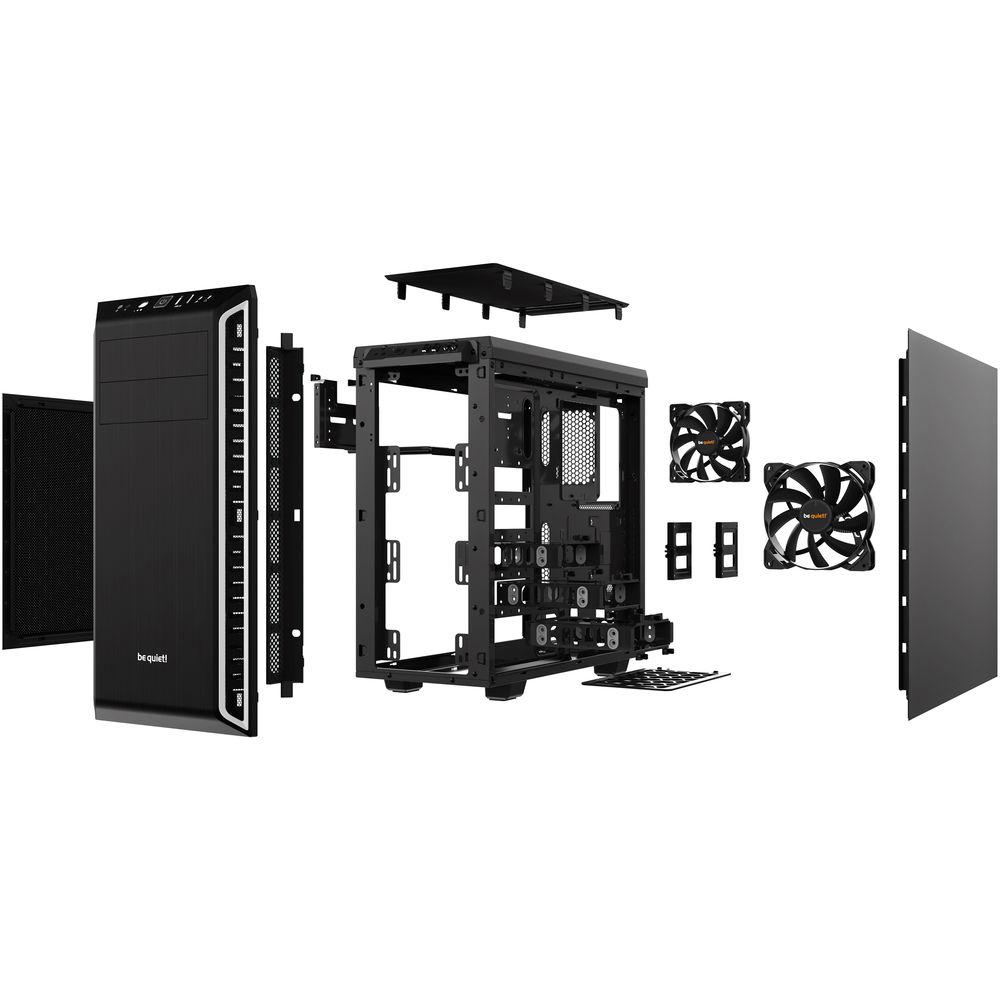

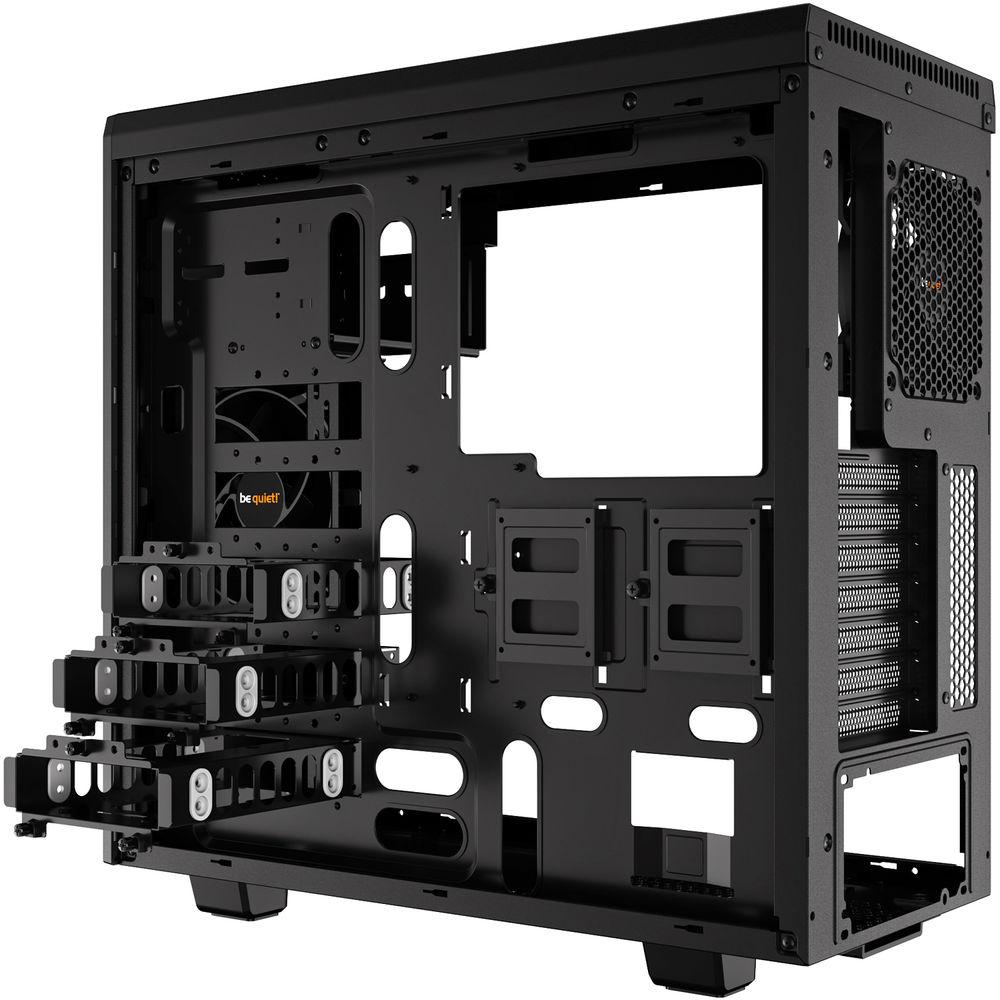

- Highly versatile construction with flexible drive positioning

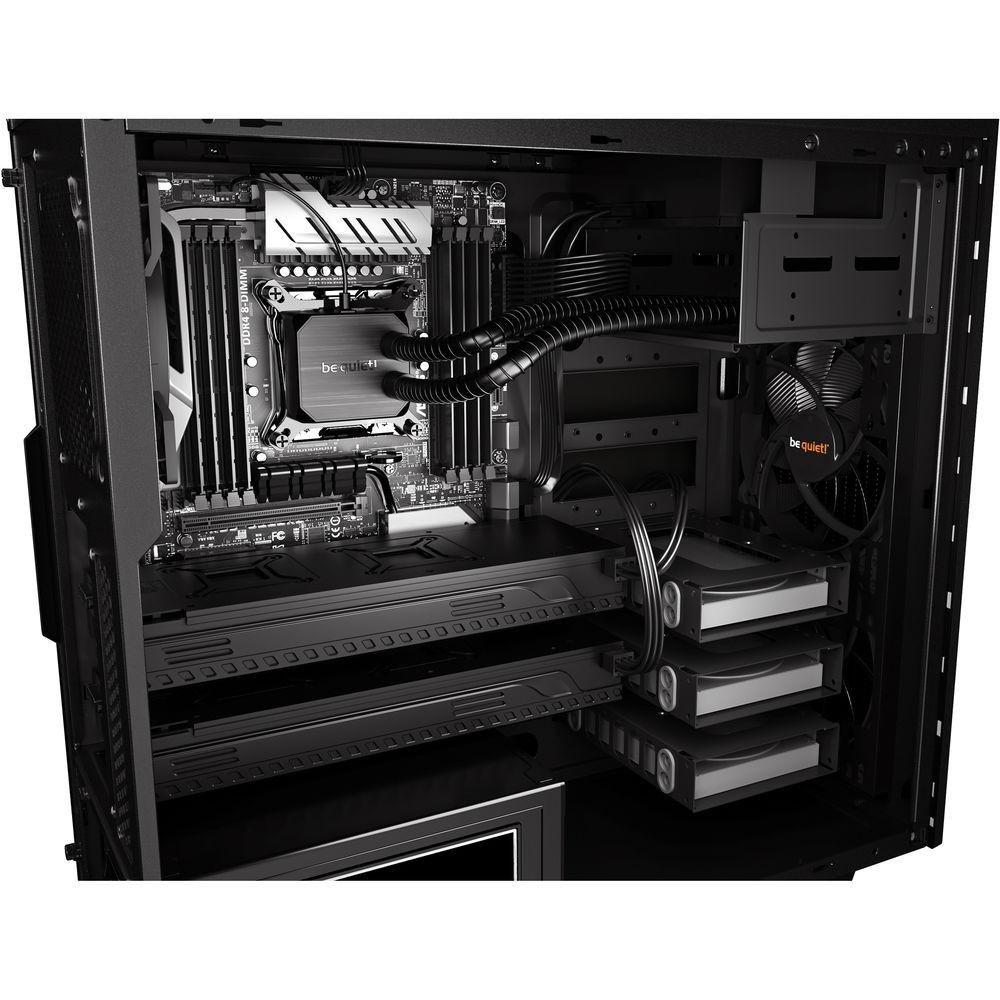

- Optimized for liquid cooling, supporting up to three radiators
- Adjustable top cover vent for enhanced cooling or quiet operation
- Two pre-installed Pure Wings 2 fans
- Integrated 3-step fan controller that supports up to three fans
- Sound insulating material on top, side, and front
- Front and bottom dust filters

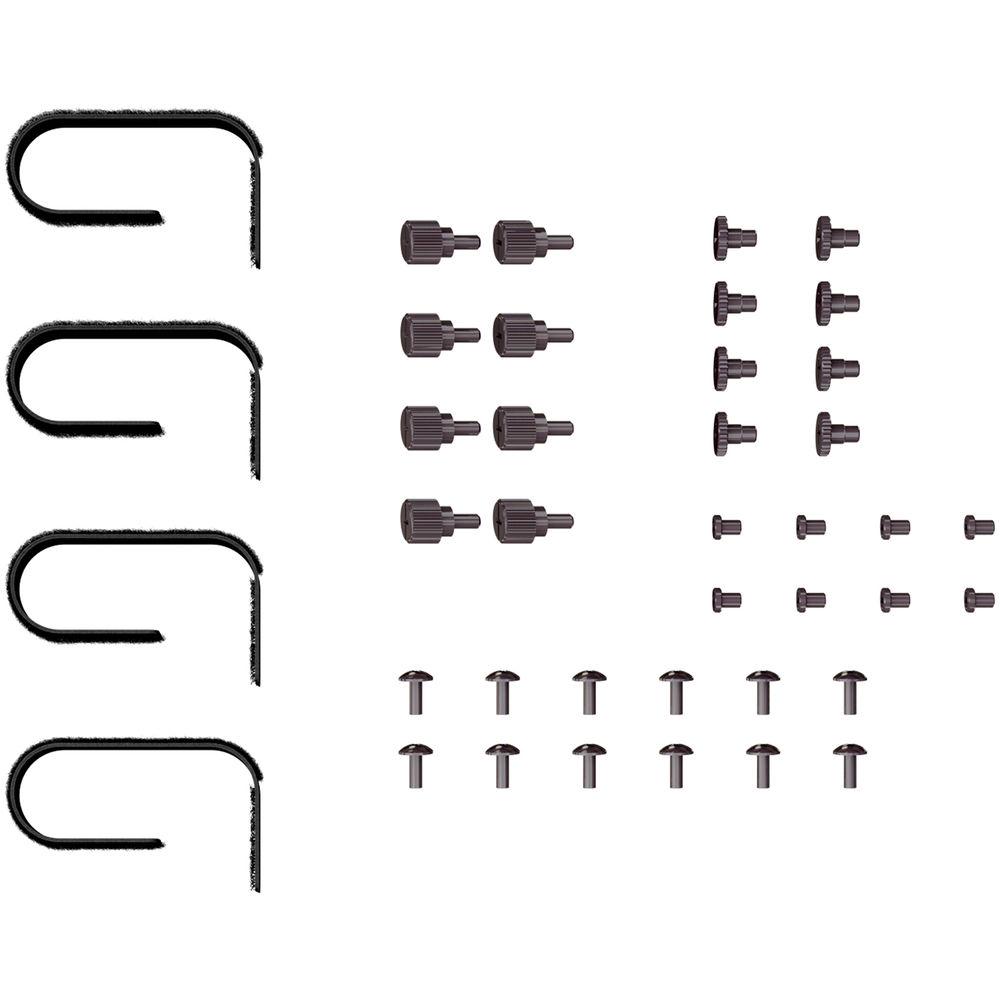

In the Box be quiet! Pure Base 600 Mid-Tower Case ( Silver) Screw Kit Limited 3-Year Warranty User Manual PDF 12mbddrqzetwdsauxtwd Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Pure Base 600 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

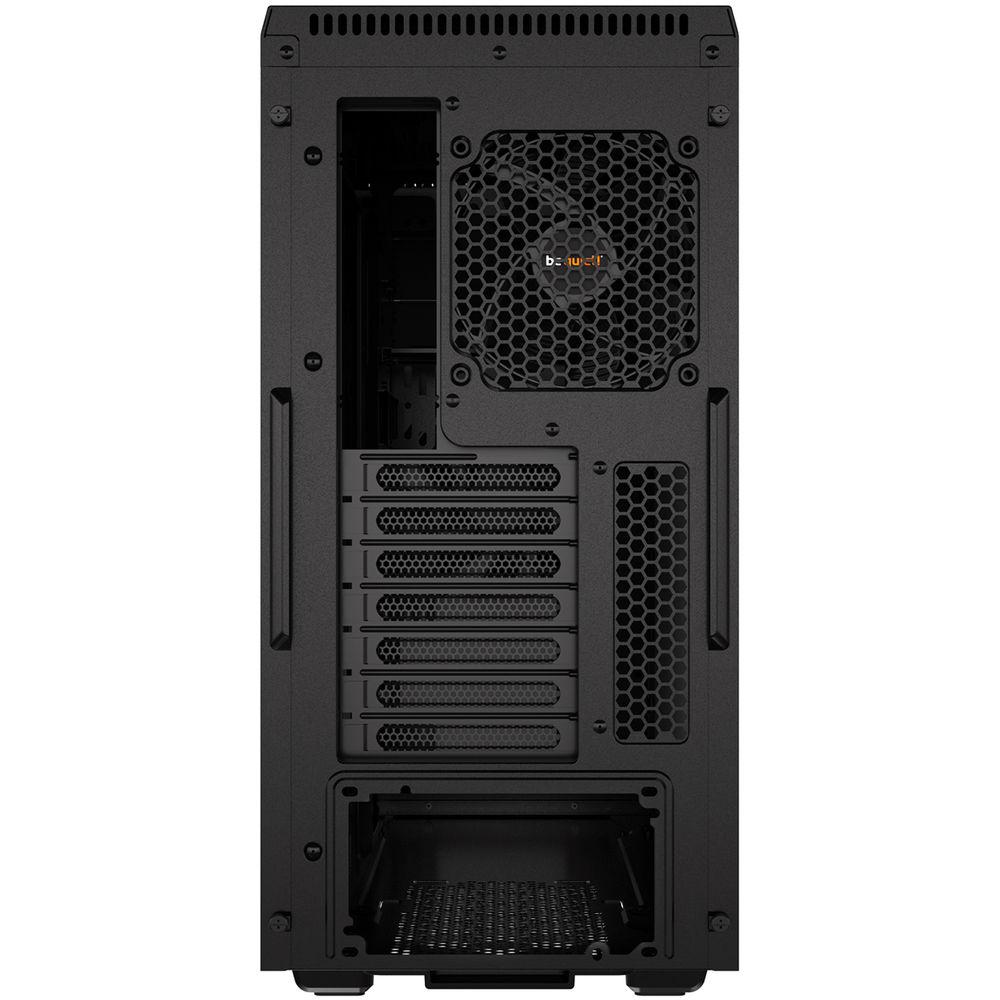

Technical parametersbe quiet! Pure Base 600 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 3 x 3.5"
8 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.73" / 425 mm | | CPU Cooler Height | 6.50" / 165 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.27" / 210 mm | | | | Fan Mounting (Front) | 2 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 140 mm (900 rpm) | | Fans Included (Rear) | 1 x 120 mm (1200 rpm) | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Fan Mounting (Internal) | None | | Noise Level | 16.8 to 17.1 dBA | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 8.7 x 17.5 x 19.4" / 220.0 x 445.0 x 492.0 mm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 20.05 lb | | Box Dimensions (LxWxH) | 22.6 x 20.5 x 11.2" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
