User Manual for be quiet! Pure Power 10 500W 80 Plus Silver Power Supply Click to enlarge the picture
Contents of the user manual for the be quiet! Pure Power 10 500W
- Product category: Power Supplies be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Power Supplies
 |
User manual for the be quiet! Pure Power 10 500W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|

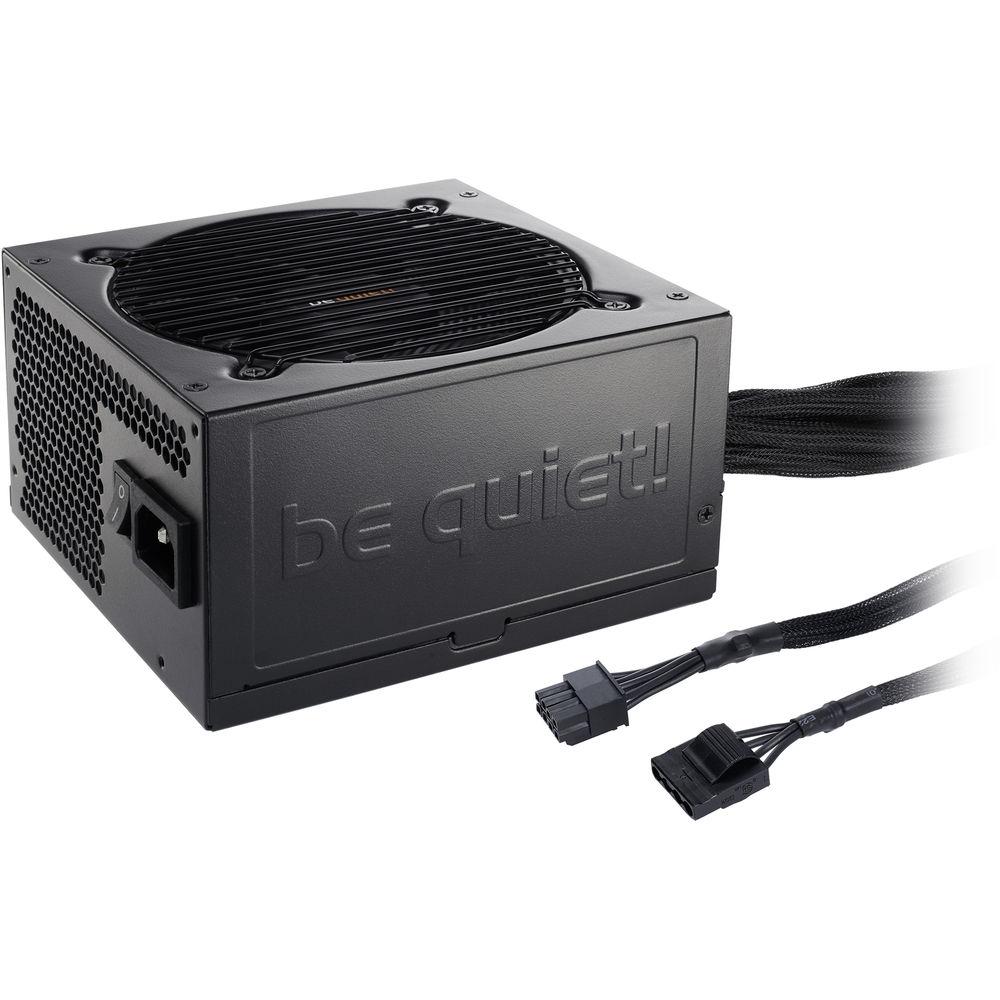

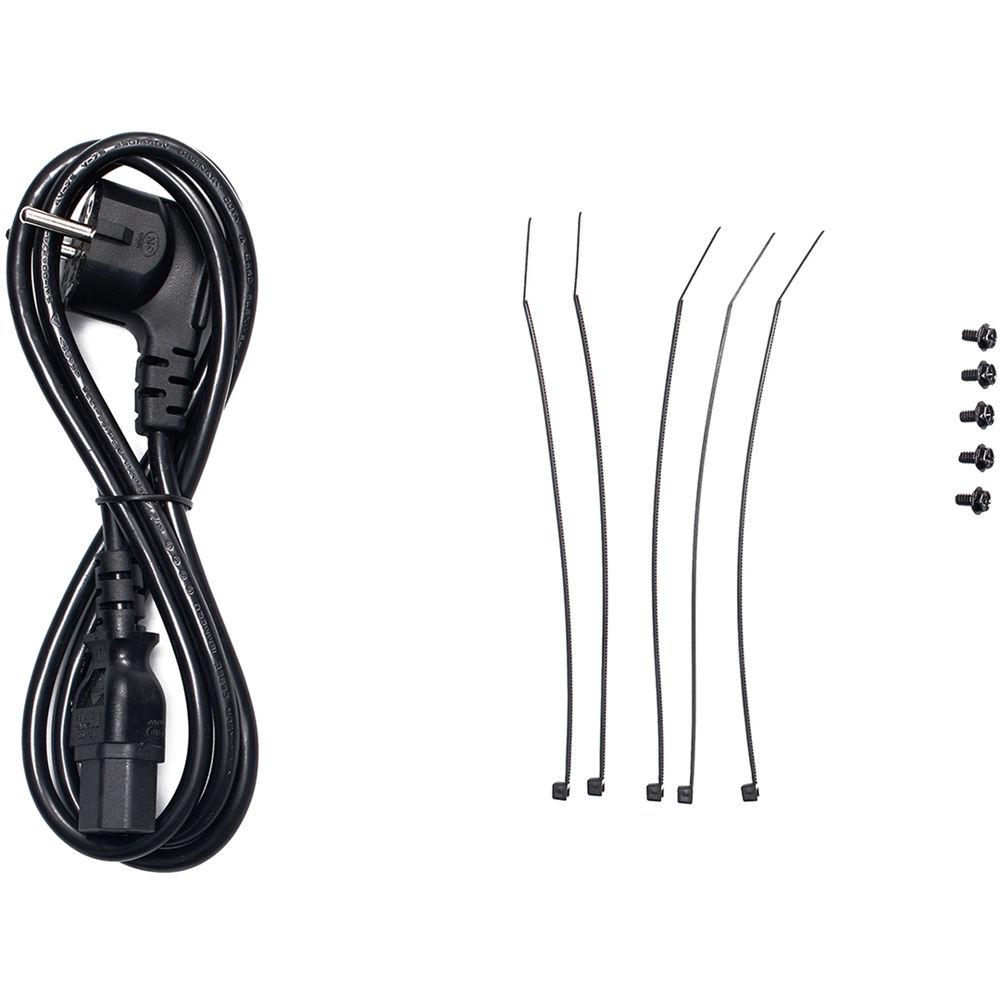

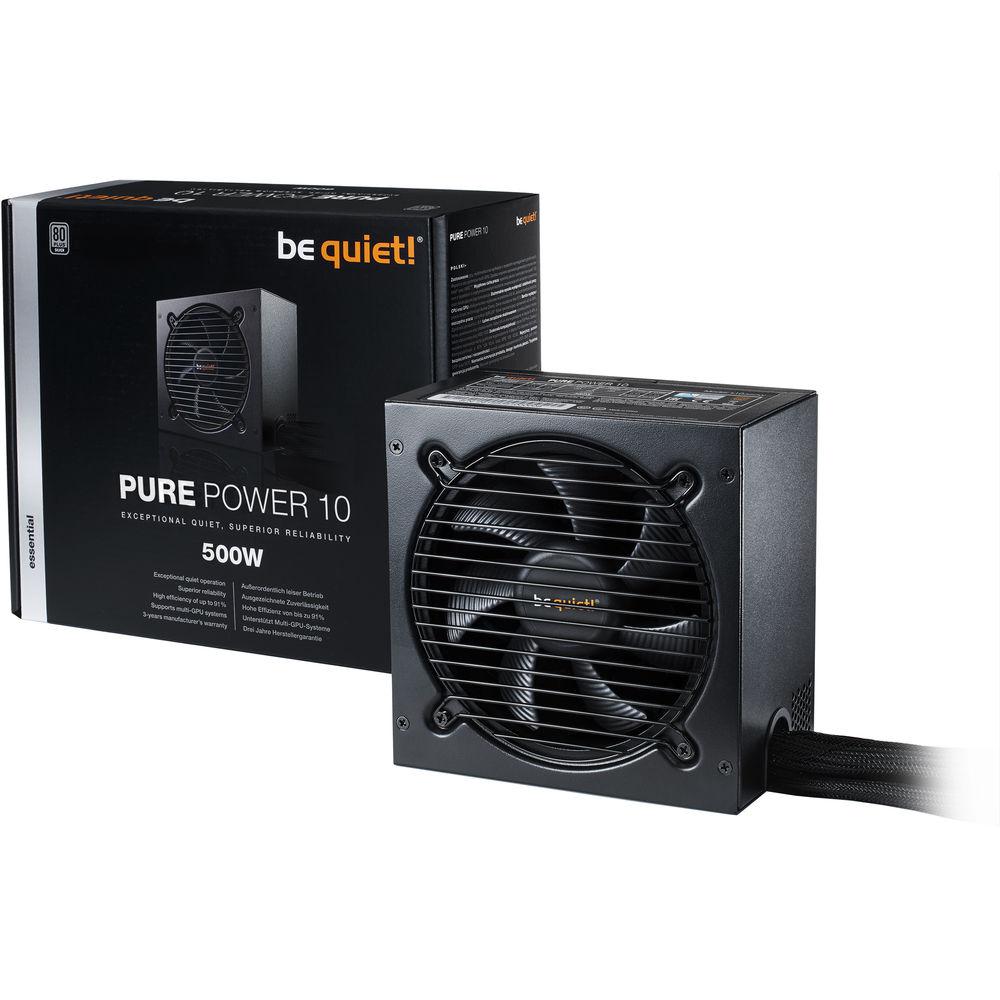

Product description The Pure Power 10 500W 80 Plus Silver Power Supply from be quiet! is an efficient unit designed for all types of systems. It delivers up to 500W of power and utilizes two +12V rails. Cooling is handled by a quiet rifle-bearing 120mm fan. To keep your system protected from accidents, it's equipped with comprehensive safety features. With a 80 Plus Silver rating, the Pure Power 10 ensures up to 91% power conversion efficiency. Moreover, it's built with enough cables for multiple storage drives, accessories, and even dual-slot graphics cards. In the Box be quiet! Pure Power 10 500W 80 Plus Silver Power Supply 20+4-Pin ATX Cable 4+4-Pin CPU Cable 2 x 6+2-Pin PCIe Cable 2 x SATA/4-Pin Peripheral Cable SATA Cable Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Pure Power 10 500W 80 Plus Silver Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Pure Power 10 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm | | SATA Connector Distances | 5.9" / 150 mm | | Peripheral Connector Distances | 5.9" / 150 mm | | Floppy Connector Distances | 5.9" / 150 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 20 to 28 A (Per Rail) | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 15 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.3 A | | Peak Power | 550 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 8 A | | | | Efficiency Rating | 80 PLUS Silver | | Efficiency | 91% at 100% Load | | | | Fan Size | 120 mm | | Fan Speed | 1170 rpm | | Bearing Type | Rifle | | Noise Level | 11.3 to 22.3 dBA | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CE, ENERGY STAR, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 5.9 x 3.4" / 150.0 x 150.0 x 86.0 mm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 10.3 x 8.0 x 3.9" |
