Product description - Pure Power 10 | be quiet!

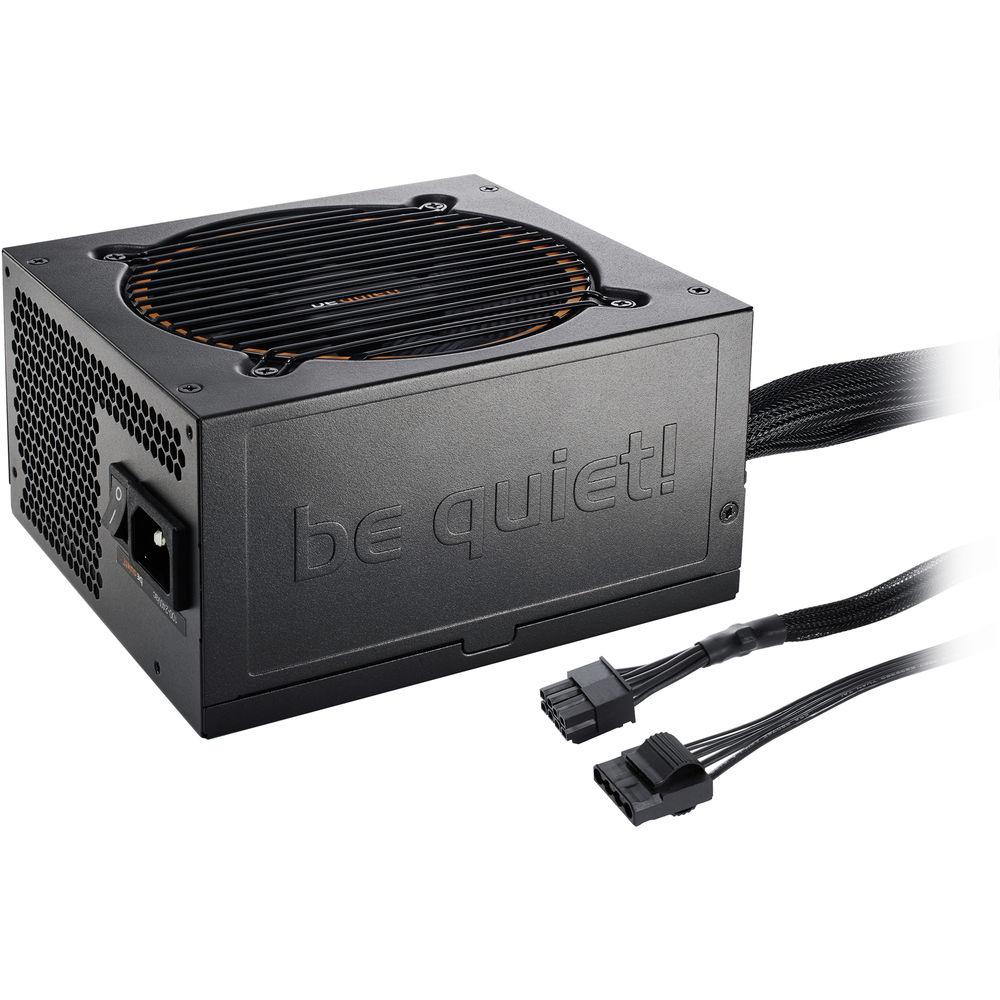

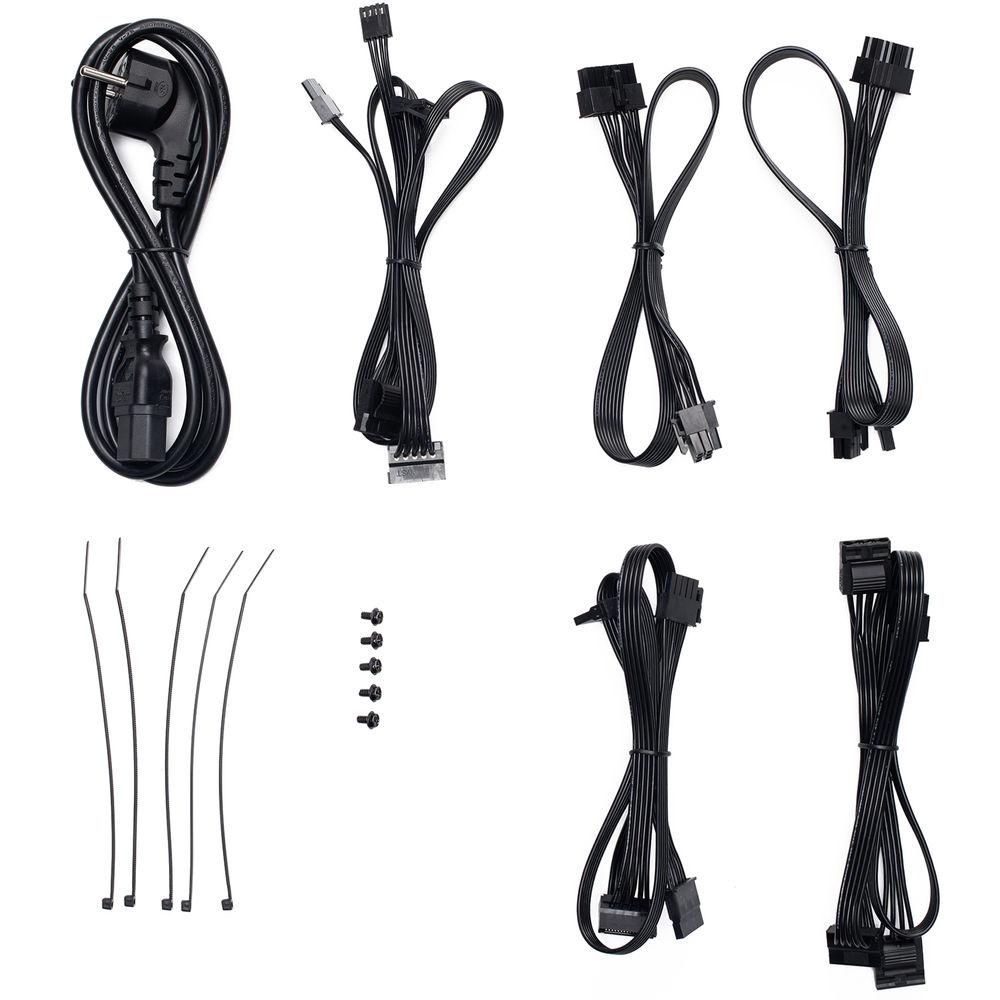

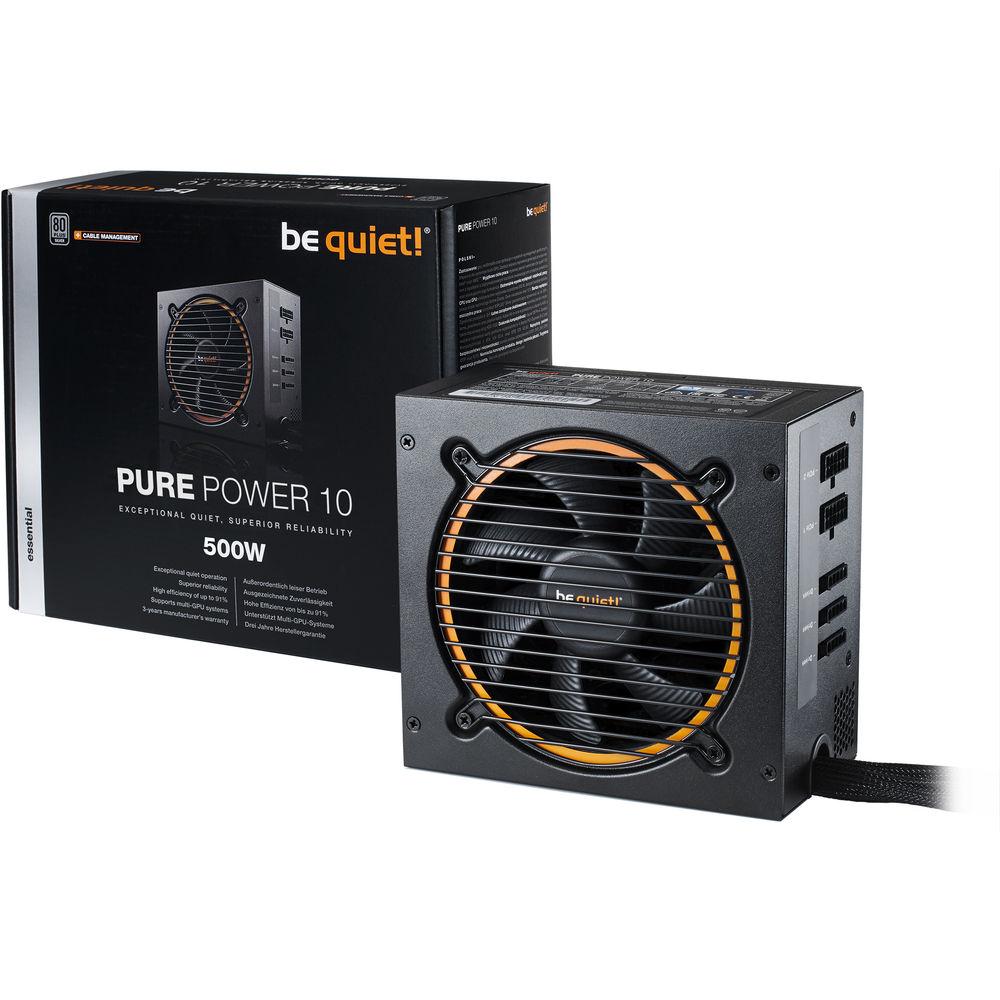

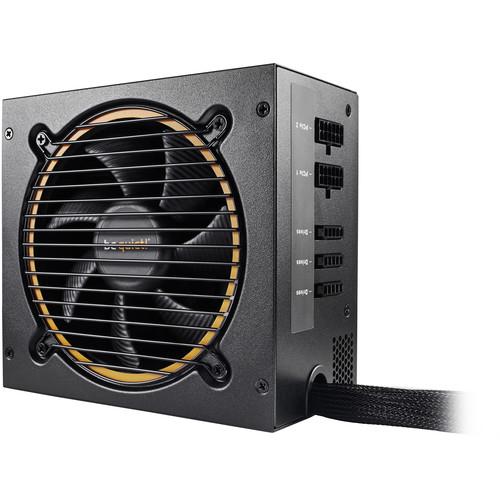

The Pure Power 10 500W CM 80 Plus Silver Modular Power Supply from be quiet! is an efficient unit designed for all types of systems. It delivers up to 500W of power and utilizes two +12V rails. Cooling is handled by a quiet rifle-bearing 120mm fan. Moreover, it's semi-modular, so you can just use the cables you need and store the rest. With less cable clutter, your system can benefit from improved airflow for lower temperatures. To keep your system protected from accidents, it's equipped with comprehensive safety features. With an 80 Plus Silver rating, the Pure Power 10 ensures up to 91% power conversion efficiency. Included are enough cables for multiple storage drives, accessories, and even dual-slot graphics cards. In the Box be quiet! Pure Power 10 500W CM 80 Plus Silver Modular Power Supply 20+4-Pin ATX Cable 4+4-Pin CPU Cable 6+2-Pin PCIe Cables 2 x SATA/4-Pin Peripheral Cable SATA Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Pure Power 10 500W CM 80 Plus Silver Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Pure Power 10 CM Specs | | | Total Connectors | 1 x 20+4-Pin ATX
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Semi-Modular, Sleeved | | PCIe Connector Distances | 21.6" / 550 mm | | SATA Connector Distances | 5.9" / 150 mm | | Peripheral Connector Distances | 5.9" / 150 mm | | Floppy Connector Distances | 5.9" / 150 mm | | ATX Connector Distance | 25.6" / 650 mm | | EPS Connector Distances | 29.5" / 750 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 20 to 28 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 15 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.3 A | | Peak Power | 550 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 8 A | | | | Efficiency Rating | 80 PLUS Silver | | Efficiency | 91% | | | | Fan Size | 120 mm | | Fan Speed | 1200 rpm | | Bearing Type | Rifle | | Noise Level | 11 to 19.9 dBA | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CE, ENERGY STAR, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 6.3 x 5.9 x 3.4" / 160.0 x 150.0 x 86.0 mm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 10.3 x 8.0 x 3.9" |
