User Manual for be quiet! Pure Power 11 600W CM Power Supply Click to enlarge the picture
Contents of the user manual for the be quiet! Pure Power 11 600W
- Product category: Power Supplies be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Power Supplies
 |
User manual for the be quiet! Pure Power 11 600W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Pure Power 11 | Product Presentation | be quiet!
- Unboxing of Straight Power 11 with wire-free design

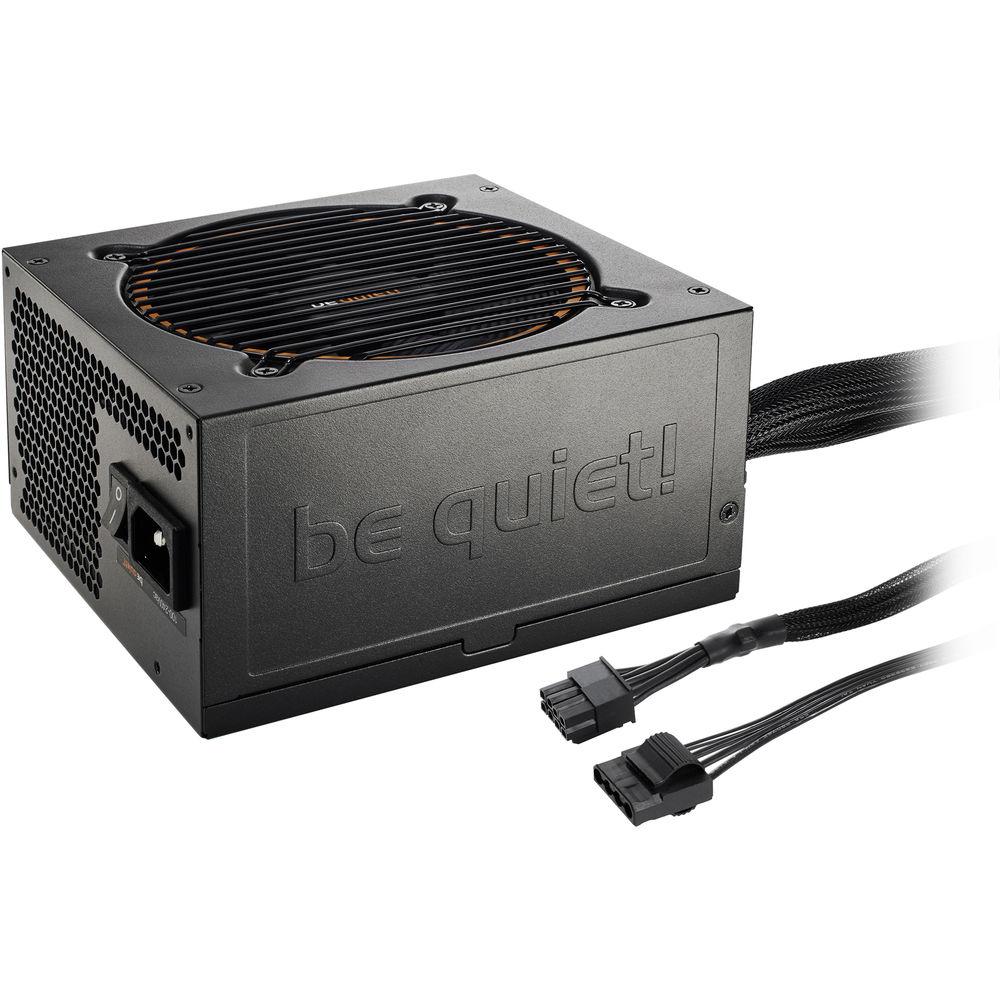

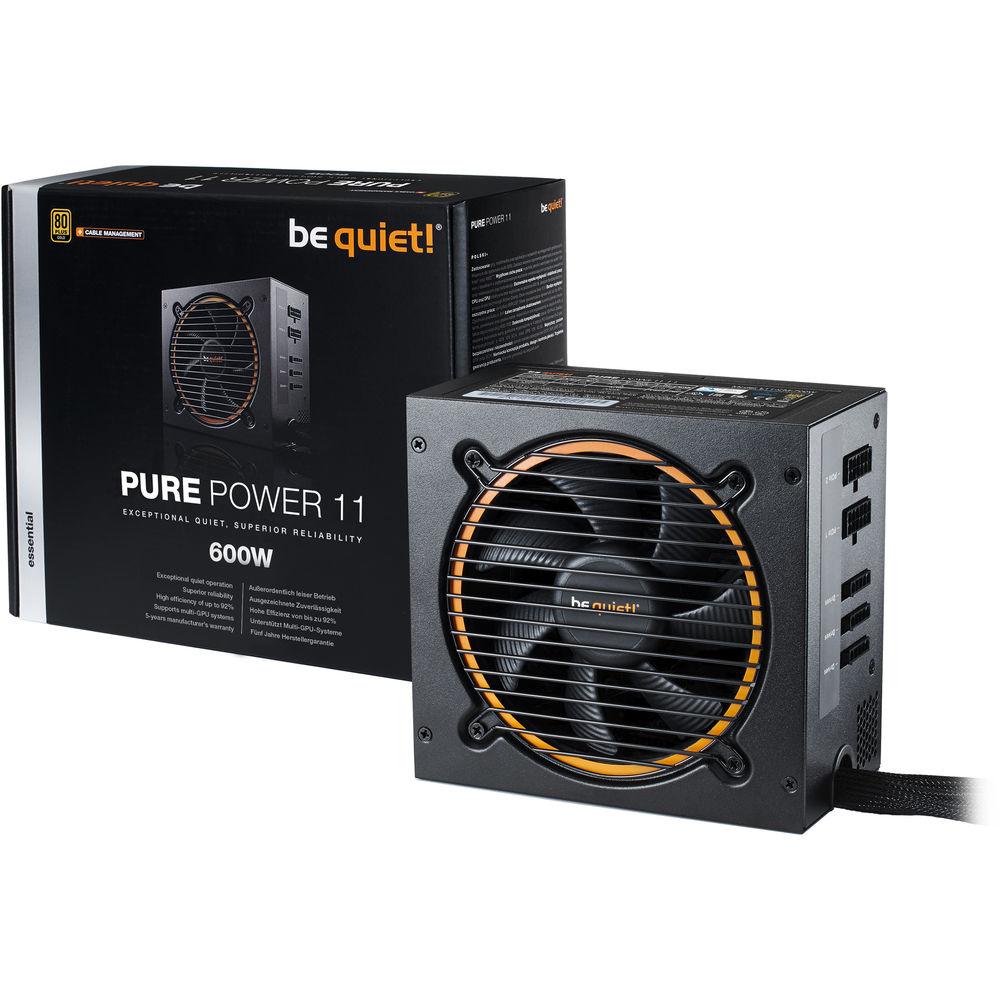

Power your PC build with the Pure Power 11 600W CM Power Supply from be quiet!. This modular ATX power supply is capable of up to 600W power output over dual +12V rails, and it comes equipped with four PCIe connectors, six SATA connectors, three peripheral connectors, and a floppy connector. A 120mm fan helps to keep the PSU cool and quiet. The Pure Power 11 600W comes with an 80 Plus Gold energy efficiency rating. - 80 Plus Gold Certification
- The Pure Power 11 600W CM is certified 80 Plus Gold with an efficiency rating of up to 92%, which helps to provide lower power consumption and cooler, quieter operation.
- Power and Compatibility
- The Pure Power 11 CM offers 600W of continuous power with two independent 12V rails for signal stability and four PCIe connectors for multi-GPU systems.
- DC-to-DC, Active Clamp, and Synchronous Rectifier
- The use of Active Clamp and Synchronous Rectifier technologies helps to provide stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This helps to ensure secure operation for next-generation processors and graphics cards.
- Quiet Operation
- The silence-optimized 120mm be quiet! fan is thermally governed to strike an optimal balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling quiet functionality and almost inaudible operation.
- Modular Cable Management
- The modular cable management is enhanced with premium black-sleeved cables. The flat cables used for the PCIe connection and drives simplify installation and help keep the system tidy.

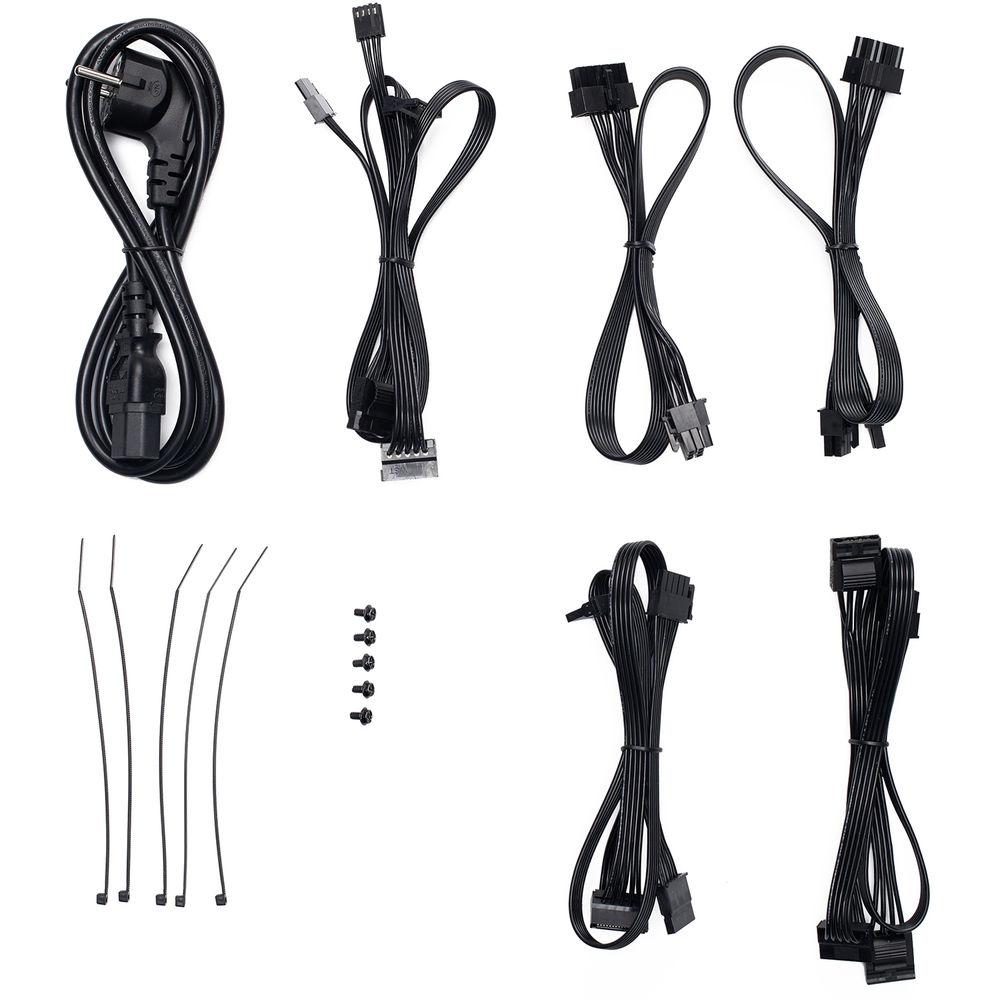

In the Box be quiet! Pure Power 11 600W CM Power Supply Cable Management Cable Set Mains Lead Set of Cable Ties Screw Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Pure Power 11 600W CM Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! BN629 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat, Modular, Sleeved | | PCIe Connector Distances | 19.7" / 500 mm | | SATA Connector Distances | 19.7" / 500 mm
13.8" / 350 mm
7.9" / 200 mm
2" / 50 mm | | Peripheral Connector Distances | 19.7" / 500 mm
13.8" / 350 mm | | Floppy Connector Distances | 19.7" / 500 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 600 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 576 W | | Max Load for +12 V | 48 A | | Combined Power for +3.3/+5 V | 140 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 18 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | Peak Power | 650 W | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz at 8 to 5 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 92% | | Hold up Time | 24 ms at 100% Load | | | | Fan Size | 120 mm | | Fan Speed | 1060 rpm | | Bearing Type | Rifle | | Noise Level | 9.2 to 19.9 dBA | | | | Operating Temperature | 104°F / 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4, EPS 12 V v2.92 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, ENERGY STAR, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 6.3 x 5.9 x 3.4" / 160.0 x 150.0 x 86.0 mm | | Weight | 4.6 lb / 2.1 kg |
