Product description - Pure Power 11 | Product Presentation | be quiet!
- Unboxing of Straight Power 11 with wire-free design

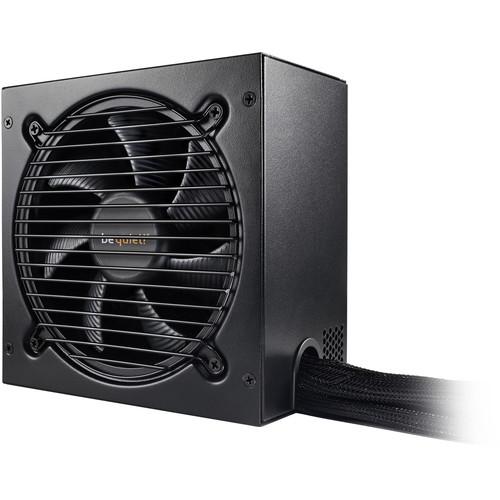

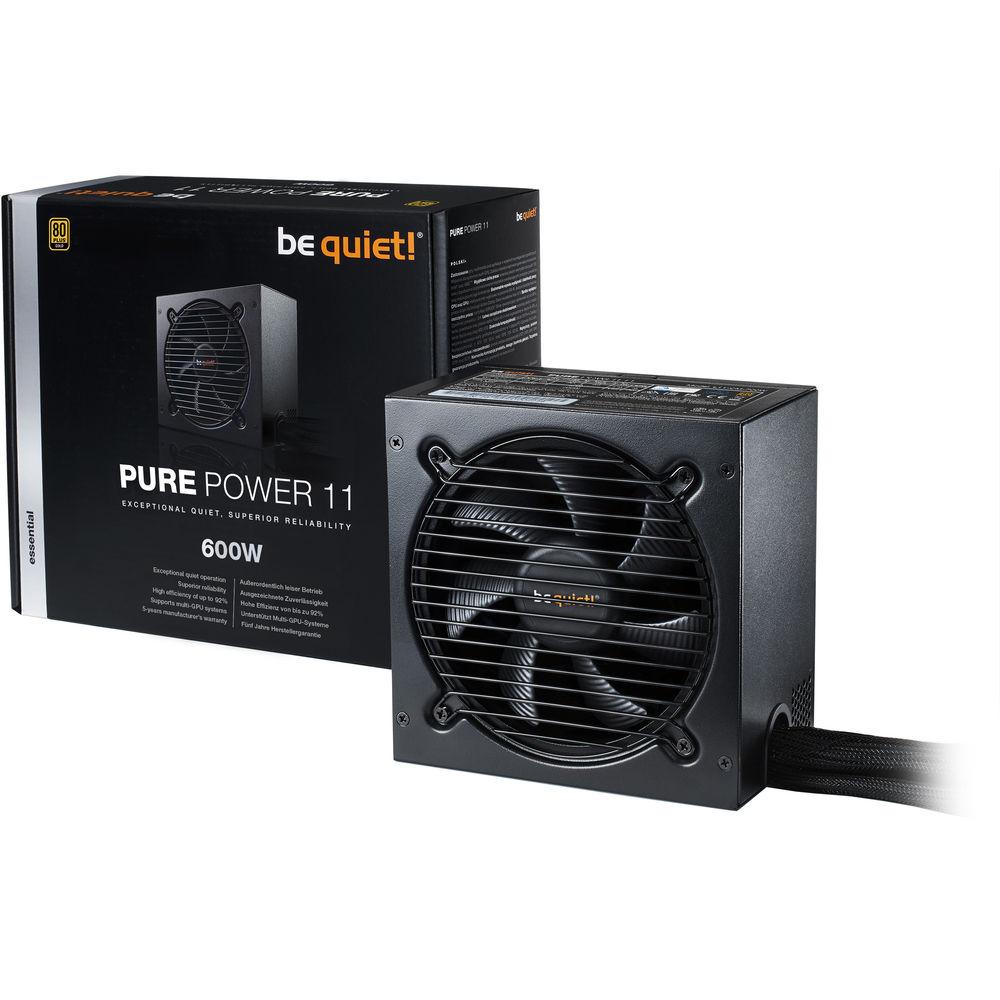

Power your PC build with the Pure Power 11 600W Power Supply from be quiet!. Capable of up to 600W power output over dual +12V rails, this PSU has a non-modular design, meaning all its connector cables are attached to the unit. The Pure Power 11 600W comes equipped with four PCIe connectors, six SATA connectors, three peripheral connectors, and a floppy drive connector. Certified 80 Plus Gold, the power supply comes with a 120mm fan designed to keep the PSU cool and quiet. - 80 Plus Gold Certification
- The Pure Power 11 600W is certified 80 Plus Gold with an efficiency rating of up to 92%, which helps to provide lower power consumption and cooler, quieter operation.
- Power and Compatibility
- The Pure Power 11 offers 600W of continuous power with two independent 12V rails for signal stability and four PCIe connectors for multi-GPU systems.
- DC-to-DC, Active Clamp, and Synchronous Rectifier
- The use of Active Clamp and Synchronous Rectifier technologies helps to provide stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This helps to ensure secure operation for next-generation processors and graphics cards.
- Quiet Operation
- The silence-optimized 120mm be quiet! fan is thermally governed to strike an optimal balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling quiet functionality and almost inaudible operation.

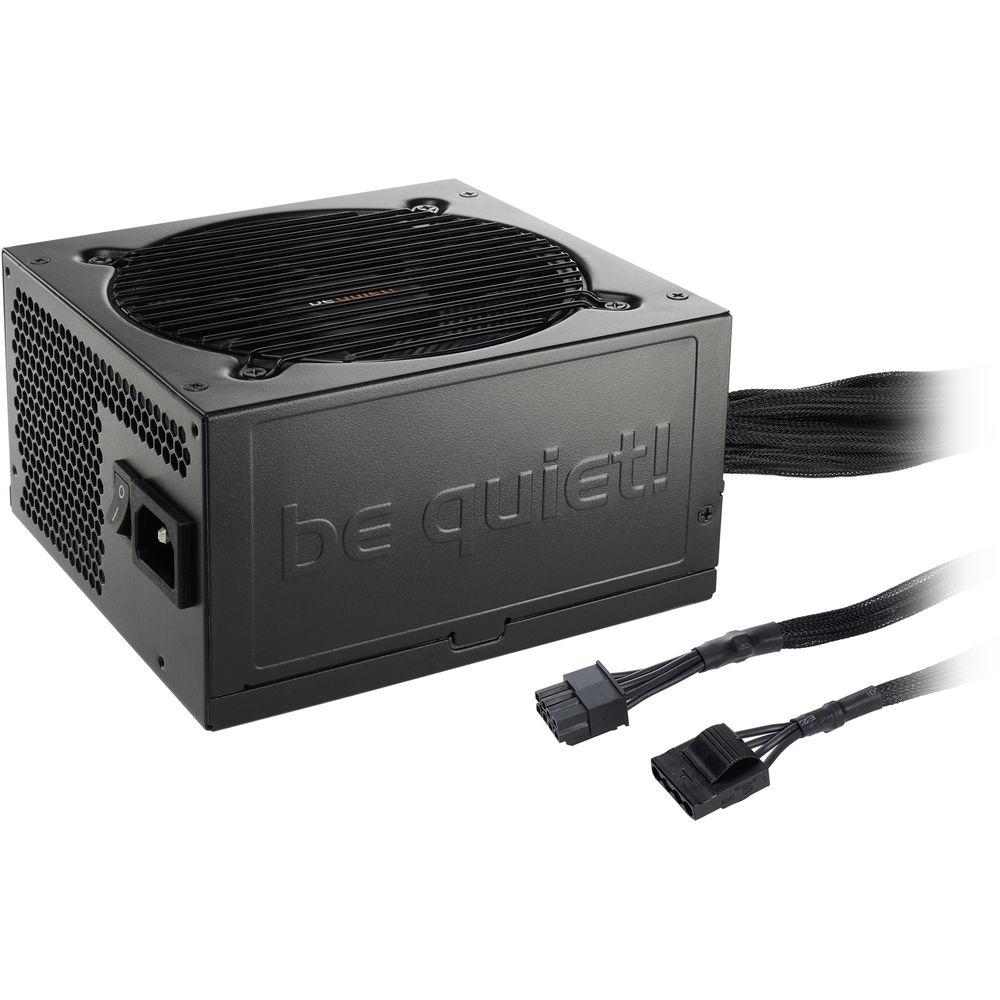

- Sleeved Cables
- High-quality sleeved cables help to simplify component installation, increase airflow, and improve cooling. The all-in-one cable has a convenient easy-plug HDD connector.

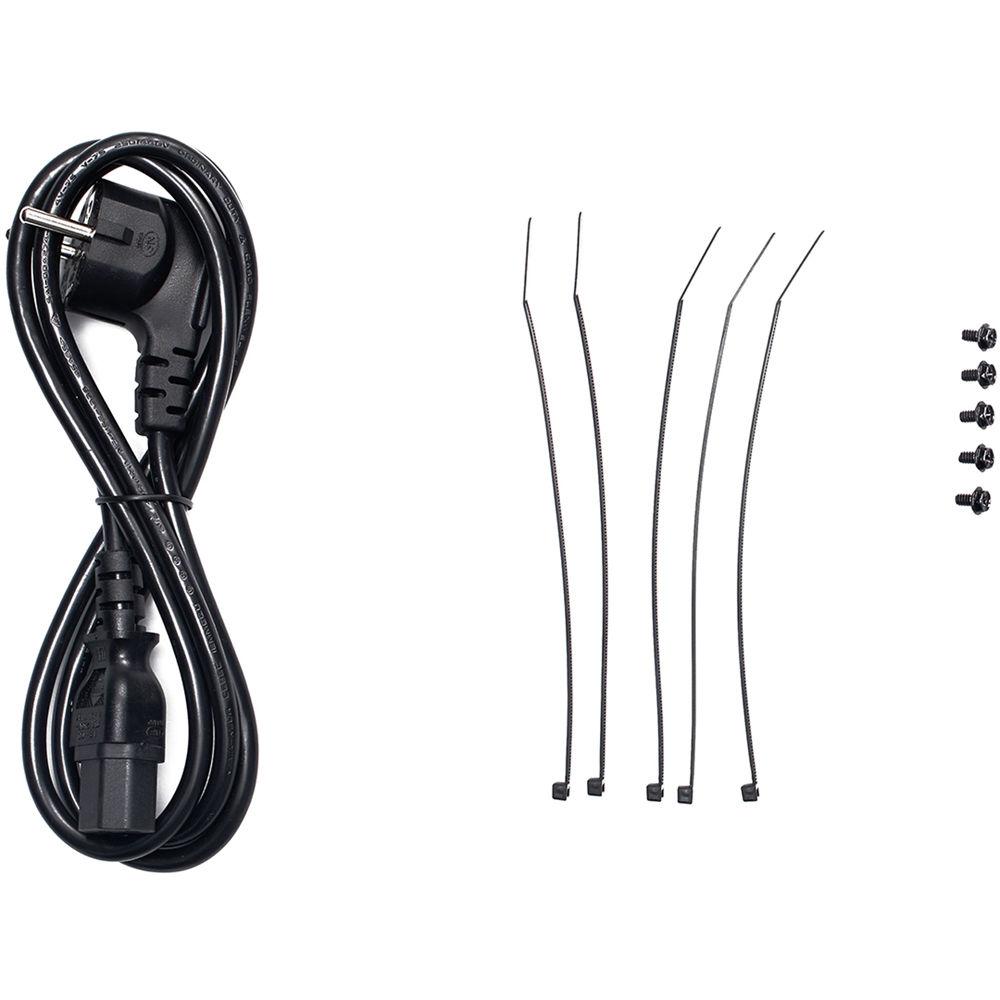

In the Box be quiet! Pure Power 11 600W Power Supply Mains Lead Set of Cable Ties Screw Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Pure Power 11 600W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! BN627 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
3 x 4-Pin SATA
1 x 4-Pin Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 19.7" / 500 mm | | SATA Connector Distances | 19.7" / 500 mm
13.8" / 350 mm
7.9" / 200 mm
2" / 50 mm | | Peripheral Connector Distances | 19.7" / 500 mm
13.8" / 350 mm | | Floppy Connector Distances | 19.7" / 500 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 600 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 576 W | | Max Load for +12 V | 48 A | | Combined Power for +3.3/+5 V | 140 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 18 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | Peak Power | 650 W | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz at 8 to 5 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 92% | | Hold up Time | 23 ms at 100% Load | | | | Fan Size | 120 mm | | Fan Speed | 1260 rpm | | Bearing Type | Rifle | | Noise Level | 9.1 to 22.9 dBA | | | | Operating Temperature | 104°F / 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4, EPS 12 V v2.92 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, ENERGY STAR, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 5.9 x 3.4" / 150.0 x 150.0 x 86.0 mm | | Weight | 4.6 lb / 2.1 kg |
