Product description - SFX L Power | be quiet!
- The concept behind the be quiet! SFX L Power

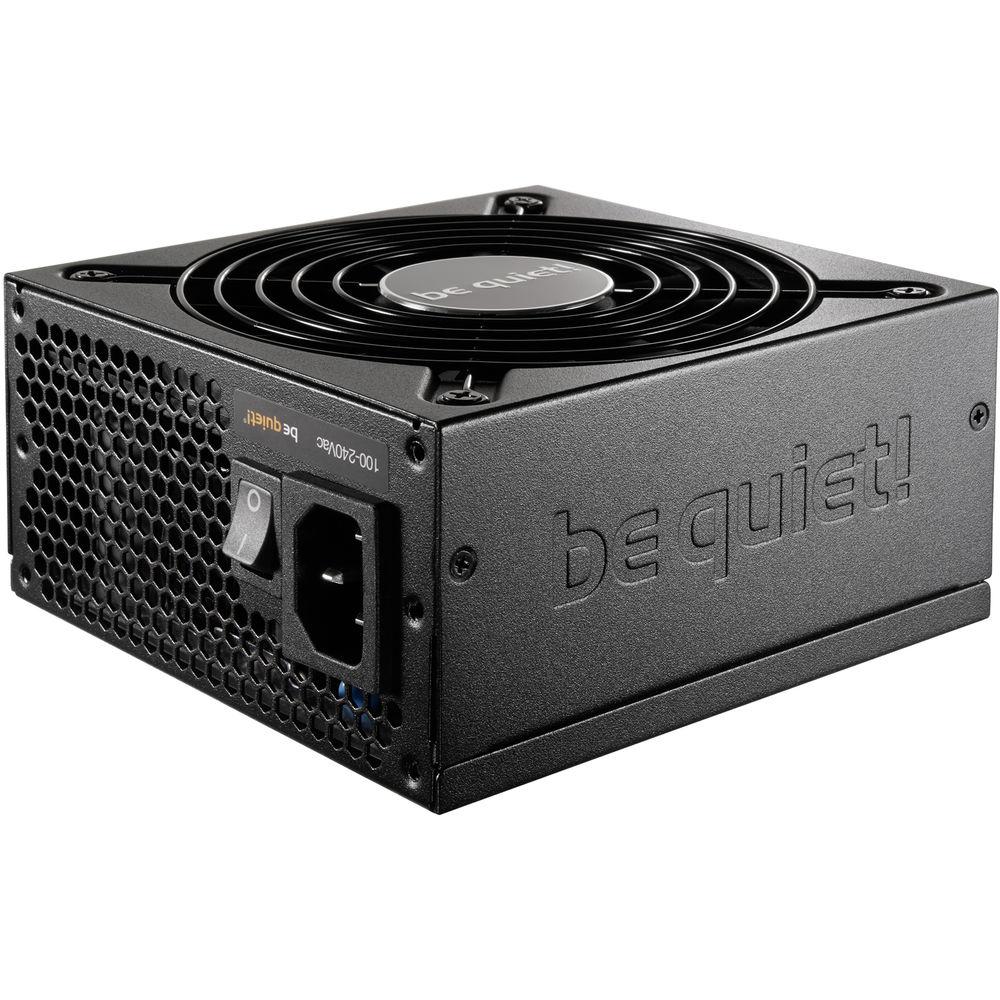

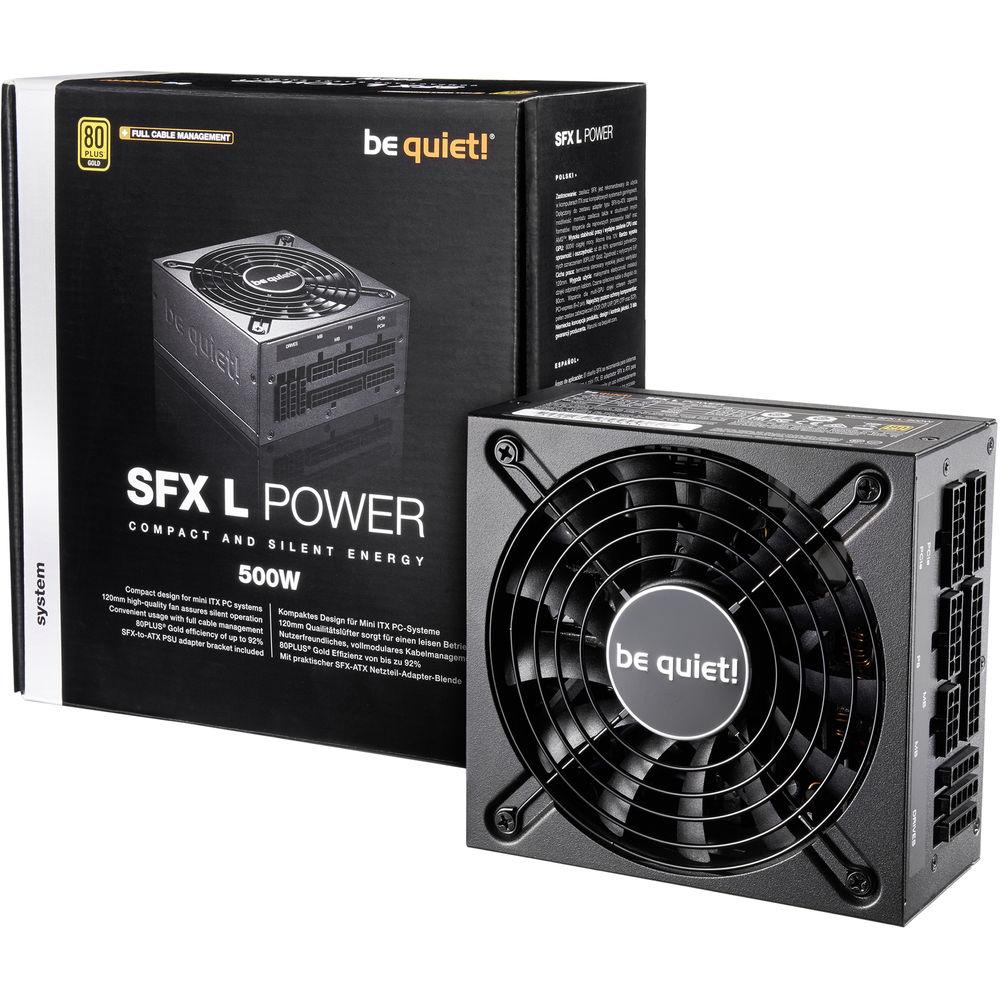

The SFX L Power 500W 80 Plus Gold Modular Power Supply from be quiet! is a small unit designed for compact builds. It delivers up to 500 watts of power and utilizes a single +12V rail. Cooling is handled by a 120mm fan with a 1350 max rpm. Moreover, it's completely modular, so you can use only the cables you need and store the rest. With less cable clutter and flat low-profile cables, your system can benefit from improved airflow for lower temperatures, which is especially important in a smaller case. While it may be small, it still includes enough cables for multiple storage drives, accessories, and up to two standard dual-slot graphics cards. Moreover, it comes with an SFX-to-ATX adapter bracket should you decide to use it in a larger ATX-sized case. - 80 Plus Gold
- The 80 Plus Gold rating ensures that this power supply has an efficiency rating of up to 92%.
- Voltage Regulation
- The single +12V rail delivers up to 41.7A for stable and reliable power in your system.

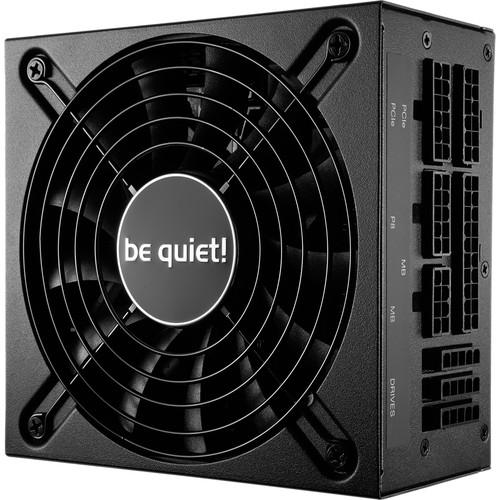

- 120mm Fan
- The built-in 120mm fan provides the SFX L Power with efficient and silent cooling to keep things running longer. It has a 4-pole fan motor with sleeve bearings and a max rpm of 1350.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)

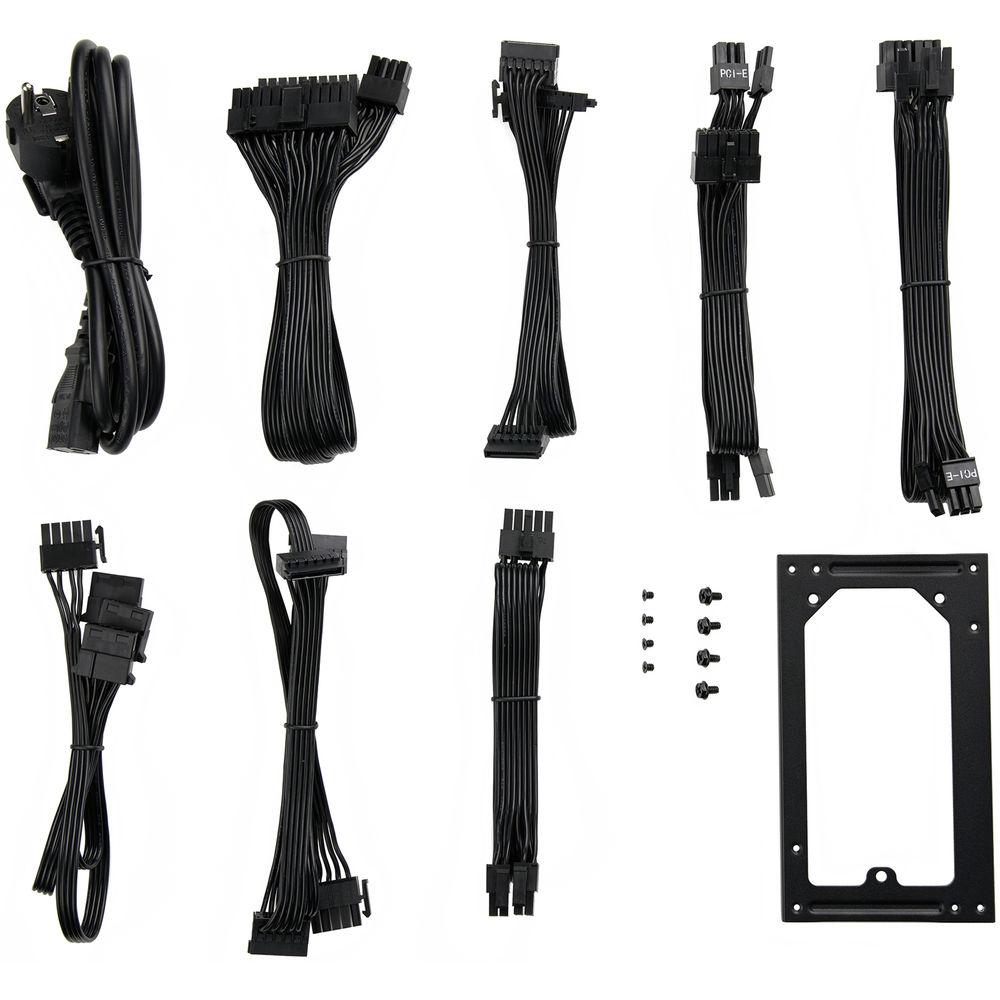

OPP (over power protection) In the Box be quiet! SFX L Power 500W 80 Plus Gold Modular Power Supply 20+4 Pin ATX Cable 4+4-Pin CPU Cable 2 x 6+2-Pin PCIe Cable 2 x SATA Power Cable 4-Pin Peripheral Cable SFX to ATX Adapter Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! SFX L Power 500W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! SFX-L Power Specs | Form Factor | SFX | | Input Voltage | 100 - 240 VAC | | Input Current | 10 A | | Input Frequency Range | 50 - 60 Hz | | Cable Length | ATX: 11.81" / 300 mm
CPU: 15.75" / 400 mm
PCIe: 1 x 19.69" / 500 mm, 1 x 23.62" / 600 mm
SATA: 1 x 23.62" / 600 mm, 1 x 31.5" / 800 mm
4-Pin: 27.56" / 700 mm | | Connectors | 1 x 20+4-pin ATX
1 x 4+4-pin CPU
4 x 6+2-pin PCIe
6 x SATA
3 x 4-pin peripheral | | Output | +3.3 V - 20 A
+5 V - 20 A
+12 V - 41.7 A
-12 V - 0.3 A
+5 Vsb - 3 A
Max combined power 12 V - 500 W
Max combined power 3.3 V + 5 V - 105 W | | | | Size | 120 mm | | Fan Bearing Technology | Sleeve | | Fan Speed | 1350 rpm | | Noise Levels | 9.9 dBA at 20% load
14 dBA at 50% load
28.5 dBA at 100% load | | | | 80 PLUS Certification | Gold | | Dimensions (L x W x D) | 2.52 x 4.92 x 5.12" / 64 x 125 x 130 mm | | Weight | 2.51 lb / 1.14 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 8.8 x 8.2 x 3.2" |
