User Manual for be quiet! Silent Base 600 Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the be quiet! Silent Base 600 Mid-Tower
- Product category: Desktop Computer Cases be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Desktop Computer Cases
 |
User manual for the be quiet! Silent Base 600 Mid-Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Silent Base 600 | be quiet!

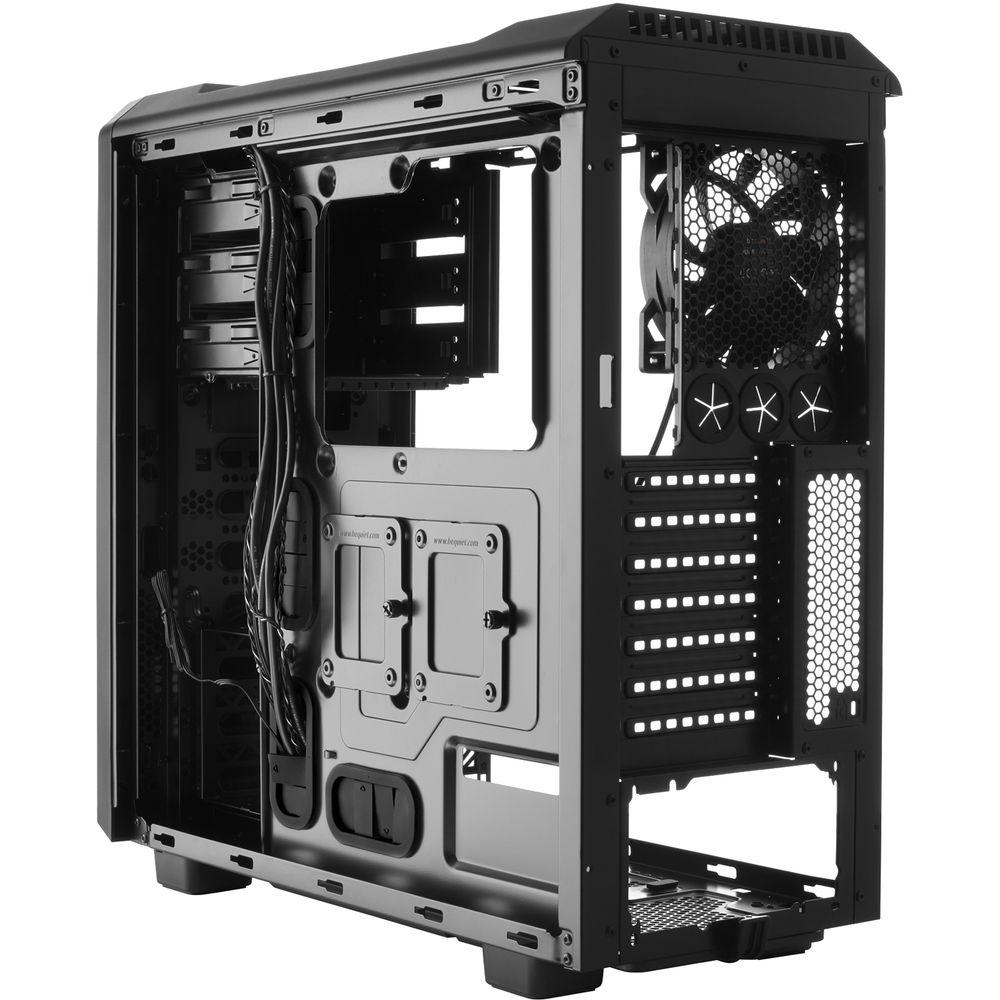

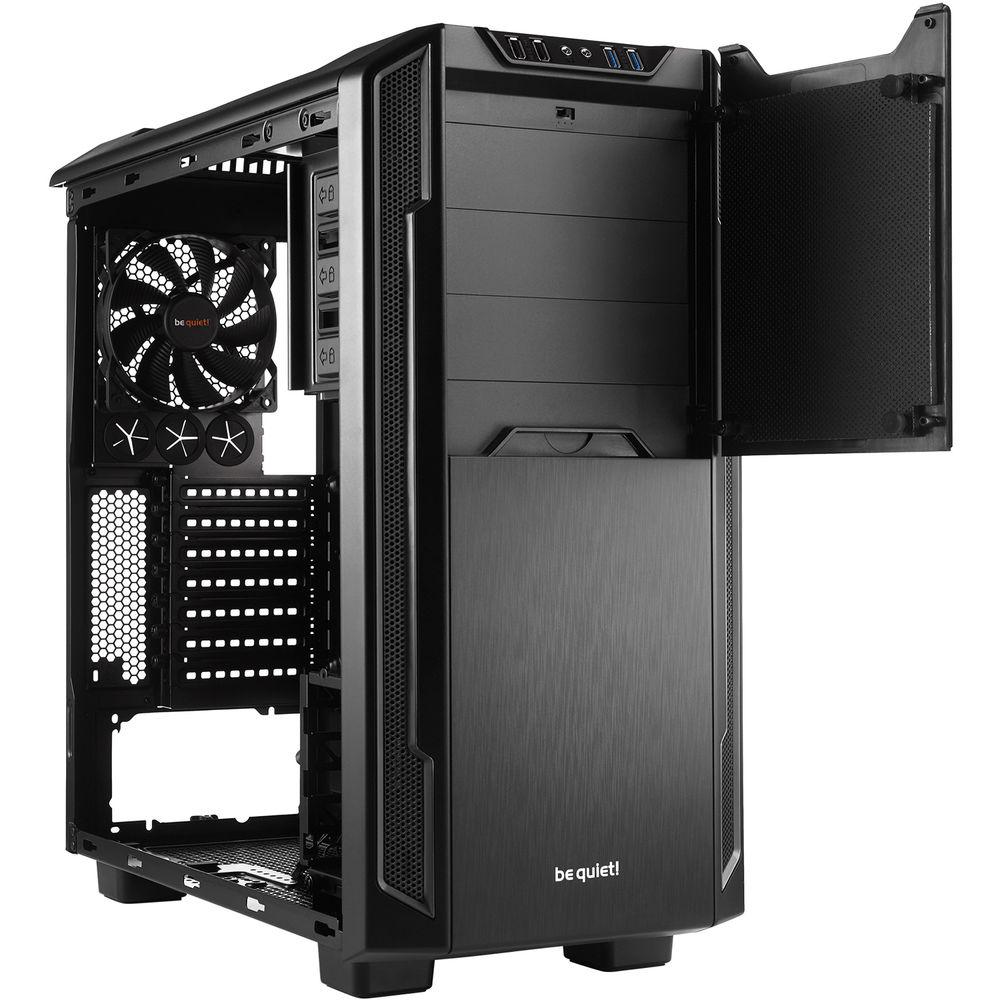

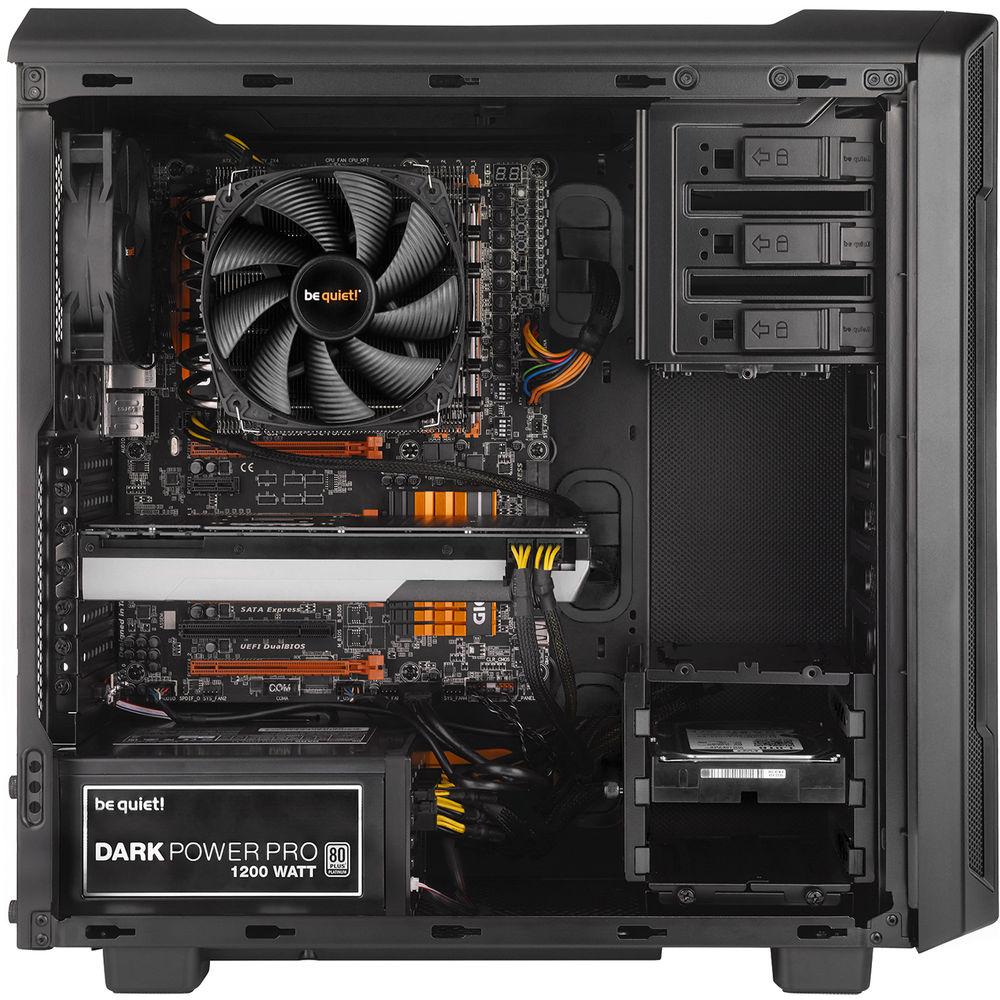

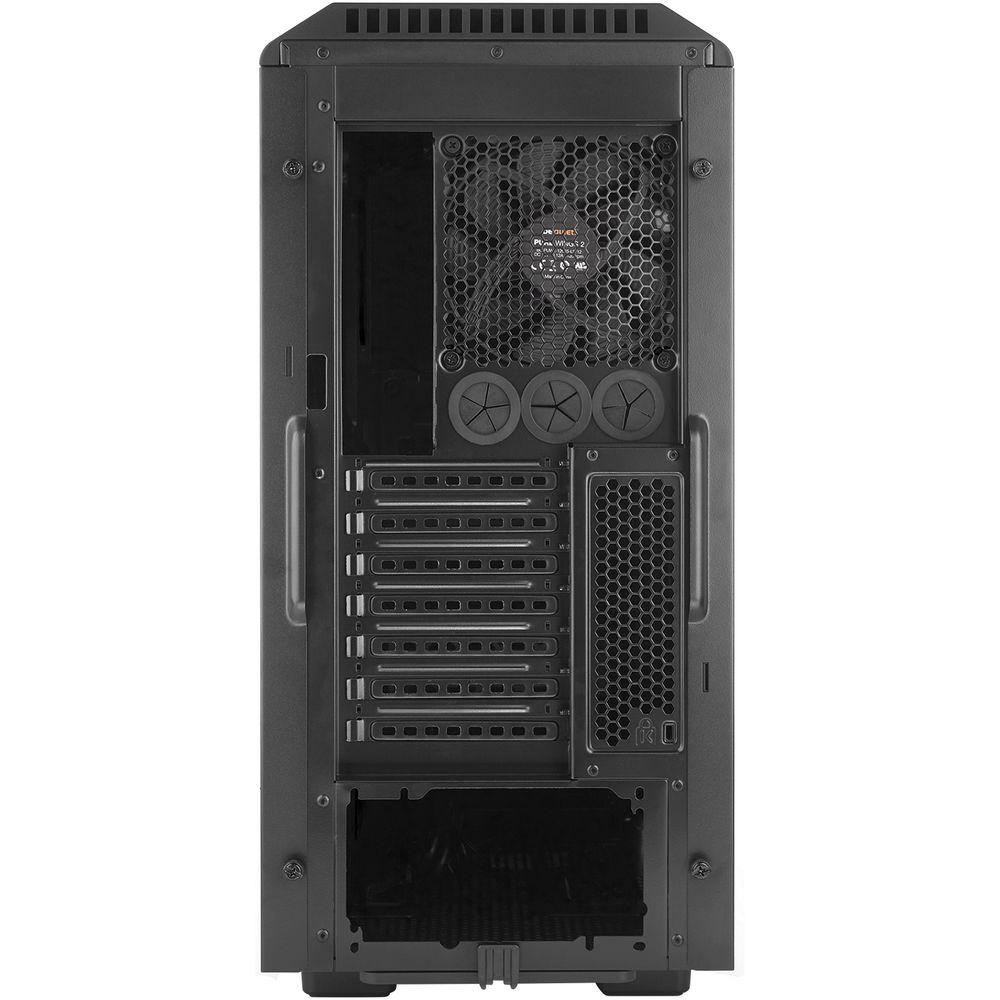

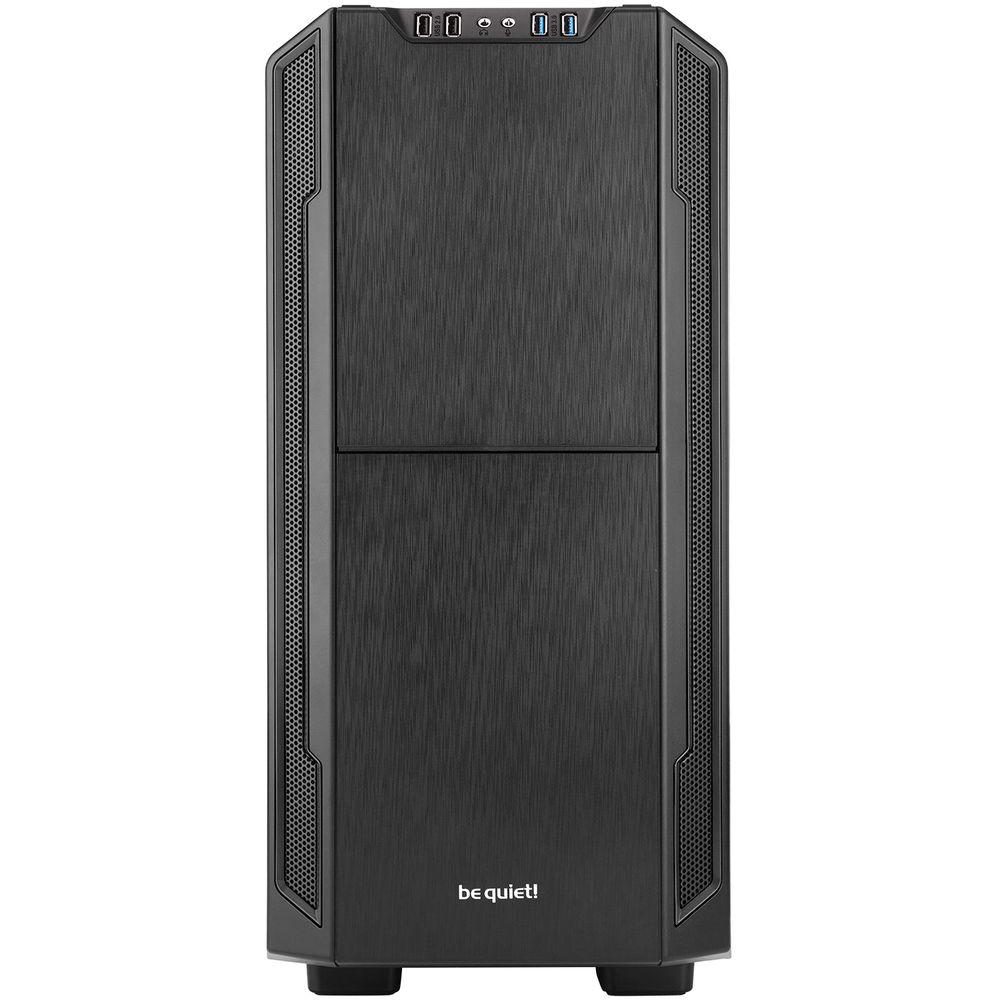

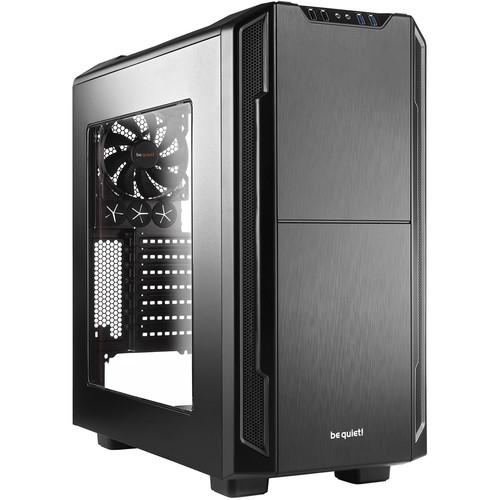

The Silent Base 600 Mid-Tower Case from be quiet! is designed for quiet operation and efficient cooling. As a mid-tower case, it can support up to a standard sized ATX motherboard with room to spare for additional storage drives, graphics cards and other PCIe-based expansion cards, and water-cooling hardware. There are also plenty of fan mounting spots and it comes with two pre-installed Pure Wing 2 fans located at the front and rear to keep things cool. To simplify hardware installation, be quiet! has designed this case with plenty of holes for cable management and a large CPU cutout for easy cooler setup. Once everything's in place, you'll have quick and easy access to four USB ports and audio in/out jacks located at the front panel. Moreover, with its windowed side panel, you'll be able to display your system's interior aesthetics as well as quickly check on components. -
- Simple tool-free drive mounting
- Ample space and cutouts for water-cooling equipment and cables
- Optimized airflow design

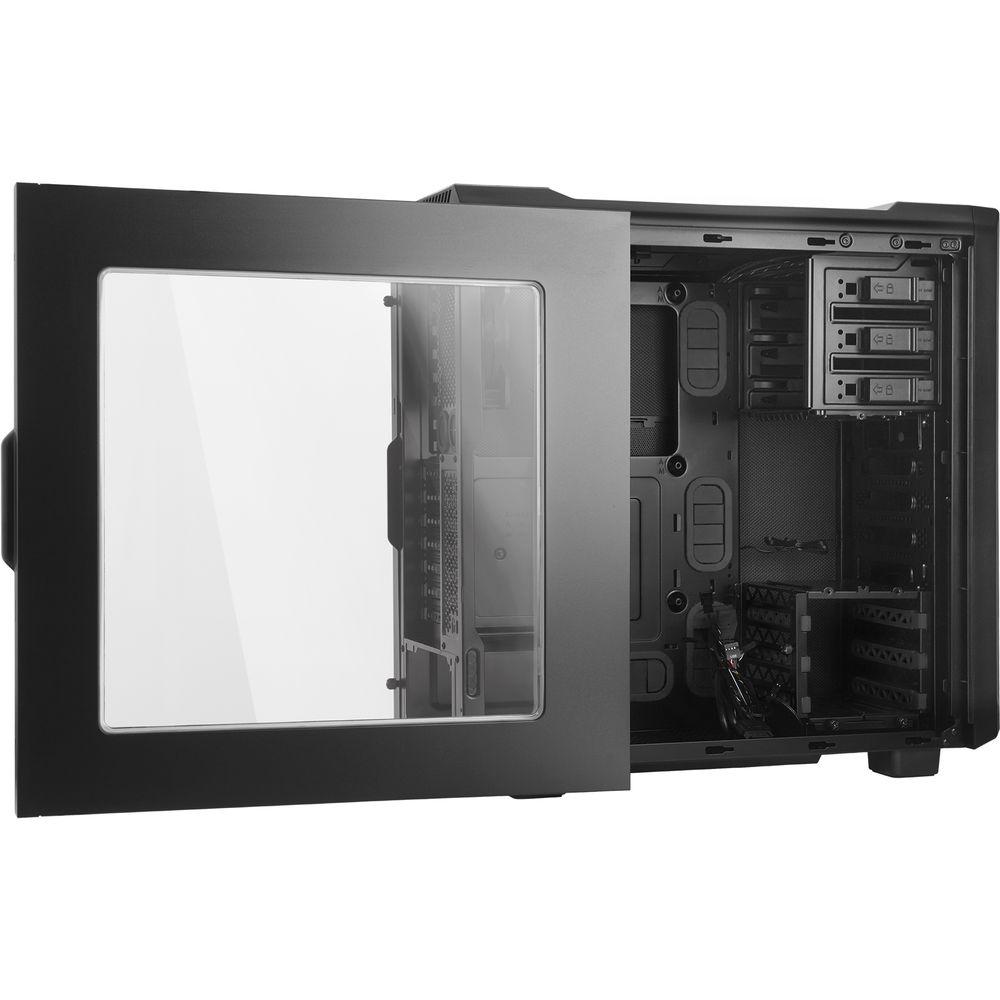

- Sound insulating front panel and windowed side panel
- Two pre-installed Pure Wings 2 fans
- Anti-vibration drive mounts
- Adjustable side panel vent
- Large CPU cooler cutout
- Easy-to-remove dust filters

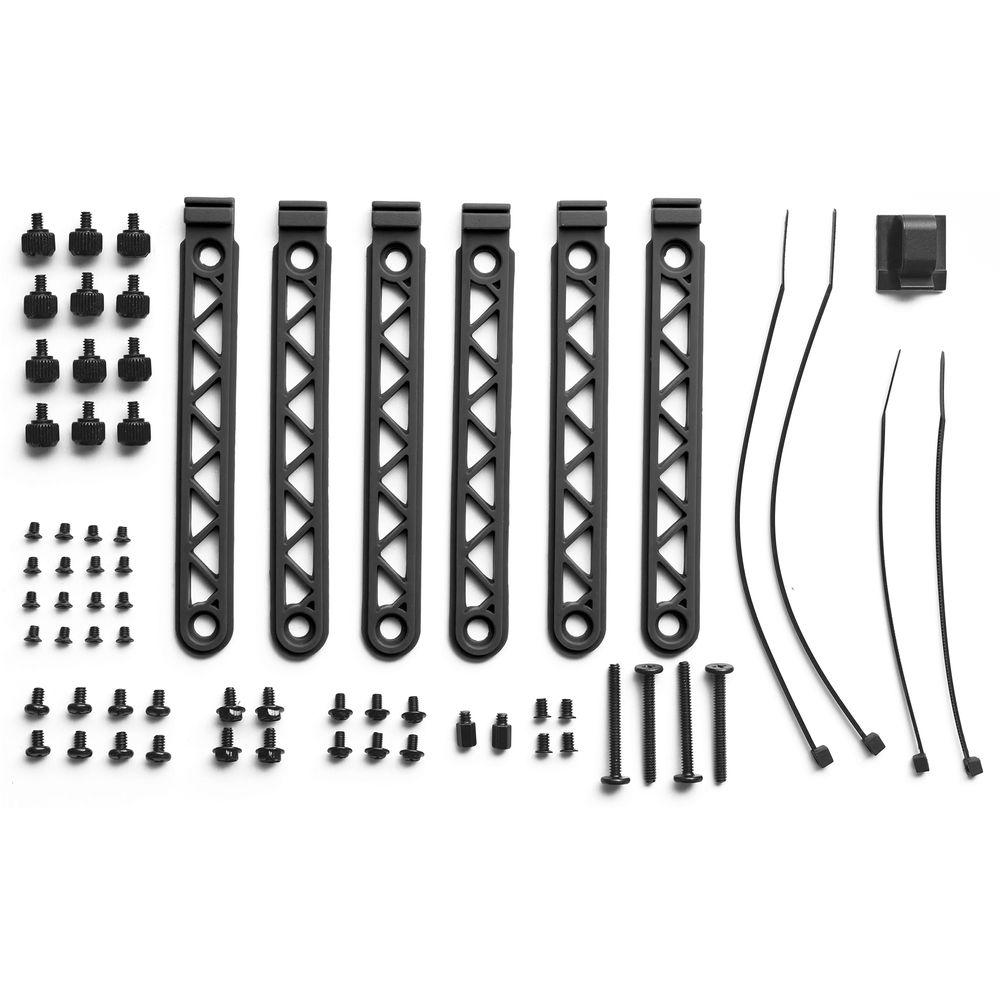

In the Box be quiet! Silent Base 600 Mid-Tower Case (Black) Screw Kit Limited 3-Year Warranty User Manual PDF 14.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Silent Base 600 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Silent Base 600 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 3 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.26" / 413 mm | | CPU Cooler Height | 6.57" / 167 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.42" / 290 mm | | | | Fan Mounting (Front) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 1 x 140 mm (900 rpm) | | Fans Included (Rear) | 1 x 120 mm (1200 rpm) | | Maximum Radiator Size (Front) | 1 x 140 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 240 mm | | Fan Mounting (Internal) | None | | Noise Level | 16.8 to 17.1 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Side | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 9.1 x 19.4 x 19.5" / 230.0 x 493.0 x 495.0 mm | | Weight | 17.2 lb / 7.8 kg | | | | Package Weight | 20.6 lb | | Box Dimensions (LxWxH) | 23.0 x 21.9 x 12.0" |
