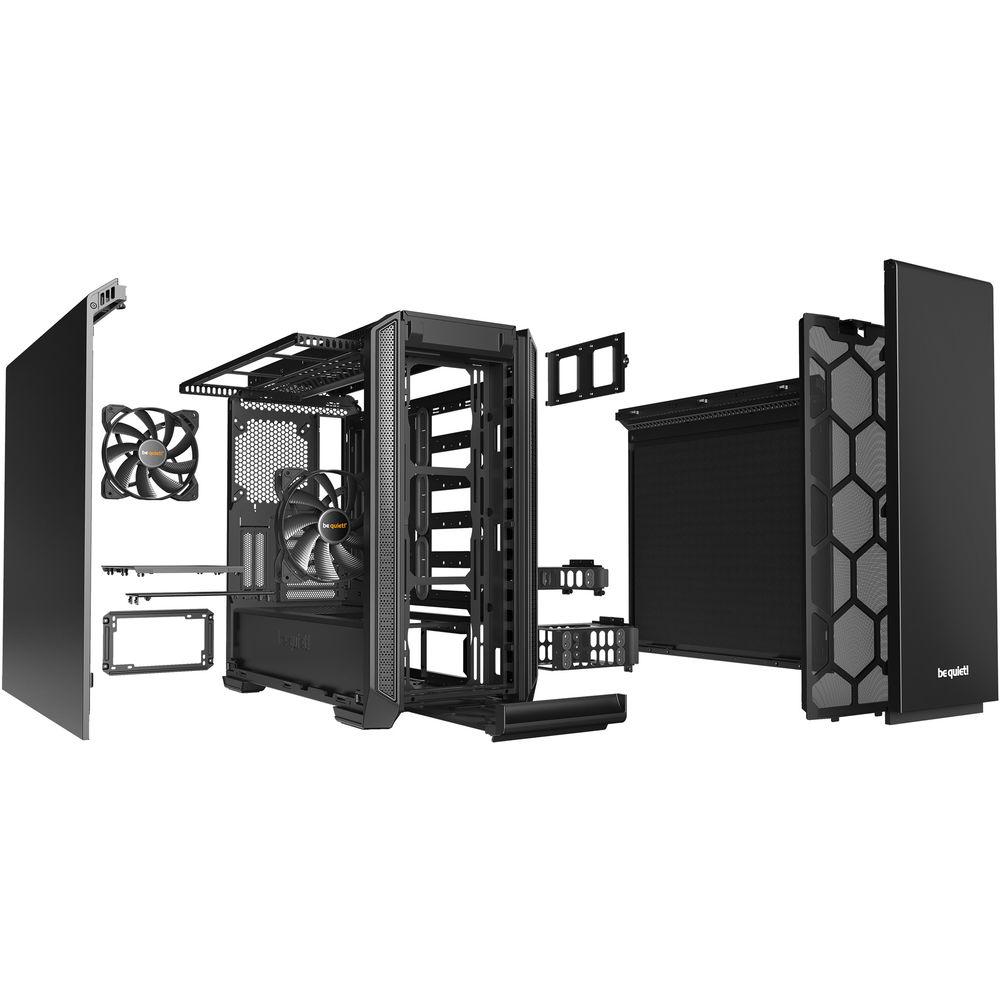

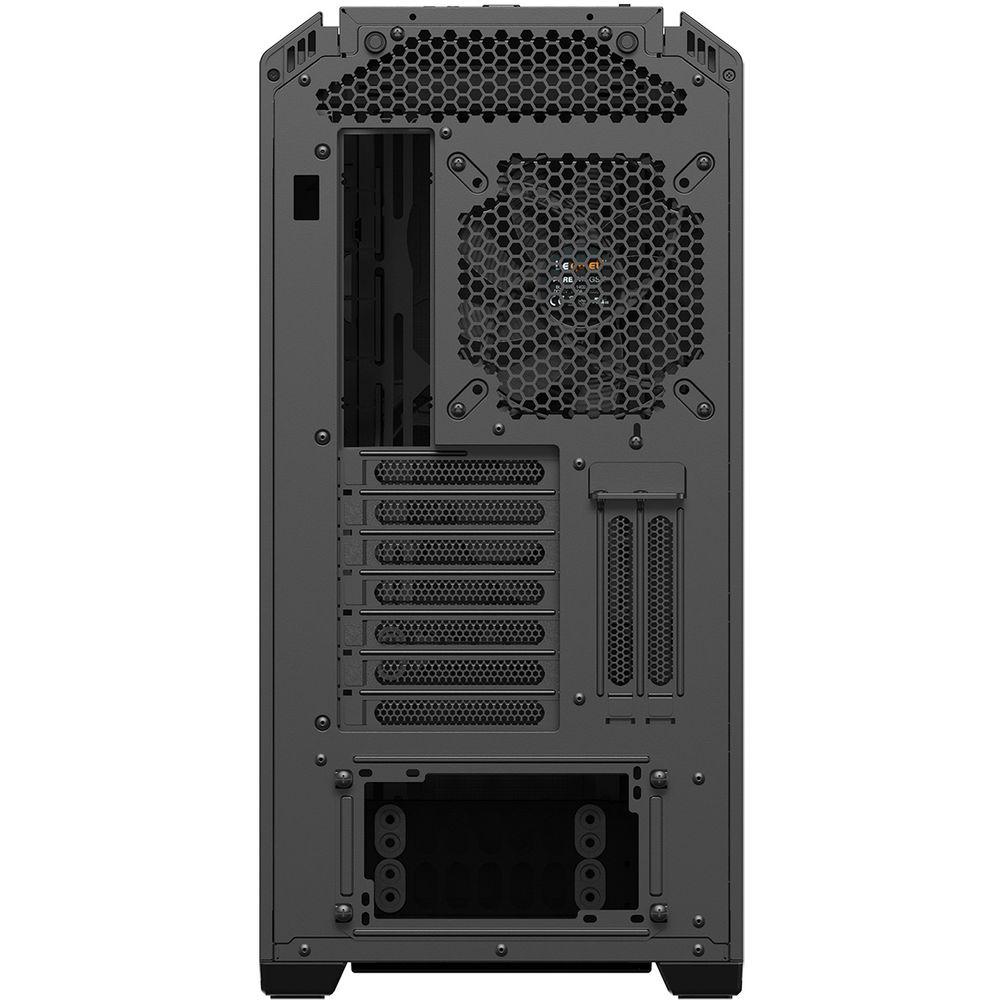

User Manual for be quiet! Silent Base 601 Mid-Tower ATX Case

Click to enlarge the picture
be quiet! Silent Base 601 Mid-Tower ATX Case Contents of the user manual for the be quiet! Silent Base 601 Mid-Tower
  • Product category: Desktop Computer Cases be quiet!
  • Brand: be quiet!
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for be quiet! Desktop Computer Cases

be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case be quiet! Silent Base 601 Mid-Tower ATX Case
User manual for the be quiet! Silent Base 601 Mid-Tower contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any be quiet! product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!



Product description

  • Silent Base 601/801 | be quiet!
  • Silent Base 601 | Product Presentation | be quiet!
  • Silent Base 601 Silence Build | be quiet!
Build your PC in a case designed for quiet operation using the Silent Base 801 Mid-Tower ATX Case from be quiet!. Compatible with E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, the Silent Base 801 comes with three 3.5" drive bays and six 2.5" drive bays, and it boasts noise-dampening vents and 10mm dampening mats designed to keep noise to a minimum. The black steel case has room for front, top, and rear radiators, and it also includes two 140mm fans. The case supports graphics cards up to 17.7" long.

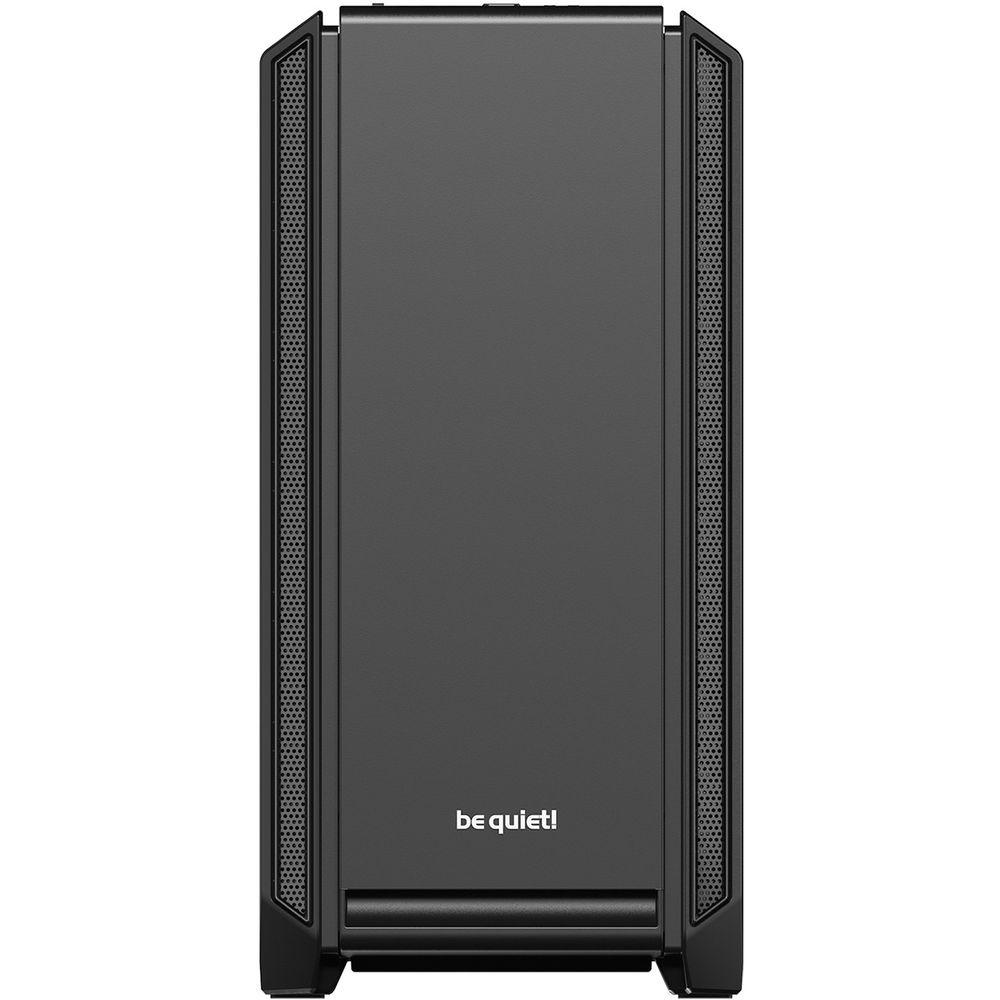

    Noise-Dampening Vents
  • The air inlets on the front are designed to minimize noise while allowing a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.
    Extra Insulation
  • The front, top and sides are equipped with 10mm dampening mats, resulting in maximum stability and noise dampening. The decoupled PSU bracket, motherboard tray, and HDD cages also minimize vibrations. The full-metal body provides stability for the case and improves its haptic.

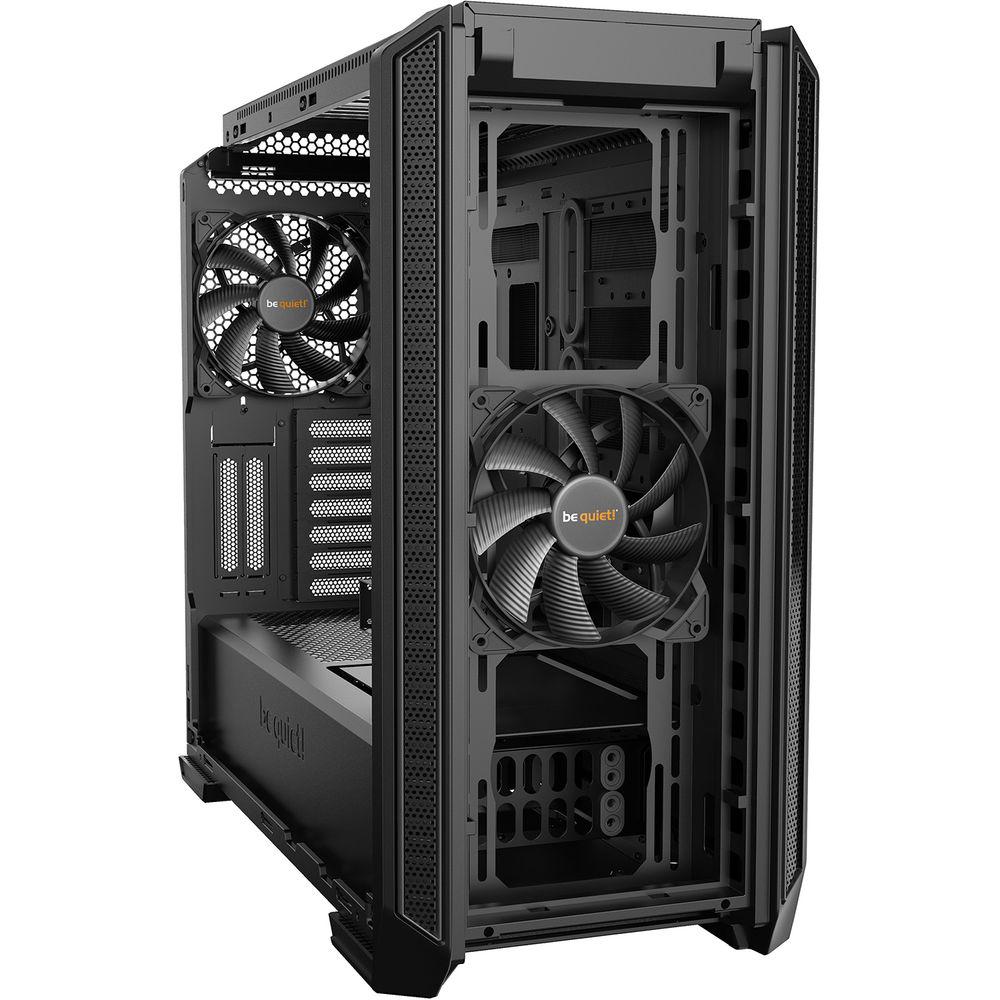

    Pre-Installed Fans
  • Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades are designed for optimal airflow and solid cooling. The integrated 3-step fan controller supports up to three fans.
    Functional PSU Shroud

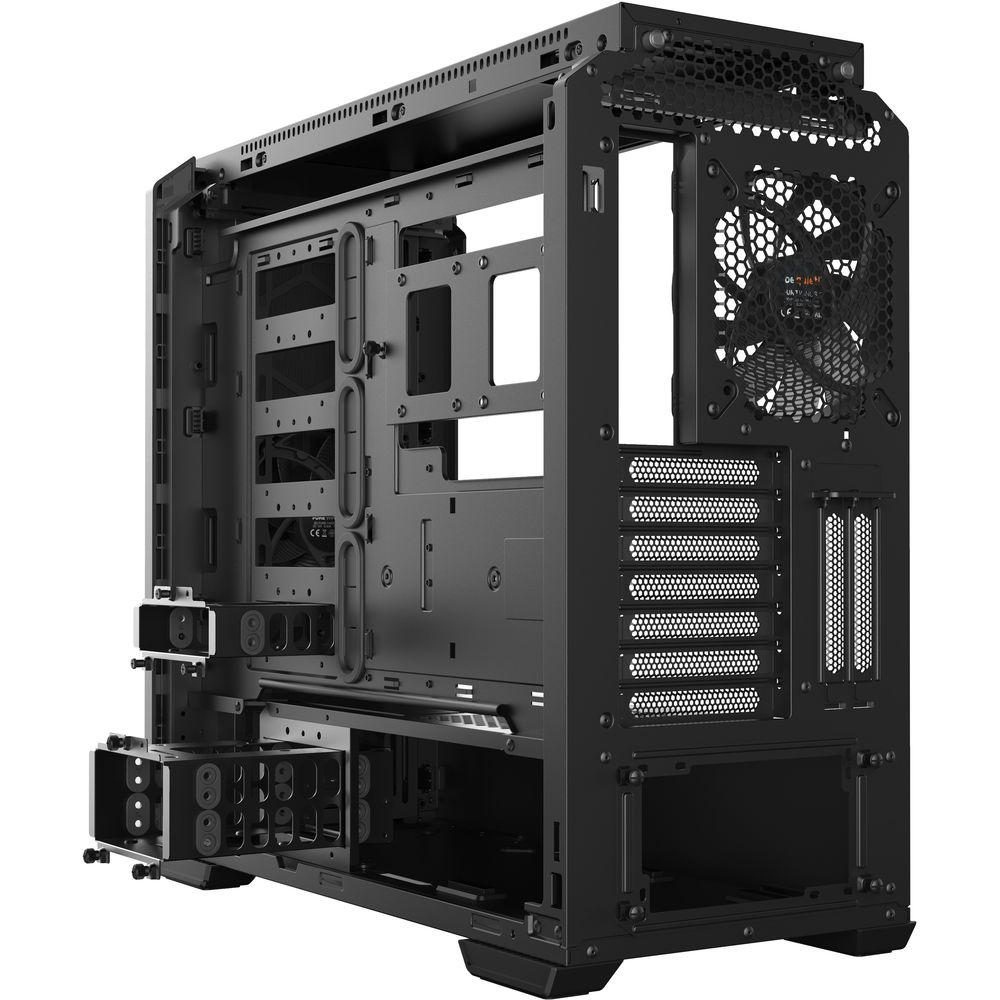

  • The PSU shroud covers the cables and PSU, and it contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket, the power supply unit can be installed from behind.
    Easy Access

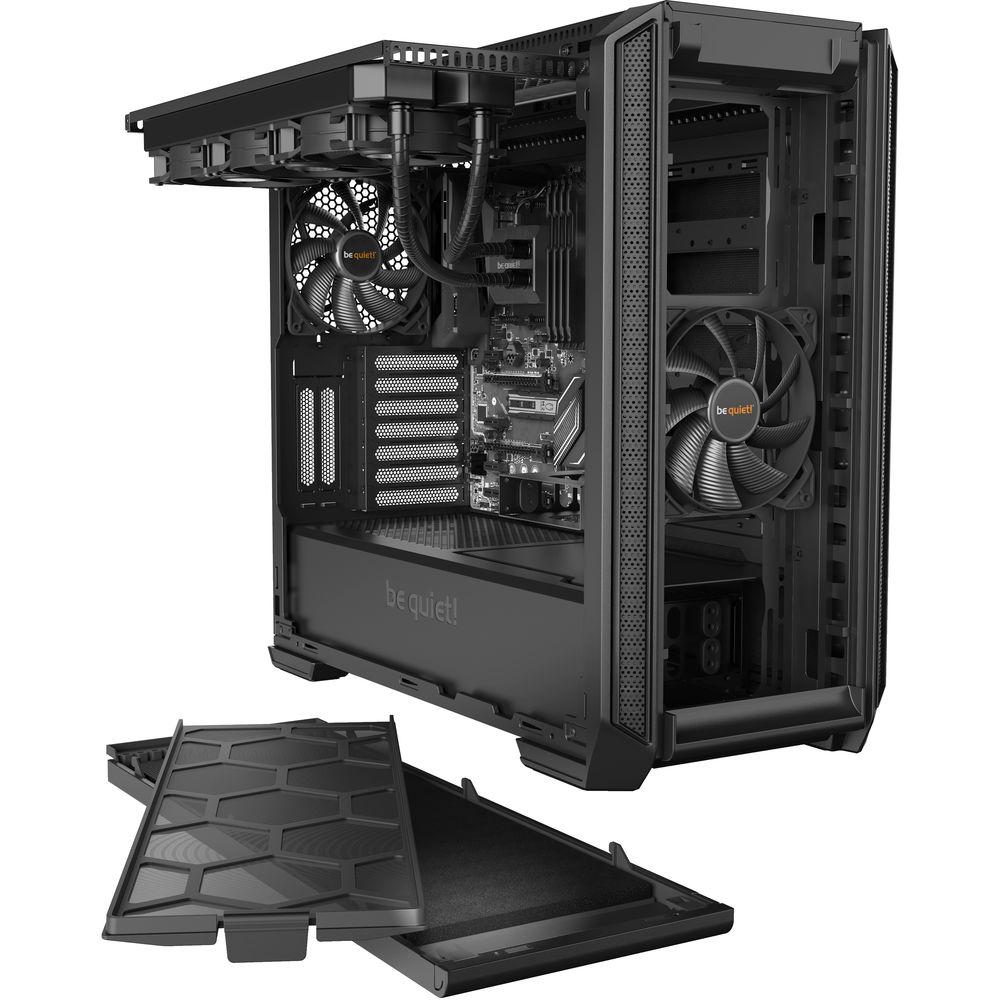

  • The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins, the locking mechanism releases the upper part of the side panel, which safely hovers until it is removed manually.
    Generous Space

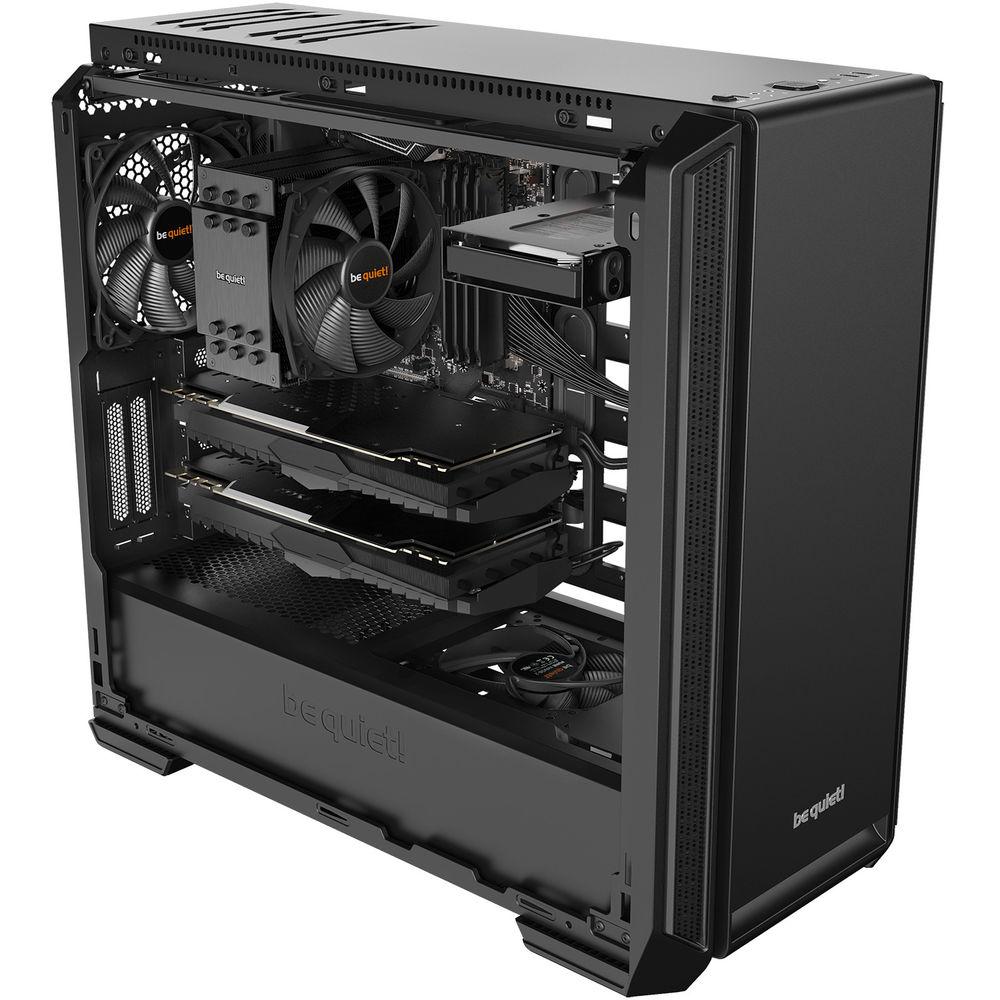

  • The case provides enough space and cutouts to install most kinds of hardware, even an E-ATX motherboard. The arrangement of components also allows multiple graphics cards and large coolers to fit.
    Easy Radiator Installation
  • With its optimized design, the case is idea for water cooling. Radiators of up to 360mm can be installed at the front, top, and rear. Using the detachable bracket, radiators can be installed quickly and easily at the top.

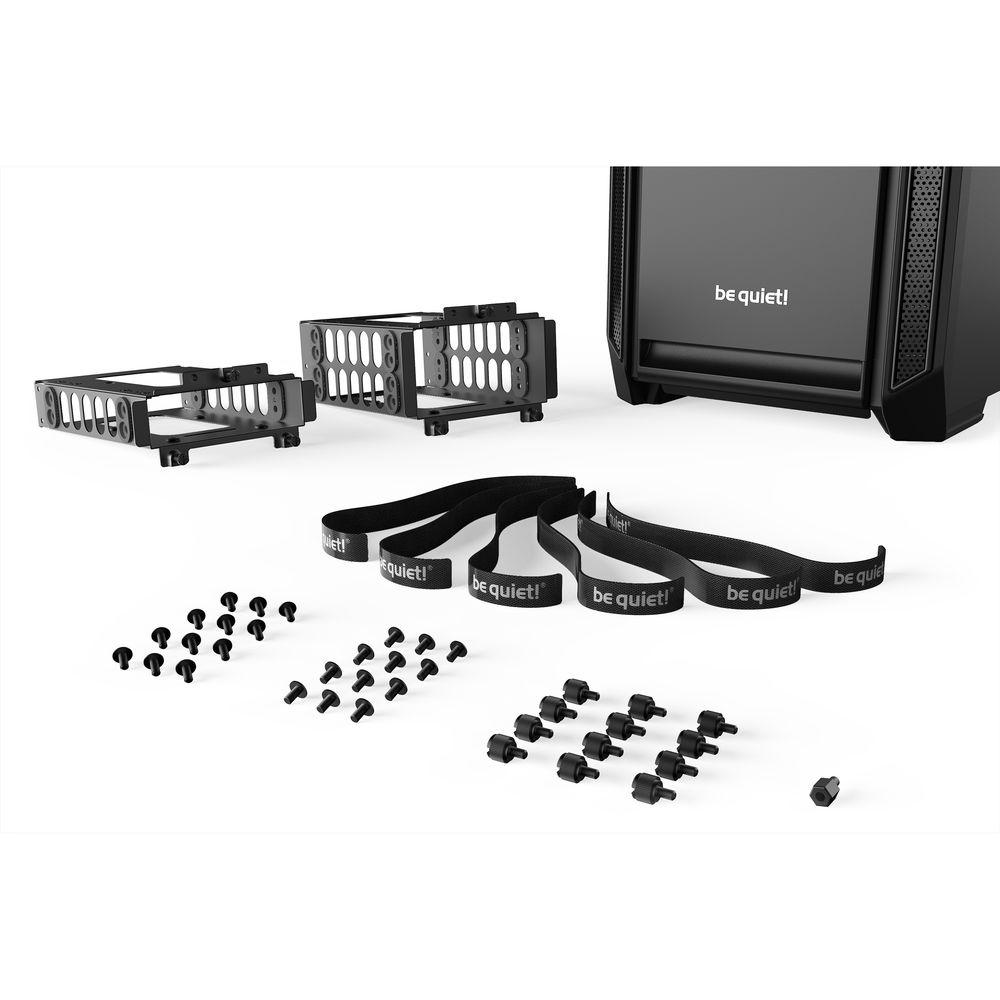

In the Box be quiet! Silent Base 601 Mid-Tower ATX Case (black)
  • Screw Set
  • Motherboard Standoff (for E-ATX)
  • 6 x Cable Ties
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the be quiet! Silent Base 601 Mid-Tower ATX Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    be quiet! BG026 Specs

    Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
    Internal Drive Bays 3 x 3.5"
    6 x 2.5"
    Expansion Slots 7 x Full Height
    Maximum GPU Length 17.68" / 449 mm
    CPU Cooler Height 7.28" / 185 mm
    Supported PSU Size ATX
    Maximum PSU Length 11.34" / 288 mm
    Fan Mounting (Front) 3 x 140 mm
    Or
    3 x 120 mm
    Fan Mounting (Rear) 1 x 140 mm
    Fan Mounting (Top) 3 x 140 mm
    Or
    3 x 120 mm
    Fans Included (Front) 1 x 140 mm (1000 rpm)
    Fans Included (Rear) 1 x 140 mm (1000 rpm)
    Maximum Radiator Size (Front) 1 x 360 mm
    Maximum Radiator Size (Rear) 1 x 140 mm
    Maximum Radiator Size (Top) 1 x 360 mm
    Fan Mounting (Internal) 1 x 140 mm
    Or
    1 x 120 mm
    Noise Level 18.8 dBA
    Fan Controller Included Yes
    Filter Locations Bottom, Front

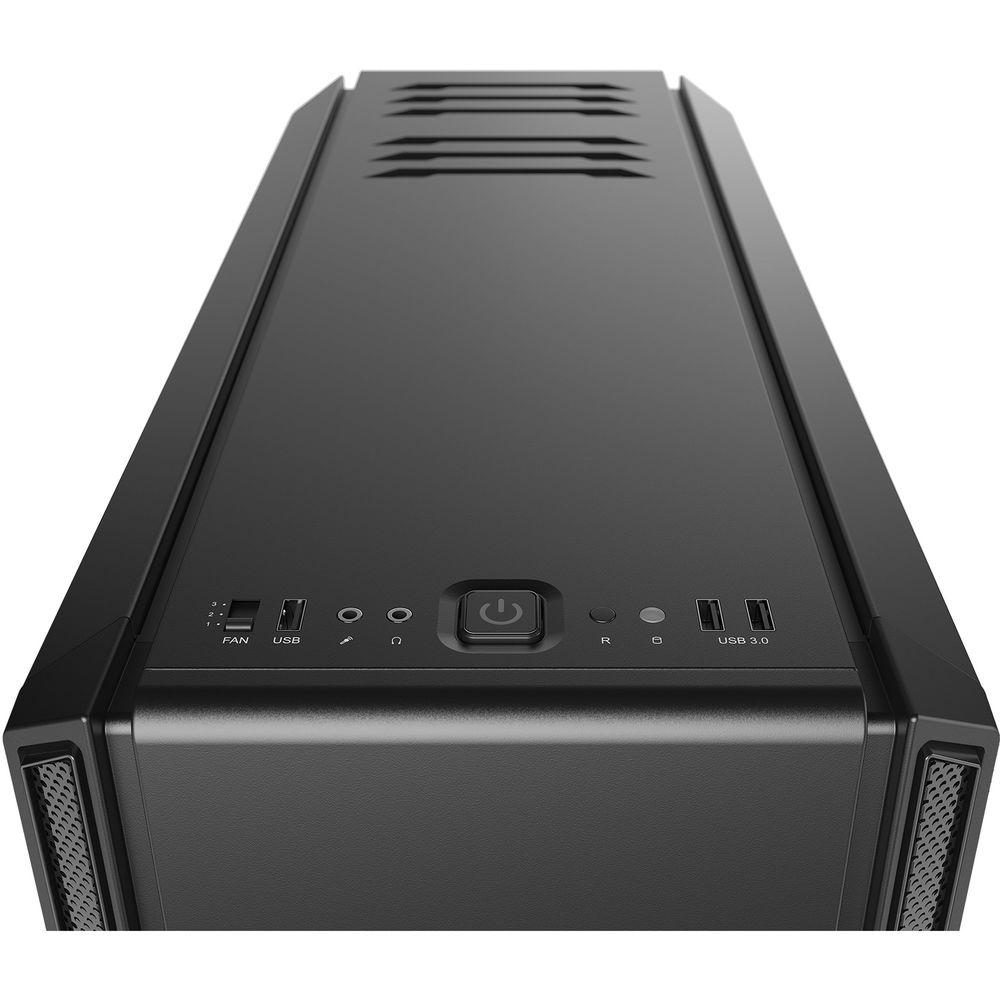

    Connections 1 x USB Type-A (USB 2.0)
    2 x USB Type-A (USB 3.0)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel No
    Material Steel, Plastic
    Built-In Lighting No
    Dimensions (W x H x D) 20.9 x 9.4 x 20.2" / 532.0 x 240.0 x 514.0 mm
    Weight 23.1 lb / 10.5 kg
    Package Weight 26.795 lb
    Box Dimensions (LxWxH) 24.5 x 22.4 x 12.9"
