Product description - Silent Base 800 | be quiet!

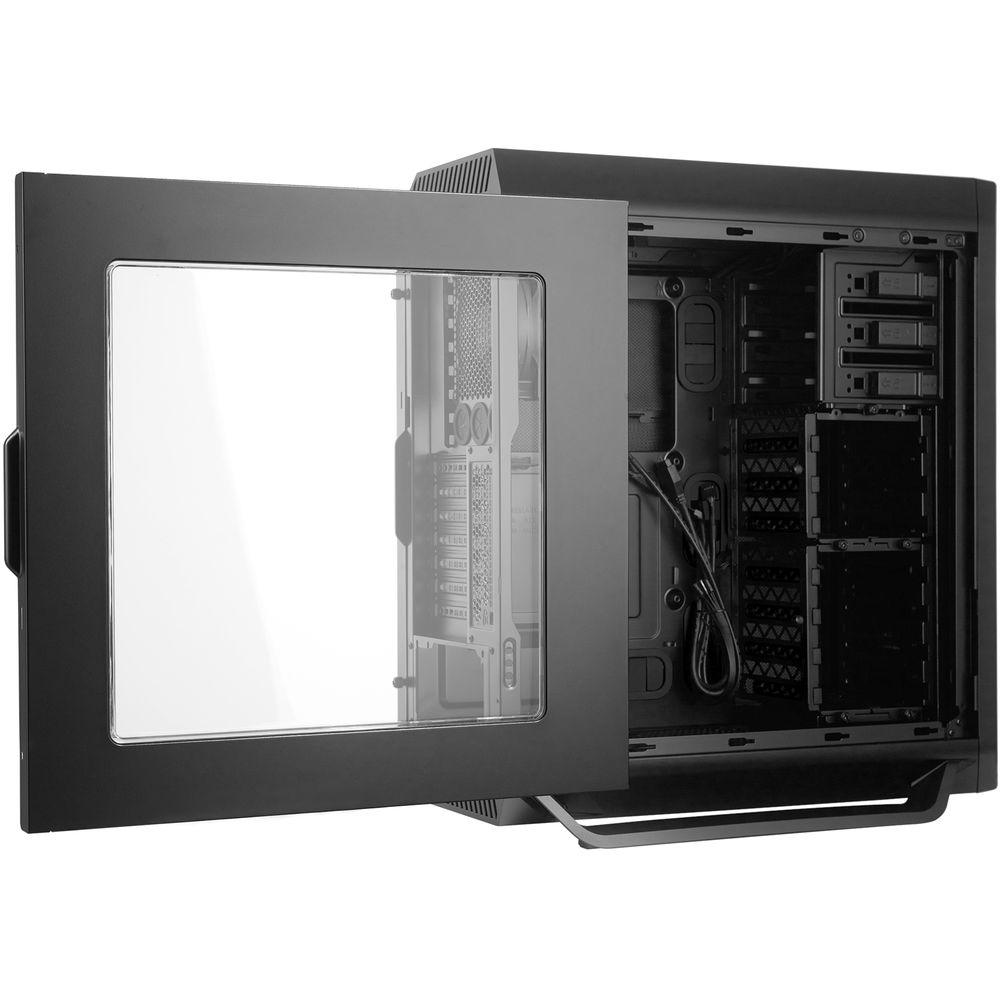

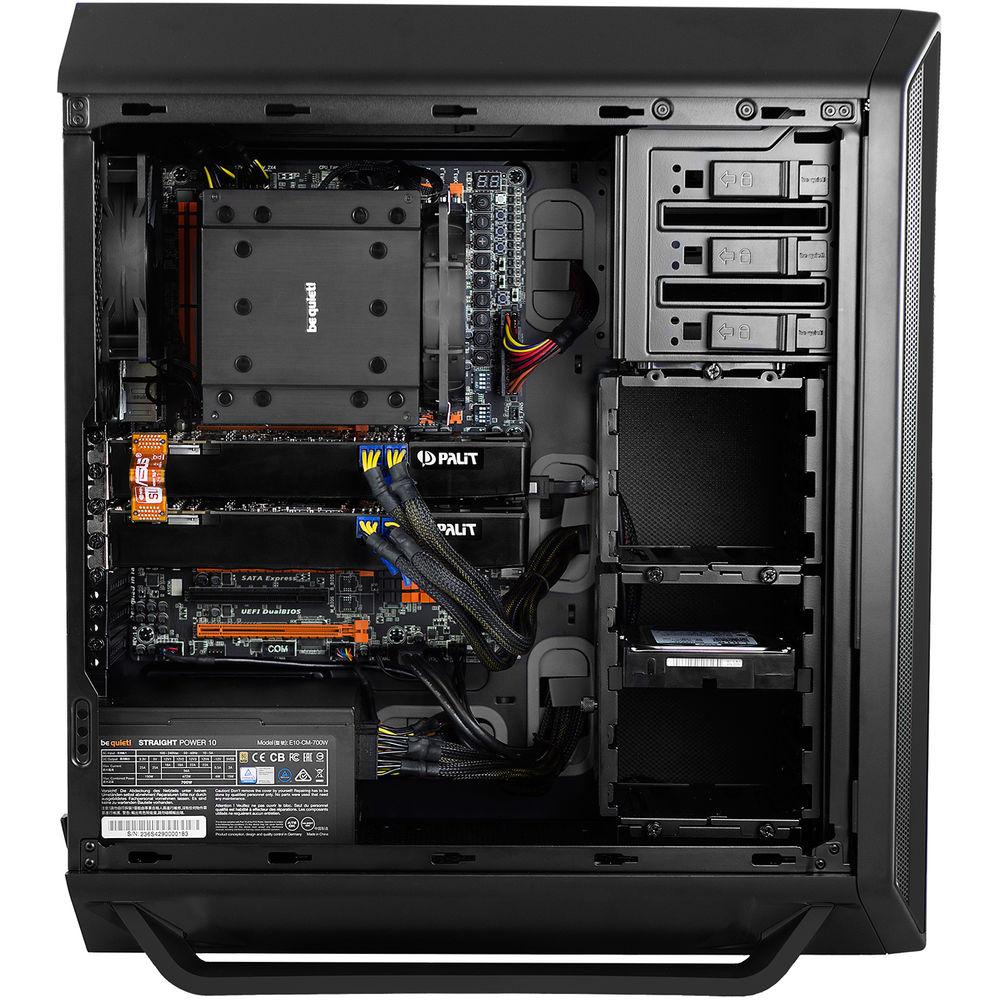

The Silent Base 800 Mid-Tower Case from be quiet! is designed for quiet operation and efficient cooling. As a mid-tower case, it can support up to a standard sized ATX motherboard with room to spare for additional storage drives, graphics cards and other PCIe-based expansion cards, and water-cooling hardware. There are also plenty of fan mounting spots and it comes with three pre-installed Pure Wing 2 fans to keep things cool. To simplify hardware installation, be quiet! has designed this case with plenty of holes for cable management and a large CPU cutout for easy cooler setup. Once everything's in place, you'll have quick and easy access to four USB ports and audio in/out jacks located at the front panel. Moreover, thanks to its windowed side panel, you'll be able to show off your build's interior aesthetics as well as quickly check your components. -
- Simple tool-free drive mounting

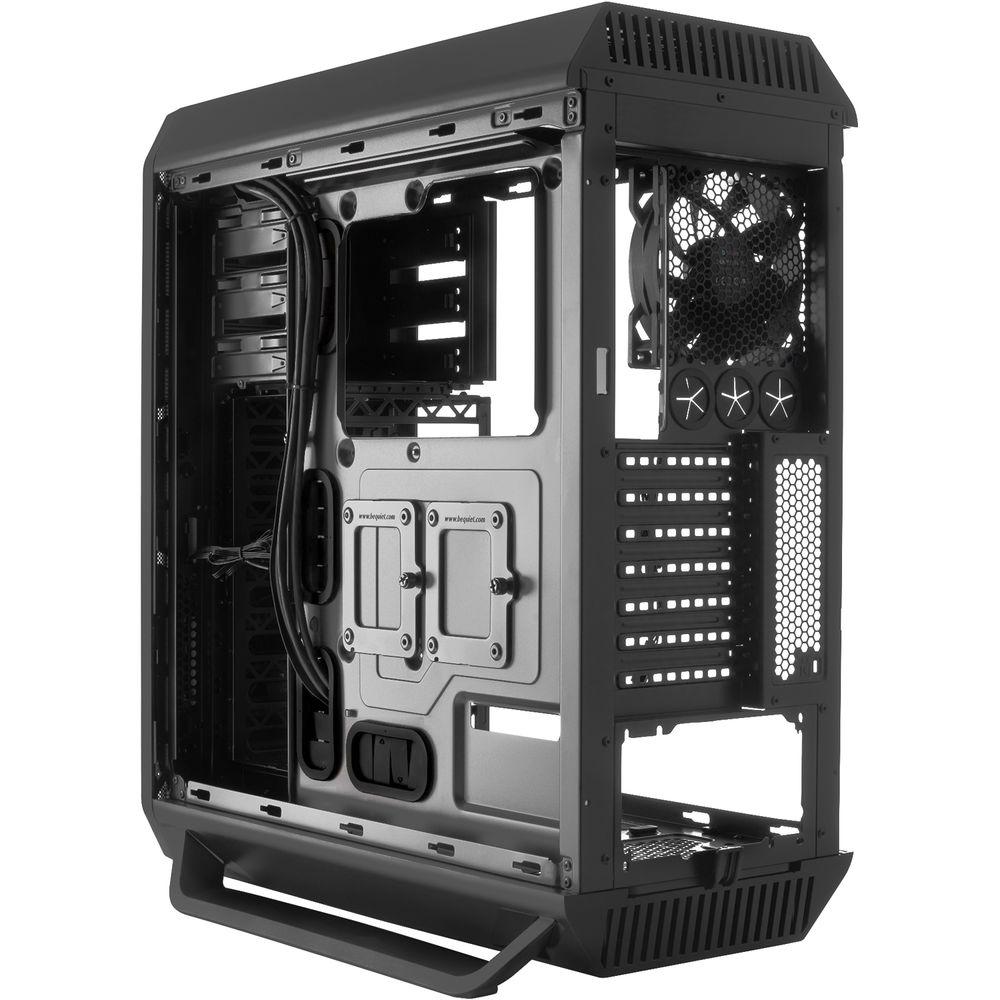

- Ample space and cutouts for water-cooling equipment and cables
- Optimized airflow design

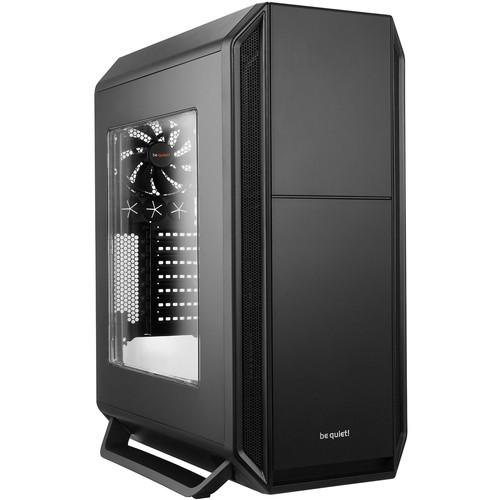

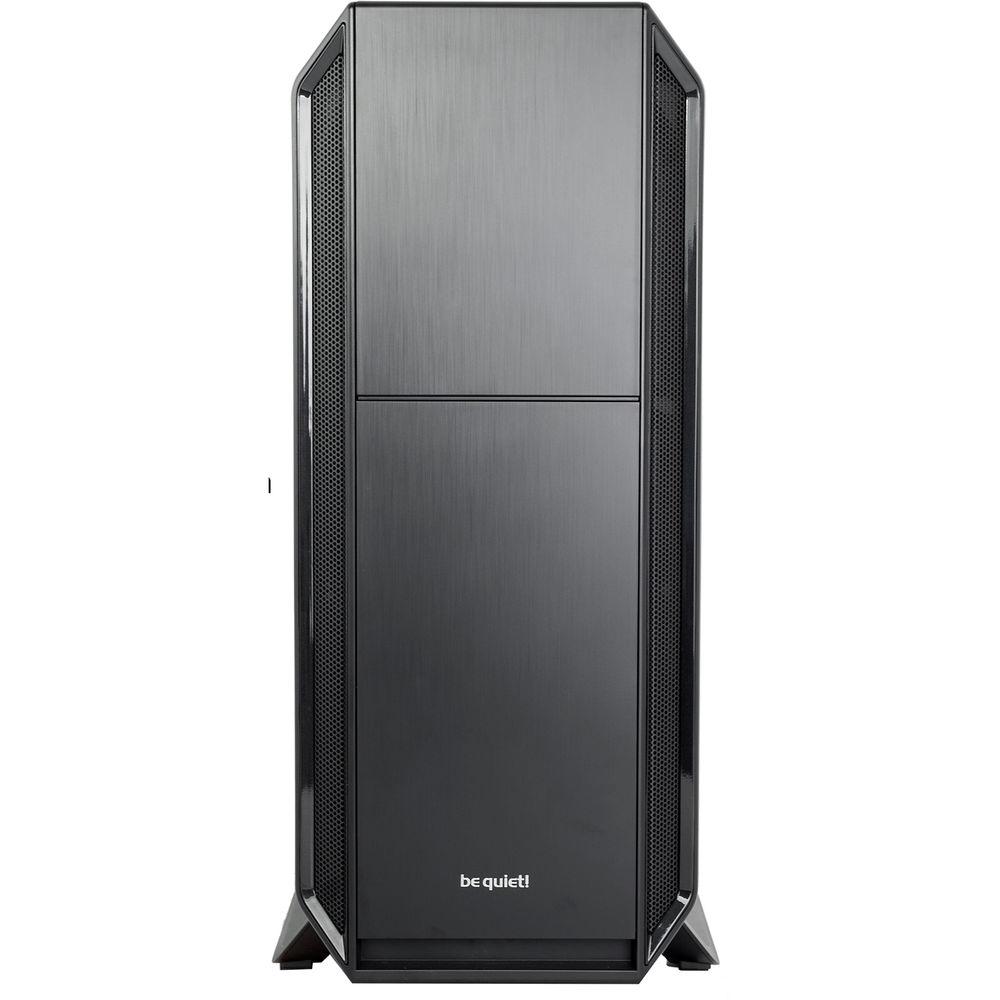

- Sound insulating front panel and double-glazed side window

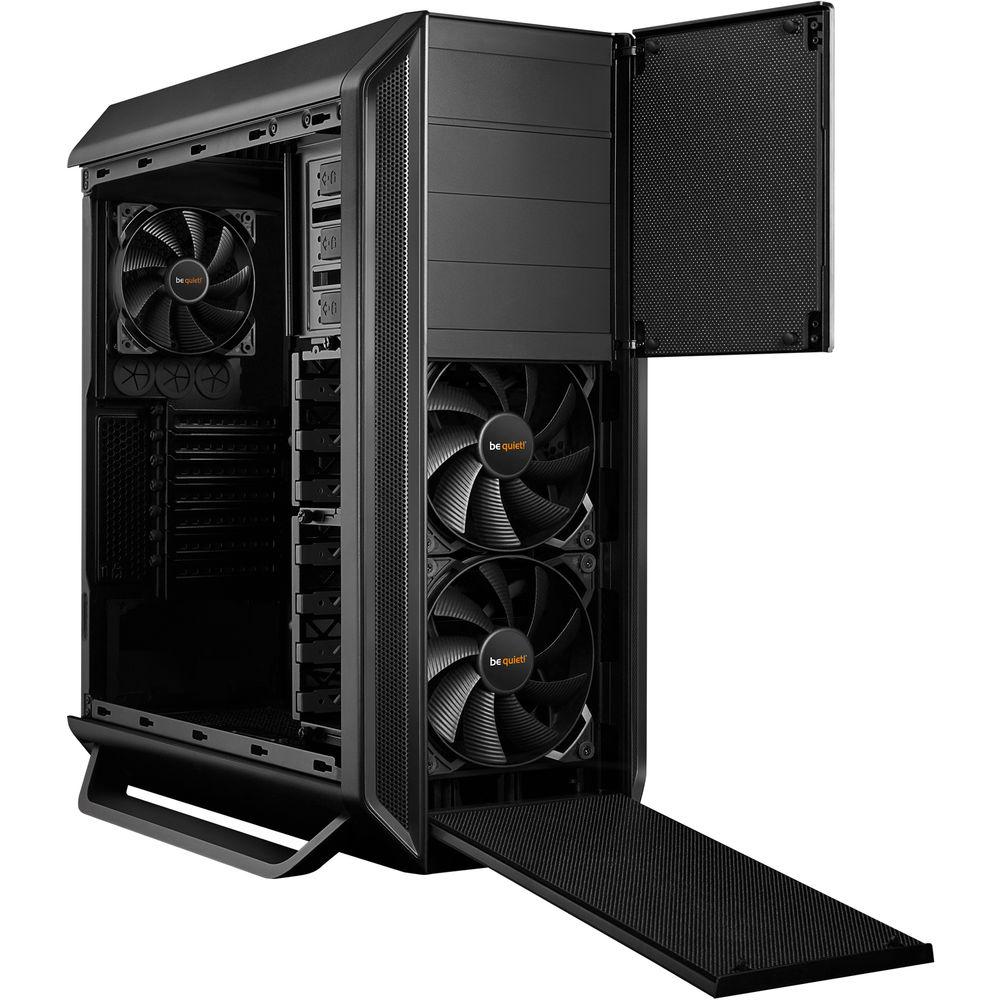

- Three pre-installed Pure Wings 2 fans
- Anti-vibration drive mounts
- Adjustable side panel vent
- Large CPU cooler cutout
- Easy-to-remove dust filters

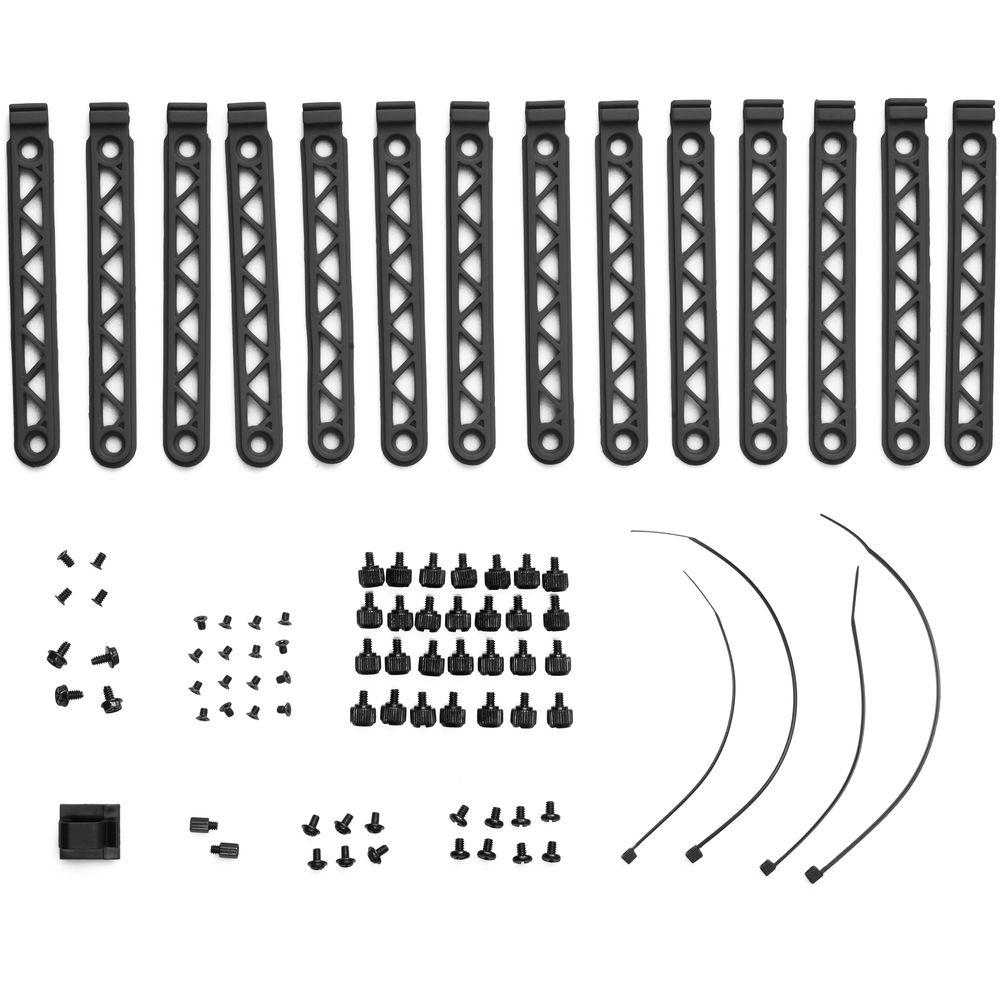

In the Box be quiet! Silent Base 800 Mid-Tower Case (Window, Black) Screw Kit Limited 3-Year Warranty User Manual PDF 9.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Silent Base 800 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Silent Base 800 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 7 x 3.5"
4 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 15.75" / 400 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.42" / 290 mm | | | | Fan Mounting (Front) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 2 x 140 mm (1000 rpm) | | Fans Included (Rear) | 1 x 120 mm (1500 rpm) | | Maximum Radiator Size (Front) | 1 x 140 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 280 mm | | Fan Mounting (Internal) | None | | Noise Level | 18.8 to 19.2 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Side | | | | Connections | 2 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 10.5 x 22.0 x 19.5" / 266.0 x 559.0 x 495.0 mm | | Weight | 20.5 lb / 9.3 kg | | | | Package Weight | 26.3 lb | | Box Dimensions (LxWxH) | 26.0 x 22.8 x 12.3" |
