Product description - Silent Base 601/801 | be quiet!
- Silent Base 801 | Product Presentation | be quiet!
- How to invert the Silent Base 801 | be quiet!

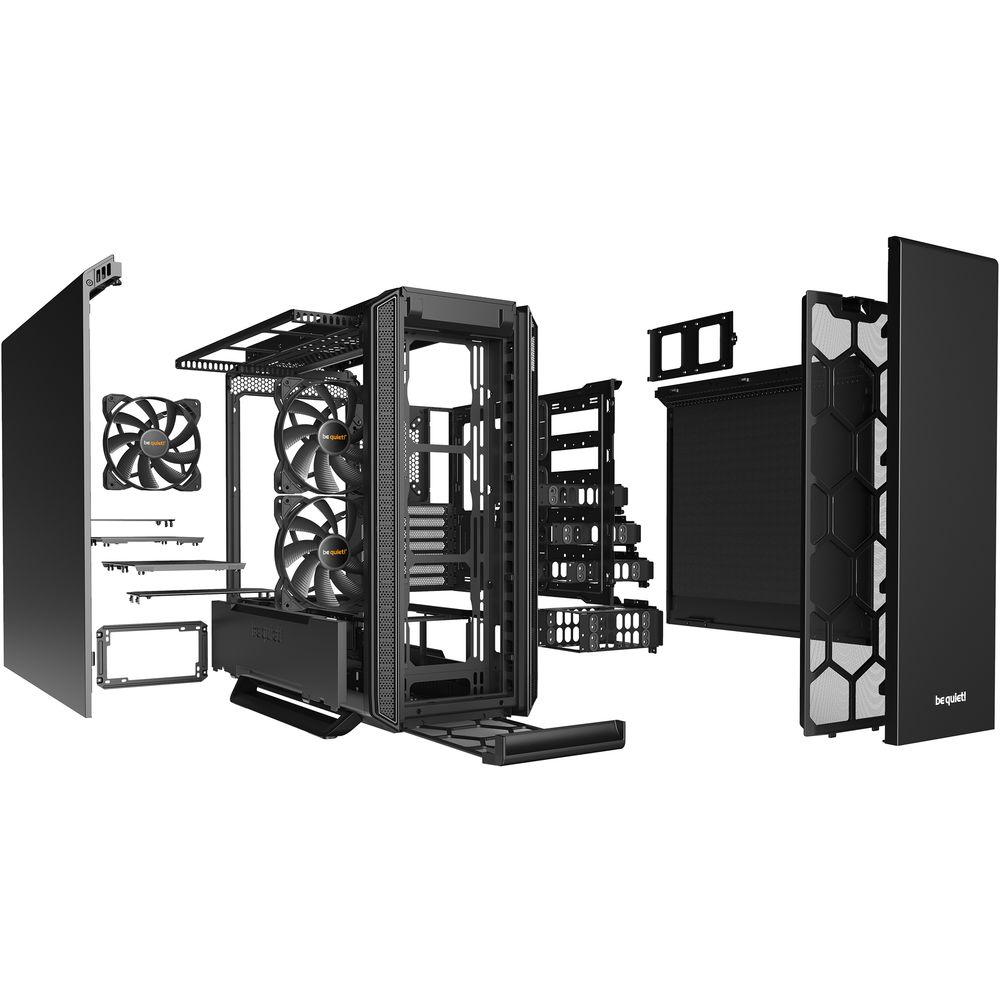

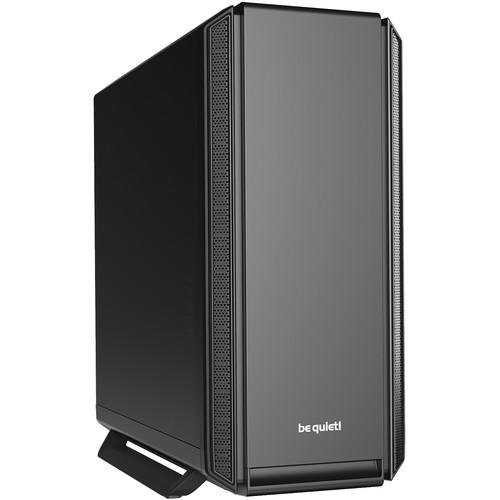

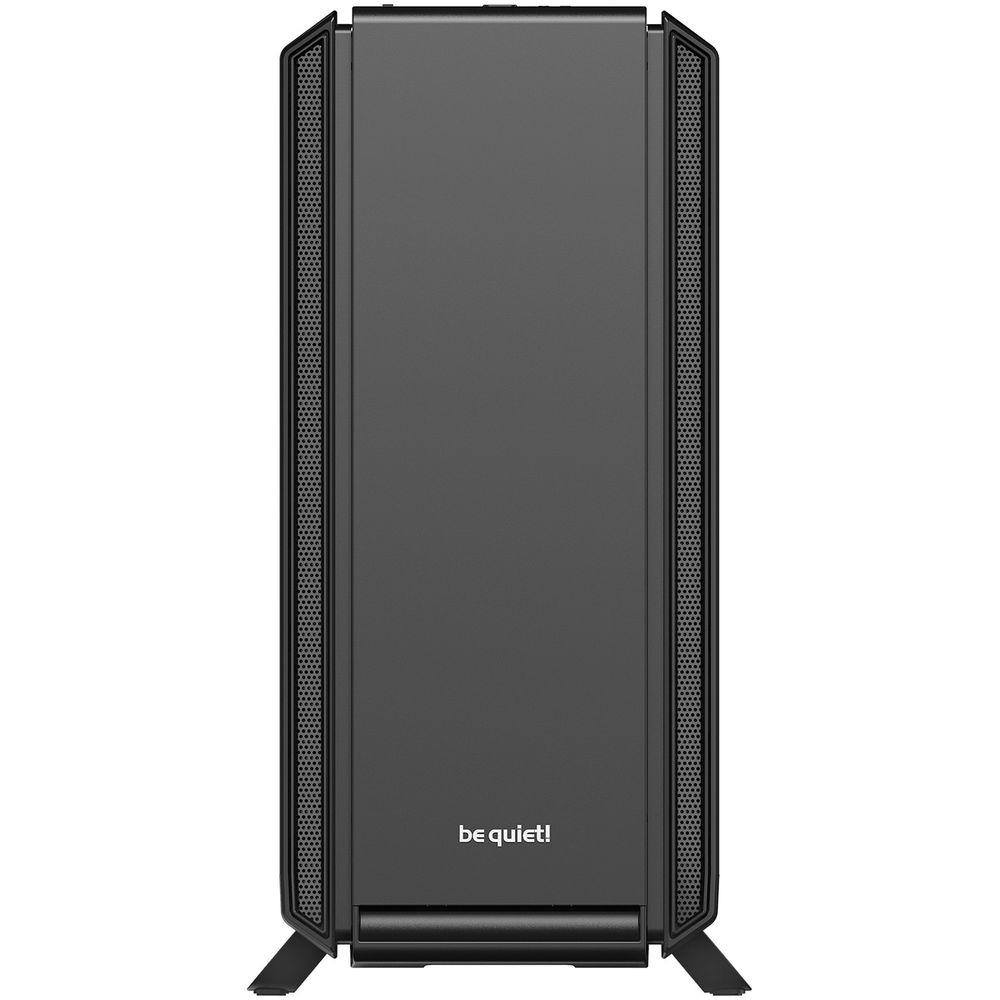

Build your PC in a case designed for quiet operation using the Silent Base 801 Mid-Tower ATX Case from be quiet!. Compatible with E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, the Silent Base 801 comes with five 3.5" drive bays and 11 2.5" drive bays, and it boasts noise-dampening vents and 10mm dampening mats designed to keep noise to a minimum. The black steel case has room for front, top, and rear radiators, and it also includes three 140mm fans. The case supports graphics cards up to 17.7" long, and its decoupled motherboard can be installed in an inverted layout. - Noise-Dampening Vents
- The air inlets on the front are designed to minimize noise while allowing a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.
- Extra Insulation
- The front, top and sides are equipped with 10mm dampening mats, resulting in maximum stability and noise dampening. The decoupled PSU bracket, motherboard tray, and HDD cages also minimize vibrations. The full-metal body provides stability for the case and improves its haptic.

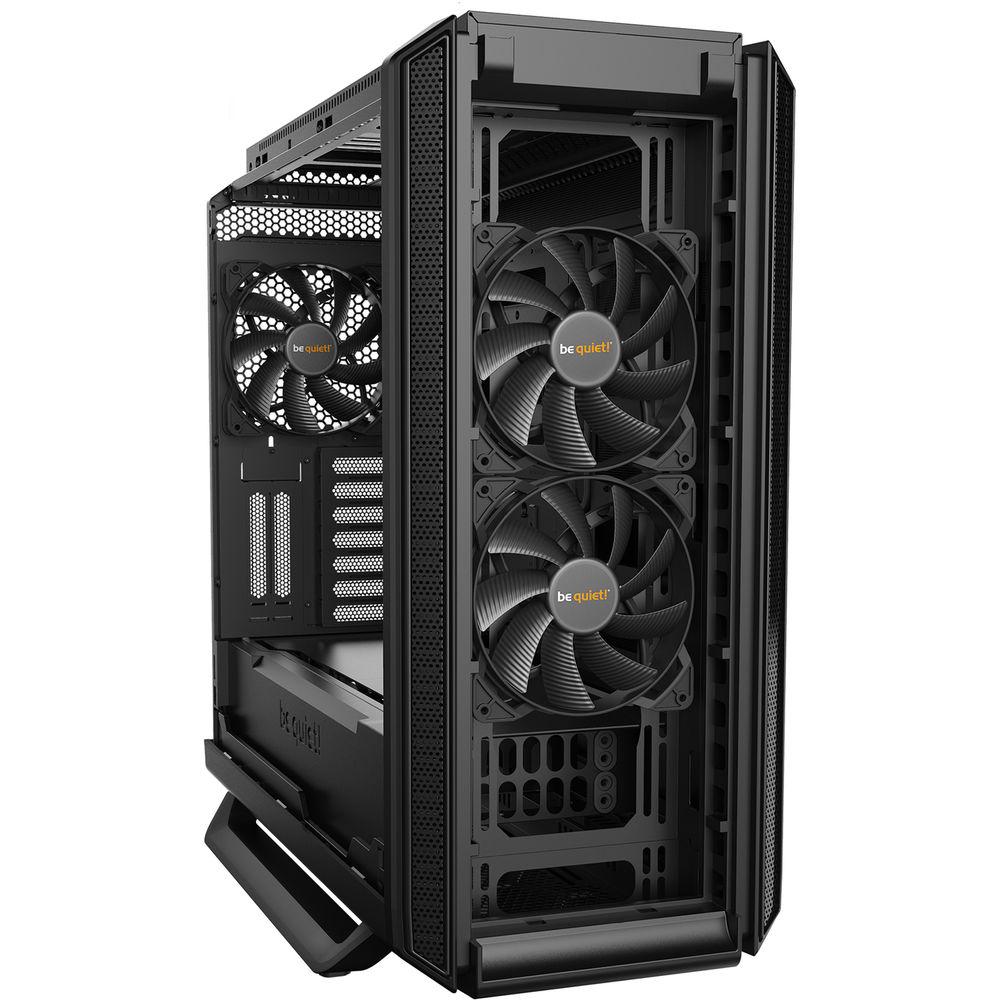

- Pre-Installed Fans

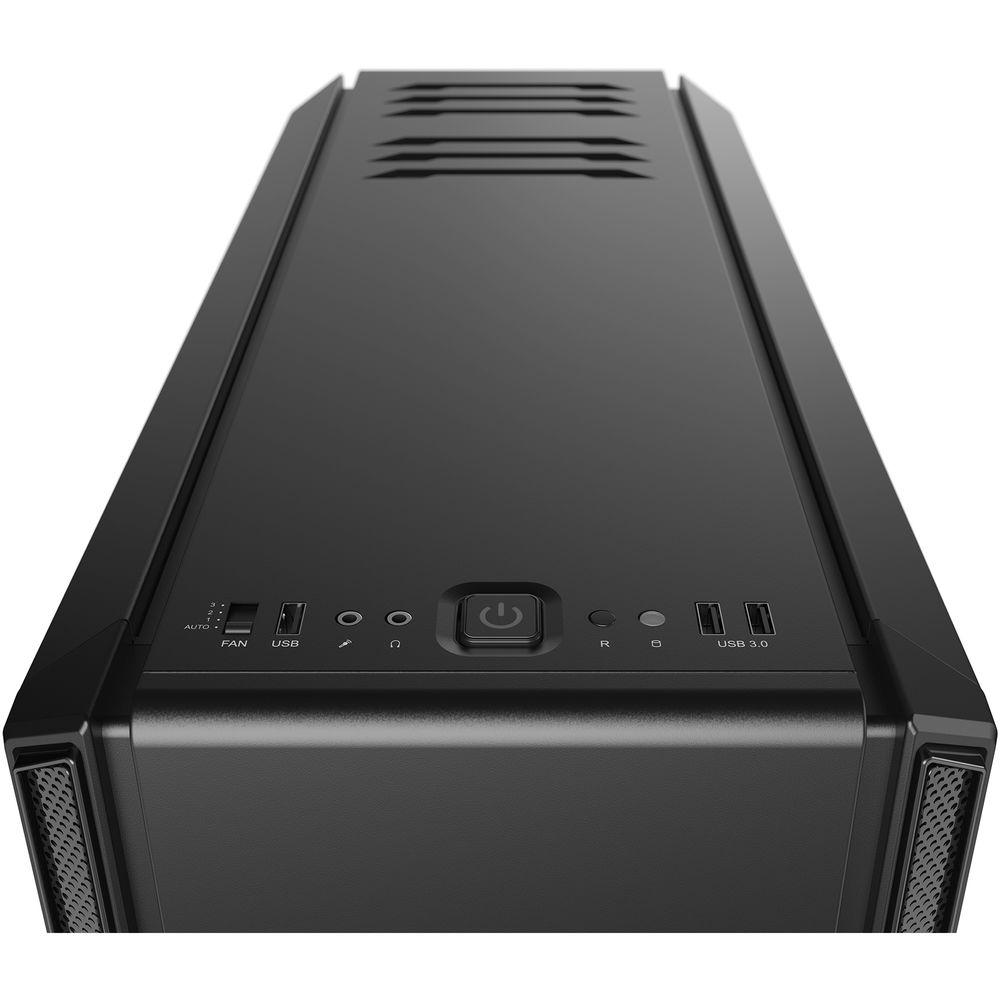

- Three preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades are designed for optimal airflow and solid cooling. The integrated 3-step fan controller lets you set the speed of up to six fans manually or connect all to one PWM signal.
- Functional PSU Shroud

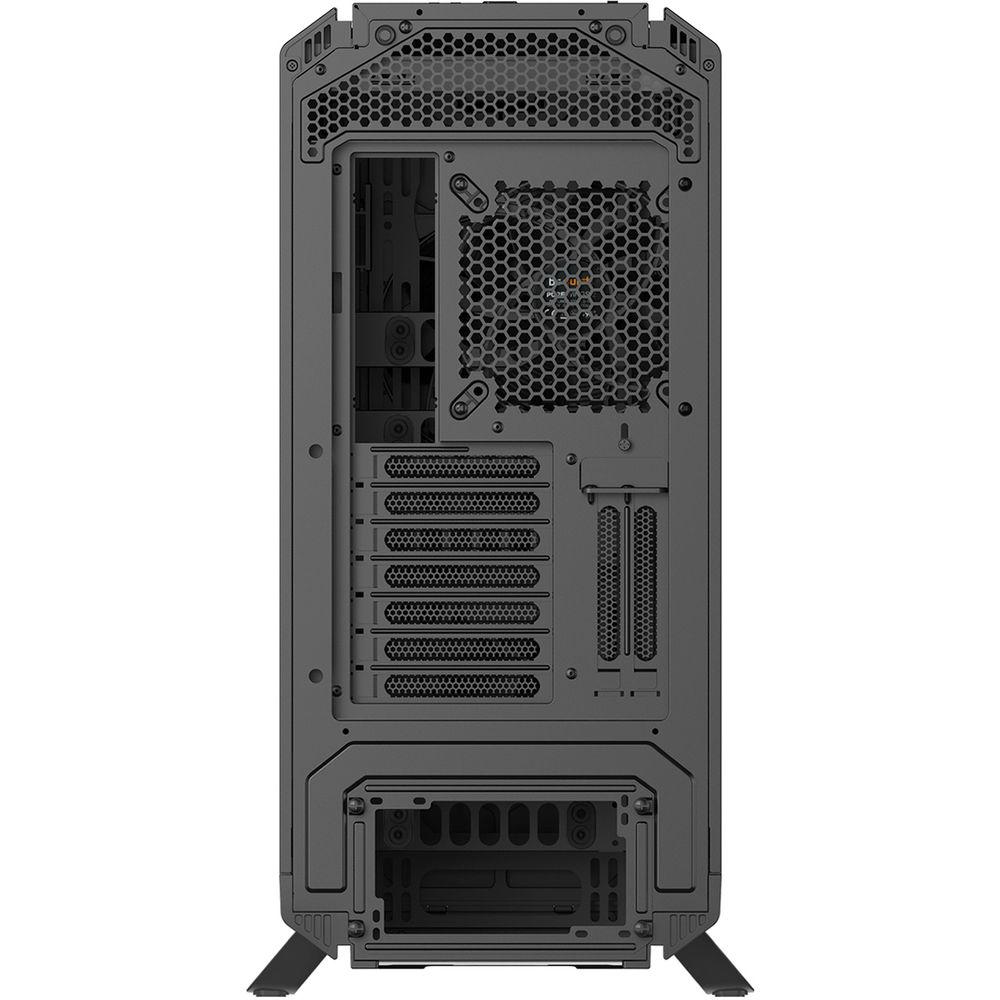

- The PSU shroud covers the cables and PSU, and it contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket, the power supply unit can be installed from behind.
- Easy Access
- The high-end side panels provide a mounting system with push pins for secure and user-friendly detachment. By depressing the push pins, the locking mechanism releases the upper part of the side panel, which safely hovers until it is removed manually.

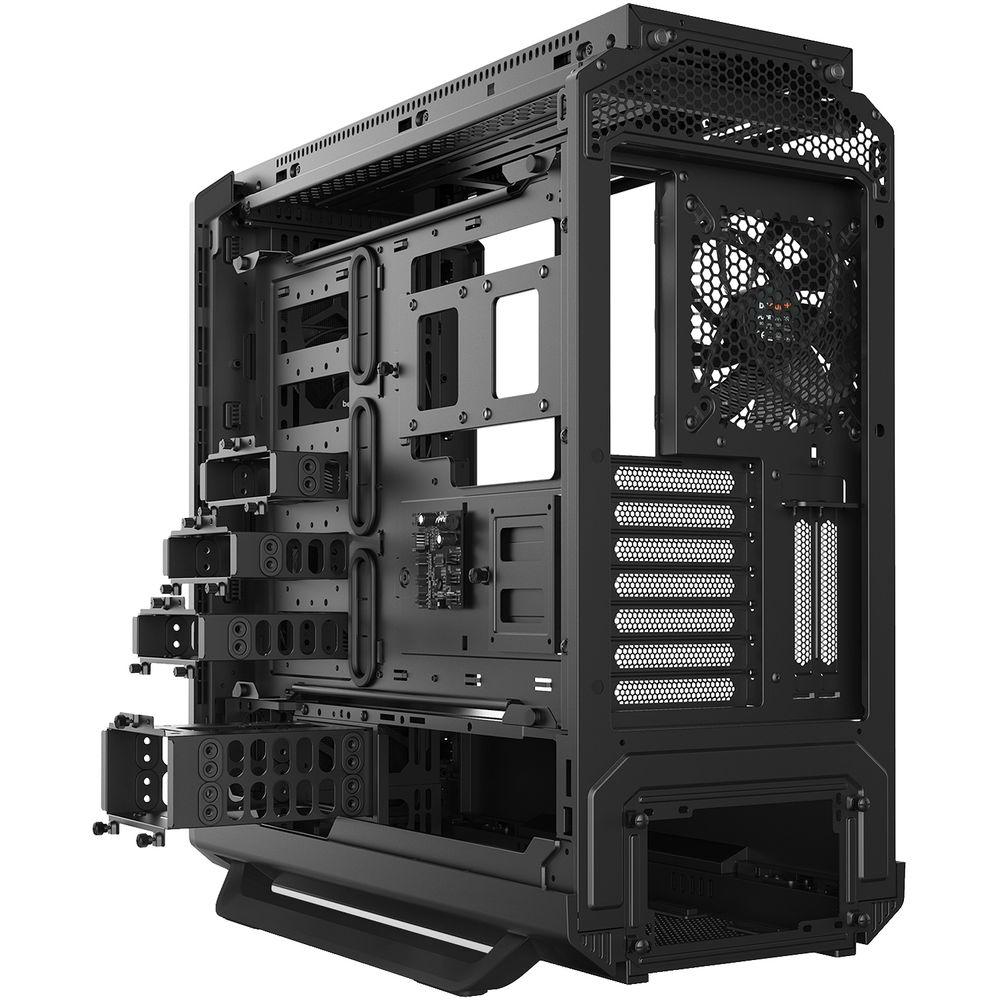

- Versatile Motherboard Tray

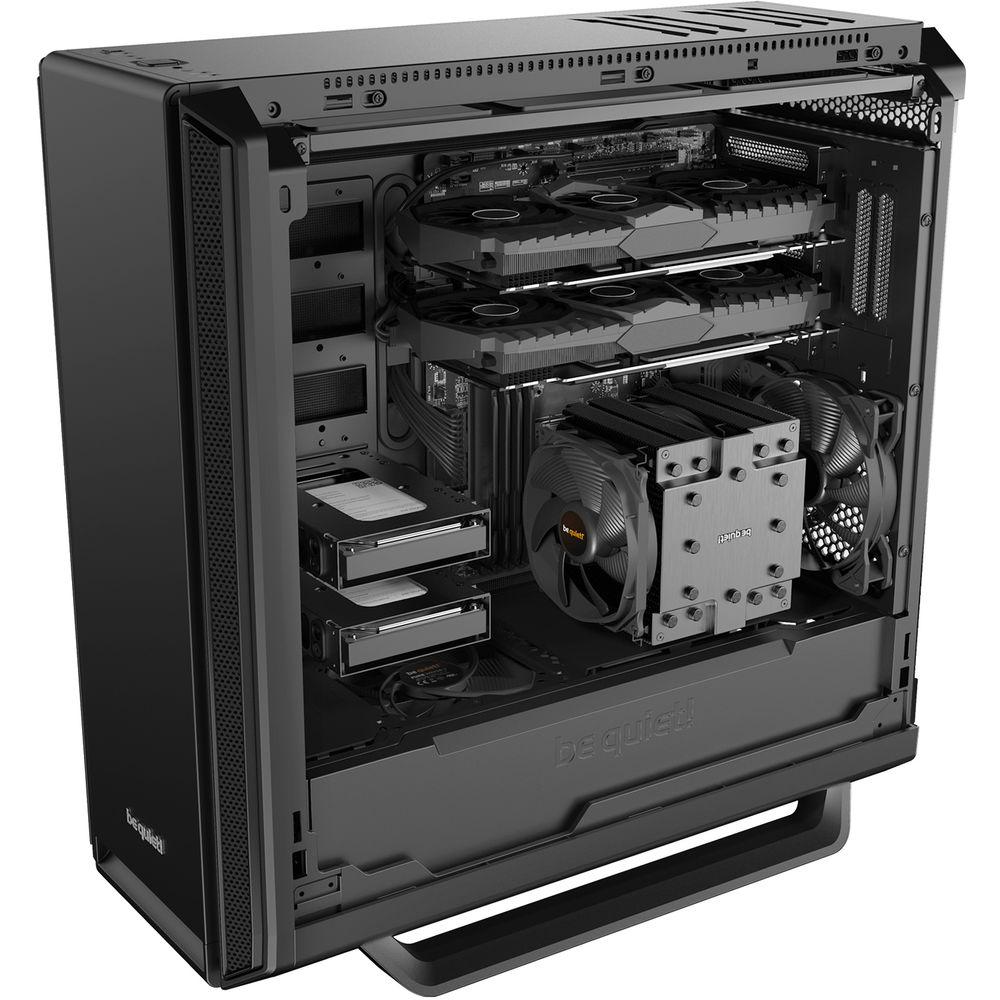

- The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.
- Generous Space
- The case provides enough space and cutouts to install most kinds of hardware, including an E-ATX motherboard. The arrangement of components also allows multiple graphics cards and large coolers to fit. Three HDD cages are included and can be installed for individual needs.

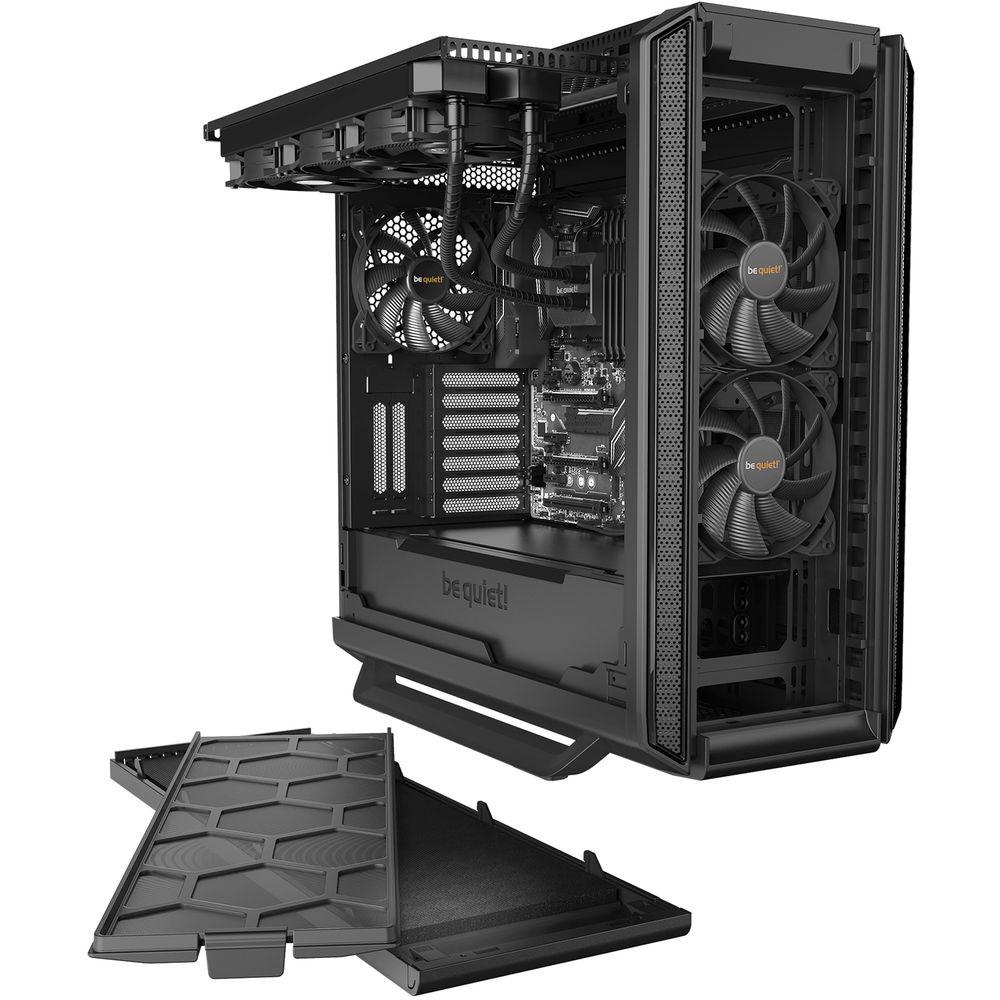

- Easy Radiator Installation
- With its optimized design, the case is idea for water cooling. Radiators of up to 420mm can be installed at the front, top, and rear. Using the detachable bracket, radiators can be installed quickly and easily at the top.

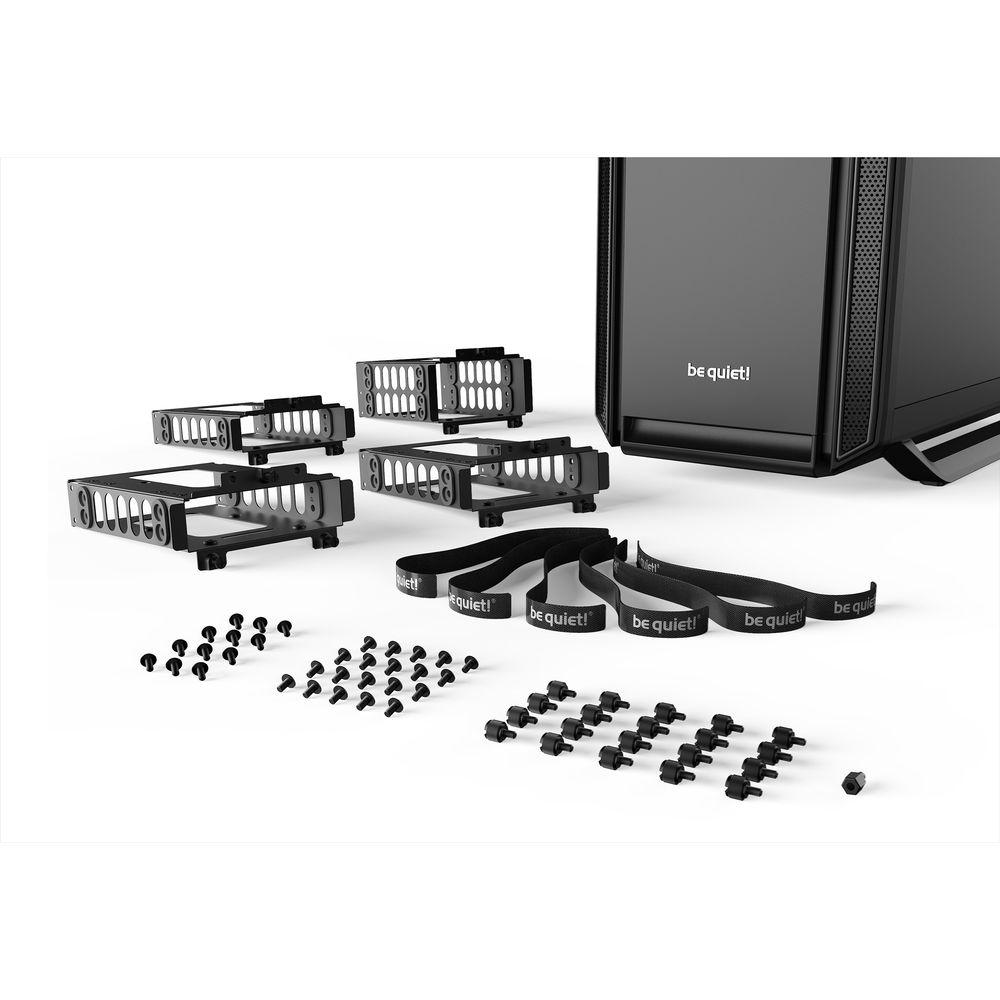

In the Box be quiet! Silent Base 801 Mid-Tower ATX Case (Black) Screw Set Motherboard Standoff (for E-ATX) 6 x Cable Ties Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Silent Base 801 Mid-Tower ATX Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! BG029 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 5 x 3.5"
11 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 17.68" / 449 mm | | CPU Cooler Height | 7.28" / 185 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 11.34" / 288 mm | | | | Fan Mounting (Front) | 3 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Rear) | 1 x 140 mm
| | Fan Mounting (Top) | 3 x 140 mm
Or
3 x 120 mm
| | Fans Included (Front) | 2 x 140 mm (1000 rpm) | | Fans Included (Rear) | 1 x 140 mm (1000 rpm) | | Maximum Radiator Size (Front) | 1 x 420 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Fan Mounting (Internal) | 1 x 140 mm
Or
1 x 120 mm
| | Noise Level | 18.8 dBA | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front | | | | Connections | 1 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Output
1 x 3.5 mm Input | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 21.2 x 11.1 x 21.8" / 539.0 x 281.0 x 553.0 mm | | Weight | 23.9 lb / 10.8 kg | | | | Package Weight | 31.285 lb | | Box Dimensions (LxWxH) | 24.5 x 24.4 x 12.9" |
Rating90% users recommend this product to others. And what about you?
