User Manual for be quiet! Silent Wings 3 140mm PWM High-Speed Fan Click to enlarge the picture
Contents of the user manual for the be quiet! Silent Wings 3 140mm
- Product category: Fans & CPU Coolers be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Fans & CPU Coolers
 |
User manual for the be quiet! Silent Wings 3 140mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - SilentWings 3 | be quiet!
- Engineering Wizardry: The Production of Silent Wings 3 fans

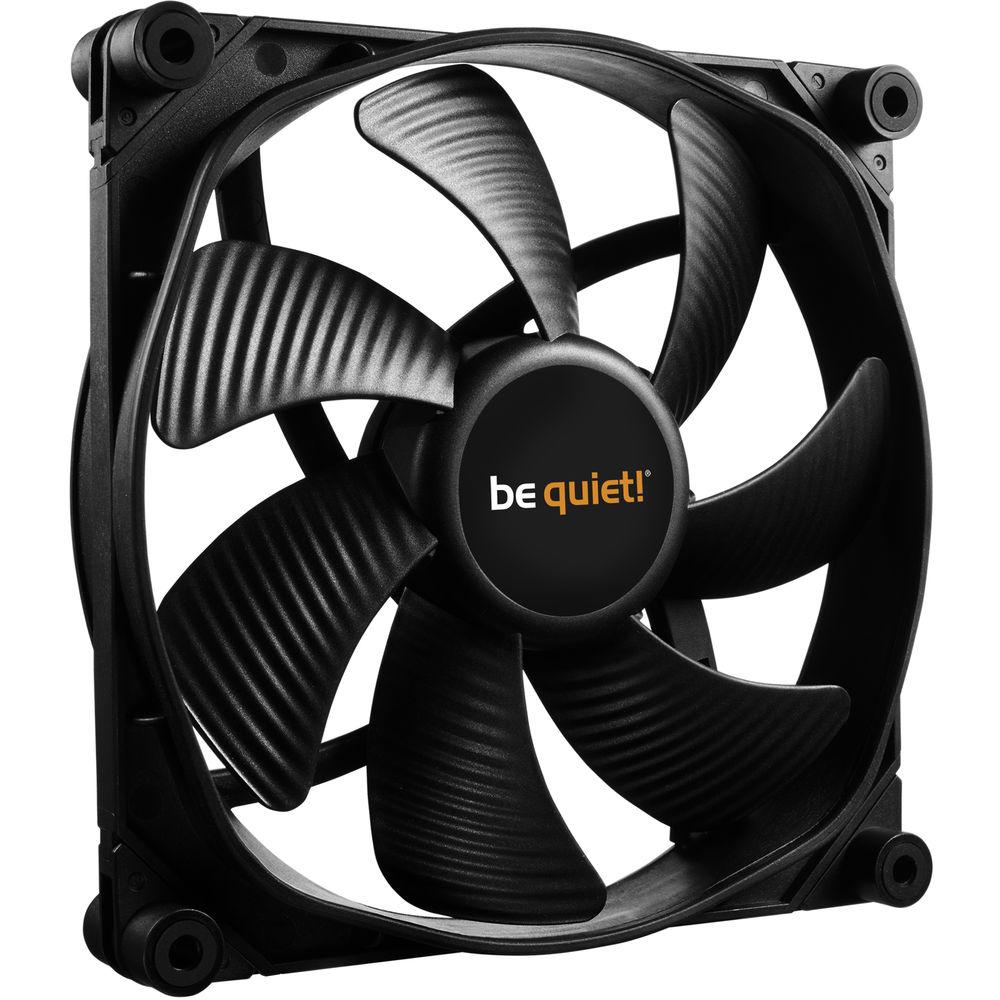

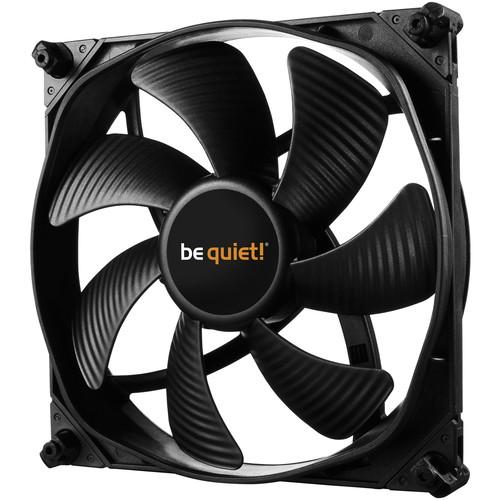

Designed for powerful water- and air-cooled systems, the Silent Wings 3 140mm PWM High-Speed Fan from be quiet! uses funnel-shaped inlets to deliver efficient air circulation and high air pressure. It uses seven airflow- and surface-optimized fan blades and a maximum fan speed of 1600 rpm to bring quiet cooling to your rig, and thanks to Pulse-Width Modulation (PWM), all compatible 4-pin controllers can intelligently vary the speed of the fan. Living up to its name, this be quiet! product generates only 28.1 dBA of noise, even when operating at maximum speed. This fan is also equipped with Fluid Dynamic Bearing technology, which helps to provide a reliable and long operational life of up to 300,000 hours.

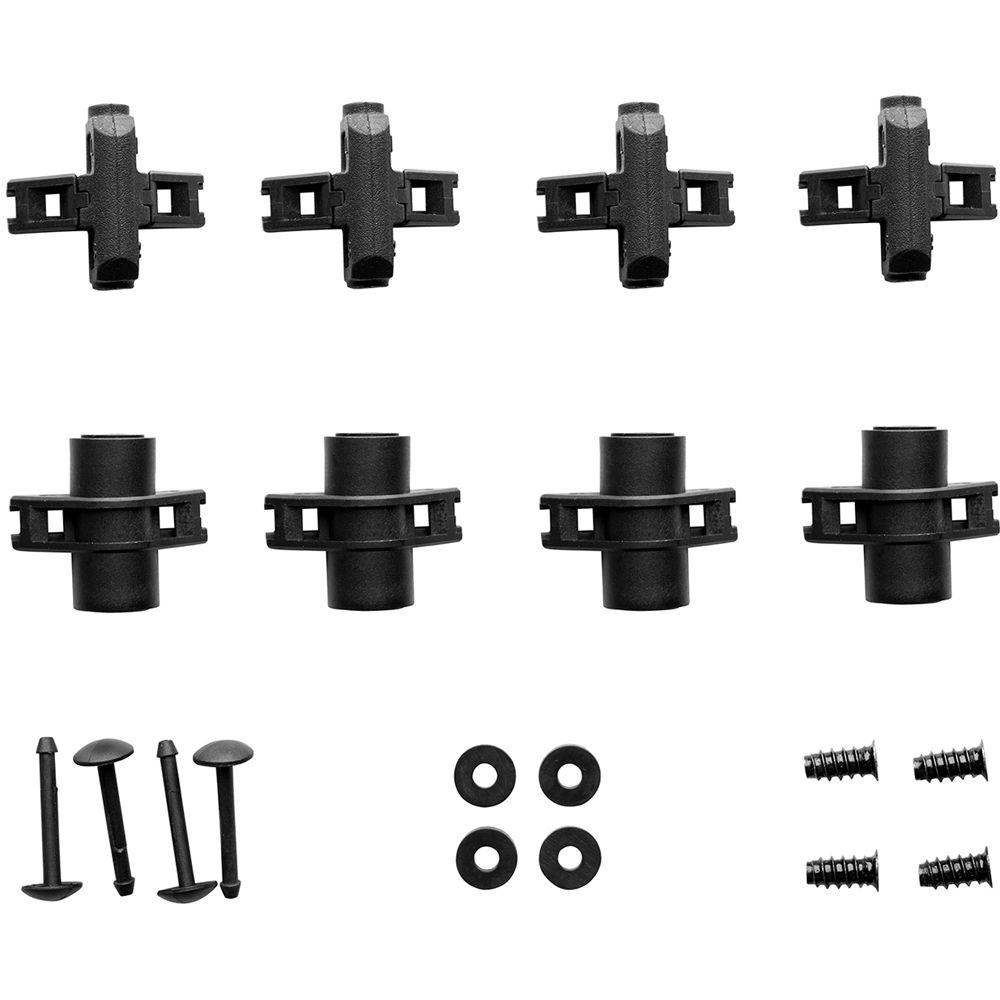

Included are five screws, five push pins, five silica gel washers, and rubber & hard plastic mountings. Protection is provided by a limited 3-year warranty. General Features - Six-Pole Fan Motor
- A six-pole fan motor with three phases for low power consumption and reduced vibration produces maximum noise levels of 28.1 dBA.
- IC Motor Contoller
- A high-quality IC motor controller helps reduce electrical noise.
- Pulse-Width Modulation Functionality
- Pulse-Width Modulation (PWM) allows all compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed of the fan.
- Surface-Optimized Fan Blades
- Seven fan blades with an optimized surface structure helps to ensure virtually inaudible operations and a strong airflow.
- Anti-Vibration Mountings

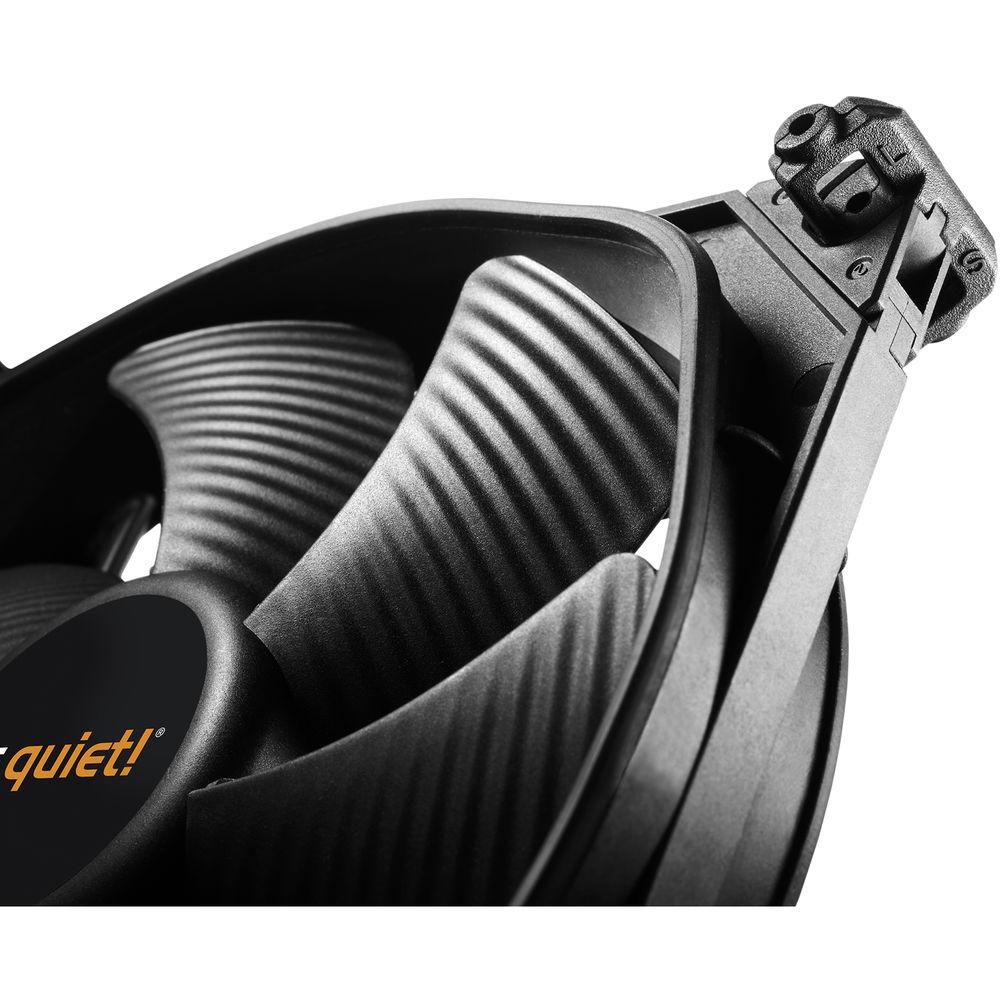

- Removable anti-vibration mountings on all four edges of the fan help to reduce vibrations transmitted to the system case.
- Fan Frame
- The rubberized fan frame is equipped with funnel-shaped air inlets for efficient air circulation and high air pressure, which makes the fan a solid choice for use in powerful water-cooling and air-cooling set ups.
- Fluid Dynamic Bearing
- The fluid dynamic bearing (FDB) enables a long fan life of up to 300,000 hours, or around 34 years, plus reduced operating noise.

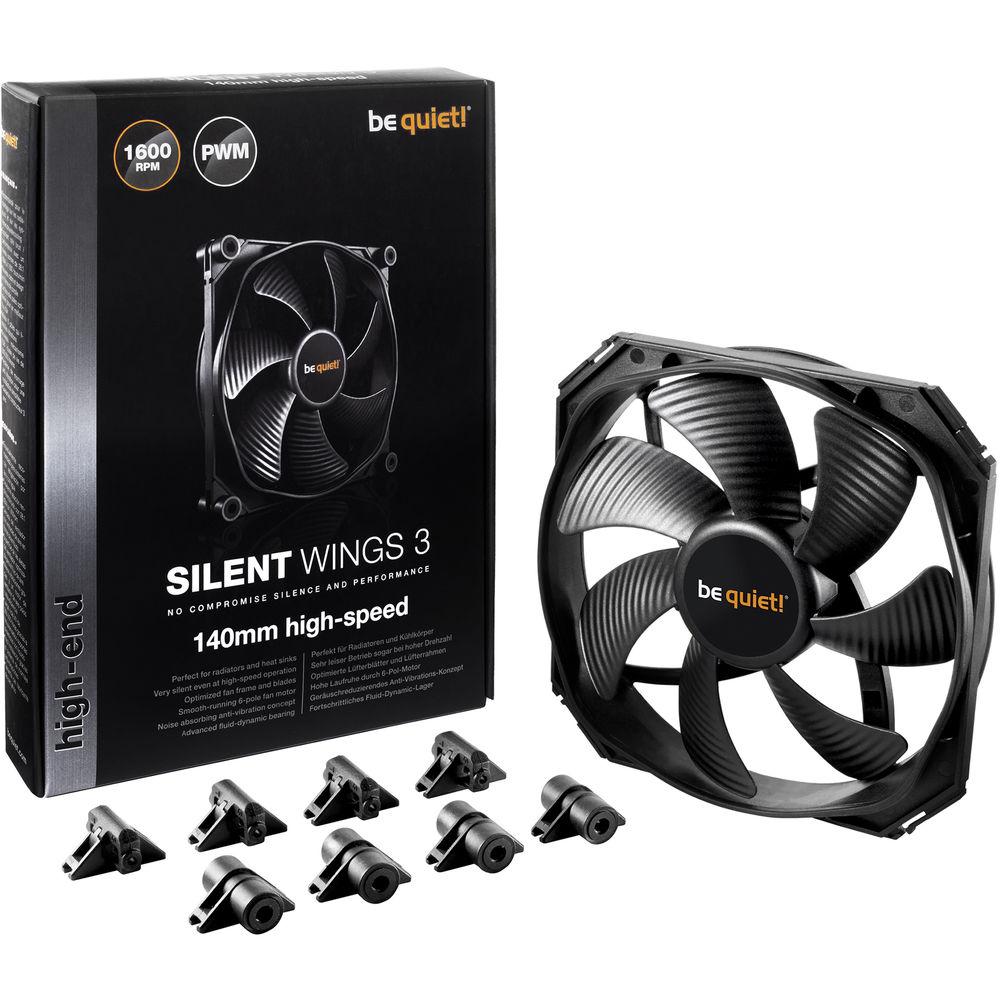

In the Box be quiet! Silent Wings 3 140mm PWM High-Speed Fan 5 x Screws 5 x Push Pins 5 x Silica Gel Washers Rubber & Hard Plastic Mountings Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Silent Wings 3 140mm PWM High-Speed Fan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Silent Wings 3 Specs | Cooler Type | Case Fan | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 140 mm | | Fan Speed | 1600 rpm | | Noise Level | 28.1 dBA | | Maximum Airflow | 77.57 CFM | | Power Consumption | 1.68 W | | Green Certifications | RoHS, WEEE, Per Manufacturer | | Dimensions (W x H x D) | 5.5 x 1.0 x 5.5" / 140.0 x 25.0 x 140.0 mm | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.2 x 6.4 x 1.3" |
