Product description - Straight Power 10 | be quiet!

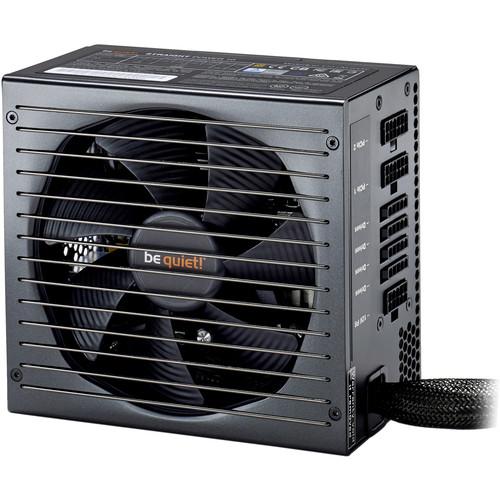

The Straight Power 10 500W CM 80 Plus Gold Modular Power Supply from be quiet! is an efficient, high-powered unit designed for enthusiasts. It delivers up to 500 watts of power and utilizes four +12V rails. Moreover, it's modular, so you can use the cables you need and store the rest. With less cable clutter, your system can benefit from improved airflow for lower temperatures. To keep it cool, the Straight Power 10 is equipped with a 135 mm Silent Wings 3 fan that has a 1200 max rpm. Included are enough cables for multiple storage drives, accessories, and a dual-slot graphics card. - 80 Plus Gold
- The Straight Power 10 is 80 Plus Gold certified, ensuring up to a 93% energy efficiency rating.

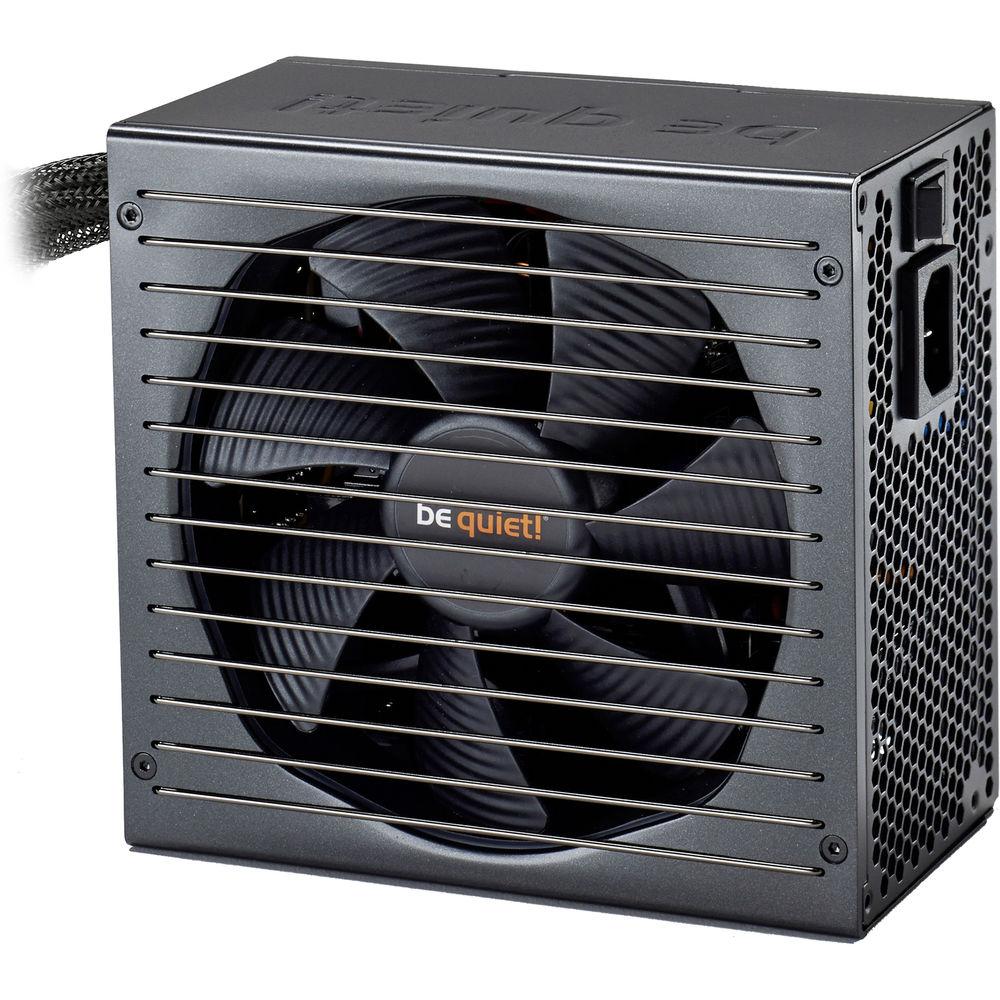

- Silent Wings 3 Fan
- The built-in Silent Wings 3 fan features an airflow-optimized fan blade design, advanced fluid-dynamic bearings, and a 6-pole fan motor. Combined, these features provide the power supply with quiet and efficient cooling.

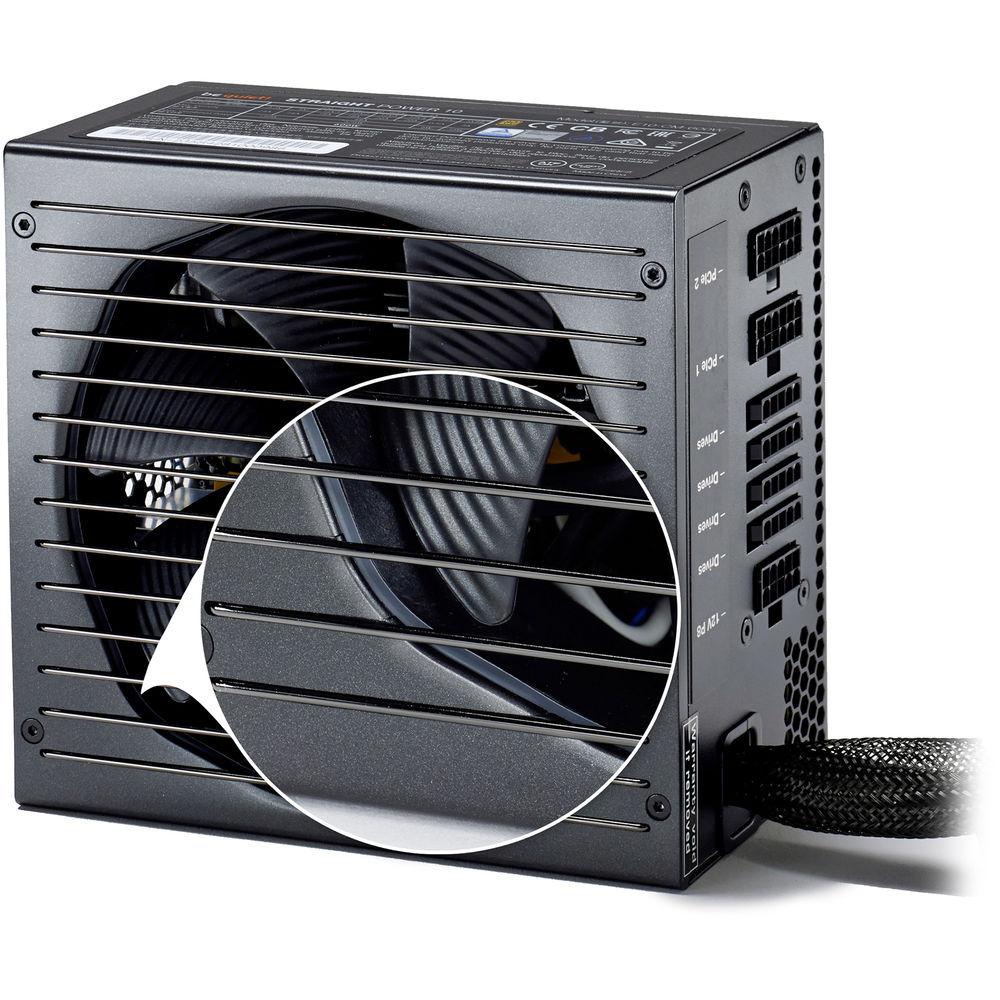

- Funnel-Shaped Fan Opening
- The fan inlet on this power supply features a funnel-shaped opening for increased airflow.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)

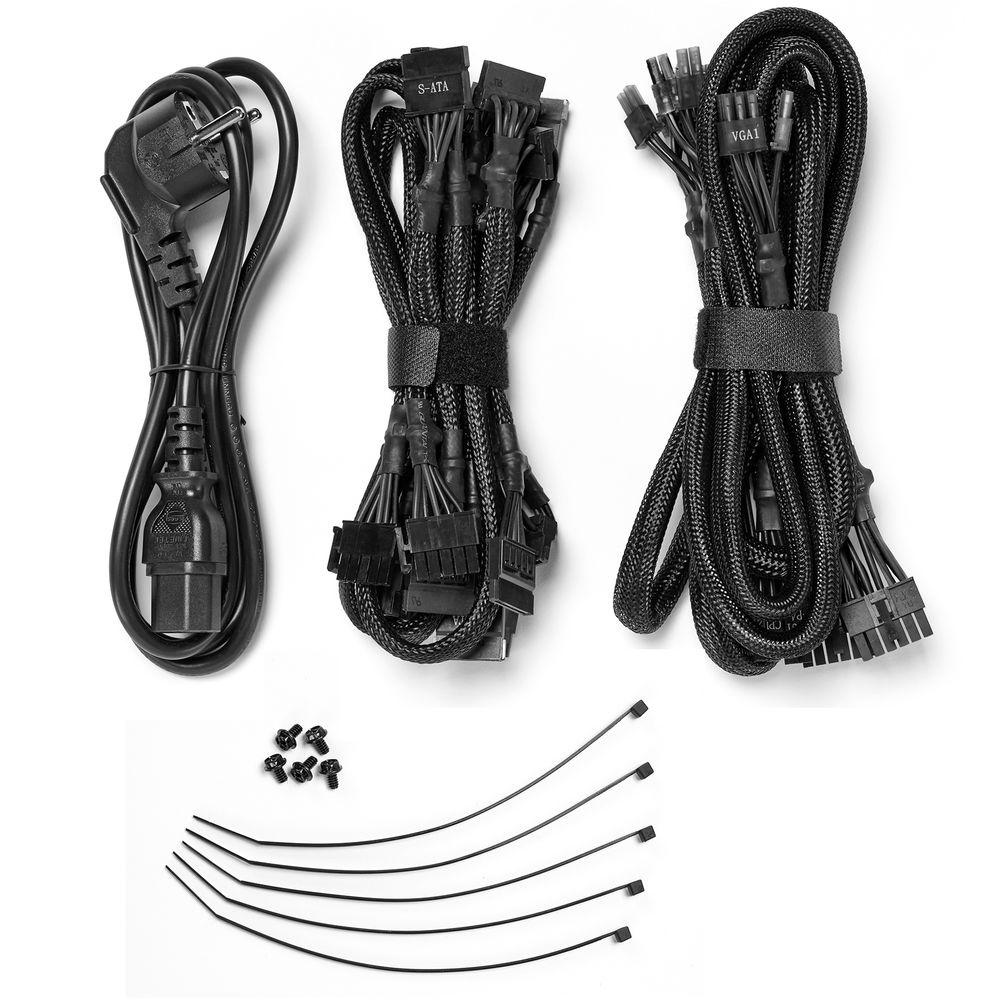

OPP (over power protection) In the Box be quiet! Straight Power 10 500W CM 80 Plus Gold Modular Power Supply 24-Pin ATX Cable 2 x 4-Pin CPU Cable 2 x 6+2-Pin PCIe Cable 2 x SATA/4-Pin Molex Cable SATA Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Straight Power 10 500W CM 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Straight Power 10 Specs | | | Total Connectors | 1 x 20+4-Pin ATX
2 x 4-Pin CPU
2 x 6+2-Pin PCIe
9 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Modular, Sleeved | | PCIe Connector Distances | 25.6" / 650 mm | | SATA Connector Distances | 5.9" / 150 mm | | Peripheral Connector Distances | 5.9" / 150 mm | | ATX Connector Distance | 25.6" / 650 mm | | EPS Connector Distances | 29.5" / 750 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 4 | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 18 A (Per Rail) | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.3 A | | Peak Power | 550 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 to 4 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 93% at 100% Load | | Hold up Time | 17 ms at 100% Load | | | | Fan Size | 135 mm | | Fan Speed | 1200 rpm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Noise Level | 10.3 to 15 dBA | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4, EPS 12 V v2.92 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CE, FCC, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 6.3 x 5.9 x 3.4" / 160.0 x 150.0 x 86.0 mm | | Weight | 4.9 lb / 2.2 kg |
