Product description - Straight Power 11 | be quiet!
- Unboxing of Straight Power 11 with wire-free design

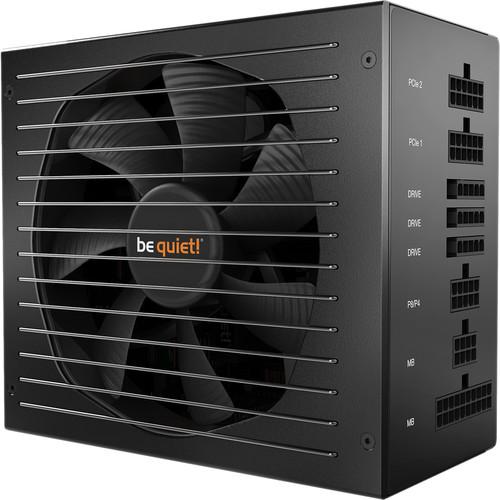

The Straight Power 11 550W 80 Plus Gold Modular Power Supply from be quiet! features a 135mm cooling fan and four high-performance 12V rails. This 8-cables modular power supply has a 20+4-pin ATX motherboard connector, two 6+2-pin PCIe connectors, a P4+4 connector, nine 5-pin SATA connectors, and three 4-pin P-ATA connectors. 550W is supported with a peak power of 600W. It has ATX 12V 2.4 and EPS 12V 2.92 compliance. - 80 Plus Gold
- The Straight Power 11 is 80 Plus Gold certified, ensuring up to a 93% energy efficiency rating.
- Silent Wings 3 Fan
- The built-in Silent Wings 3 fan features an airflow-optimized fan blade design, advanced fluid-dynamic bearings, and a 6-pole fan motor. Combined, these features provide the power supply with quiet and efficient cooling.

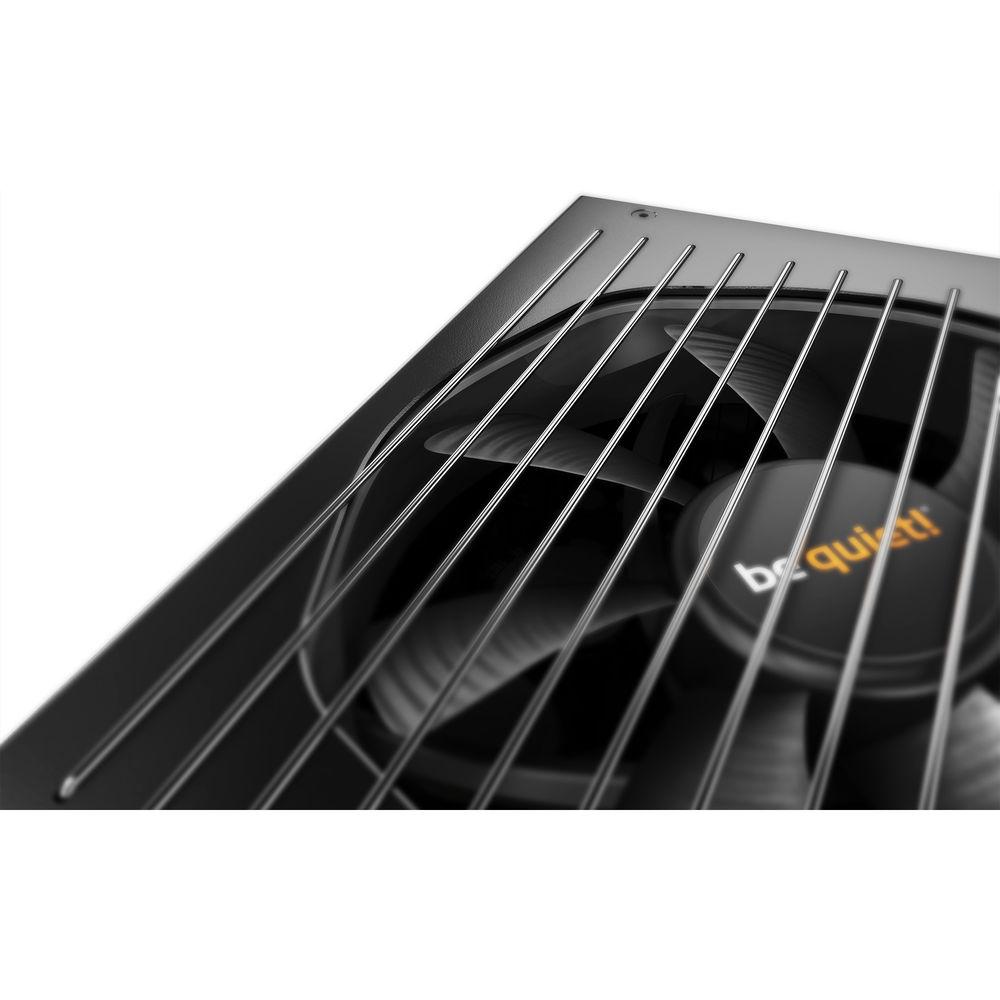

- Funnel-Shaped Fan Opening
- The fan inlet on this power supply features a funnel-shaped opening for increased airflow.

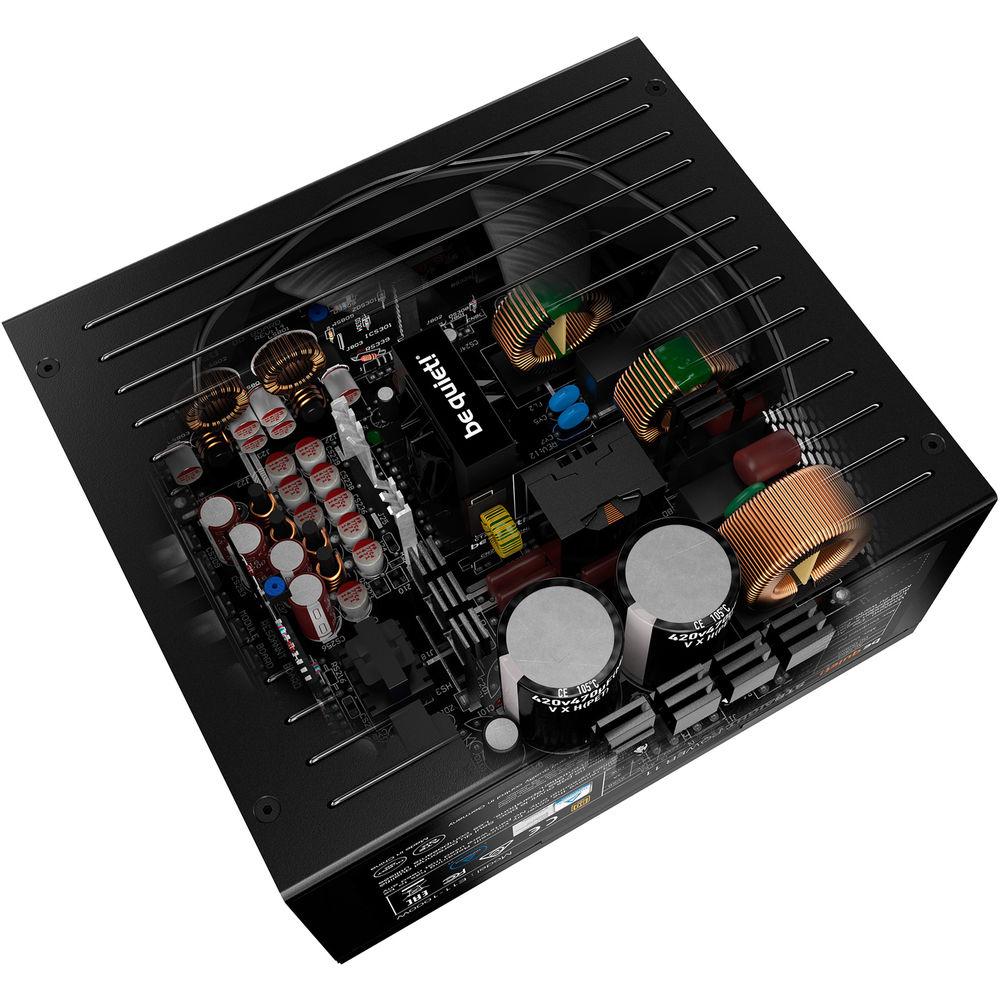

- Wire-Free Design Inside the PSU
- This power supply is wire-free on the DC side inside the PSU body and provides improved cooling airflow and less signal disturbance.
- High-Class Technologies
- The use of LLC and Synchronous Rectifier (SR) provides stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.
- Japanese Capacitors
- The high-quality Japanese capacitors are rated to 221°F, ensuring stability, reliability, and a long operating life.
- Multi-GPU Support
- Powerful multi-GPU support with two PCI-Express connectors
- ErP and Energy Star 6.1 ready
- Advanced stability and voltage regulation with LLC, SR, and DC-to-DC
- Product conception, design, and quality control in Germany
- Full cable management for maximum build flexibility

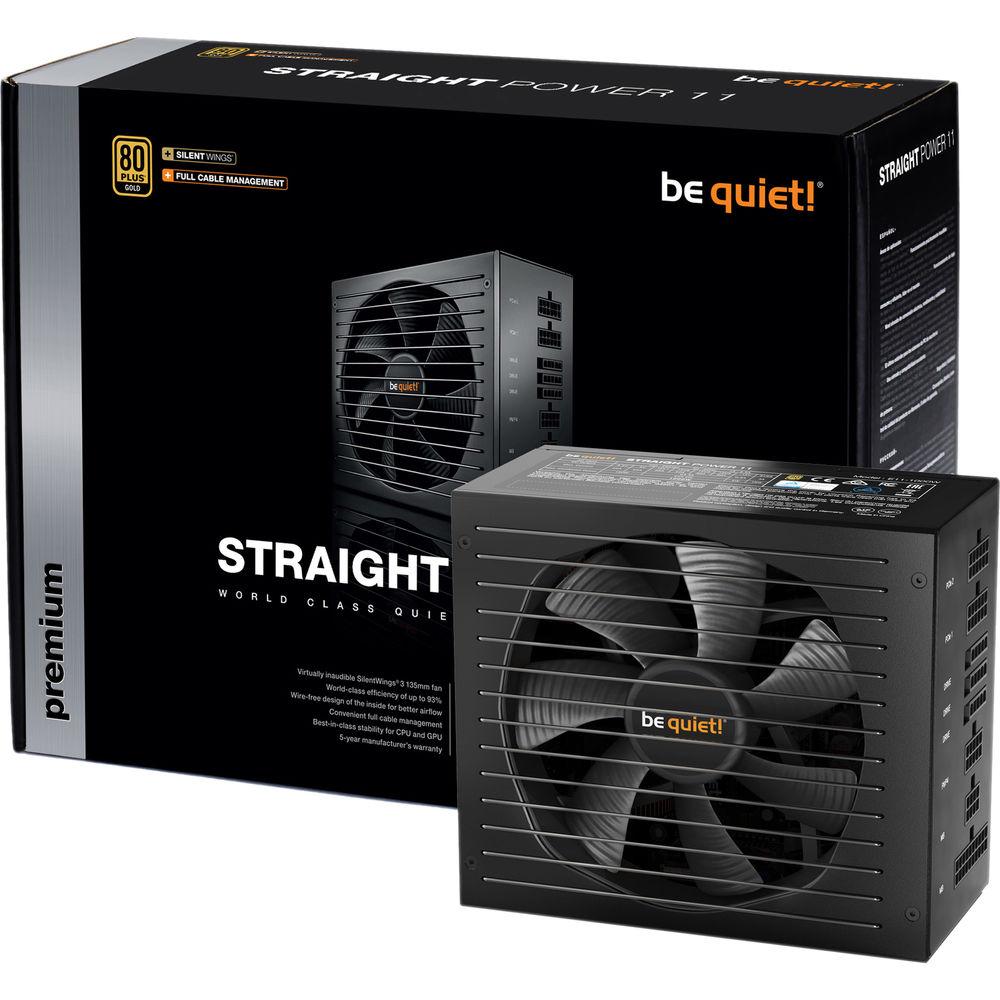

In the Box be quiet! Straight Power 11 550W 80 Plus Gold Modular Power Supply 20+4-Pin ATX Cable 2 x 12V P4 Cable 2 x 6+2-Pin PCIe Cable 2 x SATA/4-Pin Peripheral Cable SATA Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Straight Power 11 550W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Straight Power 11 Specs | | | Total Connectors | 1 x 20+4-Pin ATX
2 x 6+2-Pin PCIe
2 x 4-Pin P4
9 x 15-Pin SATA | | Cable Design | Sleeved | | ATX Connector Distance | 23.6" / 60 cm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 4 | | Max Load for +12 V | 4 to 8 A | | Peak Power | 600 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 93% | | | | Fan Size | 135 mm | | Noise Level | 9 to 17.2 dBA | | Fan Life Expectancy | 100,000 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 98% | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.4, EPS 12 V v2.92 | | Certifications | CE, EAC, FCC, TUV, as per Manufacturer | | Power Cable Length | 45.28" / 115 cm | | Dimensions | 6.3 x 5.9 x 3.4" / 160.0 x 150.0 x 86.0 mm |
