Product description - Straight Power 11 | be quiet!

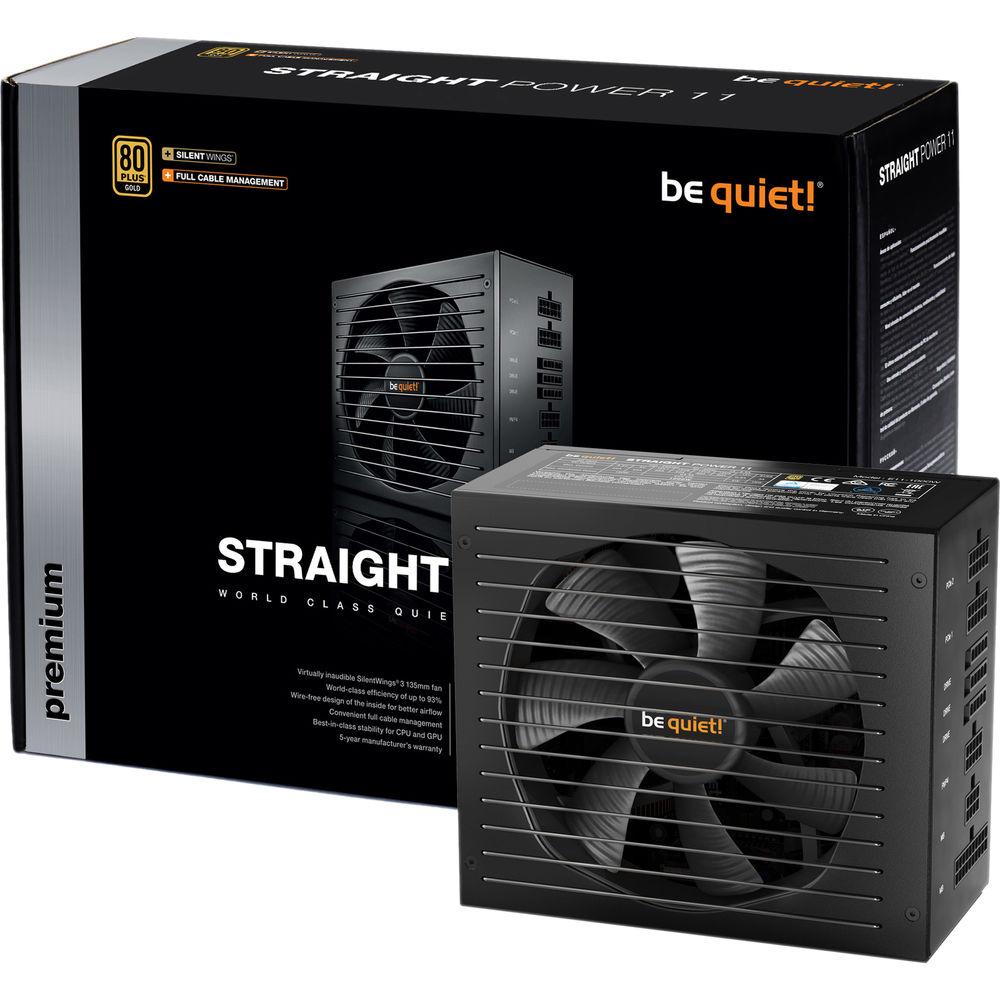

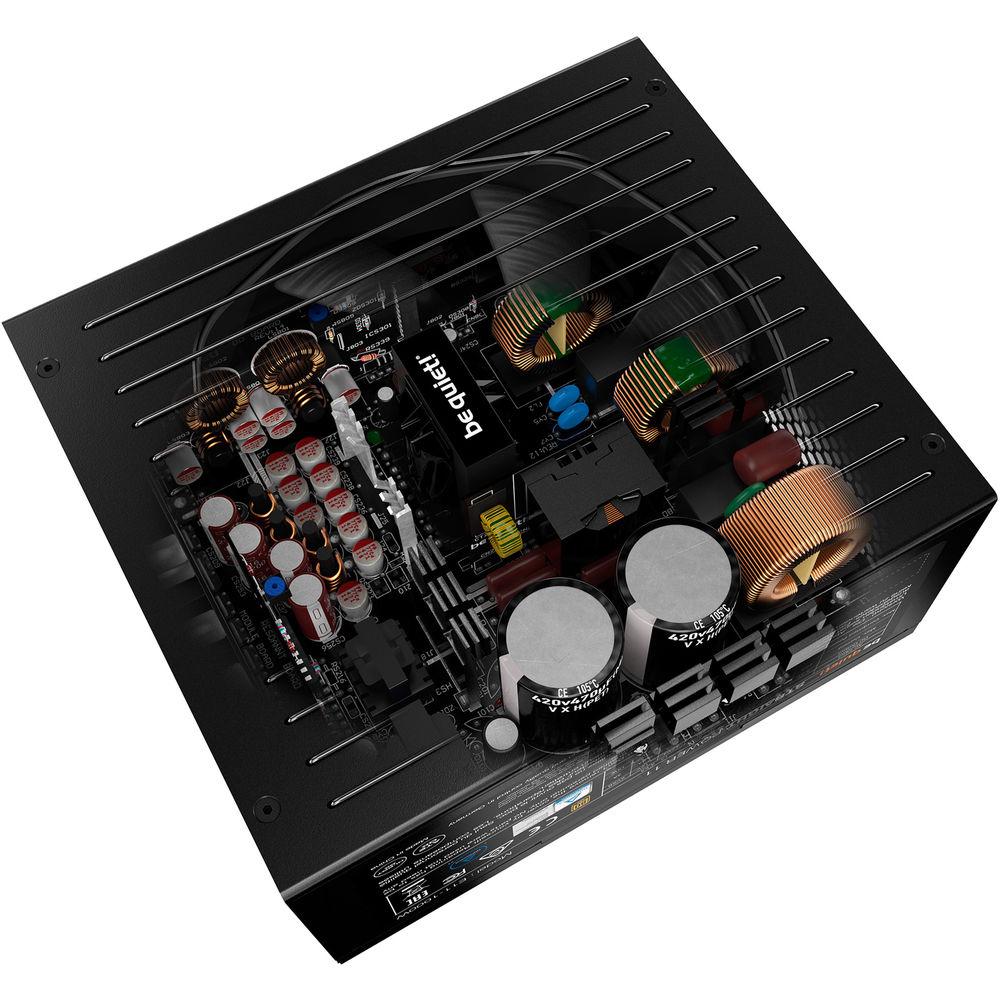

- Unboxing of Straight Power 11 with wire-free design

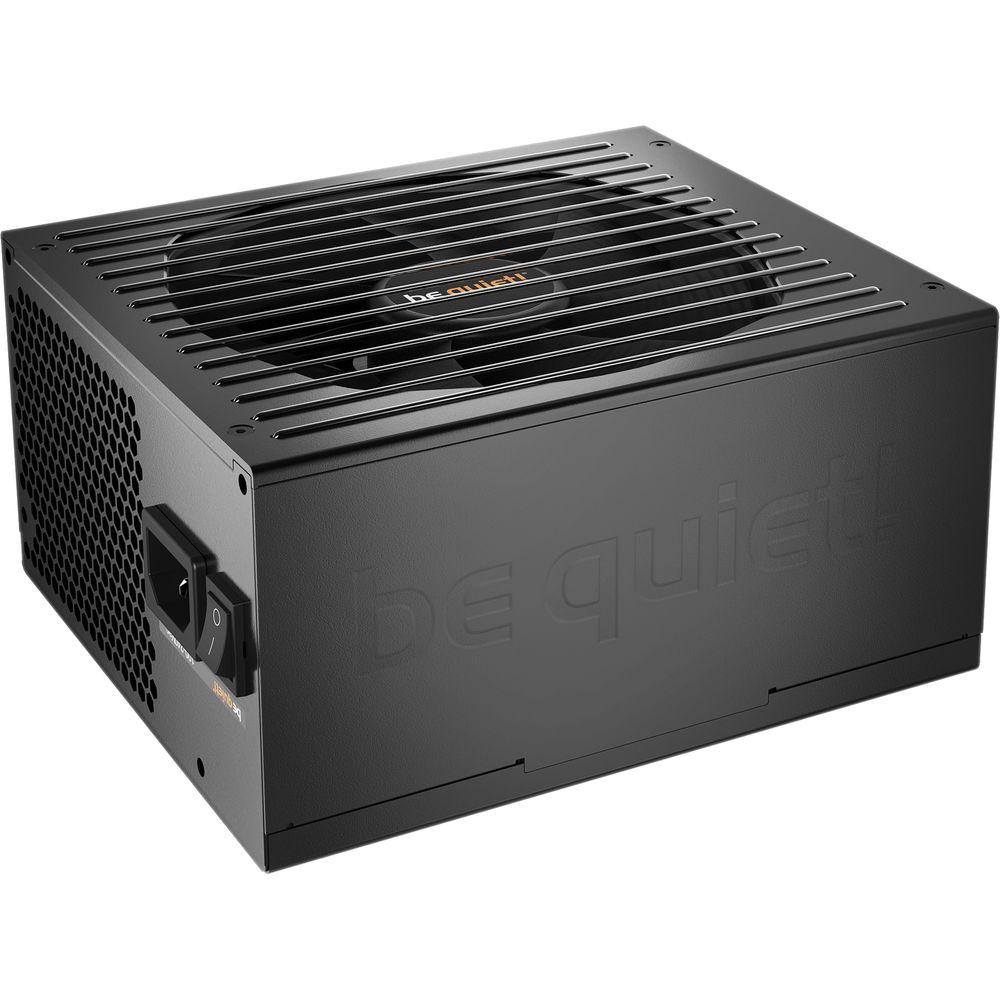

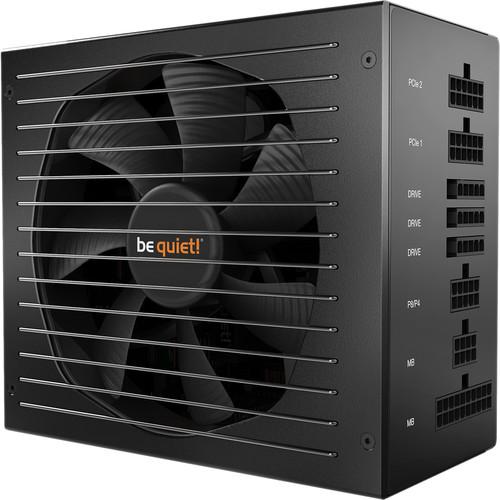

The Straight Power 11 650W 80 Plus Gold Modular Power Supply from be quiet! is an efficient, high-powered unit designed for enthusiasts. It delivers up to 650 watts of power and utilizes four +12V rails. Moreover, it's modular, so you can use the cables you need and store the rest. With less cable clutter, your system can benefit from improved airflow for lower temperatures. To keep it cool, the Straight Power 11 is equipped with a 135 mm Silent Wings 3 fan that has a 1500 max rpm. Included are enough cables for multiple storage drives, accessories, and even dual-slot graphics cards. - 80 Plus Gold
- The Straight Power 11 is 80 Plus Gold certified, ensuring up to a 93% energy efficiency rating.
- Silent Wings 3 Fan
- The built-in Silent Wings 3 fan features an airflow-optimized fan blade design, advanced fluid-dynamic bearings, and a 6-pole fan motor. Combined, these features provide the power supply with quiet and efficient cooling.

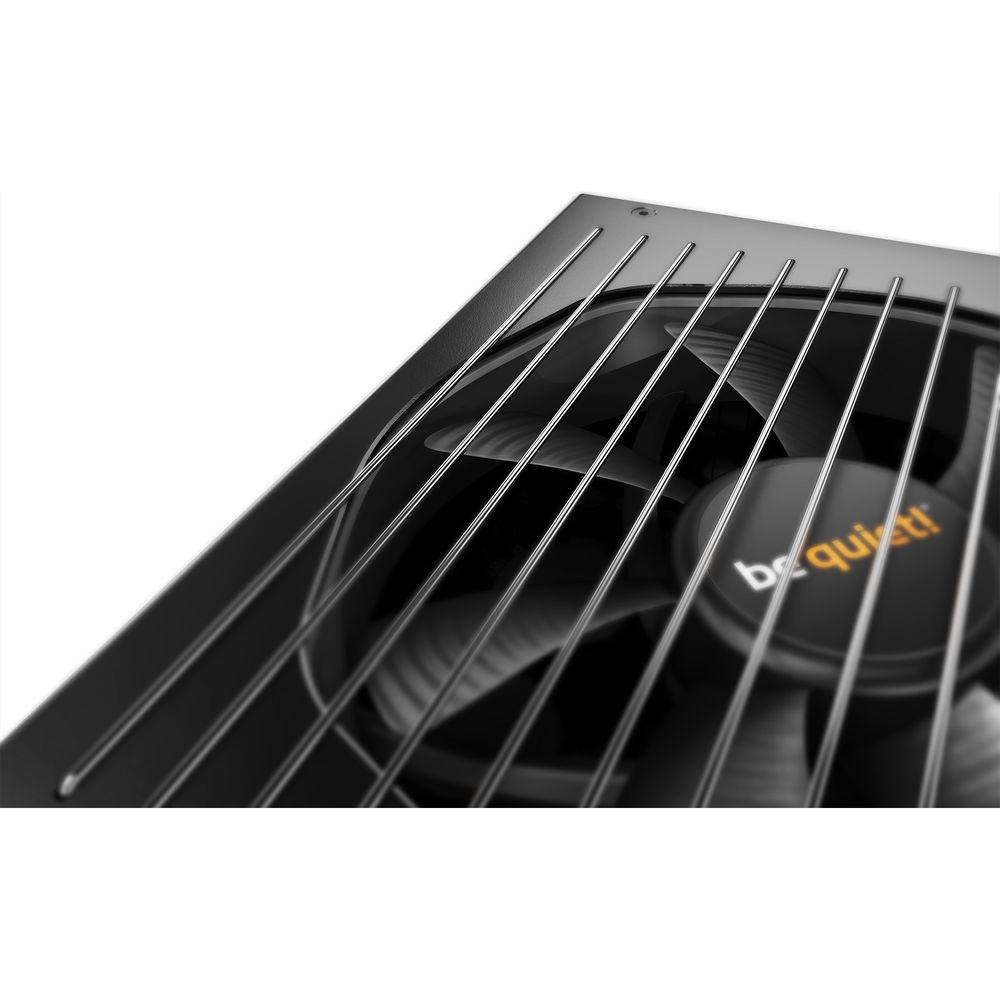

- Funnel-Shaped Fan Opening
- The fan inlet on this power supply features a funnel-shaped opening for increased airflow.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection) In the Box be quiet! Straight Power 11 650W 80 Plus Gold Modular Power Supply Power Cable 20+4-Pin ATX Cable 2 x 4-Pin CPU Cable 4 x 6+2-Pin PCIe Cable 2 x SATA/4-Pin Peripheral Cable SATA Cable 4-Pin Peripheral to FDD Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Straight Power 11 650W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Straight Power 11 Specs | Form Factor | ATX | | Input Voltage | 100 to 240 VAC | | Input Frequency | 50 to 60 Hz | | Input Current | 8 to 4 A | | Cable Length | ATX: 23.62" / 600 mm
CPU 4-Pin: 27.56" / 700 mm
PCIe: 23.62" / 600 mm
4-Pin/SATA: 39.37" / 1000 mm
SATA: 39.37" / 1000 mm | | Connectors | 1 x 20+4-Pin ATX Motherboard
2 x 4-Pin CPU
4 x 6+2-Pin PCIe
9 x SATA
3 x 4-Pin Peripheral
1 x FDD | | Output | +3.3 V - 24 A
+5 V - 24 A
+12V 1 - 18 A
+12V 2 - 18 A
+12V 3 - 22 A
+12V 4 - 22 A
-12 V - 0.3 A
+5 Vsb - 3 A
Max combined power 12 V - 649.2 W
Max combined power 3.3 V + 5 V - 140 W | | | | Size | 135 mm | | Fan Bearing Technology | Fluid-dynamic | | Fan Speed | 1500 rpm | | Noise Levels | 8.93 dBA at 20% load 9.8 dBA at 50% load 17.52 dBA at 100% load | | | | 80 PLUS Certification | Gold | | Dimensions (L x W x D) | 6.3 x 5.91 x 3.39" / 160 x 150 x 86 mm | | Weight | 3.4 lb / 1.54 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 13.0 x 9.8 x 4.1" |
