User Manual for be quiet! Straight Power 11 850W 80 Plus Gold Modular Power Supply Click to enlarge the picture
Contents of the user manual for the be quiet! Straight Power 11 850W
- Product category: Power Supplies be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Power Supplies
 |
User manual for the be quiet! Straight Power 11 850W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - Straight Power 11 | be quiet!

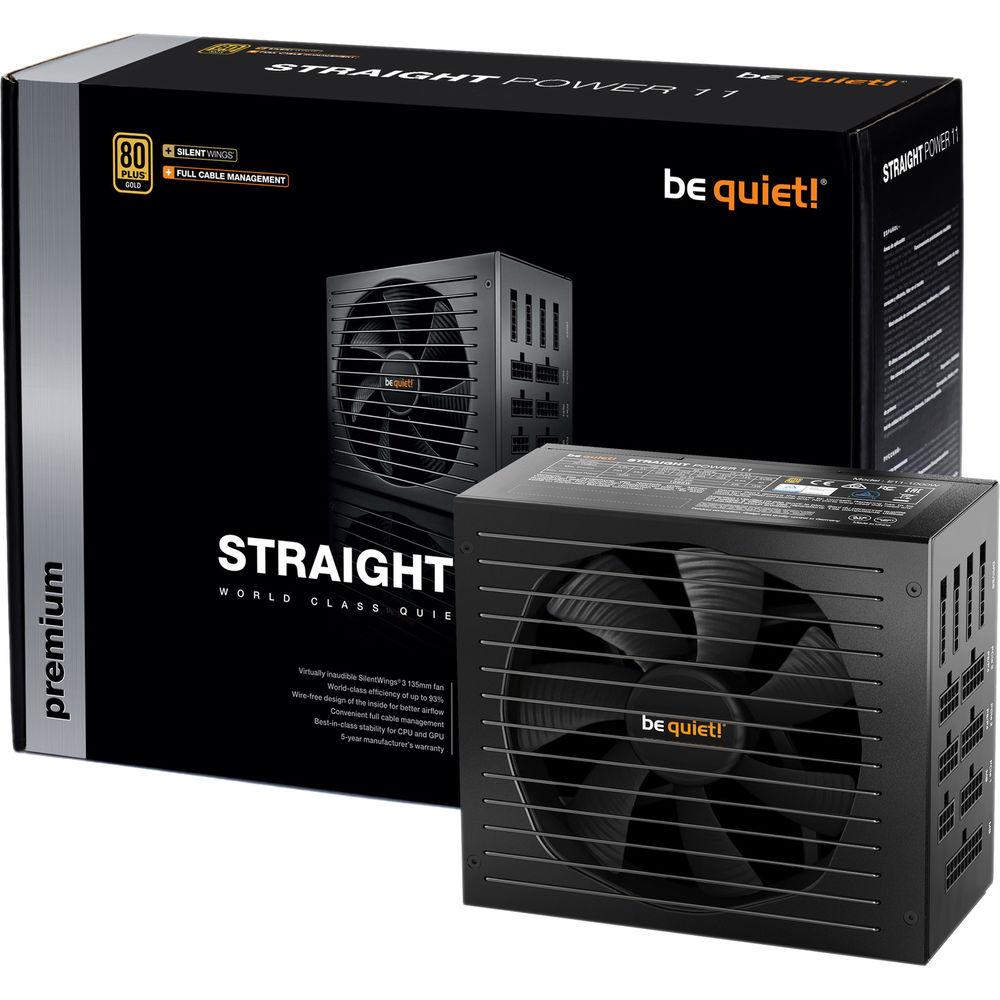

- Unboxing of Straight Power 11 with wire-free design

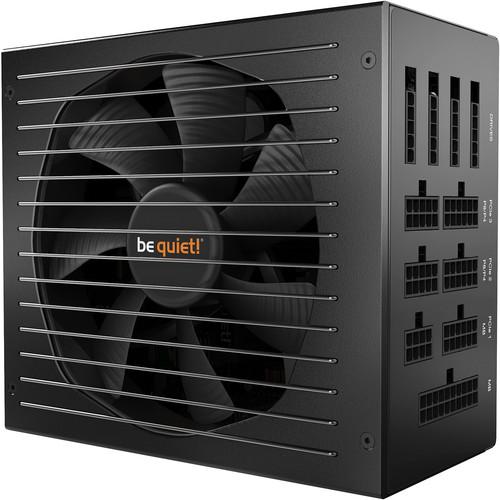

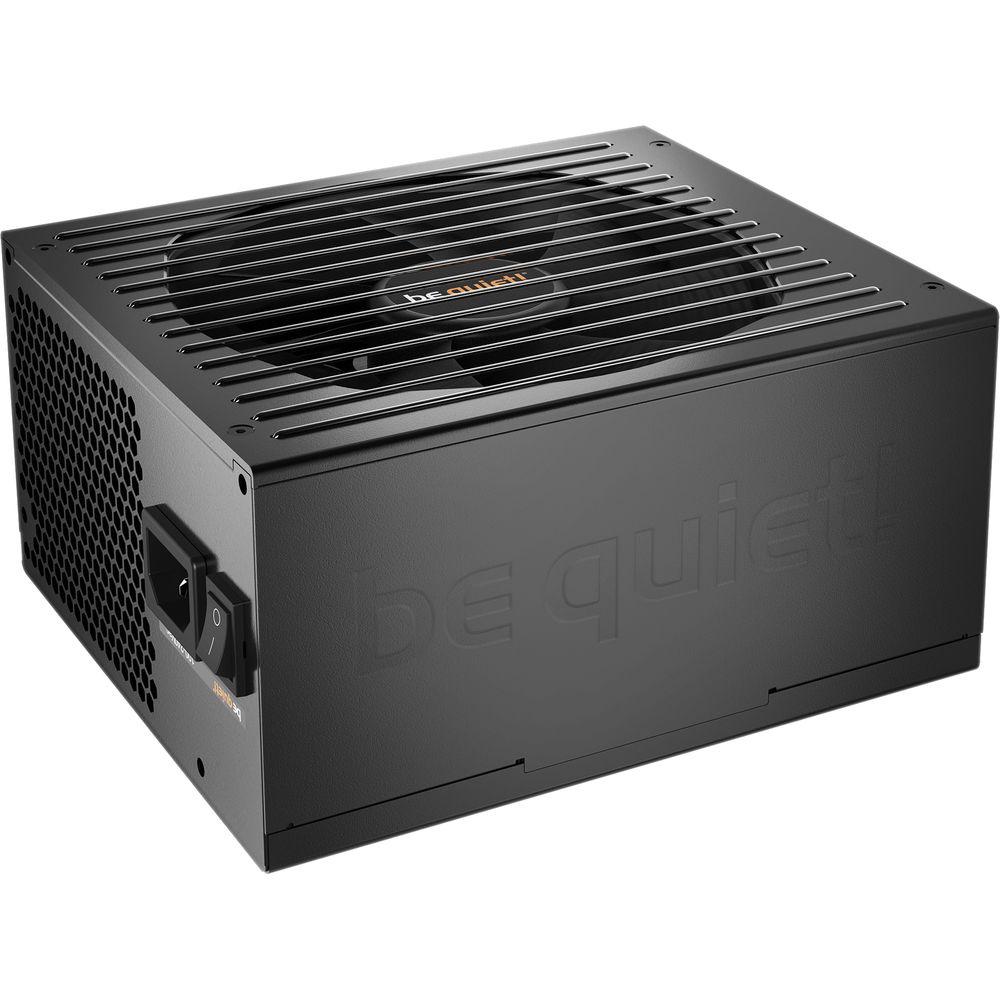

The Straight Power 11 850W 80 Plus Gold Modular Power Supply from be quiet! is an efficient, high-powered unit designed for enthusiasts. It delivers up to 850 watts of power and utilizes four +12V rails. Moreover, it's modular, so you can use the cables you need and store the rest. With less cable clutter, your system can benefit from improved airflow for lower temperatures. To keep it cool, the Straight Power 11 is equipped with a 135 mm Silent Wings 3 fan that has a 2100 max rpm. Included are enough cables for multiple storage drives, accessories, and even dual-slot graphics cards. - 80 Plus Gold
- The Straight Power 11 is 80 Plus Gold certified, ensuring up to a 93% energy efficiency rating.
- Silent Wings 3 Fan
- The built-in Silent Wings 3 fan features an airflow-optimized fan blade design, advanced fluid-dynamic bearings, and a 6-pole fan motor. Combined, these features provide the power supply with quiet and efficient cooling.
- Funnel-Shaped Fan Opening
- The fan inlet on this power supply features a funnel-shaped opening for increased airflow.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)

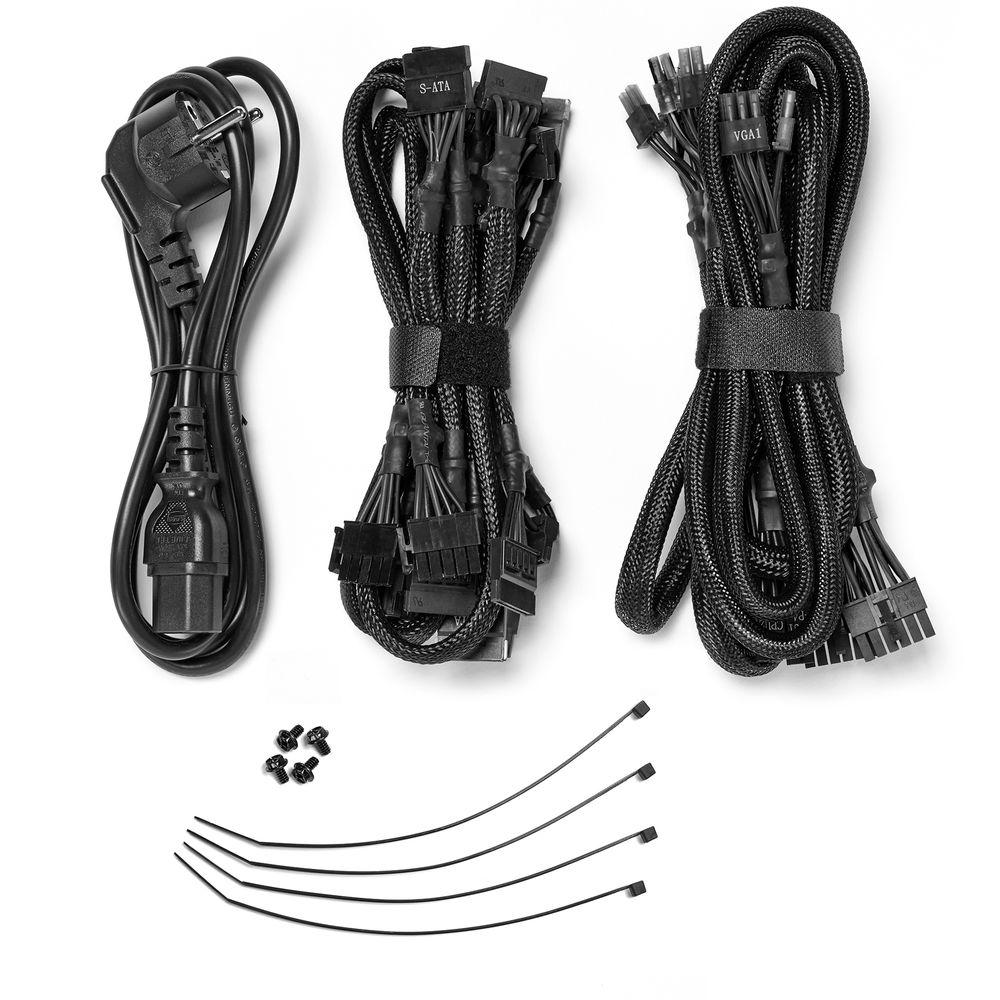

OPP (over power protection) In the Box be quiet! Straight Power 11 850W 80 Plus Gold Modular Power Supply Power Cable 20+4-Pin ATX Cable 2 x 4-Pin CPU Cable 8-Pin CPU Cable 4 x 6+2-Pin PCIe Cable 2 x SATA/4-Pin Peripheral Cable 2 x SATA Cable 4-Pin Peripheral to FDD Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! Straight Power 11 850W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! Straight Power 11 Specs | Form Factor | ATX | | Input Voltage | 100 - 240 VAC | | Input Frequency | 50 - 60 Hz | | Input Current | 10 - 5 A | | Cable Length | ATX: 23.62" / 600 mm
CPU 4-Pin: 27.56" / 700 mm
CPU 8-Pin: 27.56" / 700 mm
PCIe: 23.62" / 600 mm
4-Pin/SATA: 39.37" / 1000 mm
SATA: 1 x 39.37" / 1000 mm, 1 x 33.46" / 850 mm | | Connectors | 1 x 20+4-Pin ATX Motherboard
2 x 4-Pin CPU
1 x 8-Pin CPU
4 x 6+2-Pin PCIe
11 x SATA
4 x 4-Pin Peripheral
1 x FDD | | Output | +3.3 V - 25 A
+5 V - 25 A
+12V 1 - 21 A
+12V 2 - 21 A
+12V 3 - 26 A
+12V 4 - 26 A
-12 V - 0.5 A
+5 Vsb - 3 A
Max combined power 12 V - 849.6 W
Max combined power 3.3 V + 5 V - 150 W | | | | Size | 135 mm | | Fan Bearing Technology | Fluid-dynamic | | Fan Speed | 2100 rpm | | Noise Levels | 9.71 dBA at 20% load 10.61 dBA at 50% load 24.98 dBA at 100% load | | | | 80 PLUS Certification | Gold | | Dimensions (L x W x D) | 6.69 x 5.91 x 3.39" / 170 x 150 x 86 mm | | Weight | 3.97 lb / 1.8 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 12.9 x 9.8 x 4.2" |
