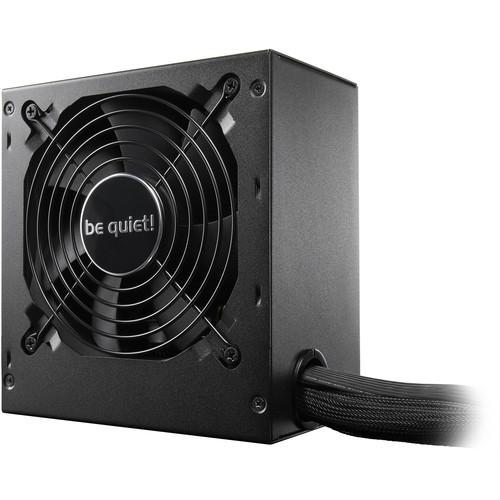

User Manual for be quiet! System Power U9 500W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the be quiet! System Power U9 500W
- Product category: Power Supplies be quiet!
- Brand: be quiet!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for be quiet! Power Supplies
 |
User manual for the be quiet! System Power U9 500W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any be quiet! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official be quiet! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a be quiet! product will considerably shorten its lifespan!
|
Product description - System Power 9 | be quiet! | Product presentation

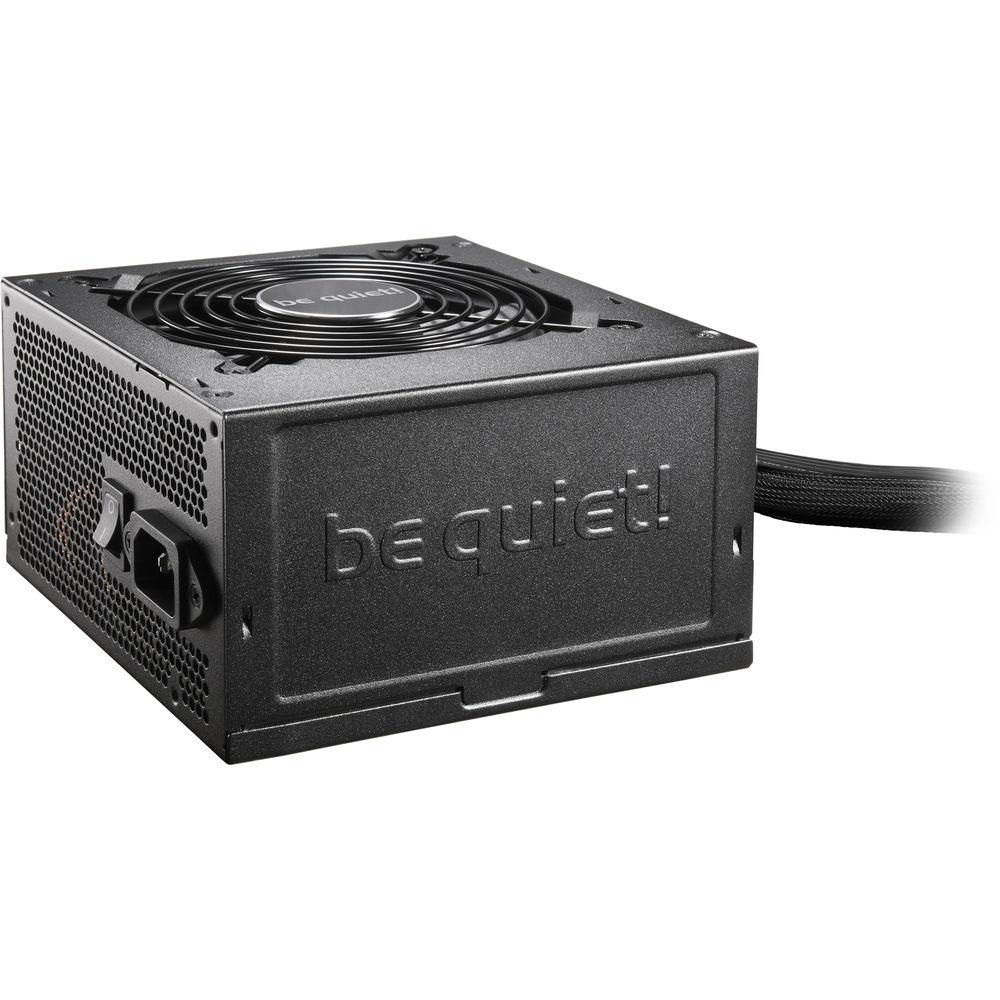

The System Power U9 500W 80 Plus Bronze Power Supply from be quiet is designed for efficiency and built with parts for durable, long-lasting power. It has dual +12V rails, a 120mm fan that keeps things cool and operational, and comes with enough cables for a standard single-GPU build. Moreover, its cables are black and sleeved, with some featuring a flat, low-profile design to blend in with your build and keep things tidy. This unit is equipped with multiple heavy-duty protections to ensure your system isn't damaged during unexpected events. - 80 Plus Bronze
- The 80 Plus Bronze rating ensures that your power supply is operating efficiently. Under load, this power supply is 86% efficient or higher.
- Voltage Regulation
- The two +12V rails provides you with stable power, up to 24 A on one and 20 A on the other.
- 120 mm Fan
- The built-in 120 mm fan provides the System Power U9 with efficient and silent cooling to keep things running longer. It has a 4-pole fan motor with sleeve bearings and a max rpm of 2100.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)

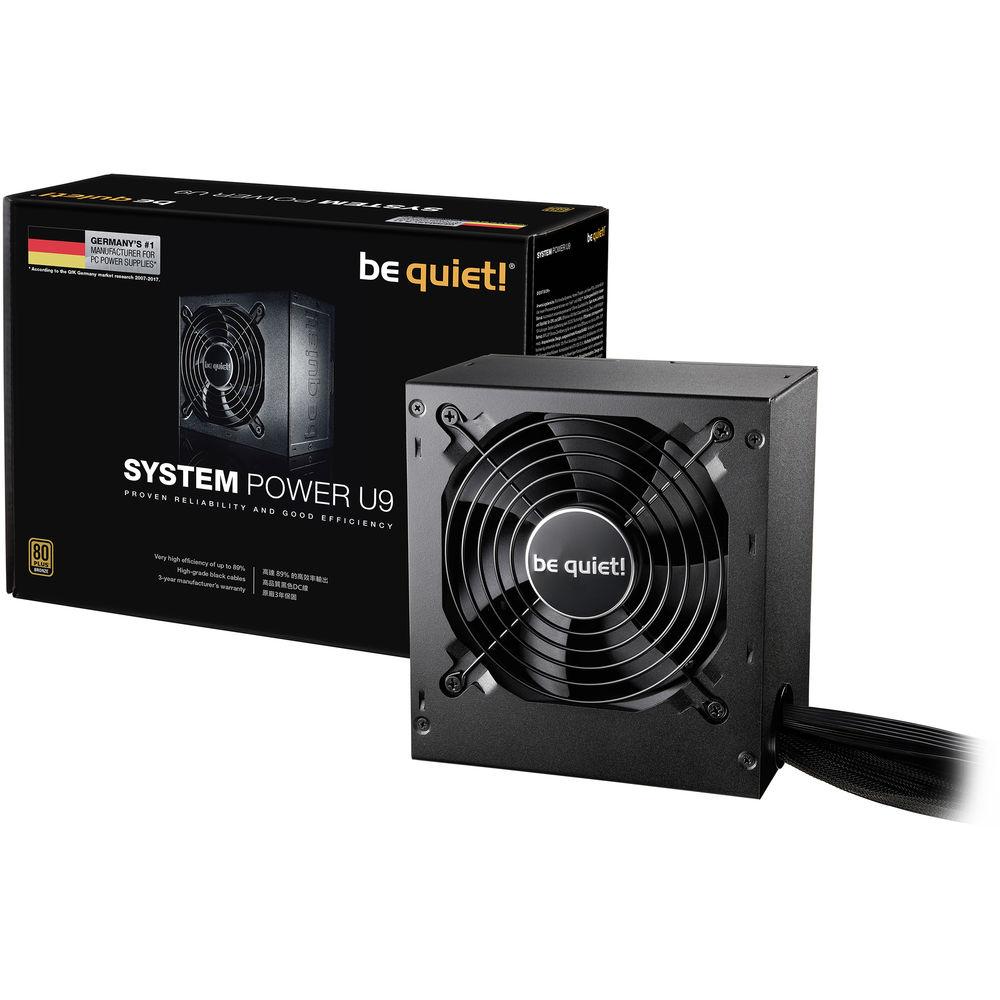

OPP (over power protection) In the Box be quiet! System Power U9 500W 80 Plus Bronze Power Supply ATX Motherboard Cable CPU Cable PCIe Cable 2 x SATA/4-Pin Molex Cable Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! System Power U9 500W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! System Power U9 Specs | Form Factor | ATX | | Input Voltage | 100 - 240 VAC | | Input Current | 8 - 4 A | | Input Frequency Range | 50 - 60 Hz | | Cable Length | ATX: 21.65" / 550 mm
CPU: 23.62" / 600 mm
PCIe: 2 x 19.69" / 650 mm
SATA/4-Pin: 1 x 21.65" / 550 mm, 1 x 13.78" / 350 mm | | Connectors | 1 x 20+4-pin ATX
1 x 4+4-pin CPU
2 x 6+2-pin PCIe
6 x SATA
2 x 4-pin peripheral | | Output | +3.3 V - 24 A
+5 V - 16 A
+12 V1 - 24 A
+12 V2 - 20 A
-12 V - 0.3 A
+5 Vsb - 3 A
Max combined power 12 V - 480 W
Max combined power 3.3 V + 5 V - 110 W | | | | Size | 120 mm | | Fan Bearing Technology | Sleeve | | Fan Speed | 2100 rpm | | Noise Levels | 13.32 dBA at 20% load
13.91 dBA at 50% load
23.15 dBA at 100% load | | | | 80 PLUS Certification | Bronze | | Efficiency | 87% at 230 V, 20% load
89% at 230 V, 50% load
86% at 230 V, 100% load | | Dimensions (L x W x D) | 5.51 x 5.91 x 3.39" / 140 x 150 x 86 mm | | Weight | 4.19 lb / 1.9 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 10.7 x 7.8 x 3.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to be quiet! System Power U9 500W 80 Plus Bronze Power Supply
| Subject: System Power U9 500W 80 Plus - no power | | Date: 20.07.2022 22:09:44 | Name: rohit patel | | I disconnection the power cable, installed a new graphics card. But the PSU just does not come on again. Changed power cable, changed source of power but no diff. is there anyway to test the PSU outside of the PC? is there any simple tests that can be performed on the PSU to see if operational? | | Post reply |
