Product description - System Power 9 | be quiet! | Product presentation

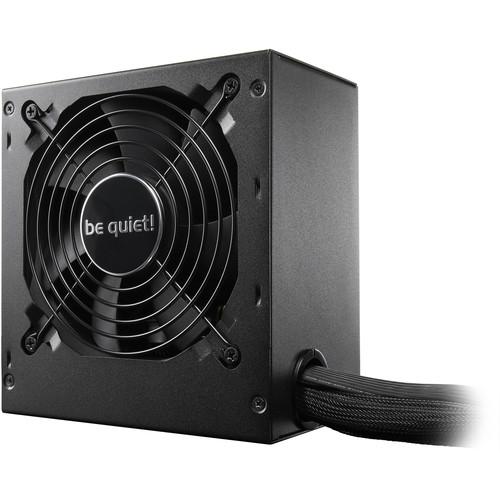

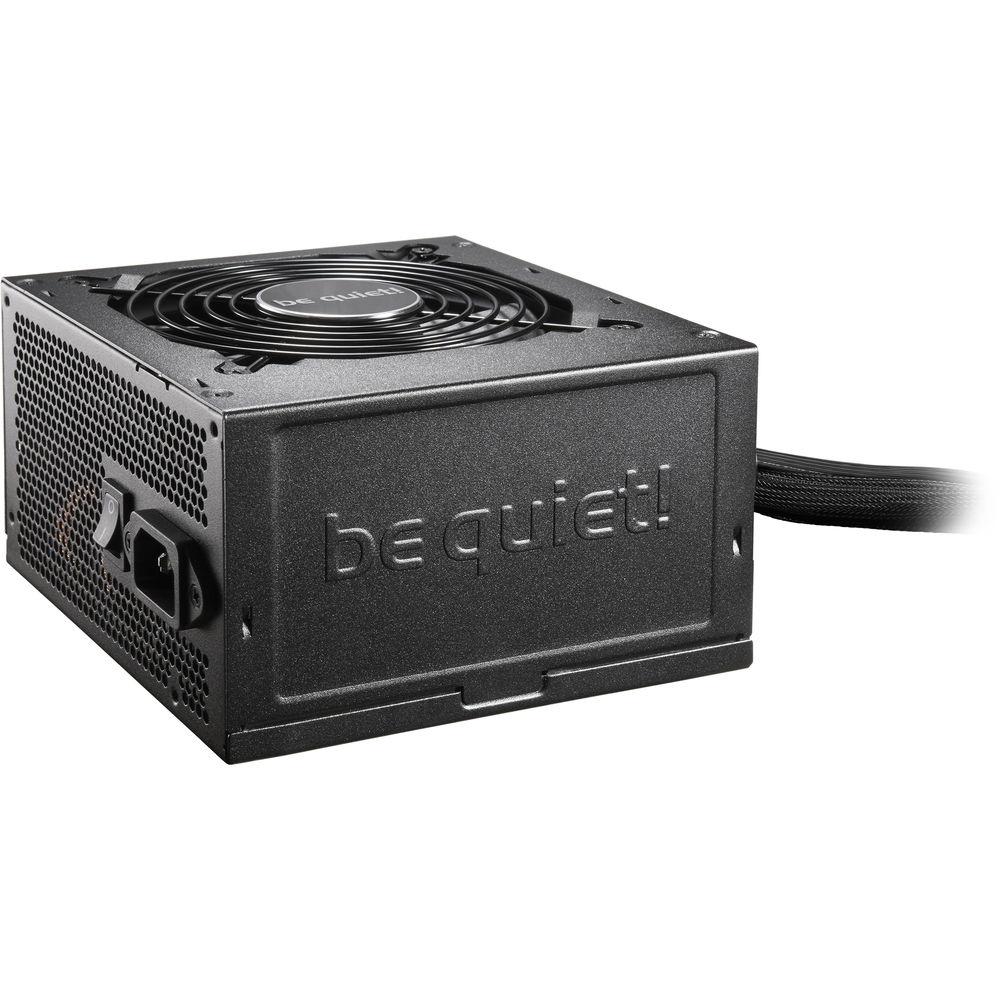

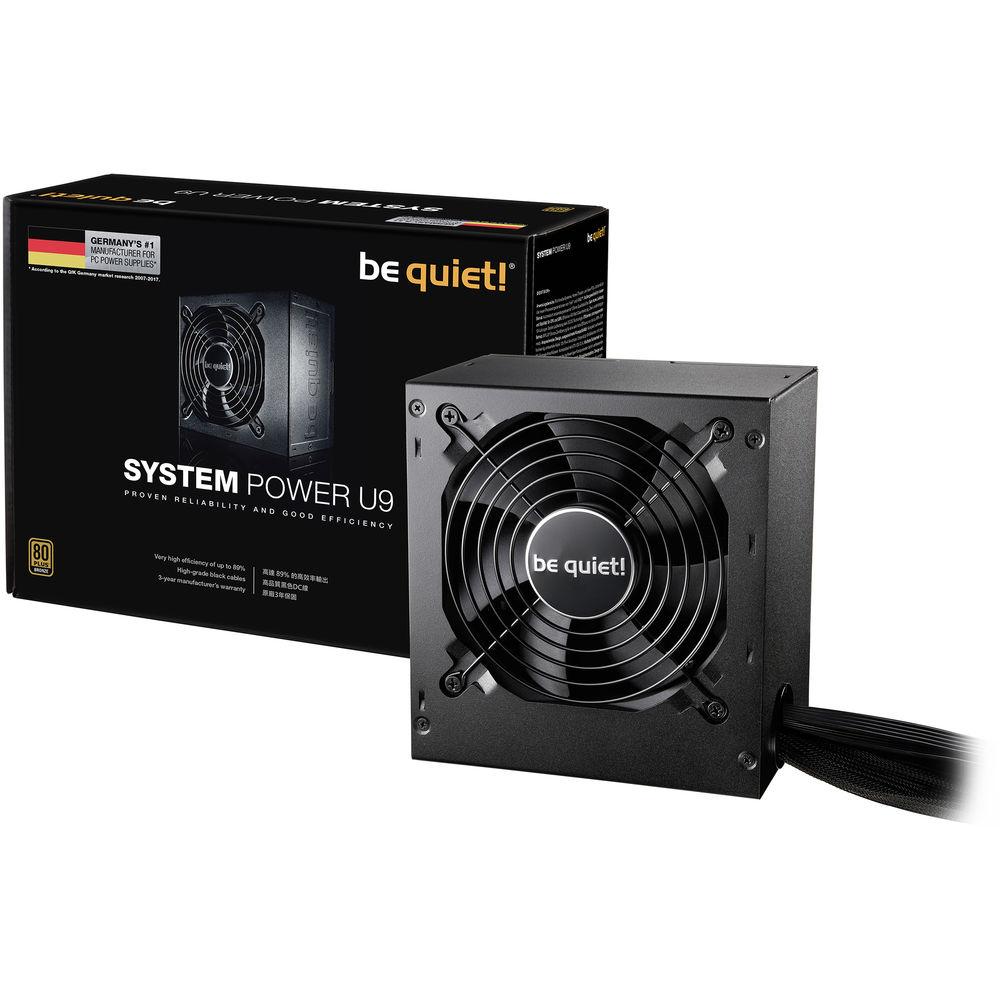

The System Power U9 600W 80 Plus Bronze Power Supply from be quiet is designed for efficiency and built with parts for durable, long-lasting power. It has dual +12V rails, a 120mm fan that keeps things cool and operational, and comes with enough cables for a dual GPU build. Moreover, its cables are black and sleeved, with some featuring a flat, low-profile design to blend in with your build and keep things tidy. This unit is equipped with multiple heavy-duty protections to ensure your system isn't damaged during unexpected events. - 80 Plus Bronze
- The 80 Plus Bronze rating ensures that your power supply is operating efficiently. Under load, this power supply is 86% efficient or higher.
- Voltage Regulation
- The two +12V rails provides you with stable power, up to 28 A on one and 22 A on the other.
- 120 mm Fan
- The built-in 120 mm fan provides the System Power U9 with efficient and silent cooling to keep things running longer. It has a 4-pole fan motor with sleeve bearings and a max rpm of 2100.
- Protections
- OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection) In the Box be quiet! System Power U9 600W 80 Plus Bronze Power Supply ATX Motherboard Cable CPU Cable 2 x PCIe Cable 2 x SATA/4-Pin Molex Cable Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the be quiet! System Power U9 600W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersbe quiet! System Power U9 Specs | Form Factor | ATX | | Input Voltage | 100 - 240 VAC | | Input Current | 12 - 6 A | | Input Frequency Range | 50 - 60 Hz | | Cable Length | ATX: 21.65" / 550 mm
CPU: 23.62" / 600 mm
PCIe: 2 x 19.69" / 650 mm
SATA/4-Pin: 1 x 21.65" / 550 mm, 1 x 13.78" / 350 mm | | Connectors | 1 x 20+4-pin ATX
1 x 4+4-pin CPU
4 x 6+2-pin PCIe
6 x SATA
2 x 4-pin peripheral | | Output | +3.3 V - 24 A
+5 V - 18 A
+12 V1 - 28 A
+12 V2 - 22 A
-12 V - 0.3 A
+5 Vsb - 3 A
Max combined power 12 V - 576 W
Max combined power 3.3 V + 5 V - 120 W | | | | Size | 120 mm | | Fan Bearing Technology | Sleeve | | Fan Speed | 2100 rpm | | Noise Levels | 13.17 dBA at 20% load
13.89 dBA at 50% load
29.58 dBA at 100% load | | | | 80 PLUS Certification | Bronze | | Efficiency | 88% at 230 V, 20% load
89% at 230 V, 50% load
86% at 230 V, 100% load | | Dimensions (L x W x D) | 5.51 x 5.91 x 3.39" / 140 x 150 x 86 mm | | Weight | 4.41 lb / 2.0 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 3.9" |
