User Manual for Beachtek DXA-ALEXA Low-Noise Preamplifier for ARRI ALEXA Mini Camera Click to enlarge the picture
Contents of the user manual for the Beachtek DXA-ALEXA Low-Noise Preamplifier for ARRI
- Product category: Camcorder XLR Adapters Beachtek
- Brand: Beachtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beachtek Camcorder XLR Adapters
 |
User manual for the Beachtek DXA-ALEXA Low-Noise Preamplifier for ARRI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beachtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beachtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beachtek product will considerably shorten its lifespan!
|

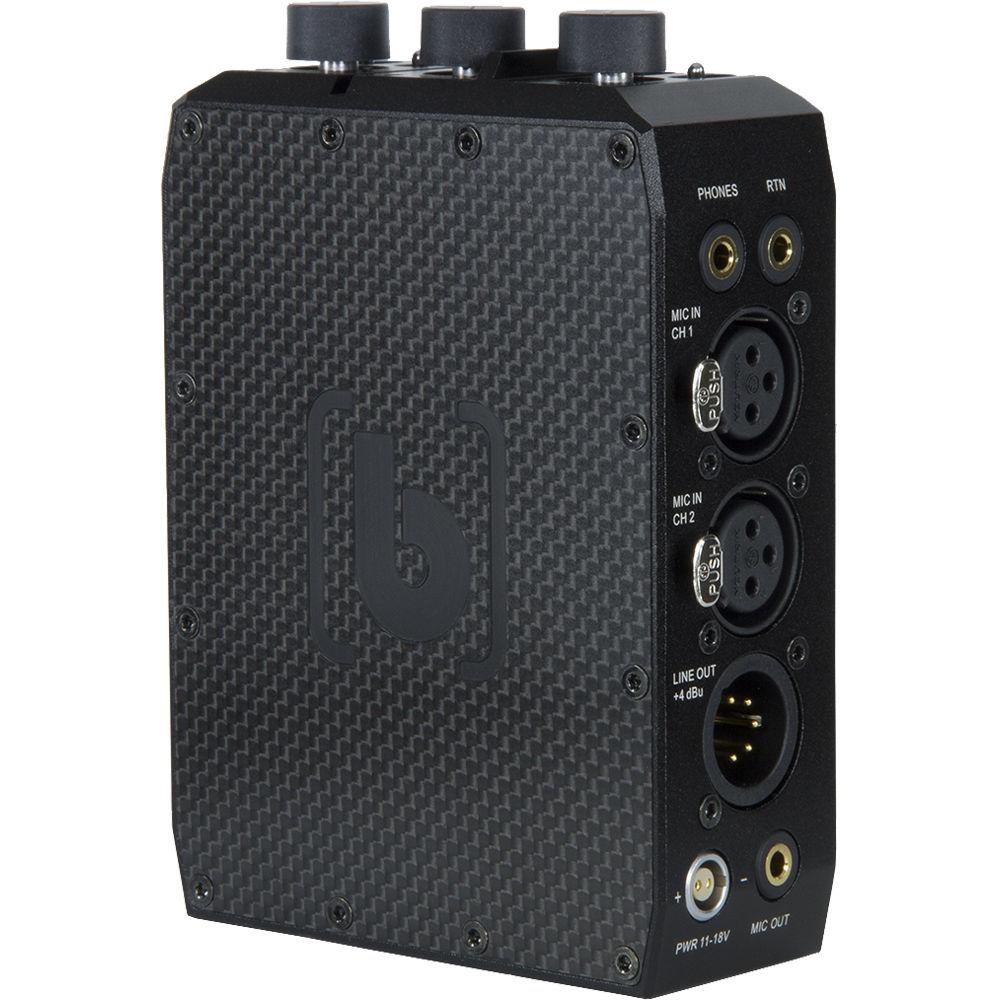

Product description Designed primarily for the ALEXA Mini, but compatible with cameras such as the RED DSMC2, the Beachtek DXA-ALEXA is a low-noise preamplifier which connects directly to your camera, capturing audio through its transformer-balanced inputs and obviates the need for external syncing. The preamp itself sports a 100 dB dynamic range, and the construction of its inputs ensure galvanic isolation, as well as high common mode rejection in the face of common obstacles, such as electromagnetic interference.The DXA-ALEXA provides dual gain controls which are detented for precise settings, as well as high/low switches for microphone matching, switchable 48V phantom power for condenser mics, and easy-to-read LED level indicators which give you a good picture of your overall sound; green signifies a level between -40 and +16 dBu, yellow takes you all the way to +4, and red gives you an indication of overs.A carbon fiber chassis is relatively lightweight at under a pound, while weather-resistant top-panel switches ensure reliability in wide variety of conditions. For outputs, the DXA-ALEXA gives you a balanced 5-pin XLR output that can connect directly to 5-pin LEMO inputs. You can also route signal to other recorders by means of an unbalanced 3.5mm jack. Connections are provided for headphone and loopback monitoring as well. The preamp itself draws power from your existing rig by means of a 2-pin LEMO connection. Thanks to the preamp’s three threaded 1/4"-20 holes, you can mount this unit on the rails of third-party brackets, though a bracket has been included for mounting to camera cages, such as the ARRI ALEXA Mini camera cage. - Key Performance Features
-
- Records audio directly to camera, obviating the need for syncing
- 100 dB dynamic range, low-noise operation
- Headphone monitoring and loopback monitor for external devices
- Green, yellow, and red level indicators built-in for quick, overall level monitoring
- 48V phantom power offered on both inputs
- Transformer-balanced inputs provide galvanic isolation and high common mode rejection
- Dual mono recording or stereo recording
- Audio bracketing feature for backup
- 5-pin XLR 4 dBu line-level output matched to line-level input of camera

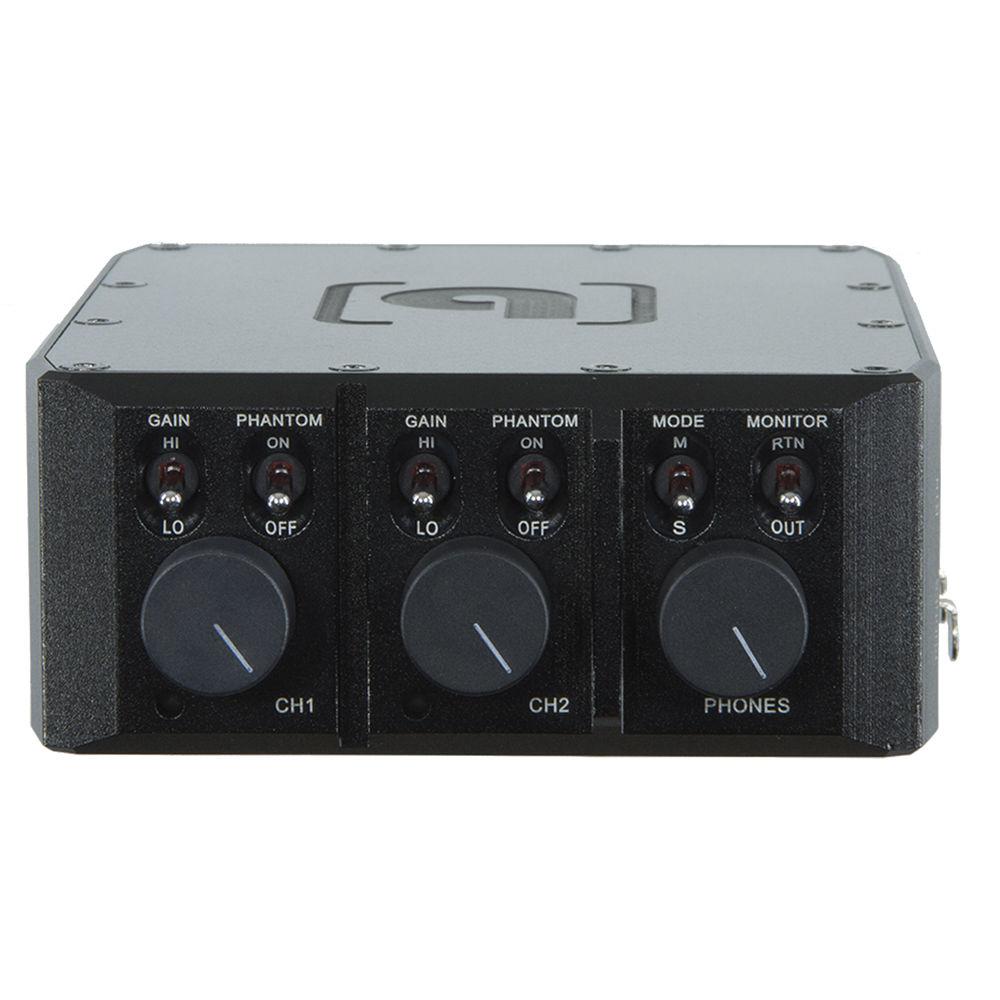

- High and Low switches for gain to match microphones
- Auxiliary unbalanced microphone output for attaching an audio recorder (suitable for MP3 transcription or backup)
- Key Physical Features
-
- Rugged chassis, easy operation
- Locking Neutrik XLR connectors
- Water-resistant top-panel switches
- Detented level controls for precise adjustments and recall

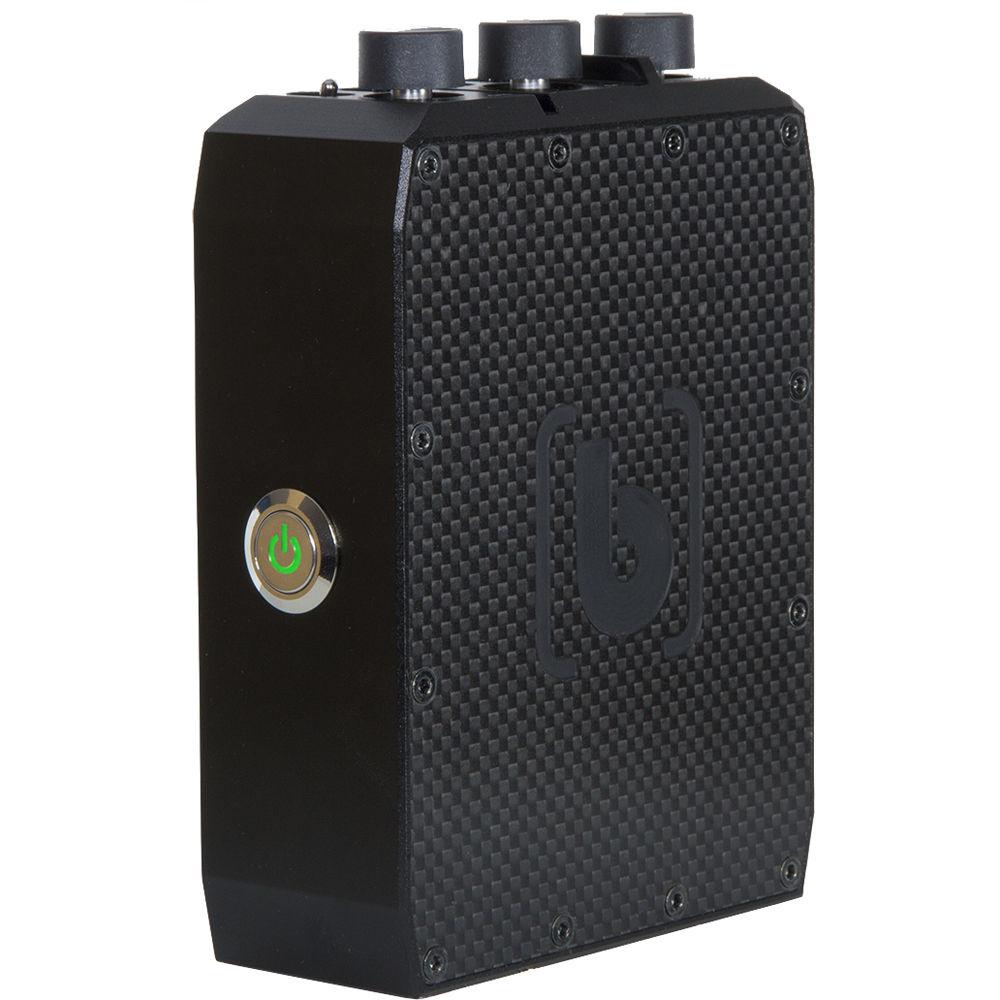

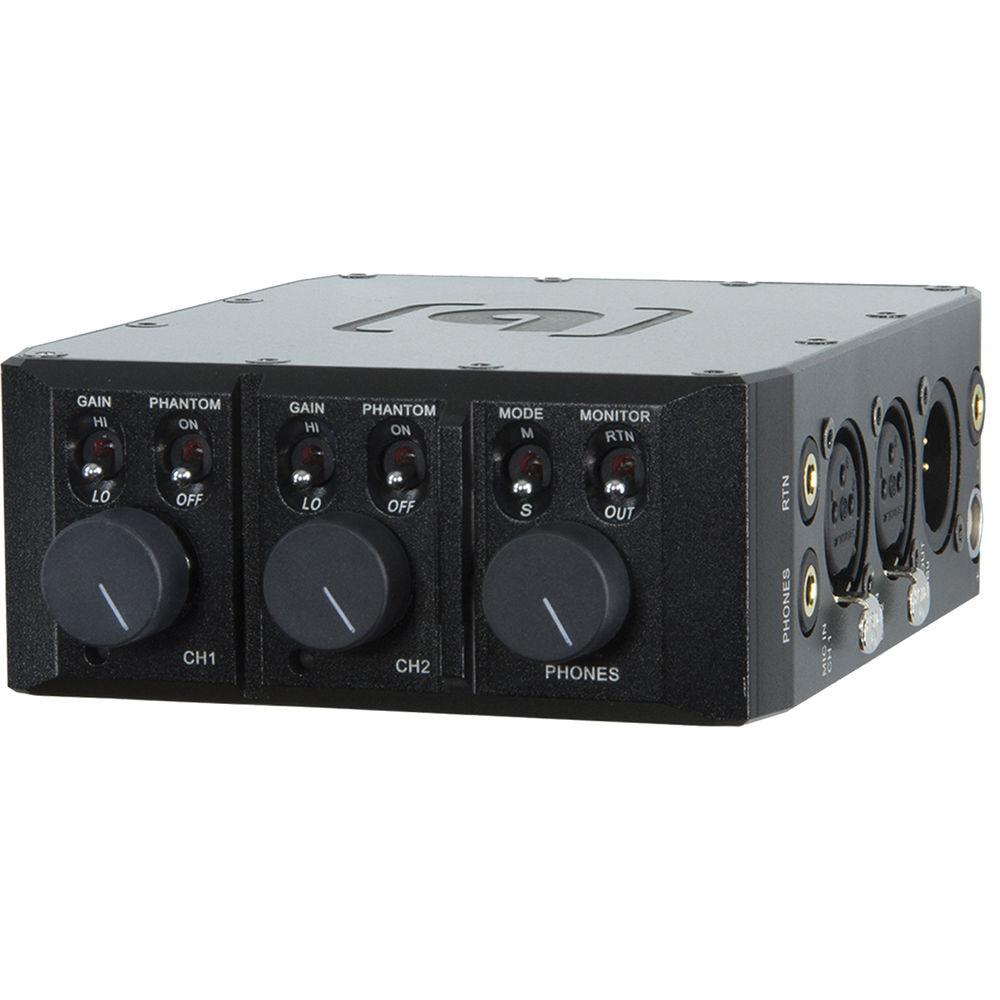

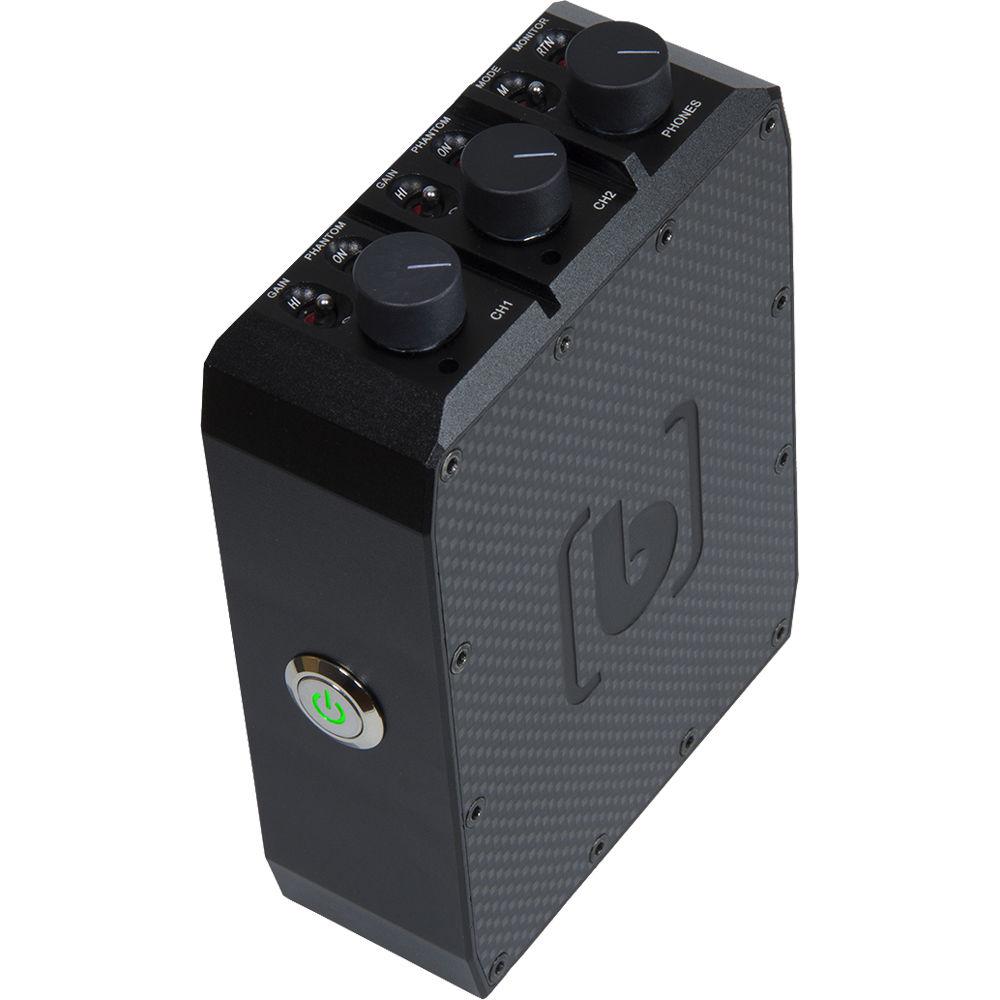

- Power switch provided on operator side, other controls situated on top and assistant side when situated in rear-rod mount position
- Multiple mounting options, with mounting bracket included
In the Box Beachtek DXA-ALEXA Low-Noise Preamplifier for ARRI ALEXA Mini Camera Mounting Bracket 5-Pin Lemo Output Cable D-Tap to 2-Pin Lemo Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beachtek DXA-ALEXA Low-Noise Preamplifier for ARRI ALEXA Mini Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

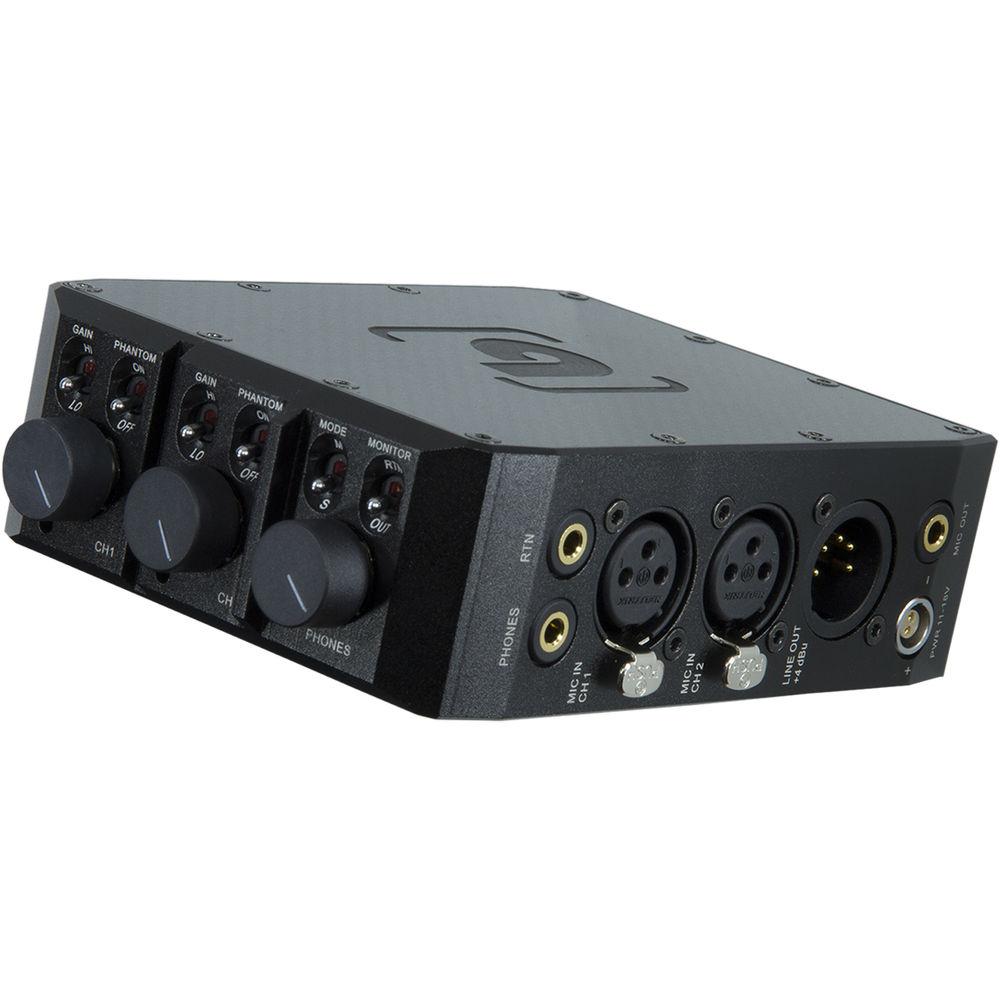

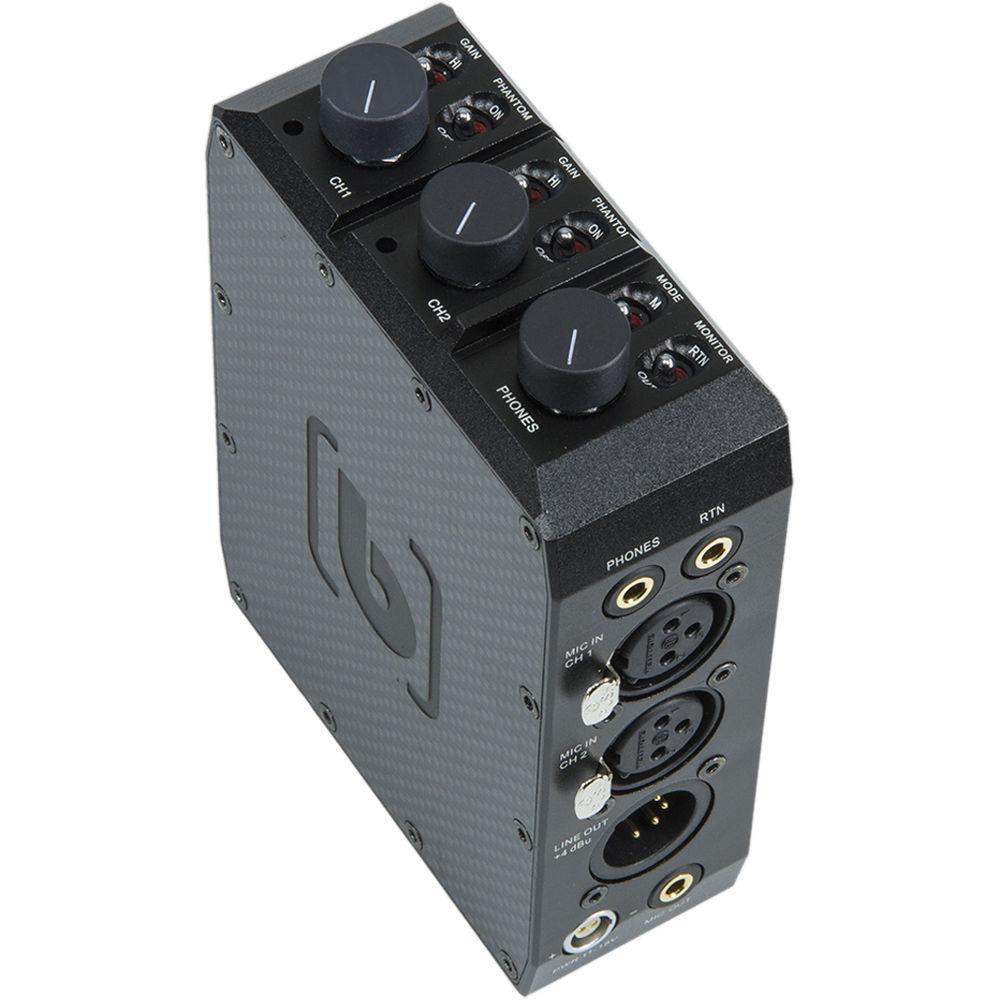

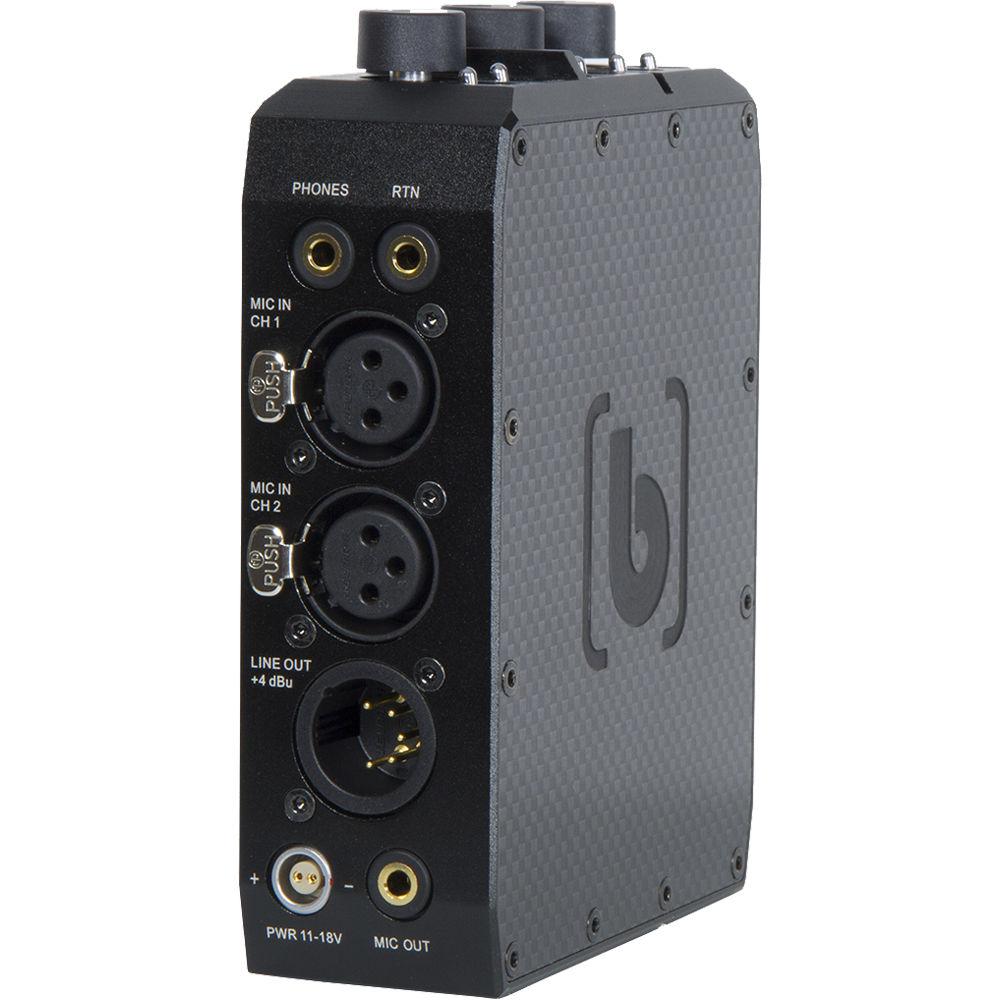

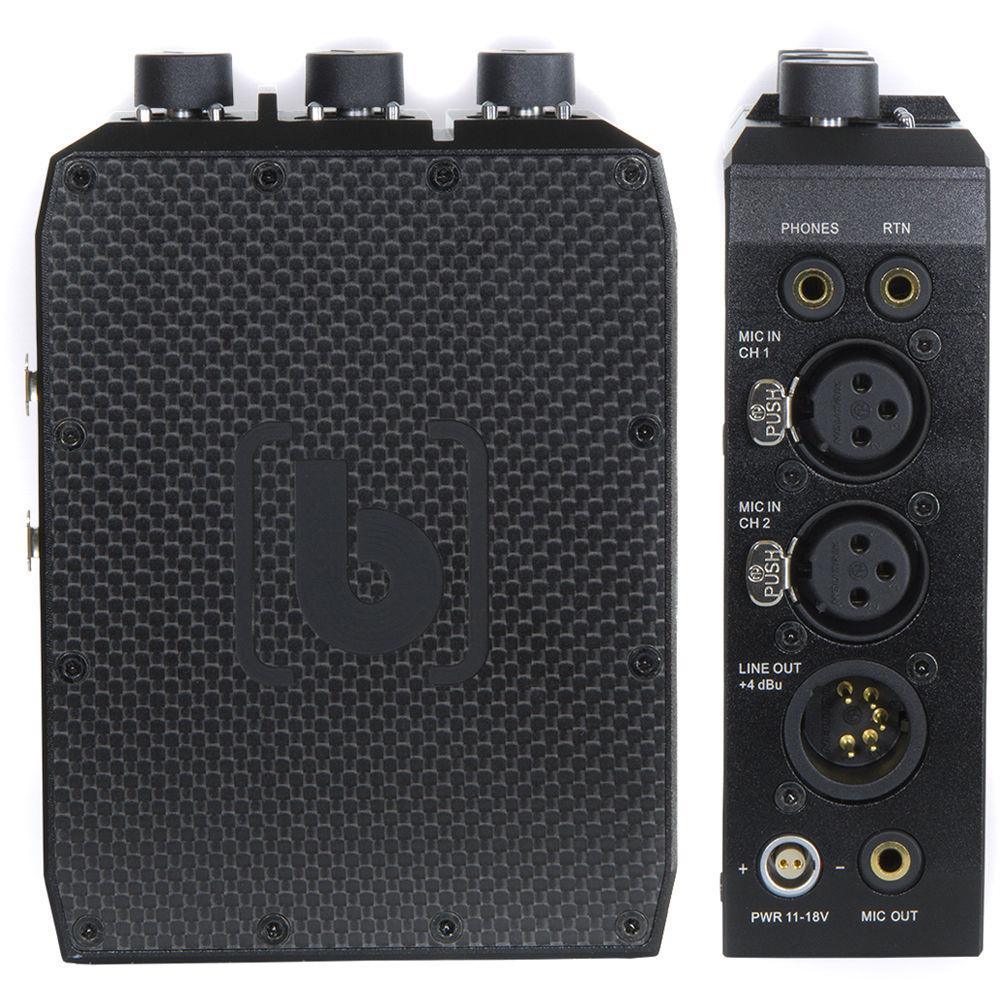

Technical parametersBeachtek DXA-ALEXA Specs | Connectors | Phones: 3.5 mm stereo headphone connector
RTN: 3.5 mm stereo input for loopback from camera
Mic In Channel 1: XLR balanced mic-level input for channel 1
Mic In Channel 2: XLR balanced mic-level input for channel 2
Line Out: 5-pin balanced output at +4 dBu
Mic Out: 3.5 mm unbalanced auxiliary stereo output
2-pin LEMO 12 to 16 VDC power | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | Gain | Line Out:
Low: 40 dB, High: 60 dB
Mic Out:
Low: 10 dB, High: 30 dB | | Maximum Input Level | Low Gain: -15 dBu
High Gain: -35 dBu | | Output Clipping Level | Line Output: +25 dBu
Mic Output: -5 dBu | | Dynamic Range | 100 dB | | THD+N | Low Gain: 0.012% (+4 dBu output, 1 kHz)
High Gain: 0.06% (+4 dBu output, 1 kHz) | | Channel Separation | Low Gain: 85 dB (+4 dBu output, 1 kHz)
High Gain: 80 dB (+4 dBu output, 1 kHz) | | Metering | Tri-Color LED:
Green: -40 to 16 dBu
Yellow: -16 to +4 dBu
Red: Over +4 dBu | | Powering | External DC input jack (12 to 16 V)
Pin 1 = (-), Pin 2 = (+) | | Dimensions | 5.0 x 3.8 x 1.6" / 126 x 96 x 40 mm | | Weight | 0.8 lb / 374 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 9.9 x 7.8 x 3.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
