Product description

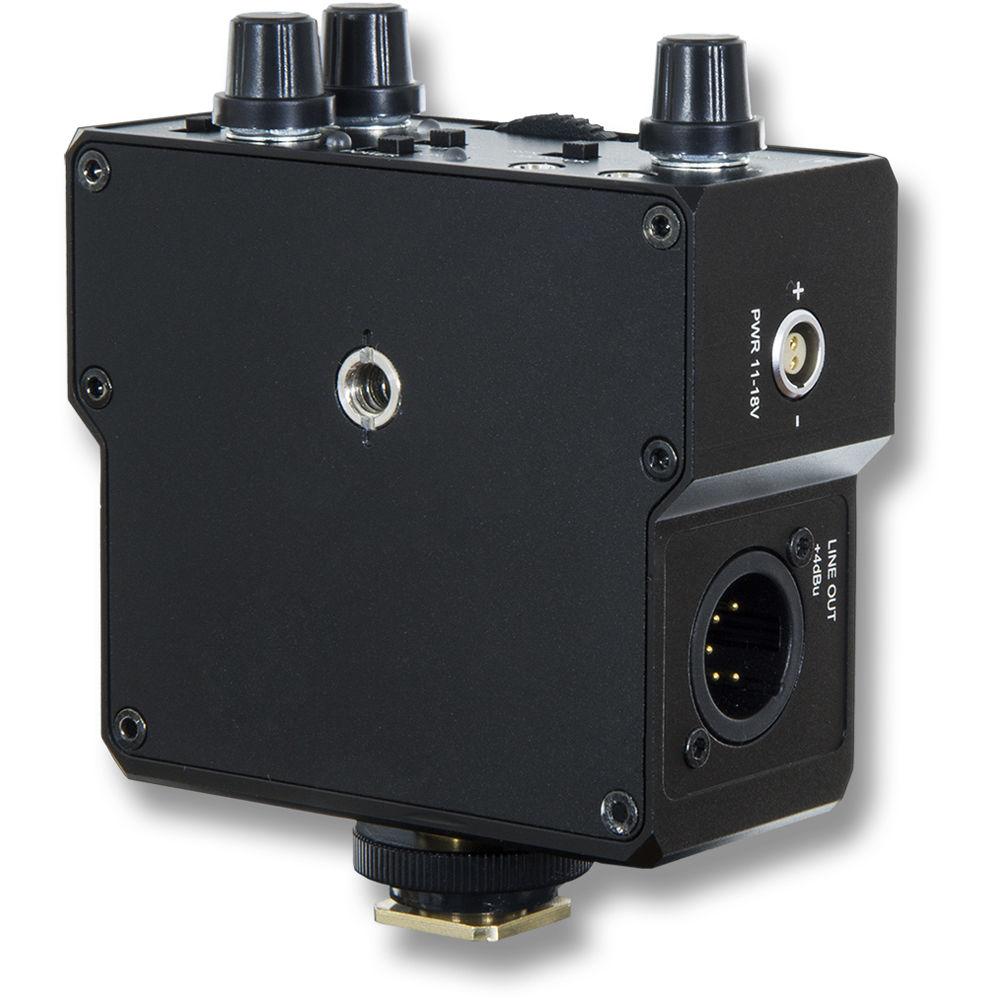

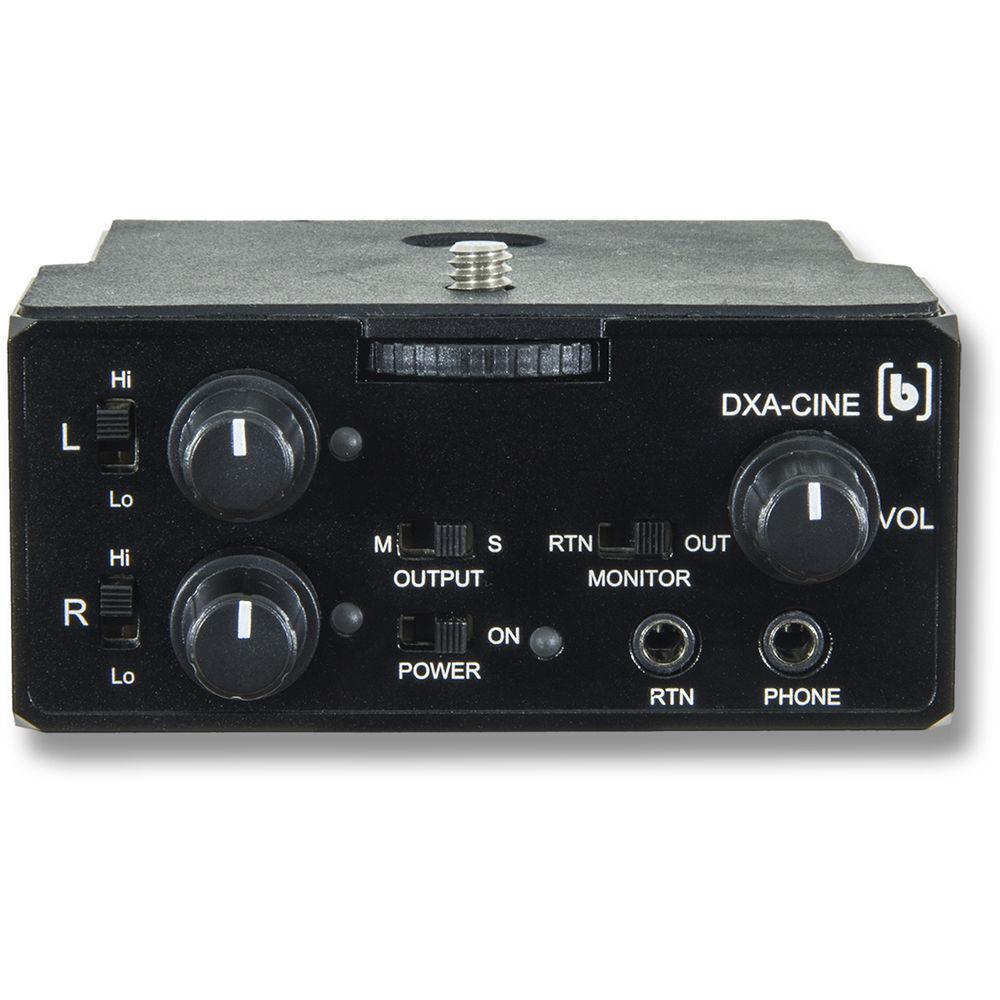

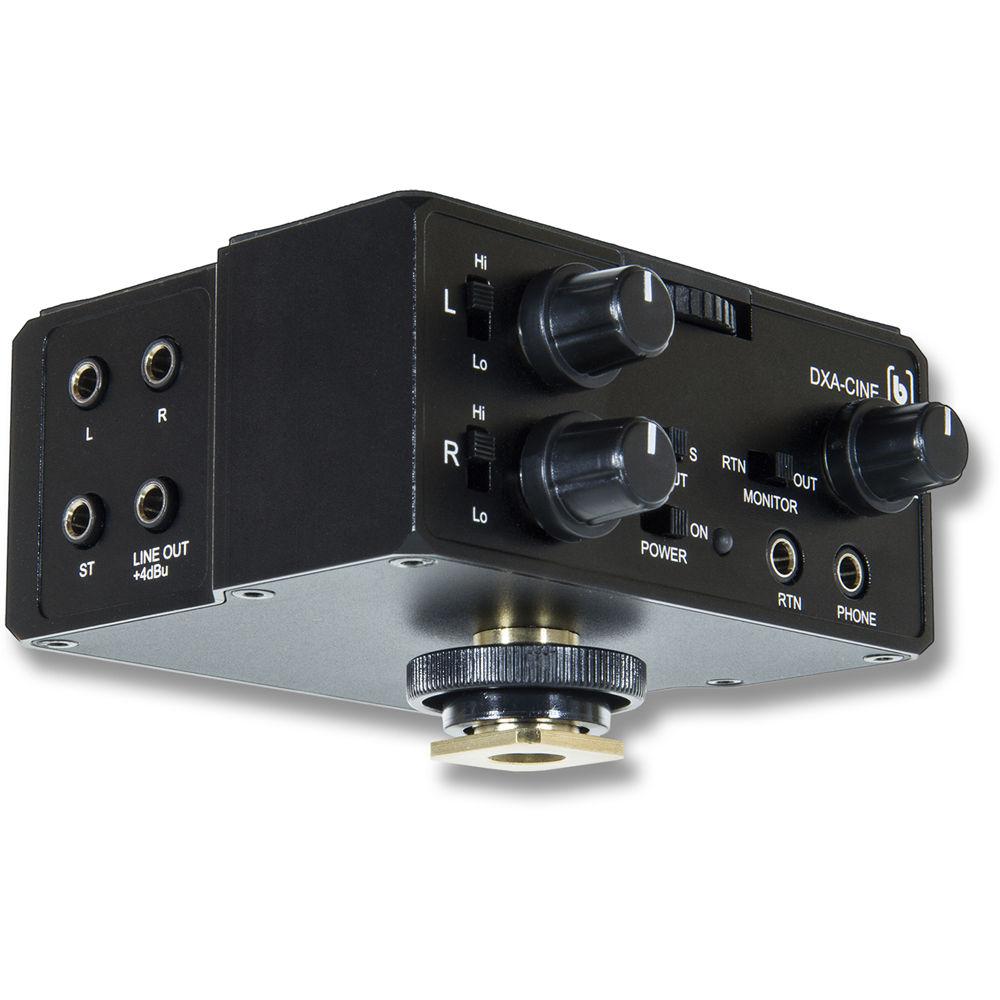

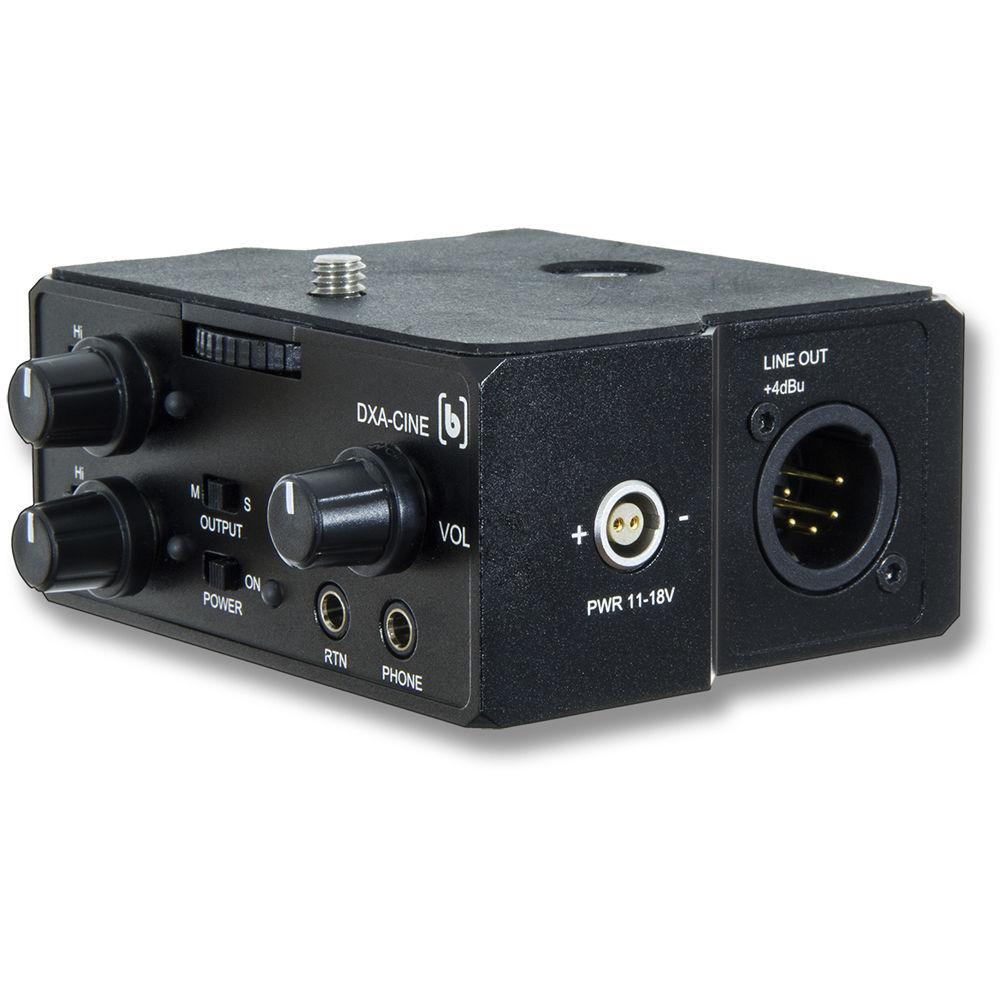

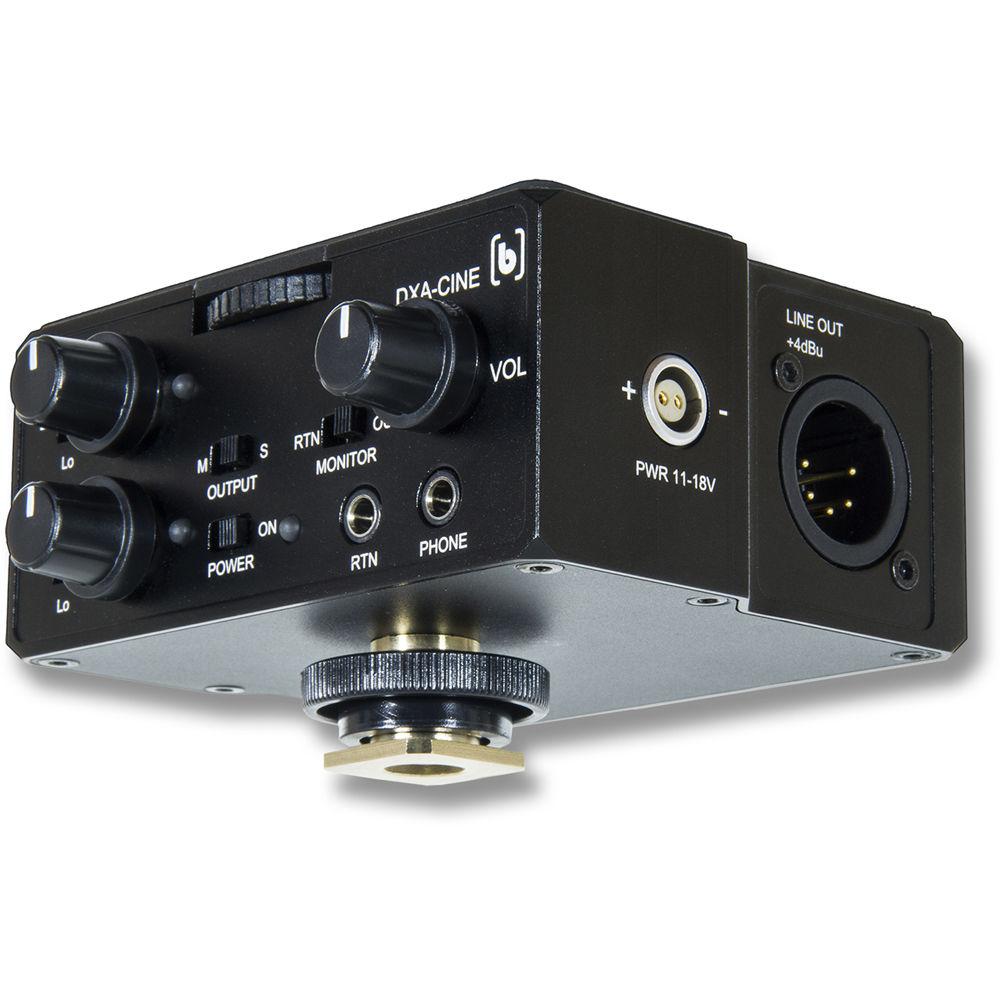

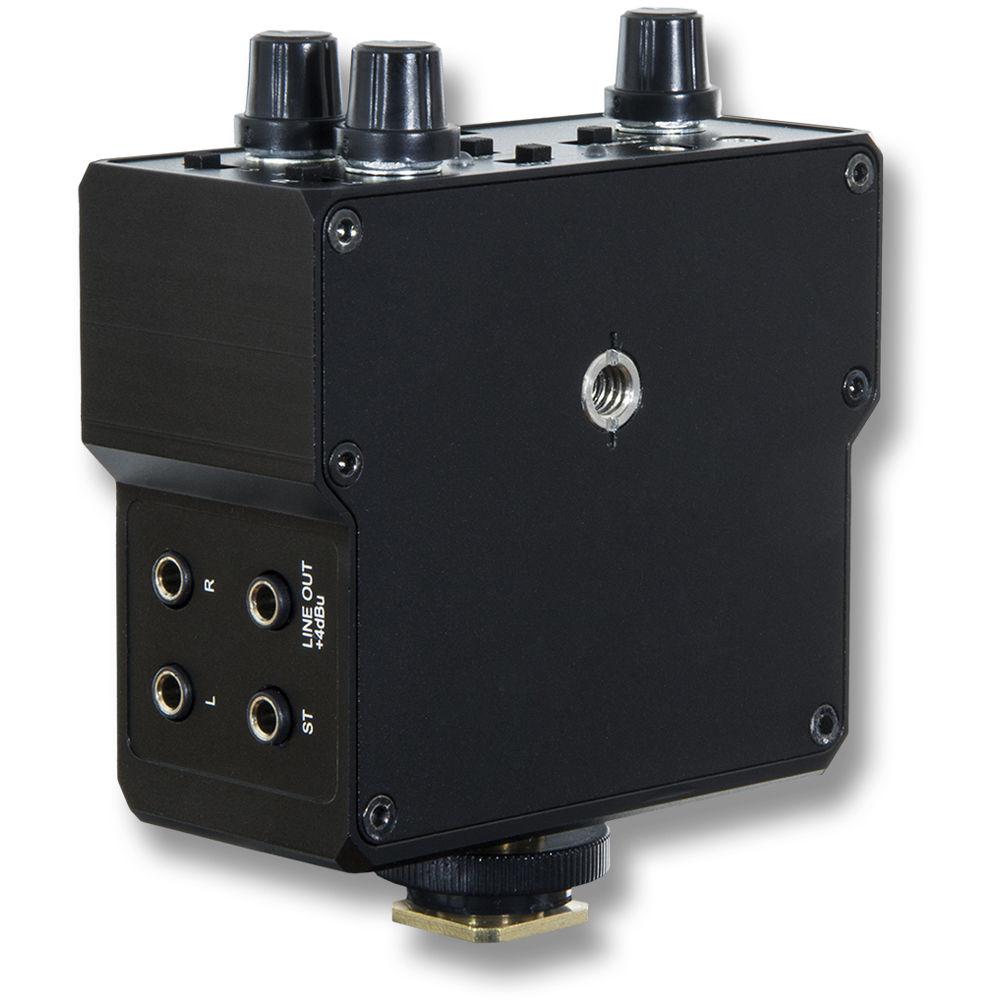

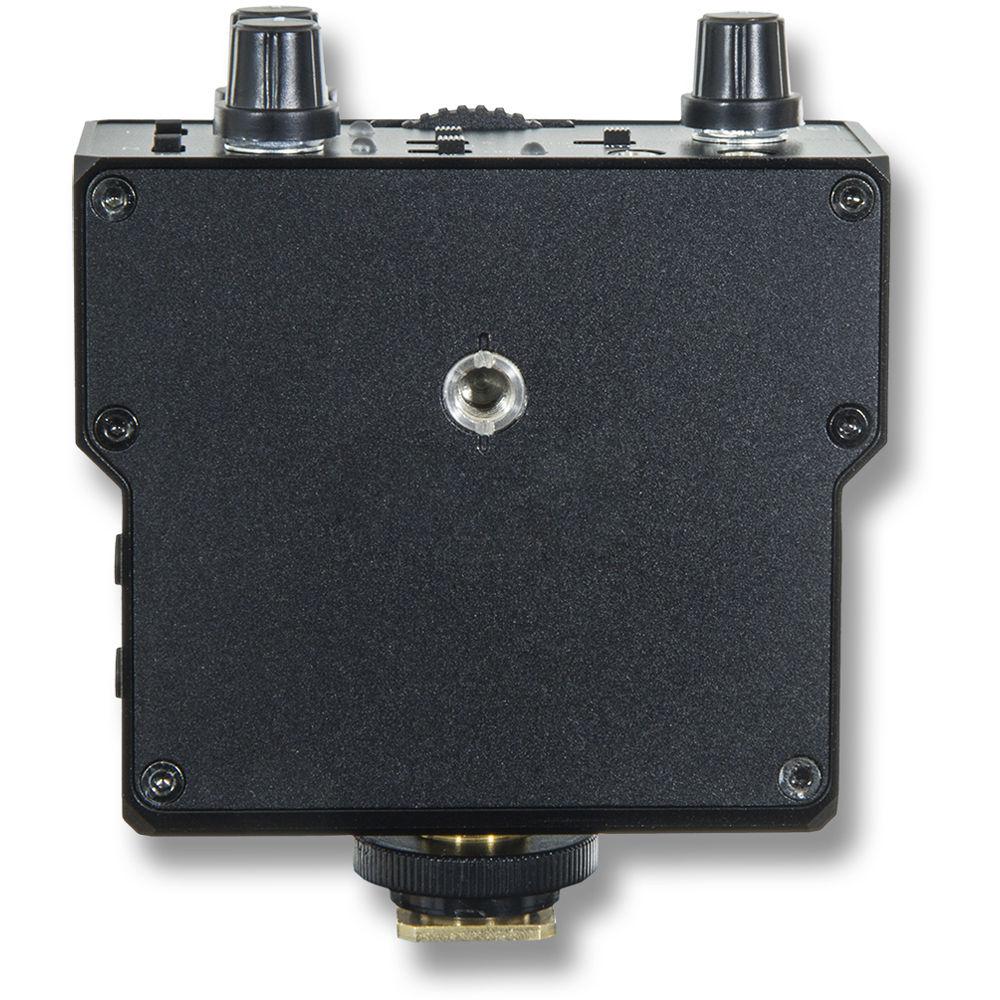

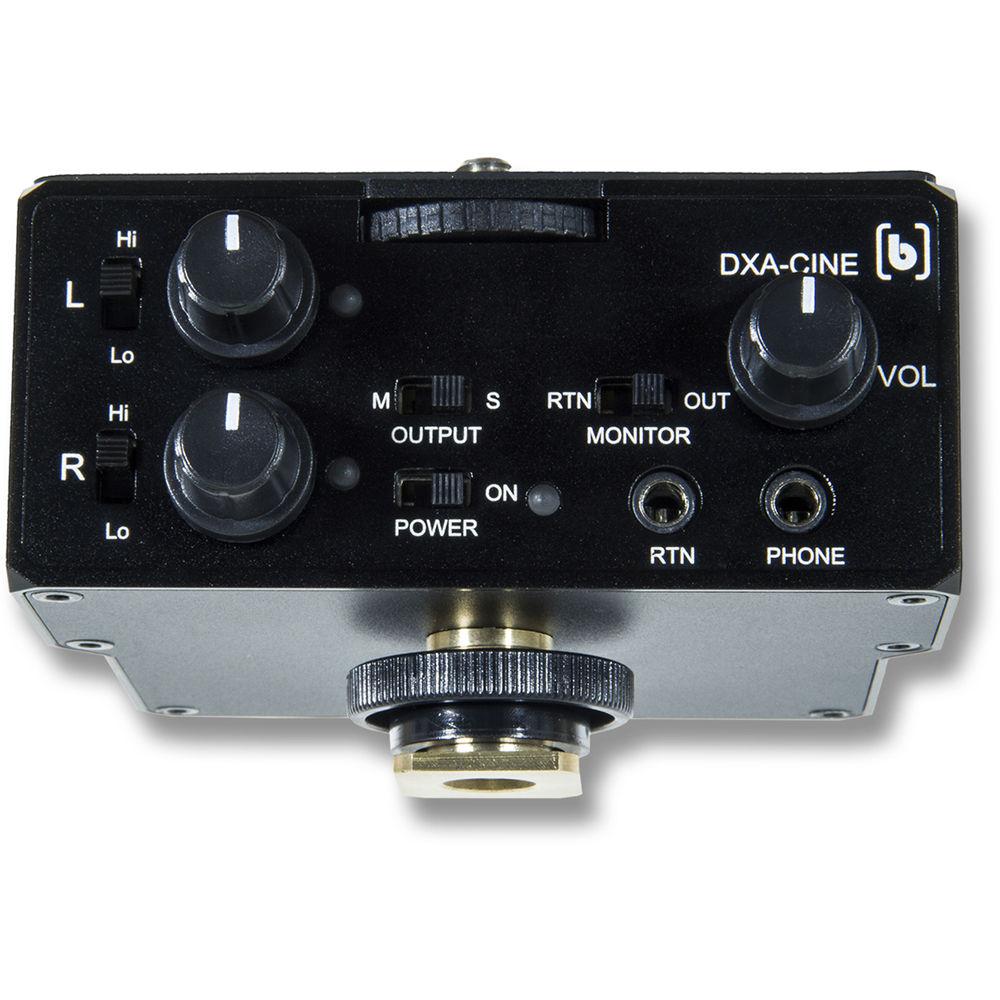

Designed for cinema cameras, the Beachtek DXA-CINE is an active adapter with built-in preamplifiers that allow you to record high-quality audio directly to camera, no syncing necessary. These preamps provide 60 dB of gain and over 100 dB of dynamic range, as well as low-noise operation. You can use this adapter with cameras such as the RED DSMC2 or ARRI ALEXA Mini, alongside most self-powered filmic microphones, as well as wireless mic receivers.A plethora of inputs and outputs are provided, including two mono 3.5mm inputs, one stereo 3.5mm input, one 5-pin balanced XLR output, and one unbalanced 3.5mm output. The DXA-CINE’s aforementioned inputs all provide plug-in power, and with multiple outputs on hand, you have options to feed either of the previously mentioned cameras. If your particular camera has a headphone output jack, you can loop it back into the device and monitor sound from that path to make doubly sure what you’re hearing is what you’re getting “on tape.”While a high/low gain switch lets you dictate a basic starting point for level, the DXA-CINE’s detented trim controls ensure that you always make precise and consistent adjustments; this comes in handy when you need to match audio between takes performed hours or days apart (or on either side of a completely different setup/location—reshoots come to mind). Built-in green/yellow/red indicators give you a quick overview of your levels at any time. Dual-mono and stereo recording are both possible, while bracketing audio is also a cinch. Thus, you can always record a lower-level track when using a mono microphone.Flexible mounting options abound, including a built-in thumbscrew with a 1/4"-20 mounting bolt and a separate, included brass mounting foot for hot-shoe mounting. Multiple accessories can be attached to the DXA-CINE via three 1/4”-20 threaded inserts as well. For power, a 2-pin LEMO jack is on hand, and configurations are possible for D-tap.
    Physical Features at a Glance
    • Two mono 3.5mm inputs with plug-in power
    • One stereo 3.5mm input with plug-in power
    • 5-pin balanced XLR output for connection to the ARRI ALEXA Mini
    • Auxiliary, unbalanced 3.5mm output for connection to the RED DSMC2
    • Detented level controls for precise adjustments
    • LEMO and D-tap powering options
    • Multiple mounting options
    • Three built-in 1/4"-20 threaded holes
    • Includes brass mounting foot
    • Includes 3.5mm to 3.5mm output cable
    Performance Features at a Glance
    • Records audio directly to the camera; no syncing required
    • 100 dB of dynamic range for low-noise operation
    • Headphone monitoring
    • Loopback monitoring for devices with headphone outputs (for instance, the RED DSMC2 module)
    • Easy-to-monitor green, yellow, and red level indicators
    • Capable of stereo and dual-mono recording
    • Audio bracketing feature for backup
    • Pre-calibrated +4 dBu line level output matched to camera’s line-level input
    • High (60 dB) and low (40 dB) switches for mic gain to match any microphone
In the Box Beachtek DXA-CINE Mini-Plug Audio Adapter for Cinema Cameras
  • 3.5mm to 3.5mm SC35 Cable
  • Brass Mounting Foot with Knurled Wheel and Attachment Bolt
  • Allen Key
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Beachtek DXA-CINE Mini-Plug Audio Adapter for Cinema Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Beachtek DXA-CINE Specs

    Maximum Input Levels Low Gain: -15 dBu
    High Gain: -35 dBu
    Output Level +4 dBu when level indicators change to red
    Output Clipping Level XLR: +25 dBu
    3.5 mm: +21 dBu
    Frequency Response 20 Hz to 20 kHz (±0.5 dB)
    THD+N Low Gain: 0.013% (+4 dBu output, 1 kHz)
    High Gain: 0.08% (+4 dBu output, 1 kHz)
    Dynamic Range 100 dB
    Gain Low: +40 dB
    High: +60 dB
    Plug-in power 3.5 V on all mini-jack mic inputs
    Indicators Level
    Green: -40 to -16 dBu (low)
    Yellow: -16 to +4 dBu (normal)
    Red: +4 dBu (over)
    External Power 11 to 18 V via 2-pin LEMO; Pin 1 = (-), Pin 2 = (+)
    Dimensions (L x W x H) 3.5 x 3.0 x 1.6" / 9.0 x 7.6 x 4.0 cm
    Weight 10.2 oz / 0.3 kg
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 6.8 x 5.5 x 3.3"
