User Manual for Beachtek DXA-MICRO-PRO Active XLR Compact Adapter Click to enlarge the picture
Contents of the user manual for the Beachtek DXA-MICRO-PRO Active XLR Compact Adapter
- Product category: Camcorder XLR Adapters Beachtek
- Brand: Beachtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beachtek Camcorder XLR Adapters
 |
User manual for the Beachtek DXA-MICRO-PRO Active XLR Compact Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beachtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beachtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beachtek product will considerably shorten its lifespan!
|

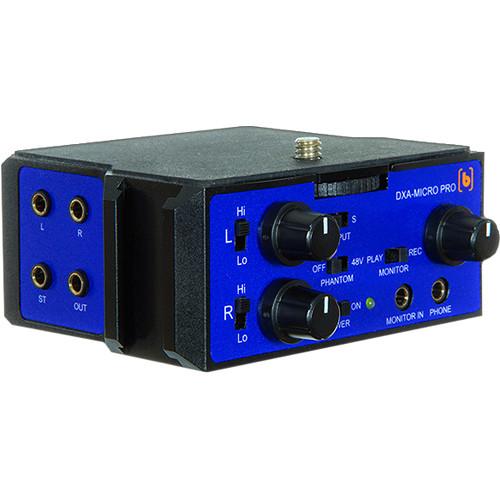

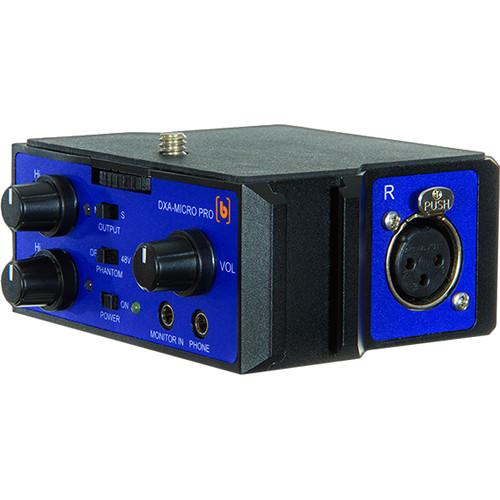

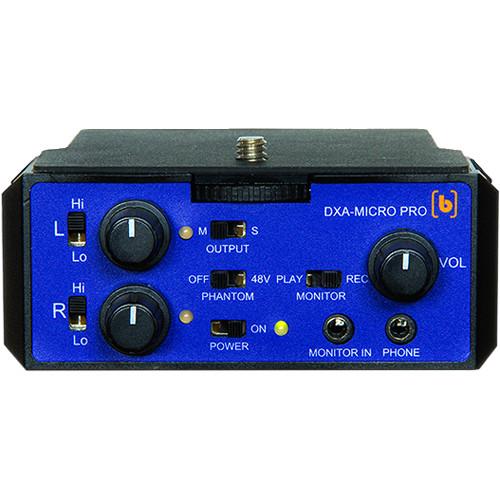

Product description The DXA-MICRO-PRO from Beachtek is an active, 2-channel audio adapter. It is designed to connect one XLR mic with 48V phantom power and two 1/8" microphones to a DSLR or camcorder with a 1/8" mic input. Both 1/8" inputs feature plug-in power. This allows you to record the audio directly to the camera in sync with the picture for videographers, sound designers, and more.With dual gain-adjustment settings, the adapter provides a stronger audio level to the camera and bypasses the noisy camera preamplifiers. Built-in good/over level indicators allow you to verify the signal levels at a glance and the trim controls let you adjust the output signal for optimum recording. A headphone jack monitors your audio from the adapter during recording or camera playback.Finally, the DXA-MICRO-PRO will conveniently mount under the camera for a secure attachment to a tripod base or will mount on the hot shoe above the camera. It is powered by a single 9V battery. - Easily Connect External Microphones
- Attach a wide variety of audio gear including wireless systems, camera mounted mics as well as professional handheld and boom microphones
- Ultra Performance
- Powerful preamplifiers for clean audio with plenty of punch
- Feature Packed
- All the features you need for connecting, controlling and monitoring the audio
- Easy to Set Up and Use
- No menus, no syncing, and no problem. Real switches and volume knobs mean no hunting through multi-layer menus trying to find or change settings. Since the audio is recorded directly to the camera, it will always be in sync with the video which eliminates the need for syncing in post
- Compact Chassis with Flexible Mounting Options

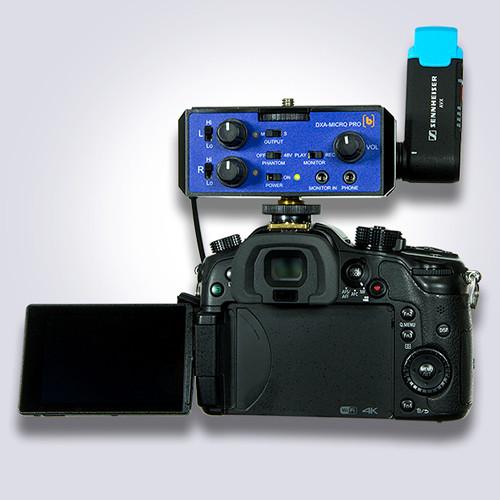

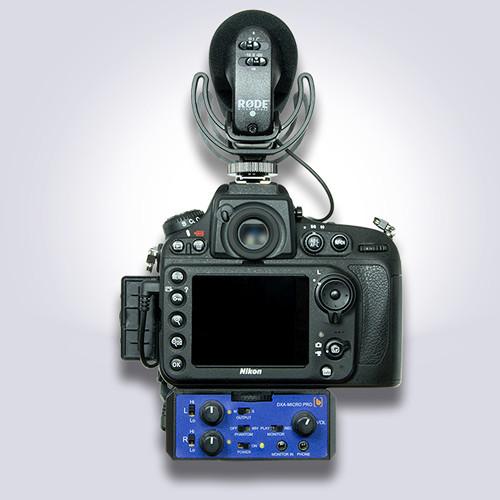

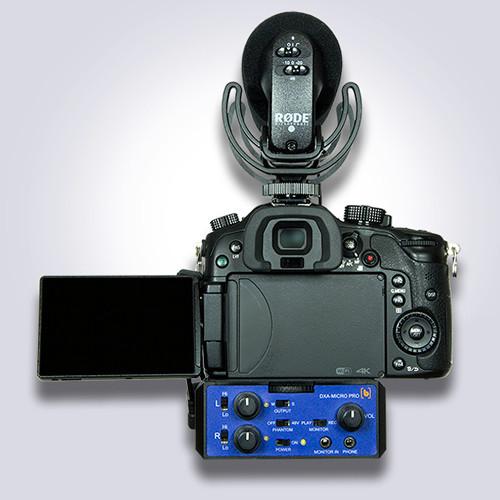

- Mounts over or under your camera
In the Box Beachtek DXA-MICRO-PRO Active XLR Compact Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beachtek DXA-MICRO-PRO Active XLR Compact Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeachtek DXA-MICRO PRO Specs | Inputs | 1 x XLR
2 x 1/8" / 3.5 mm Mic Inputs
1 x 1/8" / 3.5 mm Stereo Line In
1 x 1/8" / 3.5 mm Stereo Monitor In | | Maximum Input Levels | Lo Gain: -14 dBu
Hi Gain: -29 dBu | | Output Level | -26 dBu When Level Indicators Change to Red | | Frequency Response | 20 Hz to 20 kHz (±0.5 dB | | Total Harmonic Distortion (THD) + N | Less than 0.03% @ 1 kHz, -30 dBu Input | | Signal to Noise Ratio | 85 dB @ 1 kHz, -30 dBu Input | | Gain | Lo: +15 dB
Hi: +30 dB | | Phantom Power | Regulated 48 V
Current to 14 mA (Direct Short) | | Plug-In Power | 3.5 V on All Mini-Jack Mic Inputs | | Battery Type | 1 x 9 V Alkaline or Lithium Battery | | Battery Duration | 3 Hours Typical with Alkaline Batter (No Phantom)
8 Hours Typical with Lithium Battery (No Phantom) | | Outputs | 1/8" / 3.5 mm Mini Jack (Stereo) | | Headphone | 1/8" / 3.5 mm Stereo Mini-Jack Connector | | Dimensions (L x W x H) | 4.0 x 3.0 x 1.5" / 10.2 x 7.6 x 3.8 cm | | Weight | 12.0 oz / 340.2 g | | | | Package Weight | 1.13 lb | | Box Dimensions (LxWxH) | 8.4 x 6.95 x 3.25" |
