Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered

Search your instruction manual in PDF to download

User Manual for Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras

Click to enlarge the picture
Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Contents of the user manual for the Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered
  • Product category: Camcorder XLR Adapters Beachtek
  • Brand: Beachtek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Beachtek Camcorder XLR Adapters

Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras
User manual for the Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Beachtek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Beachtek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Beachtek product will considerably shorten its lifespan!



Product description

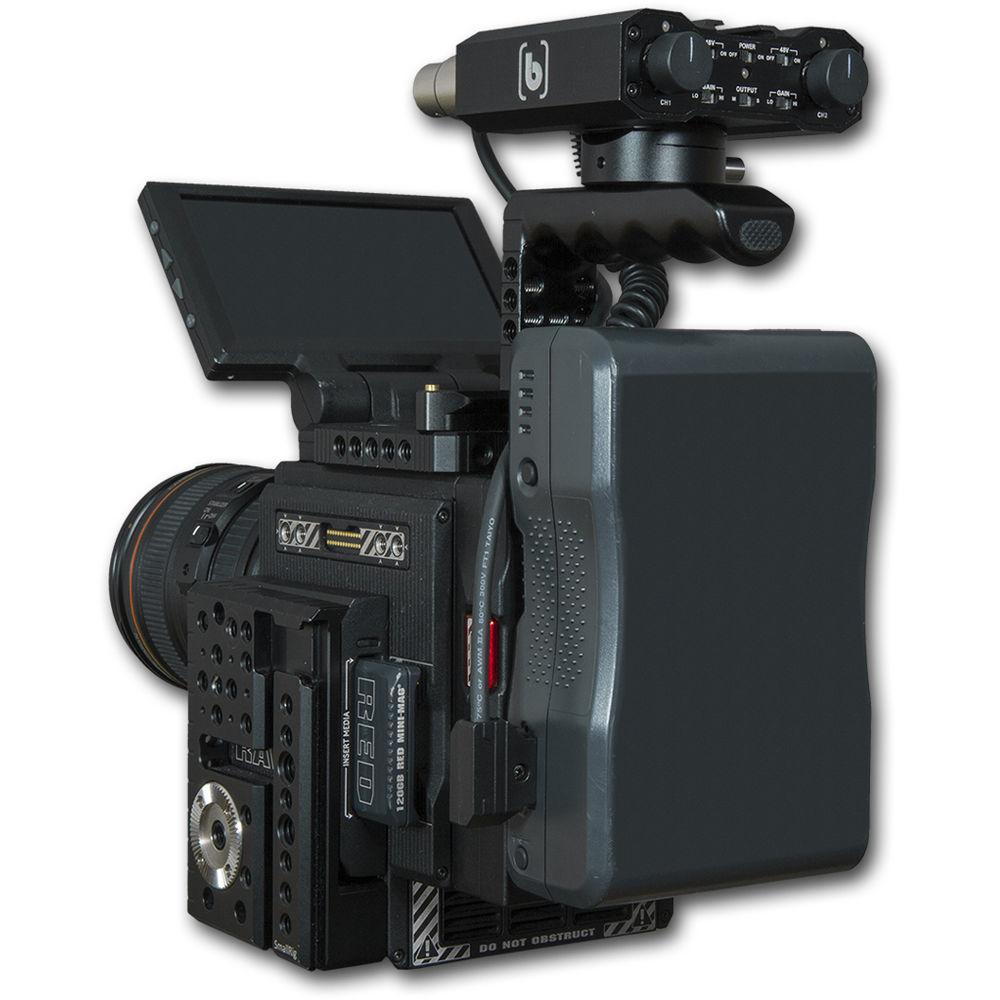

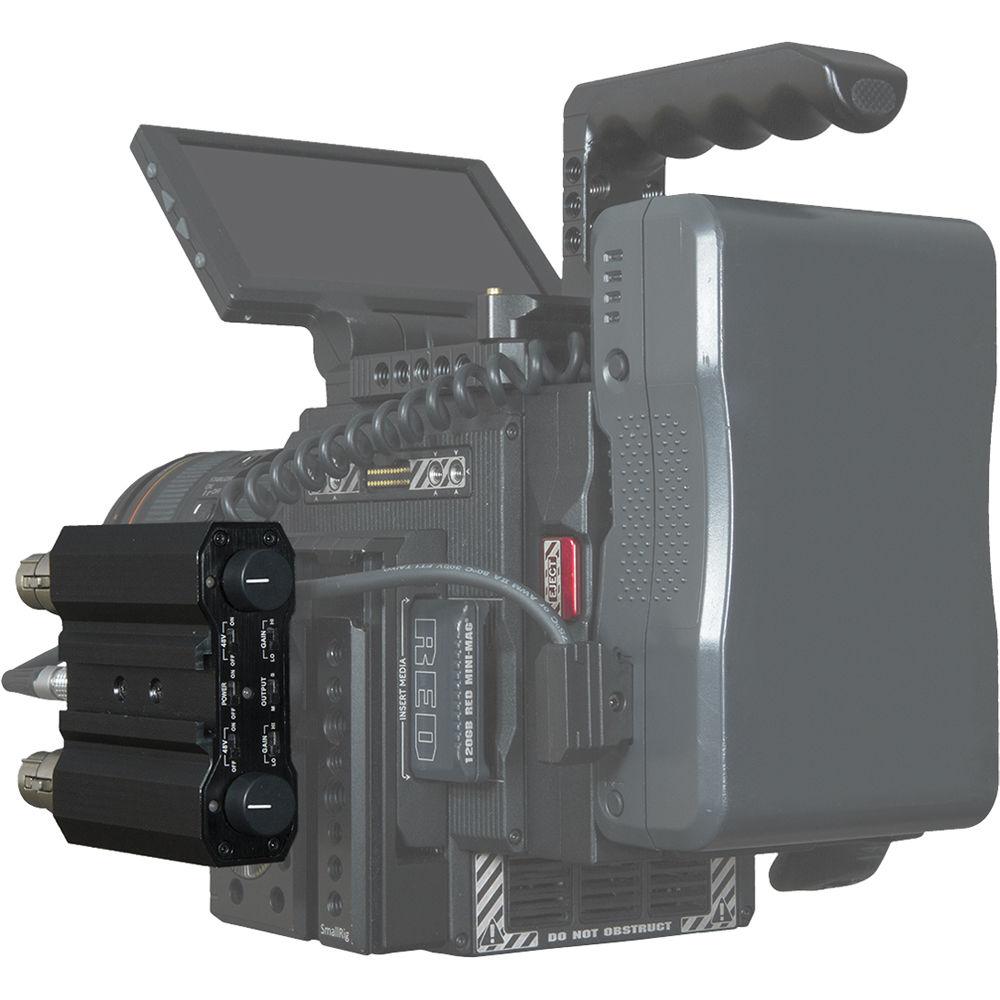

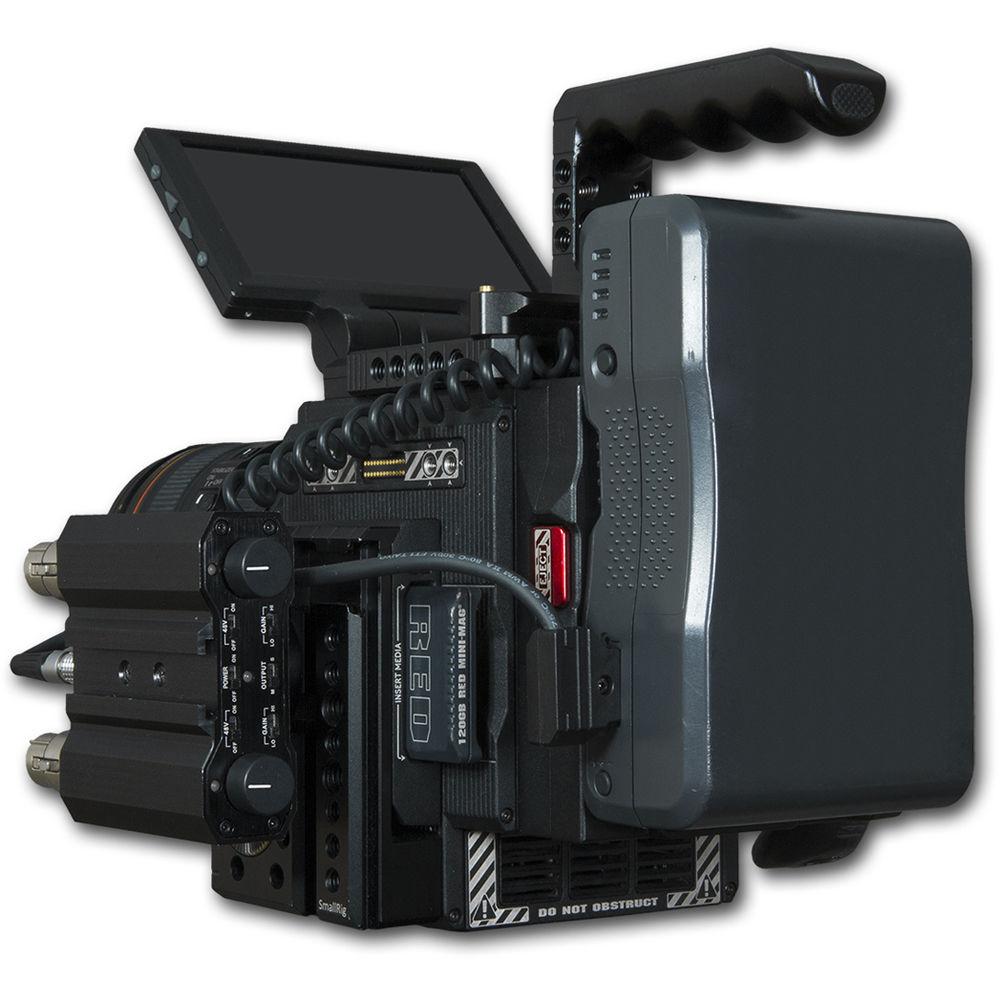

Connect professional XLR-equipped microphones to your RED DSMC2 camera with the Beachtek DXA-RED, a two-channel preamplifier with phantom-powered XLR inputs. Its powerful preamps offer up to 60 dB of gain while delivering low noise and wide dynamic range. Thanks to its integrated shoe mount, the supplied brass mounting foot, and the included quick-release plate, the DXA-RED accommodates an array of mounting configurations. Each channel features switchable 48V phantom power for condenser mics, low/high gain settings, a trim knob, and an easy-to-read LED level indicator—green signifies a level between -40 and -4 dBu, while red correlates to levels over -4 dBu. Select mono or stereo for the output signal, which is sent to the 3.5mm main output at the normal level, and to the 3.5mm aux output with -20 dB of attenuation. Easily connect the output to your camera's input via the supplied 3.5mm TRS cable. The DXA-RED includes a 2-pin LEMO to D-Tap cable for connection to a compatible external battery or power supply, and a micro-USB cable for USB powering. A power switch with a dedicated LED indicator puts you in control of the power status.
  • Ultra-compact chassis with integrated shoe mount

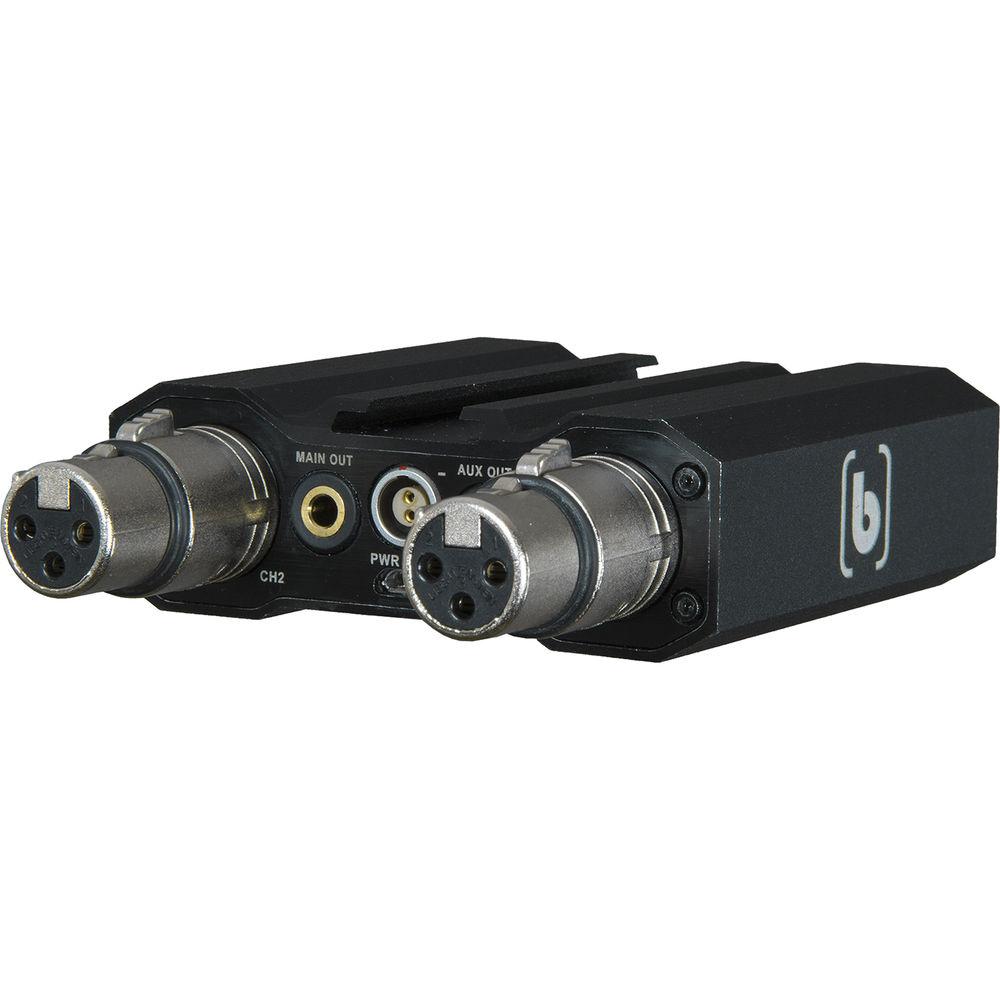

  • Two balanced XLR inputs
  • 48 VDC phantom power selectable per channel
  • Per-channel switches for 40 dB or 60 dB of maximum gain

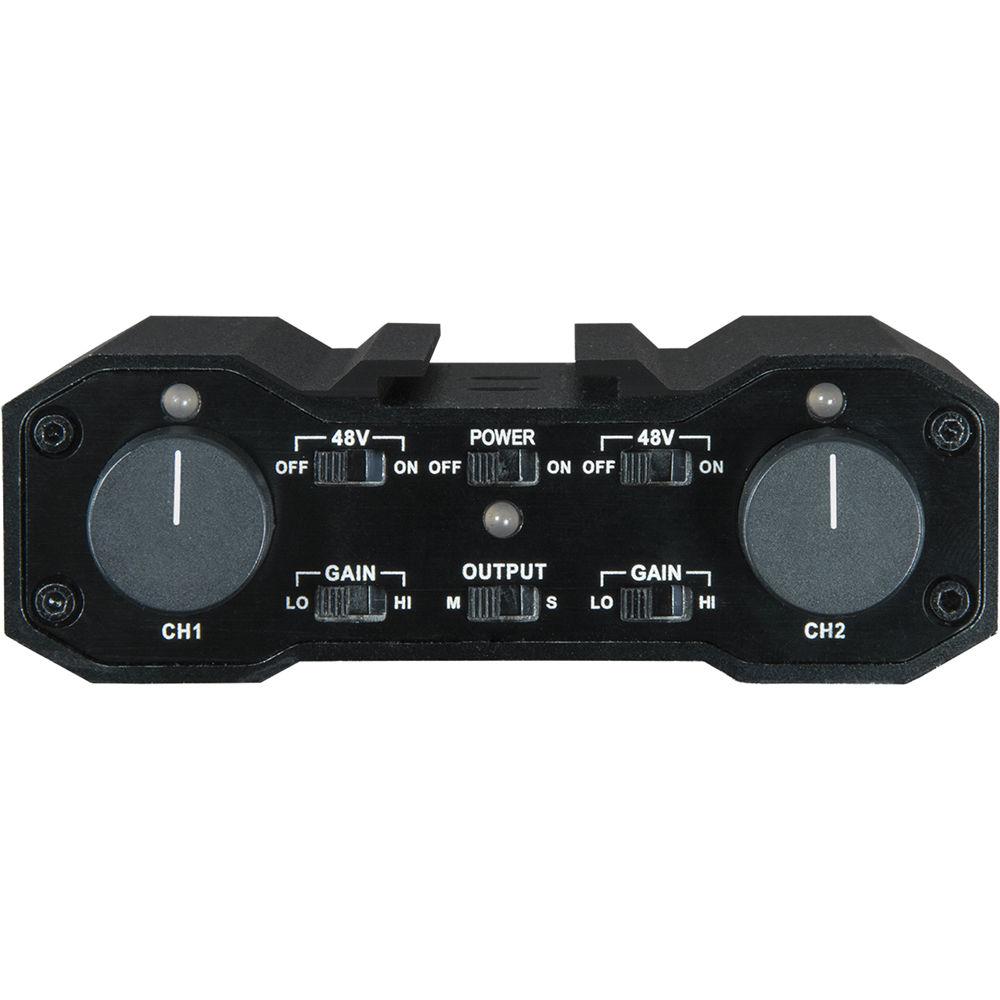

  • Rotary trim controls and LED level indicators for both channels
  • Switchable mono/stereo output mode (mono allows for bracketing when using one input)

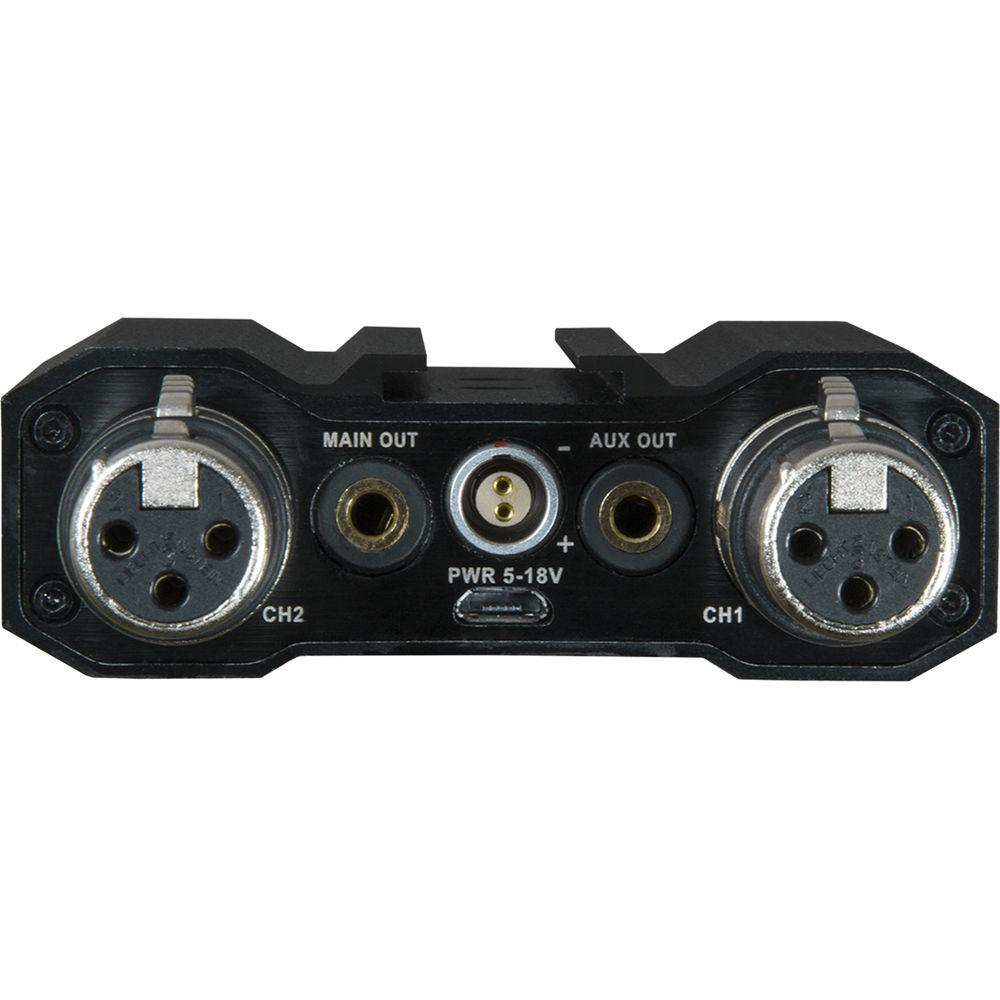

  • 3.5mm TRS output for RED cameras, and 3.5mm TRS aux output attenuated -20 dB
  • Dedicated power switch with LED indicator
  • Includes right-angle 3.5mm TRS audio cable, micro-USB power cable, and 2-pin LEMO to D-Tap power cable
  • Includes quick-release plate and brass mounting foot
In the Box Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras
  • SC35 Replacement Cable eztaxxcevddeqsetwvxtxudzbyy
  • BT-PWR D-Tap to 2-Pin LEMO Power Cable for DXA-ALEXA / DXA-CINE
  • Micro-USB Power Cable
  • V-CLIK Quick Release Plate for Camera Accessories
  • Brass Mounting Foot
  • Bolt
  • Allen Wrench
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Beachtek DXA-RED 2-Channel Preamplifier with Phantom-Powered XLR Inputs for RED Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Beachtek DXARED Specs

    Inputs 2 x 3-Pin XLR Female (Balanced)
    Outputs 2 x 1/8" / 3.5 mm TRS
    Gain Main Out: 40 dB (Lo Gain), 60 dB (Hi Gain)
    Aux Out: 20 dB (Lo Gain), 40 dB (Hi Gain)
    Maximum Input Level Lo Gain: -20 dBu
    Hi Gain: -40 dBu
    Output Clipping Level Main Out: +20 dBu
    Aux Out: 0 dBu
    Frequency Response 20 Hz to 20 kHz (
