User Manual for Beastgrip BT-100 Tripod with Quick Release Ball Head Click to enlarge the picture
Contents of the user manual for the Beastgrip BT-100 Tripod with Quick Release
- Product category: Tripods with Heads Beastgrip
- Brand: Beastgrip
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Beastgrip Tripods with Heads
 |
User manual for the Beastgrip BT-100 Tripod with Quick Release contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Beastgrip product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Beastgrip user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Beastgrip product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More This BT-100 Tripod from Beastgrip supports up to 20.0 lb, measures 18.0" when folded, and includes a long push-and-pull, rapid center column, a short push-and-pull, rapid center column, as well as a ball head with quick release plate. Its 4-section legs each feature an independent spread as well as twist locks for fast deployment, and can be positioned for a minimum height of 4.5", or 8.5" when its short center column is in use, and 18.0" when its long center column is in use. The BT-100 tripod itself provides a maximum height of 50.0", or 55.0" with its short center column fully raised, and 64.0" with its long center column fully raised. Foam covers on two of the legs provide a secure and comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces.

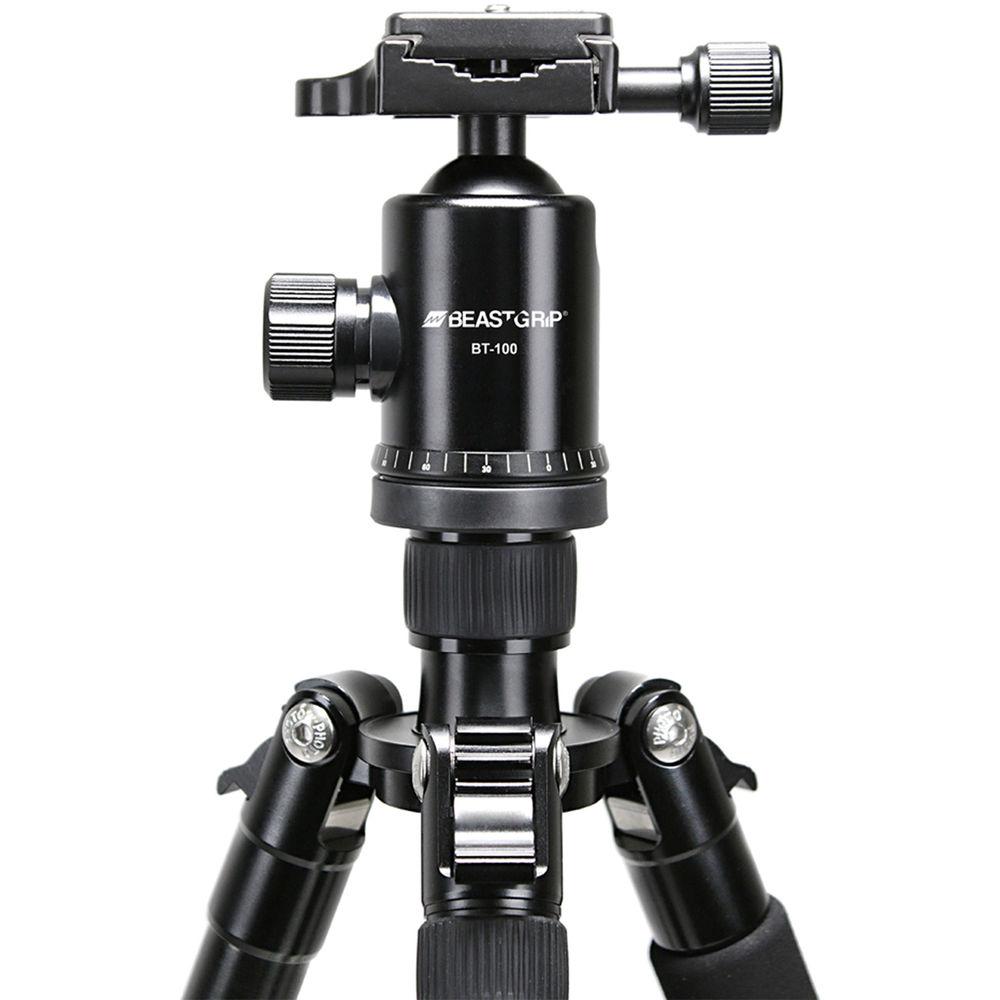

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's ball head using a quick release clamp. The ball head is removable, provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.
For added versatility, both the short and long center columns are reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. An additional twist lock allows one of the tripod legs to be detached and configured as a monopod with a 16.0" to 51.0" adjustable height. Either the short center column or the long center column can also be combined with the monopod-convertible leg for a respective height range of 20.0" to 55.0" and 32.5" to 67.5".
A nylon carry bag with a zippered closure and detachable shoulder strap is included for storage and transport of the entire tripod, as well as a drawstring pouch for the ball head. - Use and Handling
-
- Supports up to 20.0 lb
- Long and short, push-and-pull, rapid center columns with ballast hook for rapid camera, lens, or sport optic positioning

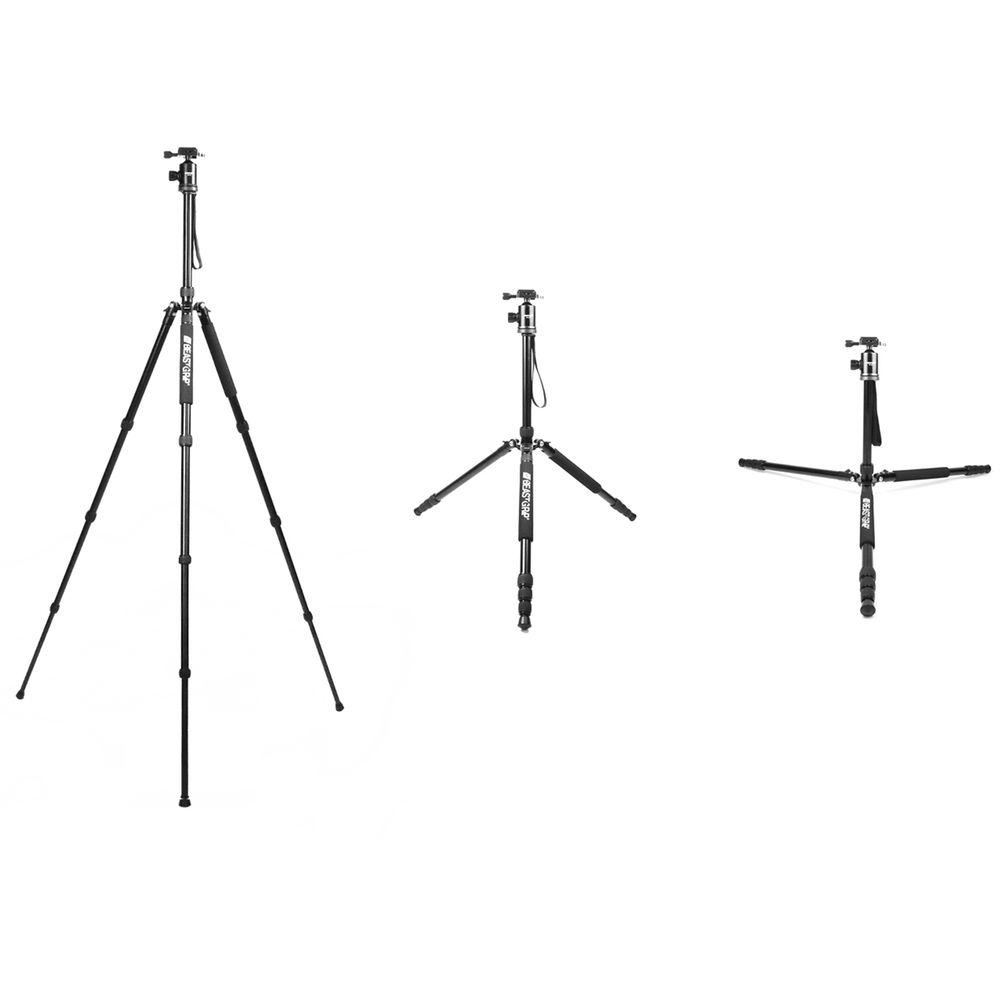

- Can be set for a minimum height of 4.5", or 8.5" when its short center column is in use, or 18.0" when its long center column is in use
- Can be set for a maximum height of 50.0", or 55.0" with its short center column fully raised, and 64.0" with its long center column fully raised

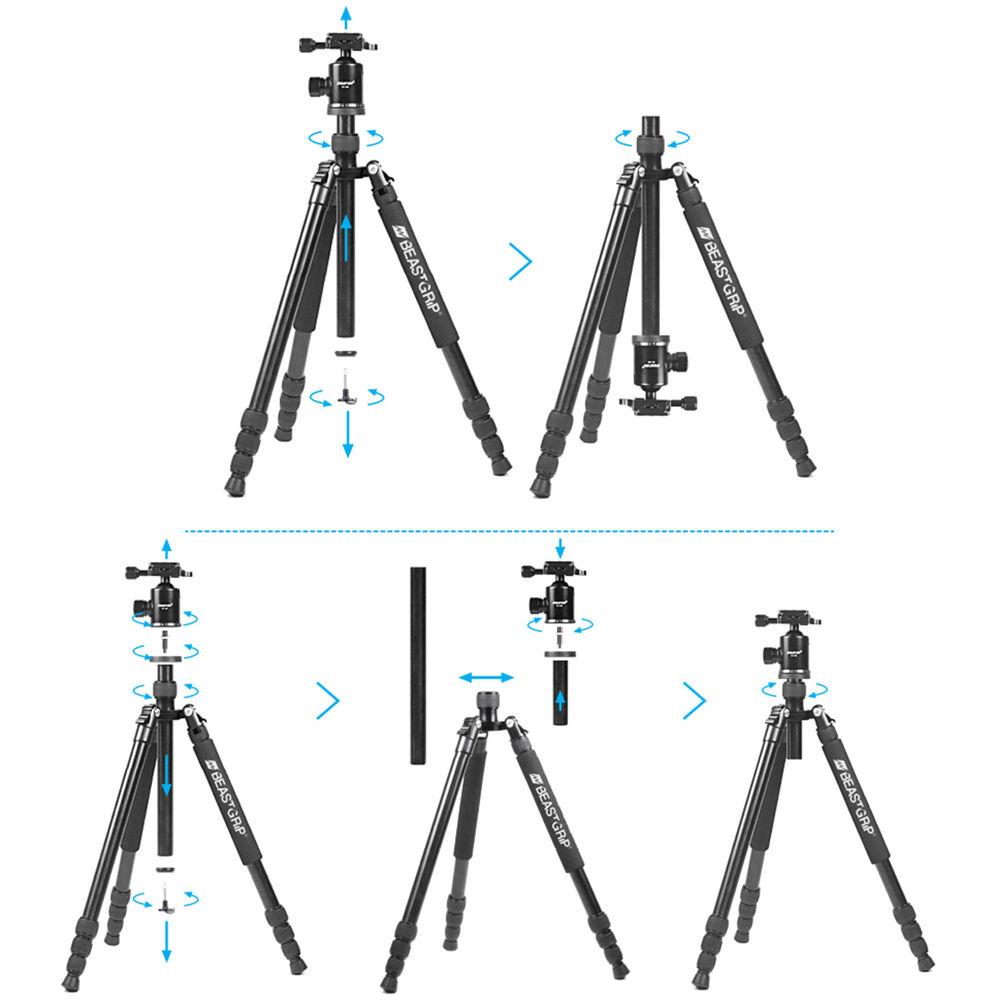

- Short and long center columns are reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them

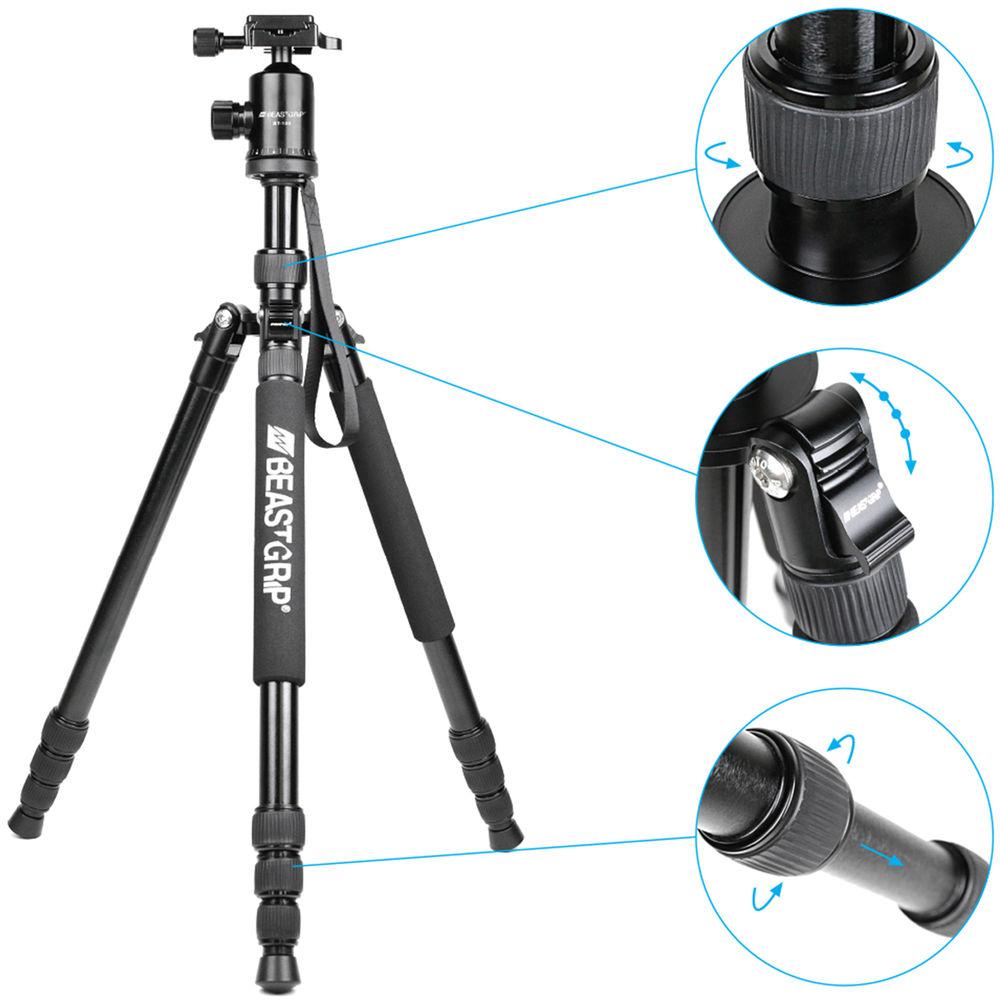

- Legs each feature 4 sections, twist locks for fast deployment, and can be independently spread
- Foam covers on two of the legs provide a secure and comfortable grip
- Rubber feet help to enhance stability on a wide variety of surfaces
- Built-in bubble level
- Weighs 3.8 lb, measures 18.0" when folded

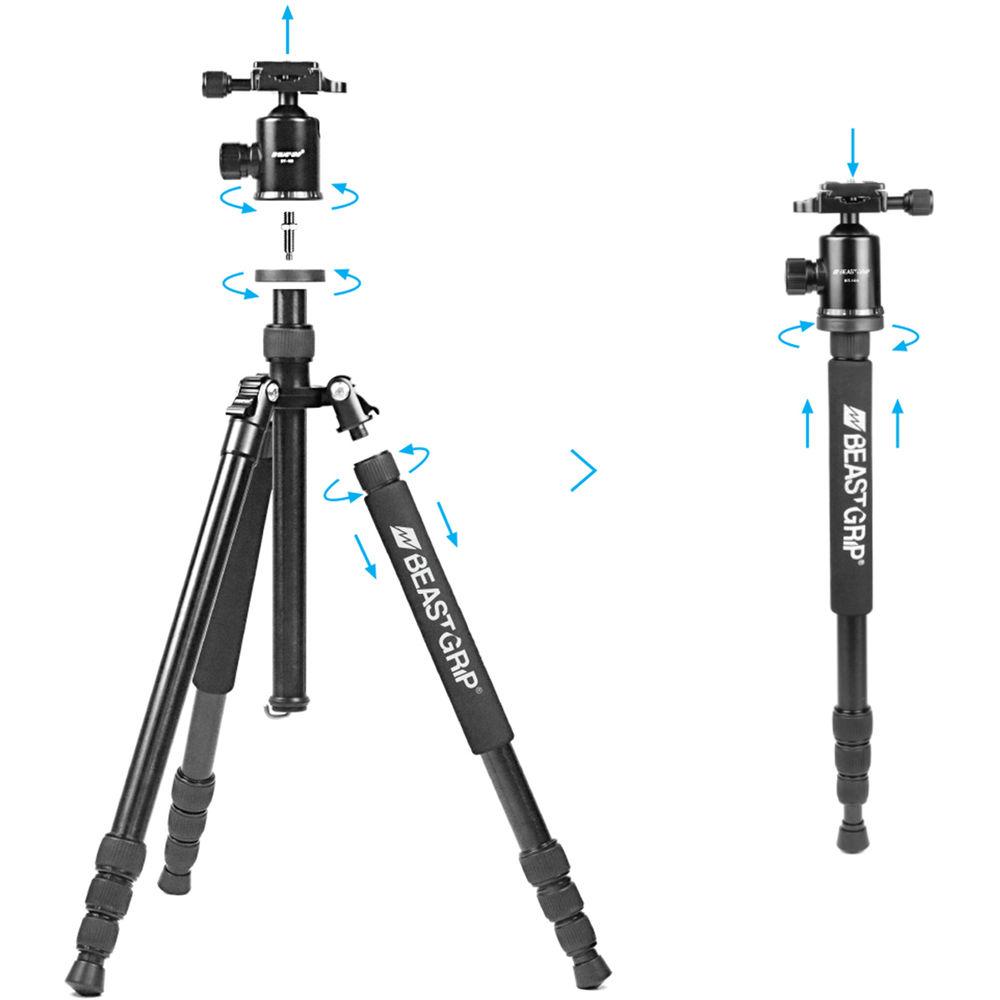

- Additional twist lock allows one of the tripod legs to be detached and configured as a monopod with a 16.0" to 51.0" adjustable height
- Short center column or the long center column can also be combined with the monopod-convertible leg for a respective height range of 20.0" to 55.0" and 32.5" to 67.5"
- Hex key to remove remaining legs for maintenance
- Construction Details
-
- Aluminum alloy legs
- Ball head with quick release clamp
- Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface
- Includes nylon carry bag with a zippered closure and detachable shoulder strap for storage and transport of the entire tripod, plus drawstring pouch for the ball head
UPC: 869738000078 In the Box Beastgrip BT-100 Tripod with Quick Release Ball Head Ball Head Quick Release Plate Long Center Column Short Center Column 2 x Head Mount Hex Key Tripod Bag Ball Head Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Beastgrip BT-100 Tripod with Quick Release Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBeastgrip BGA103-TP Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 20 lb / 9.1 kg | | Maximum Working Height | 64" / 162.6 cm | | Minimum Working Height | 4.5" / 11.4 cm | | Folded Length | 18" / 45.7 cm | | Materials | Aluminum Alloy | | Weight | 3.8 lb / 1.7 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Features | Ballast Hook, Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 20.6 x 5.4 x 5.2" |
