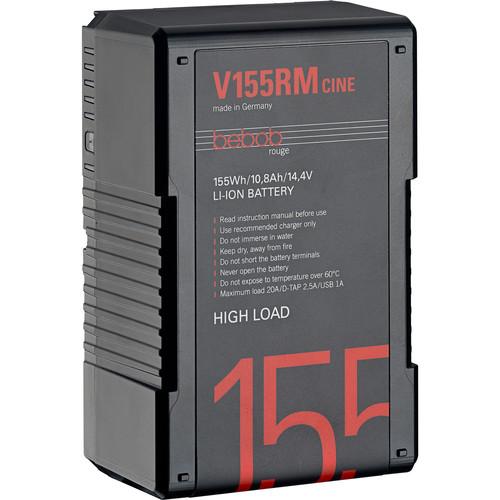

User Manual for Bebob Factory GmbH V155RM-CINE 14.8V 155Wh High Load V-Mount Li-Ion Battery Click to enlarge the picture
Contents of the user manual for the Bebob Factory GmbH V155RM-CINE 14.8V 155Wh
- Product category: On Camera Batteries Bebob Factory GmbH
- Brand: Bebob Factory GmbH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bebob Factory GmbH On Camera Batteries
 |
User manual for the Bebob Factory GmbH V155RM-CINE 14.8V 155Wh contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bebob Factory GmbH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bebob Factory GmbH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bebob Factory GmbH product will considerably shorten its lifespan!
|
Product description Bebob high load batteries are designed to be mounted on cinema cameras via optional adapters that allow for 20A of discharge current. When used without an adapter, they support up to a 10A draw. The Bebob V155RM-CINE 14.8V 155Wh High Load V-Mount Li-Ion Battery is compatible with the ARRI BAB-HV V-mount battery adapter for the Alexa LF, the Bebob ML-120V/V HL V-mount adapter, and the Bebob CINE-VMM-HL V-mount adapter. The battery and adapter safely combine to continuously deliver 20A with no risk to the connector pins nor the battery cells.
In addition to all this, Bebob batteries are designed to be strong, reliable, and versatile. This battery is built to withstand falls from 4.9', yet, if it cracks for some other reason, any mechanical component is replaceable by Bebob thanks to the modular design. Similarly, when the battery capacity weakens after years of use, the batteries can be re-celled at a discount by Bebob. To help decide when to re-cell, a status alarm is built into the battery that triggers a yellow LED indicator when the capacity drops below 80% over time and a red LED when below 60%.

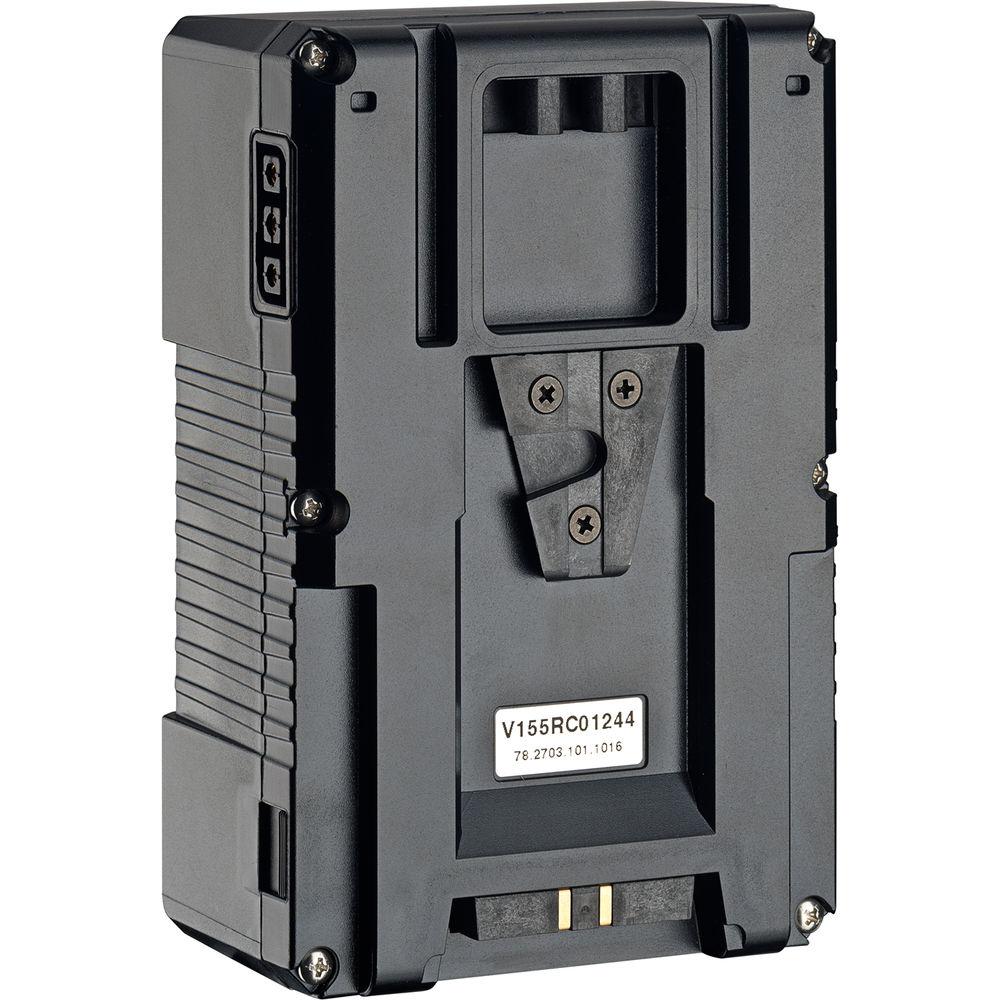

Another flexible aspect is the twist D-Tap. Normally you're limited to connecting a D-Tap cable only one way, the way it fits. But the V155RM-CINE's twist D-Tap features three pins, a positive ground pin in the center and a negative one on each side of the positive. You can plug in your cable one way or flip it around and connect it the other way. The V155RM-CINE also provides a USB port for charging your mobile devices on location.
The V155RM-CINE features lithium-ion trimix cells made in Japan and offers a capacity of 155Wh. It has a 5-step LED fuel gauge and is compatible with Bebob, IDX, and Sony chargers. Charging time is approximately 3 hours when using Bebob VS2/VS4 chargers. - Key Features
-
- 20A draw with an optional adapter; 10A without an adapter
- 5-step LED fuel gauge
- Withstands falls from up to 4.9'
- Modular design allows any mechanical component to be replaced
- Can be re-celled at a discount when capacity weakens after years of use (capacity status alarm LEDs built-in)
- Twist D-Tap (allows inserting cable from either side)
- USB port
- Compatible with Bebob, IDX, and Sony chargers
In the Box Bebob Factory GmbH V155RM-CINE 14.8V 155Wh High Load V-Mount Li-Ion Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bebob Factory GmbH V155RM-CINE 14.8V 155Wh High Load V-Mount Li-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBebob Factory GmbH V155RM-CINE Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 155 Wh | | Amp-Hours | 10.8 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 20 A Requires optional adapter for 20A discharge. Without an adapter, the maximum discharge is 10A. | | Accessory Port | 1 x D-Tap | | Maximum Load (Accessory Port) | 2.5 A ( D-Tap ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 3.7 x 5.7 x 2.3" / 9.4 x 14.4 x 5.8 cm | | Weight | 2.2 lb / 1 kg |
