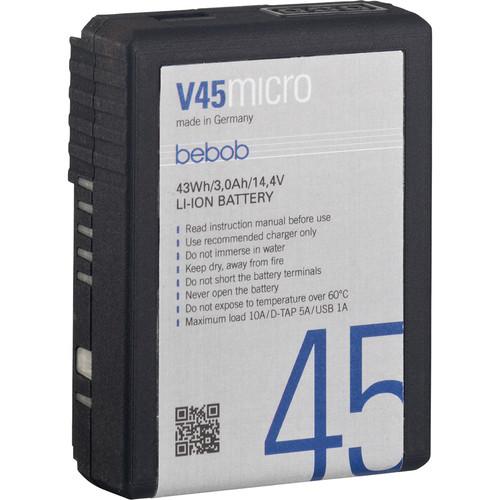

User Manual for Bebob Factory GmbH V45MICRO 14.4V, 43Wh V-Mount Li-Ion Battery

Click to enlarge the picture
Bebob Factory GmbH V45MICRO 14.4V, 43Wh V-Mount Li-Ion Battery Contents of the user manual for the Bebob Factory GmbH V45MICRO 14.4V, 43Wh
  • Product category: On Camera Batteries Bebob Factory GmbH
  • Brand: Bebob Factory GmbH
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bebob Factory GmbH On Camera Batteries

User manual for the Bebob Factory GmbH V45MICRO 14.4V, 43Wh contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bebob Factory GmbH product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bebob Factory GmbH user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bebob Factory GmbH product will considerably shorten its lifespan!



Product description

Bebob batteries are designed strong, reliable, and versatile. The Bebob V45MICRO 14.4V, 43Wh V-Mount Li-Ion Battery is built to withstand falls from 4.9', yet, if it cracks for some other reason, any mechanical component is replaceable by Bebob thanks to the modular design. Similarly, when the battery capacity weakens after years of use, the batteries can be re-celled at a discount by Bebob. To help decide when to re-cell, a status alarm is built into the battery that triggers a yellow LED indicator when the capacity drops below 80% over time and a red LED when below 60%. While this battery packs the punch to be used in standard applications, its compact, "micro" form factor also makes it suitable for use with gimbals and other applications requiring smaller size and weight.

Another flexible aspect of the battery is the twist D-Tap. Normally you're limited to connecting a D-Tap cable only one way, the way it fits. But the V45MICRO's twist D-Tap features three pins, a positive ground pin in the center, and a negative one on each side of the positive. You can plug in your cable one way or flip it around and connect it the other way. The V45MICRO also provides a USB port for charging your mobile devices on location.

The V45MICRO features lithium-ion trimix cells made in Japan and offers a max draw of 10A and a capacity of 43Wh. It has a 5-step LED fuel gauge and is compatible with Bebob, IDX, and Sony chargers. Charging time is approximately 1.5 hours when using Bebob VS2/VS4 chargers.
    Key Features
    • 10A draw
    • 5-step LED fuel gauge
    • Withstands falls from up to 4.9'
    • Modular design allows any mechanical component to be replaced
    • Can be re-celled at a discount when capacity weakens after years of use (capacity status alarm LEDs built-in)
    • Twist D-Tap (allows inserting cable from either side)
    • USB port
    • Compatible with Bebob, IDX, and Sony chargers
In the Box Bebob Factory GmbH V45MICRO 14.4V, 43Wh V-Mount Li-Ion Battery
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bebob Factory GmbH V45MICRO 14.4V, 43Wh V-Mount Li-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bebob Factory GmbH V45MICRO Specs

    Mount / Series Type V-Mount
    Chemistry Lithium-Ion
    Capacity (Wh) 43 Wh
    Amp-Hours 3 Ah
    Output Voltage 14.4 VDC
    Maximum Load 10 A
    Accessory Port 1 x D-Tap
    Maximum Load (Accessory Port) 5 A ( D-Tap )
    USB Output 5 V, 1 A
    Dimensions (W x H x D) 3.0 x 4.0 x 1.3" / 7.5 x 10.1 x 3.2 cm
    Weight 0.7 lb / 0.3 kg
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 6.6 x 4.4 x 2.7"
