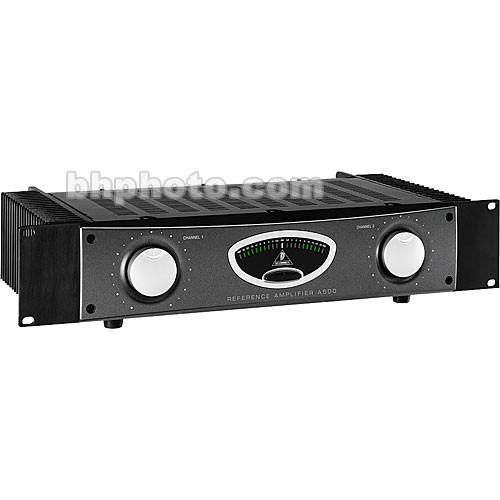

User Manual for Behringer A500 - 2-Channel Rackmount Ultra-Linear Studio Power Amplifier - 230W per Side at 4 Ohms Click to enlarge the picture
Contents of the user manual for the Behringer A500 - 2-Channel Rackmount Ultra-Linear
- Product category: Power Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Power Amplifiers
 |
User manual for the Behringer A500 - 2-Channel Rackmount Ultra-Linear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - A500 Professional 600-Watt Reference-Class Studio Power Amplifier
The Behringer A500 is an inexpensive professional reference power amplifier, targeted primarily toward recording studio applications, but viable as an installation solution as well. The unit features bar-graph level metering, independent thermal overload protection for each channel, 230 Watts of power output per side at 4 Ohms, and fan-free convection cooling for minimal operating noise. - 2-channel ultra-linear rackmount power amplifier for studio and installation applications with 230W output per side at 4 Ohms
- Servo-controlled design, fan-free convection cooling for quiet operation
- Bar graph level metering with clip and protection indicators
- High-power Toshiba/Fairchild transistors, high-current, low-noise toroidal transformer
- Independent thermal overload protection for each channel for automatic speaker and amplifier protection
- Full complement of input connectors with balanced XLR, 1/4", unbalanced RCA
UPC: 689076748179 In the Box Behringer A500 - 2-Channel Rackmount Ultra-Linear Studio Power Amplifier - 230W per Side at 4 Ohms AC Power Cable Owner's Manual Limited 10-Year Warranty User Manual PDF 1mbrcbqtetdyxaqxywbwfrzef Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer A500 - 2-Channel Rackmount Ultra-Linear Studio Power Amplifier - 230W per Side at 4 Ohms in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer A500 Specs | Power Rating | Stereo @ 8 Ohms: 160 Watts
Stereo @ 4 Ohms: 230 Watts
Bridged Mono @ 8 Ohms: 500 Watts | | Damping Factor | Not Specified by Manufacturer | | Input Sensitivity | 1.3V (+4.5dBu, VRMS @ 4 Ohms) | | Input Impedance | 10 kOhms, Unbalanced
10 kOhms, Balanced | | Gain | 28 dB | | Frequency Response | 10 Hz - 25 kHz, +0/-1dB | | Signal-to-Noise Ratio | -100dB, unweighted, 20Hz - 20kHz | | Total Harmonic Distortion (THD) | <0.01% | | Input Connections | 2 x 3-pin XLR, Balanced
2 x 1/4" TRS Phone, Balanced
2 x RCA Phono, Unbalanced | | Output Connectors | 2 x 1/4" TS Phone(Output 1,2)
1 x 1/4" TS Phone(Bridged Mono)
4 x Touch-Proof Binding Posts | | Controls Front Panel | 2 x Rotary Volume Controls
1 x Power Switch | | Controls (Rear) | 1 x Stereo/Bridge Mono Switch | | Indicators | 1 x Yellow Protection LED
1 x Red Clip LED
1 x White Power on LED | | Cooling | Convection-cooled | | Power Consumption | 6.5A (120VAC, 60 Hz)
3.6A(230VAC, 50Hz) | | Dimensions | 19 x 10.8 x 4" (482.6 x 257.5 x 101.6mm) | | Weight | 18.5 lb (8.4 g) | | Specialties | Convection-cooled
LED Bar Metering | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 22.9 x 15.7 x 5.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
