Product description

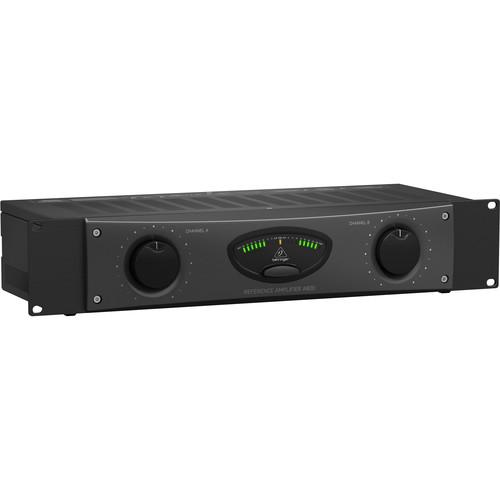

The A800 Professional 800W Reference-Class Power Amplifier from Behringer is a lightweight power amplifier for recording studios, post-production houses, live sound, and hi-fi applications. It features many input connections such as balanced XLR, 1/4" TRS, and RCA connectors, and twist-lock speaker and binding-post outputs for easy compatibility for just about any setup.The A800's D-Class power amplifier delivers 2 x 400W into 4 Ohms or 800W mono into 8 Ohms in bridged operation. Other features include: convection-cooling for noise-free and stable operation, precise level meter and clip indicators for accurate performance monitoring, and ultralow-impedance design that can drive any passive speaker such as studio monitors, small PA speakers, and more.The A800 Professional 800W Reference-Class Power Amplifier with updated SmartSense technology puts the punch back into amplification, providing an improved full-range frequency response with more bass, and smoother high-frequency, which results in natural audio reproduction, especially in the low-frequency area.
    A800 Audio Reproduction
  • The A800 reference amplifier is an ideal choice for home and professional recording studios, post-production suites, or anyone seeking audiophile-grade performance. It provides accurate audio reproduction without distortion or artificial coloration. The servo-controlled design and the high-level components used throughout deliver a natural sonic performance.
    Performance
  • The A800 can produce 2 x 400W at 4 Ohms or 800W in bridged mono mode at 8 Ohms with headroom for pristine audio reproduction. The A800's advanced convection cooling technology ensures stable, noise-free operation, while the servo-controlled design allows it to drive virtually any passive speaker system.
    Metering and I/O
  • A level meter with input clip and channel protection LEDs are provided for accurate performance monitoring. Input connections are offered in the form of balanced XLR and 1/4" TRS connectors, as well as unbalanced RCA sockets, ensuring you have loads of input options. Plus, the speaker outputs give you the choice between professional twist-lock and binding post connectors.
    Class-D Massive Power
  • The high-density Class-D amplifier technology delivers enormous power and sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification offers energy efficiency and eliminates the need for heavy power supplies and heat sinks.
    SmartSense Impedance Compensation
  • SmartSense Technology puts the punch back into Class-D amplification. It provides updated full-range frequency response with more powerfull dynamic bass, and smoother high-frequency reproduction. The resulting output is no longer dependent on the actual load, but is rendered flat via impedance compensation. The A800's design also incorporates a significantly higher damping factor that yields better amplifier control over the loudspeaker for stronger audio reproduction especially in the low-frequency area.
UPC: 653341317834 In the Box Behringer A800 Professional 800W Reference-Class Power Amplifier
  • AC Power Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Behringer A800 Professional 800W Reference-Class Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Behringer A800 Specs

    Output Power 220 W at 8 Ohms per channel, stereo
    400 W at 4 Ohms per channel, stereo
    800 W at 8 Ohms bridged mono
    Input Connectors 2 x XLR
    2 x 1/4" / 6.3 mm TRS
    2 x RCA
    Input Impedance XLR, 1/4" / 6.3 mm TRS: 20 kOhms, balanced / 10 kOhms, unbalanced
    RCA: 10 kOhms unbalanced
    Outputs 2 x locking-style speakON professional speaker connectors
    2 x binding posts
    System Output Circuit Type: Class-D
    Circuit Protection: Short-circuit current, DC fault, AC fuse, thermal cut
    Distortion: < 0.08% (4 Ohms at 150 W, 1 kHz)
    Damping Factor: > 160 at 8 Ohms
    Frequency Response: 20 Hz to 20 kHz, +0/-1 dB (-10 dB below rated output power)
    Frequency Response: 10 Hz to 30 kHz (-3 dB)
    Signal-to-Noise: > 100 dB (A weighted, 20 Hz to 20 kHz)
    Voltage Gain at Level Control Max, Balanced: 30 dB / RCA: 41 dB
    Input Sensitivity at Level Control Max: XLR +4 dBu / RCA -10 dBV
    Controls Front: Power switch gain controls (channels A and B)
    Rear: Mode switch (stereo / bridge mono)
    Indicators Power: Amber LED
    Signal: Green LEDs -30 to -6 dB
    Signal: Yellow LEDs -3, 0 dB
    Clip: Red LEDs
    Protection: Red LEDs
    Power Supply Voltage USA / Canada 120 VAC, 60 Hz (T 10 A H 250 V)
    UK / Australia / Europe 220-240 VAC, 50/60 Hz (T 5 A H 250 V)
    Korea / China 220-240 VAC, 50/60 Hz (T 5 A H 250 V)
    Japan 100 VAC, 50/60 Hz (T 10 A H 250 V)
    Power Consumption: 90 W (1/8 rated power)
    Mains Connection: Standard IEC receptacle
    Dimensions (H x W x D) 3.7 x 19.0 x 8.7" / 9.4 x 48.3 x 22.0 cm
    Weight 7.1 lb / 3.2 kg
    Package Weight 8.75 lb
    Box Dimensions (LxWxH) 23.0 x 10.6 x 6.0"
