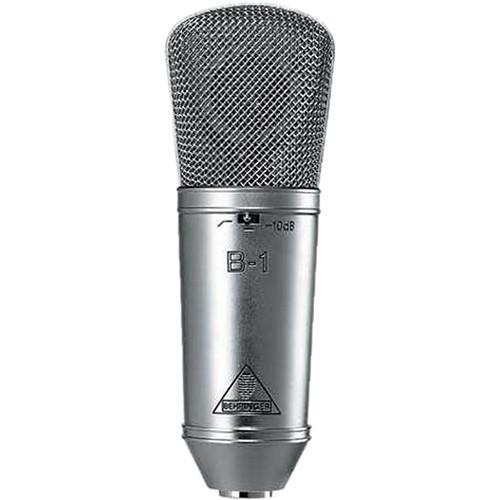

User Manual for Behringer B-1 - Single Diaphragm Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Behringer B-1 - Single Diaphragm Studio
- Product category: Large Diaphragm Condenser Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Large Diaphragm Condenser
|
User manual for the Behringer B-1 - Single Diaphragm Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The B-1 Gold-Sputtered Large-Diaphragm Studio Condenser Microphone from Behringer features a large diaphragm condenser design and can be used for project and professional studio applications. It offers a pressure gradient capsule that delivers a transparent 20 Hz to 20 kHz frequency response while handling an SPL rating of 138 dB (148 dB with pad), resulting in clean transparent audio at transient peak levels. The B-1 features a cardioid polar pattern, minimizing off-axis audio and noise caused by room ambiance and additional instruments. A -10 dB pad switch provides headroom when recording loud signals that can distort on input, and a low-frequency roll-off switch minimizes low-end noise at 75 Hz (6 dB / Octave). The microphone includes a shockmount, windscreen, and carrying case. - Cardioid Polar Pattern
- The B-1 features a cardioid polar pattern, minimizing off-axis signal and noise caused by room ambiance, monitors, noise, and additional instruments.
- High-Pass Filter Switch
- A high-pass filter switch eliminates low frequencies at 75 Hz (6 dB / Octave). This is useful when ambient hum or line noise is prevalent.
- -10 dB Pad Switch
- The B-1 is capable of handling Sound Pressure Levels of up to 135 dB and a -10 dB pad switch allows for a total of 148 dB of headroom.
UPC: 705105160184 In the Box Behringer B-1 - Single Diaphragm Studio Condenser Microphone Shockmount Carrying Case Windscreen Limited 10-Year Warranty User Manual PDF 1019.6kbxqtxzrrrfydvqrsxatwuawcfyewcscx Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer B-1 - Single Diaphragm Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B-1 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB A-Weighted | | Equivalent Noise Level | 13 dB A-Weighted | | Maximum SPL | 138 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 75 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 48 V | | Length | 6.85" / 174.0 mm | | Diameter | 2.28" / 58.0 mm | | Weight | 1.02 lb / 0.461 kg | | | | Package Weight | 4.405 lb | | Box Dimensions (LxWxH) | 13.75 x 9.7 x 4.55" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
