User Manual for Behringer B-2 Pro Large Diaphragm Multi-Pattern Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Behringer B-2 Pro Large Diaphragm Multi-Pattern
- Product category: Large Diaphragm Condenser Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Large Diaphragm Condenser
 |
User manual for the Behringer B-2 Pro Large Diaphragm Multi-Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - B-2 PRO Dual Diaphragm Condenser Microphone

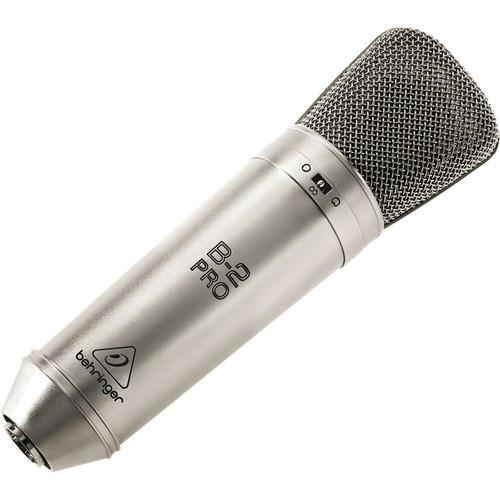

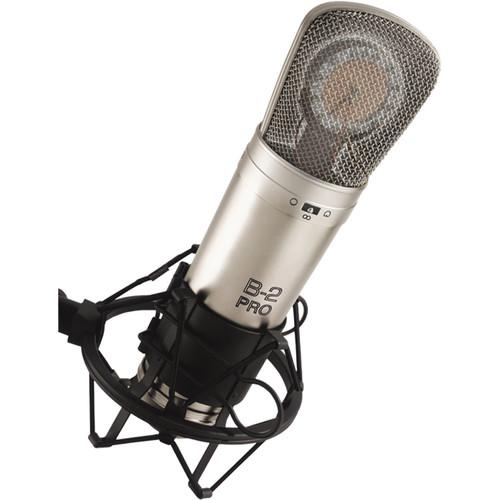

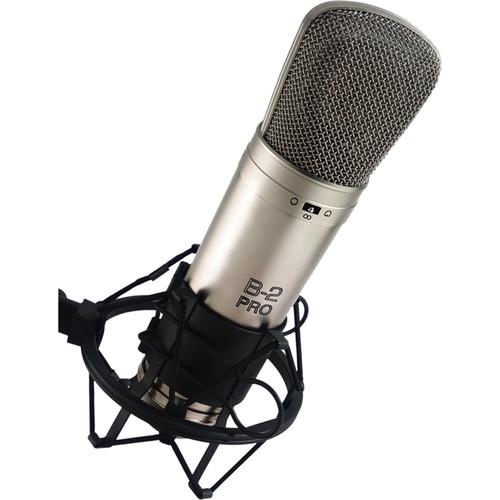

The B-2 Pro Large Diaphragm Multi-Pattern Studio Condenser Microphone from Behringer features a pressure-gradient, gold-sputtered, dual-diaphragm capsule that delivers a transparent 20 Hz to 20 kHz frequency response while handling SPLs up to 135 dB (145 dB with pad), resulting in clean, transparent audio even at transient peak levels. The B-2 offers switchable cardioid, omni-directional, and figure-of-eight polar patterns for versatile use in most recording scenarios. A -10 dB pad switch provides headroom when recording loud signals that can distort on input, and a low-frequency roll-off switch minimizes low-end noise at 150 Hz and below. The microphone includes a shockmount, windscreen, and carrying case. - Switchable Polar Patterns
- The B-2 features omni-directional, cardioid, and figure-8 polar patterns for added flexibility.
- High-Pass Filter Switch
- A high-pass filter switch cuts low frequencies below 150 Hz. This is useful when ambient hum or line noise is prevalent.
- -10 dB Pad Switch
- The B-2 is capable of handling Sound Pressure Levels of up to 135 dB, and a -10 dB pad switch allows for SPLs up to 145 dB before distortion occurs.

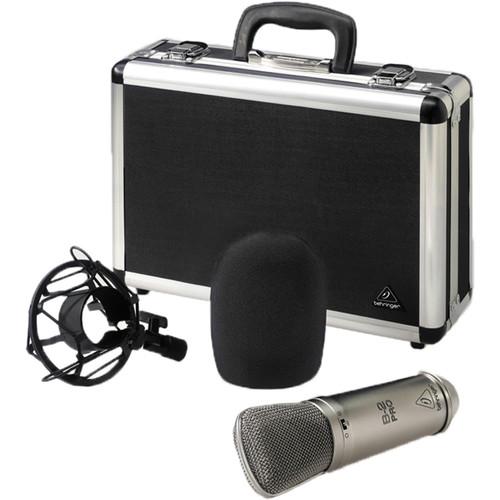

UPC: 705105160085 In the Box Behringer B-2 Pro Large Diaphragm Multi-Pattern Studio Condenser Microphone Shockmount Carrying Case Wind-Screen Limited 1-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer B-2 Pro Large Diaphragm Multi-Pattern Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B-2 Pro Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 77 dB A-Weighted
Omnidirectional: 76 dB A-Weighted
Figure 8: 78 dB A-Weighted | | Equivalent Noise Level | Cardioid: 17 dB A-Weighted
Omnidirectional: 18 dB A-Weighted
Figure 8: 16 dB A-Weighted | | Maximum SPL | Cardioid: 148 dB SPL
Omnidirectional: 149 dB SPL
Figure 8: 147 dB SPL With -10 dB pad engaged | | Pad | -10 dB | | THD | 1% | | Impedance | 100 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: 16 mV/Pa at 1 kHz
Omnidirectional: 14 mV/Pa at 1 kHz
Figure 8: 18 mV/Pa at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 150 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V | | Length | 8.27" / 210.0 mm | | Diameter | 1.97" / 50.0 mm | | Weight | 1.21 lb / 0.55 kg | | | | Package Weight | 4.81 lb | | Box Dimensions (LxWxH) | 13.55 x 9.65 x 4.6" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
