User Manual for Behringer B-5 Single Diaphragm Condenser Microphone with Switchable Capsules Click to enlarge the picture
Contents of the user manual for the Behringer B-5 Single Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Small Diaphragm Condenser
 |
User manual for the Behringer B-5 Single Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description - B-5 Studio Condenser Microphone

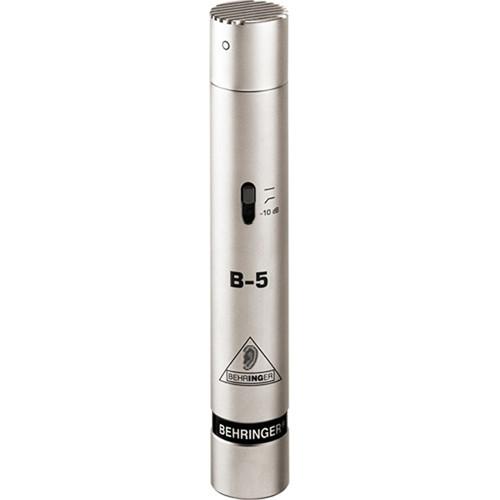

The B-5 Gold-Sputtered Diaphragm Studio Condenser Microphone from Behringer features a true condenser 18mm single diaphragm with two interchangeable capsules that offer cardioid and omnidirectional polar patterns. This flexible design results in high quality signal reproduction when capturing both vocals and instruments. The cardioid capsule provides maximum rejection of off-axis audio and ambiance, minimizing room noise and feedback. The omni-directional capsule provides a generous pick up with uniform frequency response throughout. There is a -10 dB Pad switch and low frequency roll-off for suppressing low frequency hum, rumble, and wind noise. The B-5 is suitable for capturing vocals, drum overheads, guitars, and similar instruments. The package includes a microphone stand adapter, a windscreen, and a carrying case. - Interchangeable Capsules

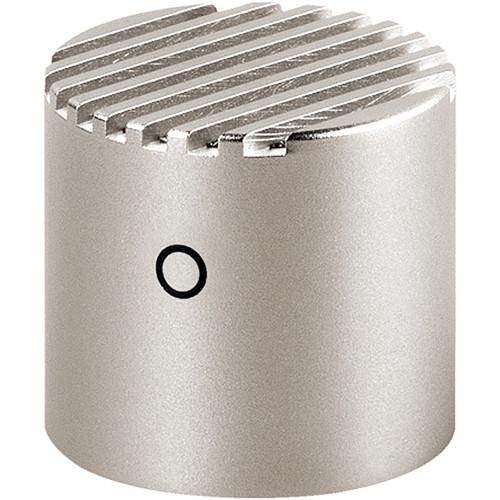

- Omnidirectional and cardioid capsules provide flexibility for capturing audio in a wide variety of applications.
- Low Frequency Roll Off
- A low-frequency roll-off switch provides control over low frequency hum and wind noise.
- -10 dB Pad Switch
- A -10 dB pad switch provides the necessary headroom for loud audio signals.
- Linear Frequency Response
- A linear, wide frequency response results in accurate detail from most sources.

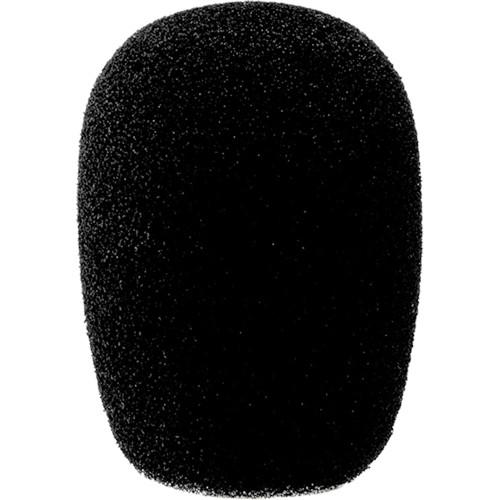

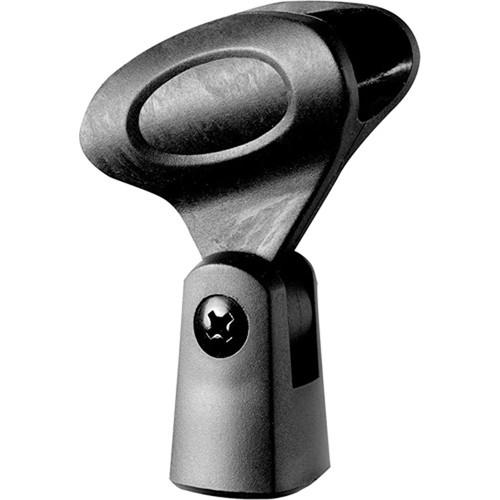

UPC: 705105160481 In the Box Behringer B-5 Single Diaphragm Condenser Microphone with Switchable Capsules Microphone Stand Adapter Windscreen Carry Case Limited 3-Year Warranty User Manual PDF 1.1mbwwtydruyuxdrrfcyyy Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer B-5 Single Diaphragm Condenser Microphone with Switchable Capsules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B-5 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.71" / 18 mm | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 78 dB A-Weighted
Omnidirectional: 76 dB A-Weighted | | Equivalent Noise Level | Cardioid: 16 dB A-Weighted
Omnidirectional: 18 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 70 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: -38 dBV/Pa at 1 kHz
Omnidirectional: -40 dBV/Pa at 1 kHz | | Low-Cut Filter | 6 dB/Octave @ 150 Hz | | | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V | | Length | 4.72" / 120 mm | | Diameter | 0.79" / 20 mm | | Weight | 0.52 lb / 236 g | | | | Package Weight | 1.42 lb | | Box Dimensions (LxWxH) | 11.95 x 5.2 x 3.3" |
