User Manual for Behringer B115D PA Speaker System Click to enlarge the picture
Contents of the user manual for the Behringer B115D PA Speaker System
- Product category: PA Speakers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer PA Speakers
 |
User manual for the Behringer B115D PA Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

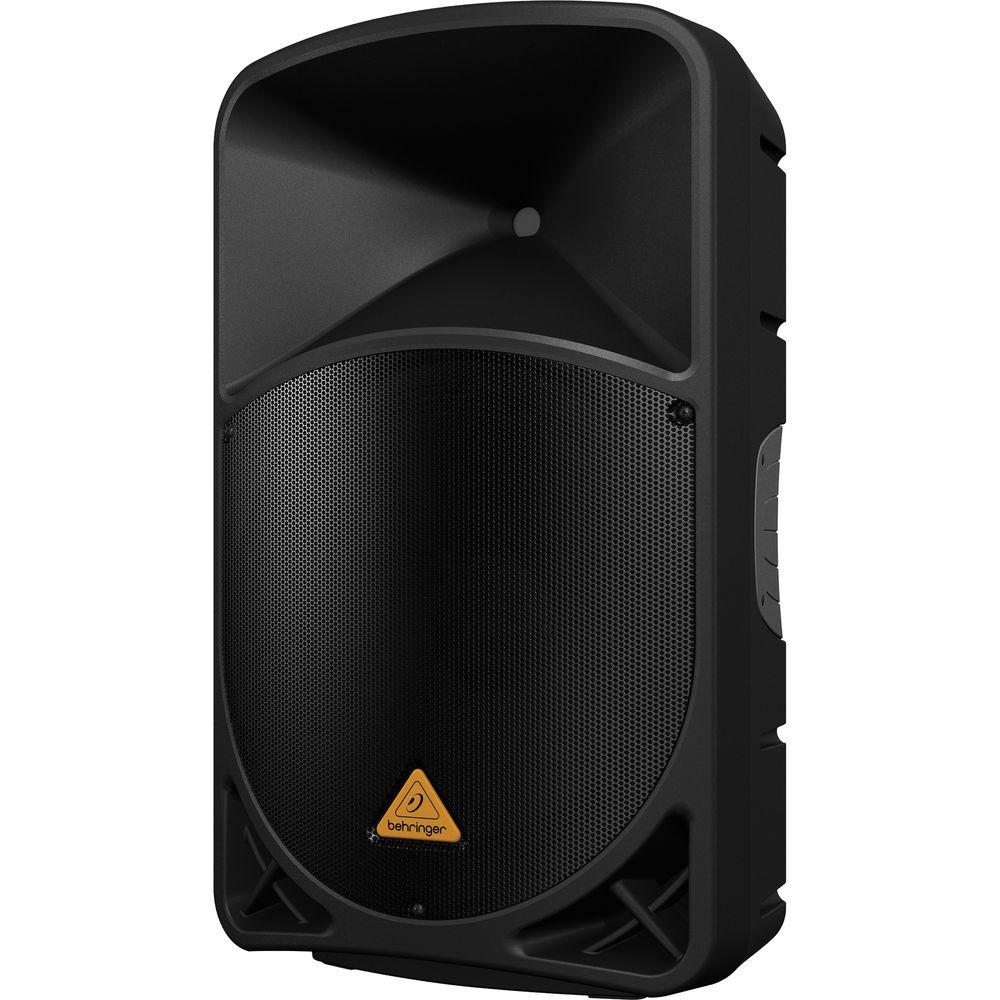

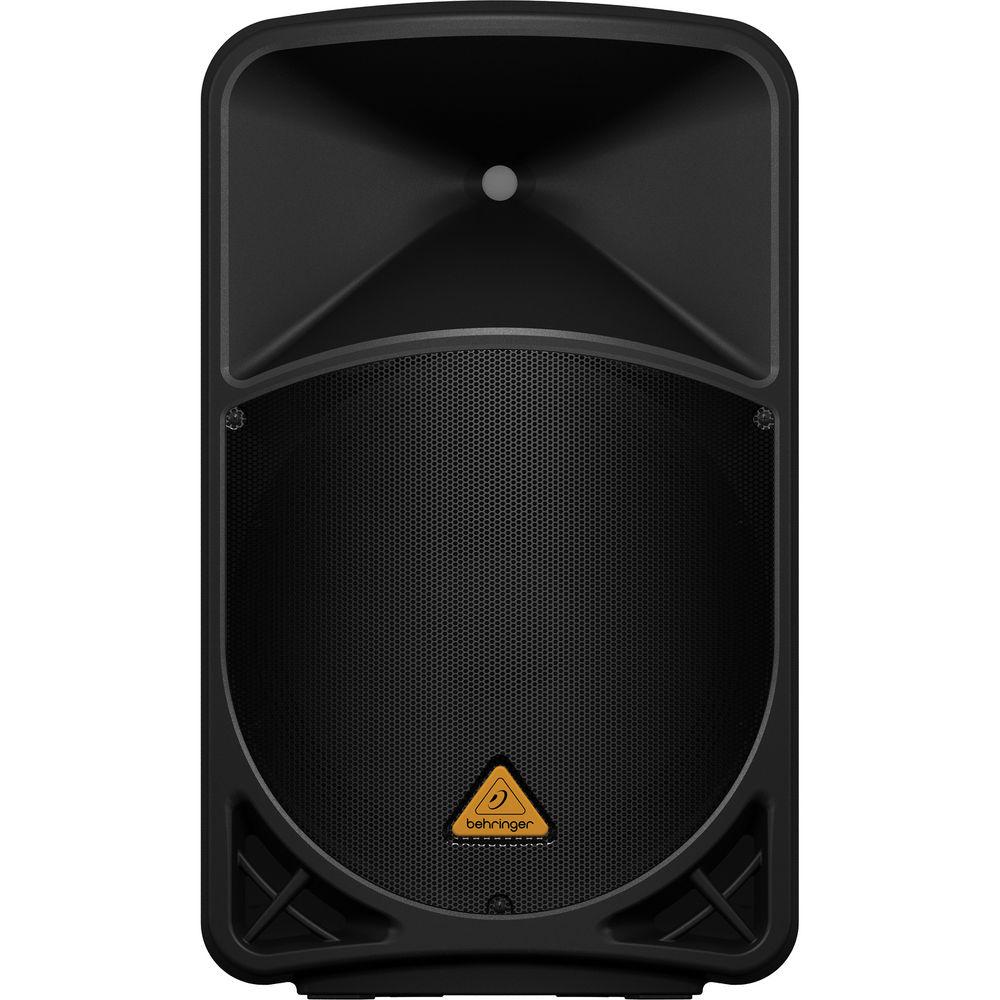

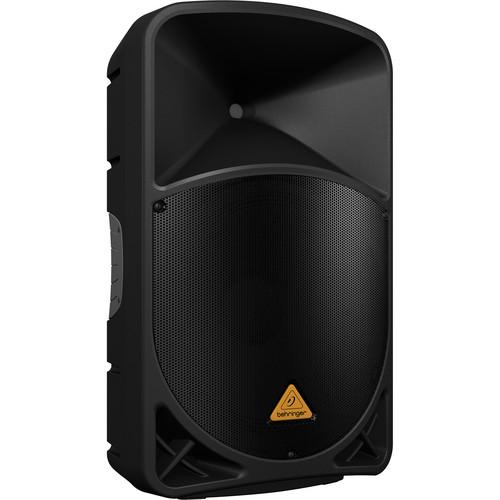

Product description - EUROLIVE B115D Active PA Speaker System with Wireless Option and Integrated Mixer

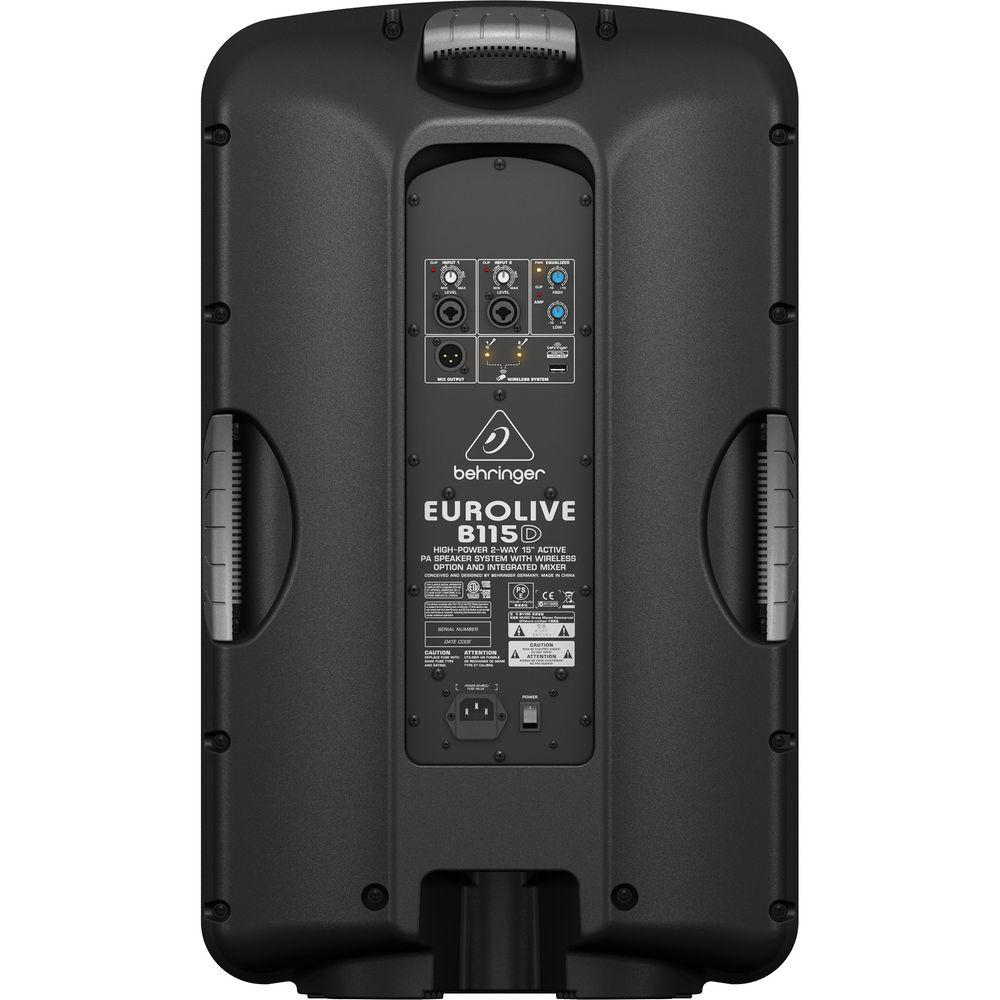

The Behringer B115D PA Speaker System is a versatile yet portable, integrated PA system with a built-in audio mixer, 1000 watt amplifier and more. The B115D is designed in a lightweight speaker cabinet with a 15" long-excursion driver and 1.35" compression tweeter installed in a large format horn. Behringer's Wireless Ultralink wireless USB microphone system is optional, and adds the convenience of a wireless microphone to this already versatile system. The cabinet features a speaker pole mount on the base, line and microphone audio inputs, high and low EQ, level controls for each channel and more. - High-Power 2-way PA sound reinforcement speaker system for live and playback applications
- Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels
- "Wireless-ready" for high-quality BEHRINGER digital wireless system (not included)
- 2-channel mixer with individual Mic/Line inputs, Volume controls and Clip LEDs
- Dedicated 2-band EQ plus integrated sound processor for ultimate system control and speaker protection
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Extremely powerful 15" long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1.35" aluminum-diaphragm compression driver for exceptional high-frequency reproduction
- Ultra-wide dispersion, large-format exponential horn
- Additional Line output allows linking of additional speaker systems
- Versatile trapezoidal enclosure design allows different positioning:
• Stand mounting with 35-mm pole socket • Tilts on its side for use as a floor monitor - Ergonomically shaped handles for easy carrying and setup
- High-quality components and exceptionally rugged construction ensure long life
UPC: 794504547511 In the Box Behringer B115D PA Speaker System Limited 10-Year Warranty Quick-Start Guide PDF 4.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer B115D PA Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer B115D Specs | | | Total Power Capacity | 1000 W | | Amplifier Power Rating | LF:
700 W
HF:
300 W | | | | Frequency Response | 45 Hz to 20 kHz | | Input Sensitivity | 0 to -36 dBu | | Max Input Level | 18 dBu | | Gain Range | Up to +36 dB | | I/O Impedance | Input:
14 kOhms | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
1 x XLR Balanced Line Output | | USB | 1 x USB Type-A (USB 3.0, Wireless Audio) | | Wireless Audio | Proprietary | | Wireless Range | 262.5' / 80 m | | | | Crossover | 2.2 kHz | | EQ | HF Shelf:
±15 dB at 12 kHz
LF Shelf:
±15 dB at 80 Hz | | Dynamic Processing | Optical Limiter | | | | AC Input Power | 120 VAC, 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 110 W (Max) | | | | Dimensions | 28.1 x 16.8 x 12.3" / 713.0 x 427.0 x 313.0 mm | | Weight | 38.9 lb / 17.7 kg | | | | Package Weight | 46.2 lb | | Box Dimensions (LxWxH) | 32.25 x 20.25 x 16.25" |
