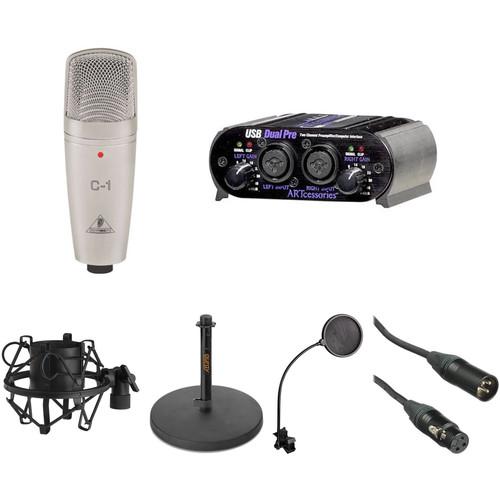

User Manual for Behringer C1 and ART USB Dual Pre Vocal and Podcasting Kit

• Product category: Large Diaphragm Condenser Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others Large Diaphragm Condenser

Product description

• Behringer C-1 Studio Condenser Microphone The C-1 Studio Condenser Microphone from Behringer offers a cardioid pickup pattern for maximum sound source separation and feedback rejection. This low noise microphone is suitable for a wide range of recording scenarios, including project, professional, and home studio applications. There is a pressure gradient transducer and a shock-mounted large diaphragm capsule for open, transparent sound with high-quality transient response. It is constructed of a die-cast metal body for durability and features an LED light to indicate when the microphone is receiving phantom power. The C-1 includes a swivel mount and custom case.
  Cardioid Polar Pattern
  • The cardioid polar pattern minimizes off-axis noise and feedback.
  Wide Frequency Response
  • The C-1 features a 40 Hz to 20 kHz frequency response for accurate reproduction of vocals and instruments.
  Condenser Element
  • The sensitive condenser element captures signal accurately and with low noise.
  UPC: 689076149112
• ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps The USB Dual Pre from ART is a combination portable preamplifier and computer interface, housed in a compact rugged case. The unit is suitable for a wide variety of applications including remote field work to desktop/studio recording. The 2 input channels can accept either a microphone or line input and provide up to 48dB of gain. Phantom power is available for use with condenser microphones even when running from the USB bus or any of the other powering options. Those include using an optional external power supply, or an optional internal 9V battery. When running off the battery, operational hours are in excess of 50 hours with phantom power off. A stereo mini headphone jack is provided for monitoring and the rear level and monitor mix controls allow for latency-free recording. The monitor mix is also routed to the main outputs. The USB interface is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record.
  • Portable USB interface with dual microphone preamps
  • Low-noise, fully balanced XLR and 1/4" TRS combi inputs
  • Preamps provide up to 48dB of gain and feature independent gain controls
  • Built-in, low-noise phantom power supply
  • Signal present and clip LED indicators
  • Latency free monitoring with mix and level controls
  • Includes Audacity recording and production software
  • 3-way powering options - via the USB bus, an optional external power supply, or with an optional 9V battery
  UPC: 804040201904
• Auray SHM-UC2 Clamping Suspension Shockmount for Side-Address Microphones Designed for use with side-address cylindrical microphones, the SHM-UC2 Clamping Suspension Shockmount for Side-Address Microphones from Auray helps prevent shock and vibration that often travel through your stand from affecting your mic's performance. It features all-metal construction with a felt-lined cylinder that protects your mic's finish in addition to providing added noise elimination. The shockmount has a 5/8"-27 thread for compatibility with most mic stands, and includes a 3/8"-16 adapter for further compatibility.
  Eliminates Noise
  • The SHM-UC2 prevents unwanted vibrations that can travel through a mic stand and affect the performance of the microphone
  Clamp-Style Holder
  • The clamp-style holder fits many large studio condenser microphones and maintains a firm and secure hold on the microphone
  Metal 5/8"-27 Mic Stand Adapter
  • A metal mic stand adapter assures a durable and secure connection between the shock mount and mic stand. The standard 5/8"-27 thread fits any mic stand with a 5/8" stud
  Felt-Lined Cylinder
  • The felt-lined cylinder adds to the attenuation of unwanted vibrations from external noise, and protects the microphone's finish
  Locking Knob
  • The angle of the shock mount can be locked into position with the locking knob
  All-Metal Construction
  • The SSM-UC2 is a durable studio accessory that is built to last. The all-metal construction assures microphone security
  Heavy-Duty Elastic Band
  • The heavy-duty elastic bands suspend the microphone in the center of the basket, and prevent shocks and vibrations that can radiate through the mic stand from reaching the microphone
  3/8"-16 Adapter
  • A 5/8"-27 to 3/8"-16 threaded adapter is included for added compatibility
  UPC: 847628585232
• Auray TT-6110-BL Desktop Microphone Stand (Black) The black TT-6110-BL Desktop Microphone Stand from Auray features a round-cast metal base and has a fixed 5.5" height. It can be used for podcasting, voice-overs, video conferencing, and other home- or project-studio applications. With five non-slip rubber feet to ensure that the stand doesn't move or shift on smooth or polished surfaces, the desktop microphone stand is designed with a thicker shaft to support heavier condenser microphones. Built with a 5/8"-27 threaded mount, it is compatible with most shockmounts and microphone clips.
  Compact
  • The compact mic stand is ideal for tabletop audio applications such as podcasts, voice-overs, and video conferences—this mic stand is small enough to take with you to remote locations and easily fits into a gear bag or briefcase
  Standard 5/8"-27 Mount
  • The microphone mount features a 5/8"-27 thread, which is compatible with most microphone clips and shockmounts
  Fixed-Height Shaft
  • At a fixed height of 5.5", the mic shaft is the ideal height for desktop applications, and is suitable to support heavy, studio condenser microphones
  Weighted Base and Non-Slip Rubber Feet
  • Built for stability, the round-cast metal base provides steadiness for a microphone and shockmount, and the five non-slip rubber feet ensure the mic stand won't move, even when placed on smooth, highly-polished surfaces
  UPC: 847628598409
• Auray PFSS-55 Pop Filter with Gooseneck The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267

• C-1 Studio Condenser Microphone dqvfuvfqvzcarcxseawxsuewbzcx
• Swivel Mount
• Custom Case
• Limited 10-Year Warranty

• ART - USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps

• Auray - SHM-UC2 Clamping Suspension Shockmount for Side-Address Microphones

• Auray - TT-6110-BL Desktop Microphone Stand (Black)

• Auray - PFSS-55 Pop Filter with Gooseneck

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black dqvfuvfqvzcarcxseawxsuewbzcx

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Behringer C-1 Studio Condenser Microphone

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.63" / 16.0 mm
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 20 kHz
  Maximum SPL	136 dB SPL
  THD	1%
  Impedance	100 Ohms
  Load Impedance	1000 Ohms
  Sensitivity	-33 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.5 µA
  Operating Voltage	36 to 52 V
  Length	7.09" / 180.0 mm
  Diameter	2.13" / 54.0 mm
  Weight	0.93 lb / 0.42 kg

  Box Dimensions (LxWxH)	12.05 x 5.2 x 3.4"

• ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	USB Type-B (USB 1.0)
  Analog I/O	2 x Combo XLR / 1/4" TRS Input 2 x 1/4" (6.3 mm) TRS Balanced Output 1 x 1/8" (3.5 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	20 Hz to 20 kHz +0/-1 dB
  THD+N	< 0.01%

  Sample Rates	44.1 and 48 kHz
  Bit Depth	16-Bit

  OS Compatibility	macOS 9.1 macOS Windows 2000 Windows XP Windows Vista
  Required Hardware	Available USB 1.1 Port

  Power Requirements	AC/DC Power Adapter (Not Included), USB Bus-Power
  AC/DC Power Adapter	9.5 to 12 V (Not Included)
  Battery Type	1 x 9V

  Box Dimensions (LxWxH)	9.3 x 6.2 x 3.7"

• Auray SHM-UC2 Clamping Suspension Shockmount for Side-Address Microphones

  Material	All-metal construction
  Thread Size	5/8"-27
  Dimensions (HxWxL)	3.0 x 4.0 x 4.5" (7.6 x 10.2 x 11.4 cm)
  Weight	0.4 lb (181.4 g)

  Box Dimensions (LxWxH)	4.6 x 4.6 x 3.6"

• Auray TT-6110-BL Desktop Microphone Stand (Black)

  Material of Construction	Steel
  Base Type	Round cast-metal base
  Thread Size	5/8"-27 thread for microphone mounts
  Base Diameter	6.0" (15.2 cm)
  Height Range	9" (22.9 cm) with base
  Weight	2.1 lb (0.95 kg)

  Box Dimensions (LxWxH)	7.3 x 7.15 x 1.8"

• Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"
