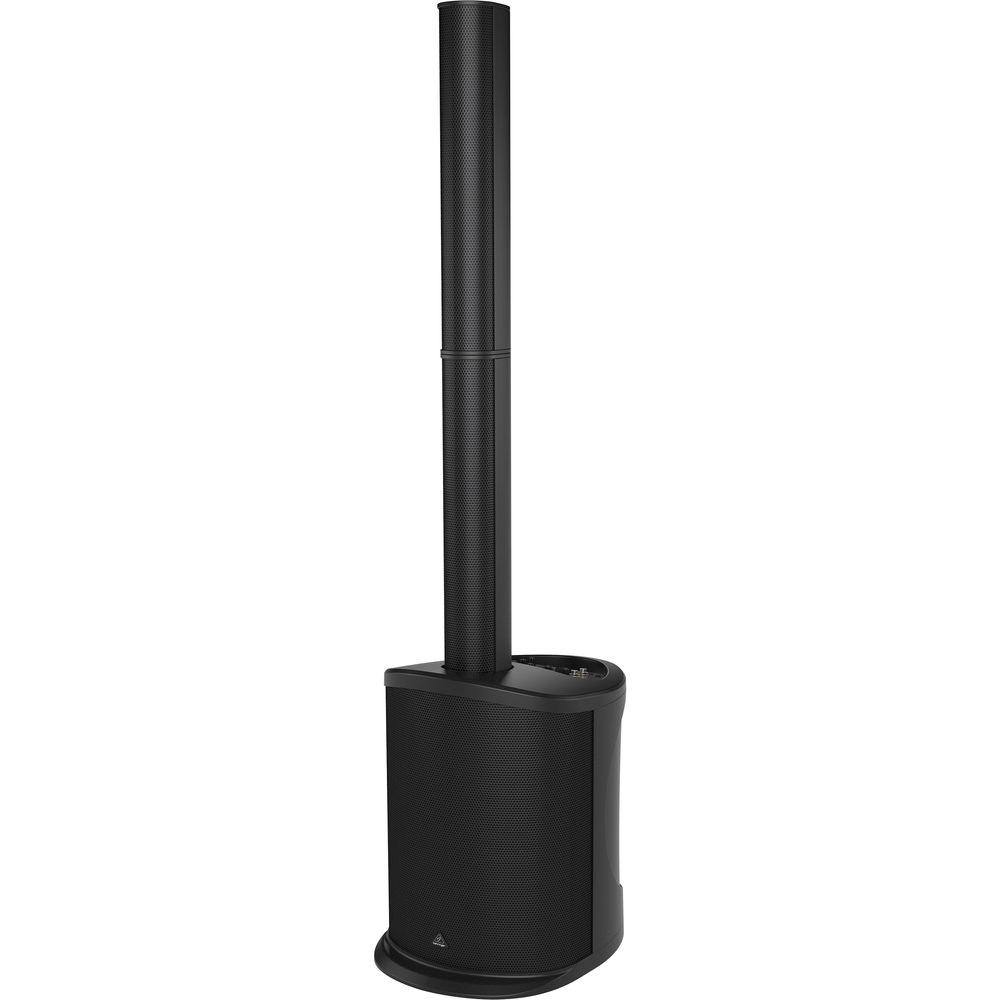

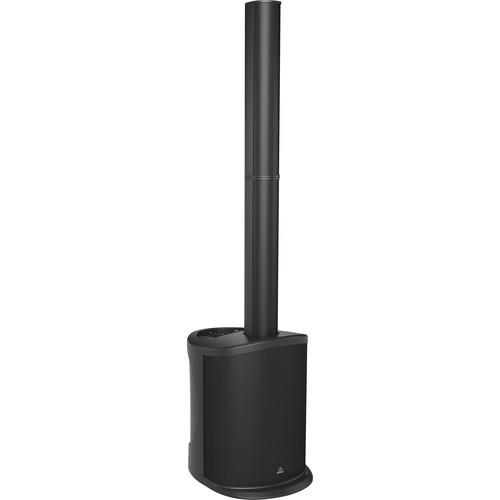

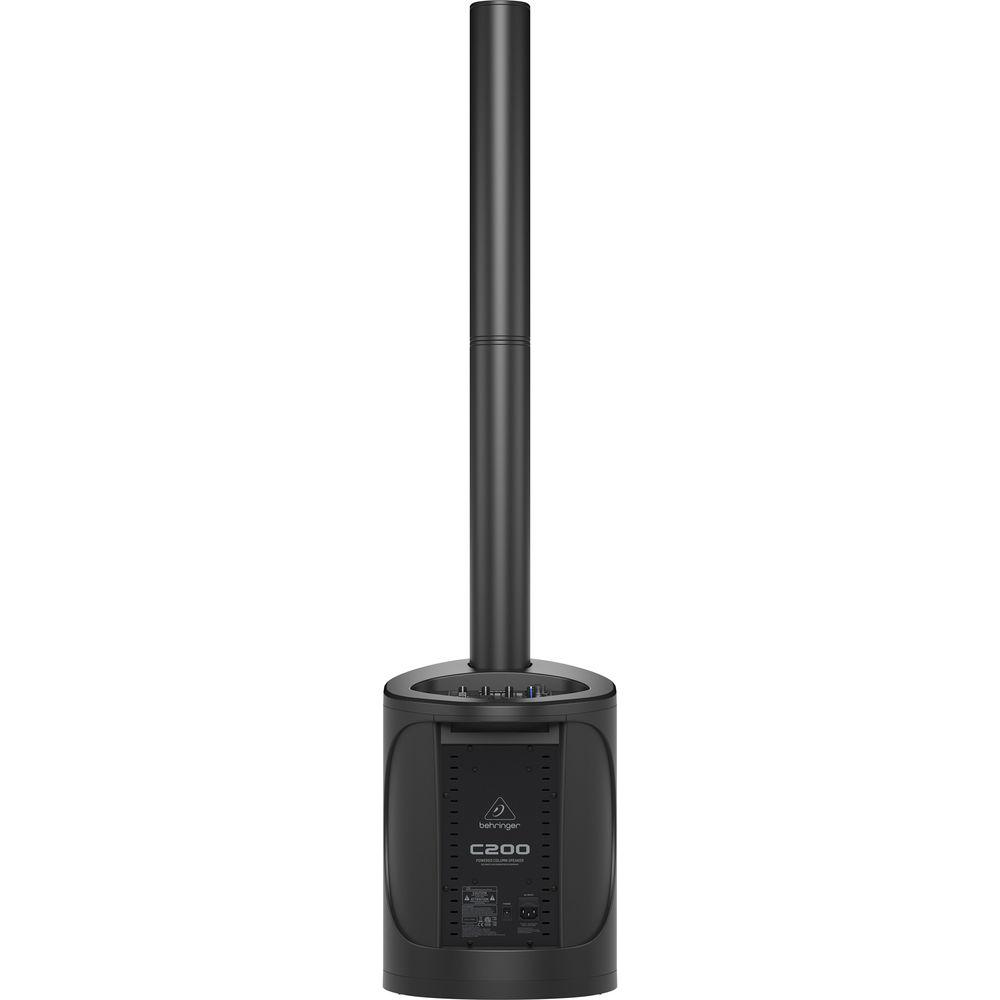

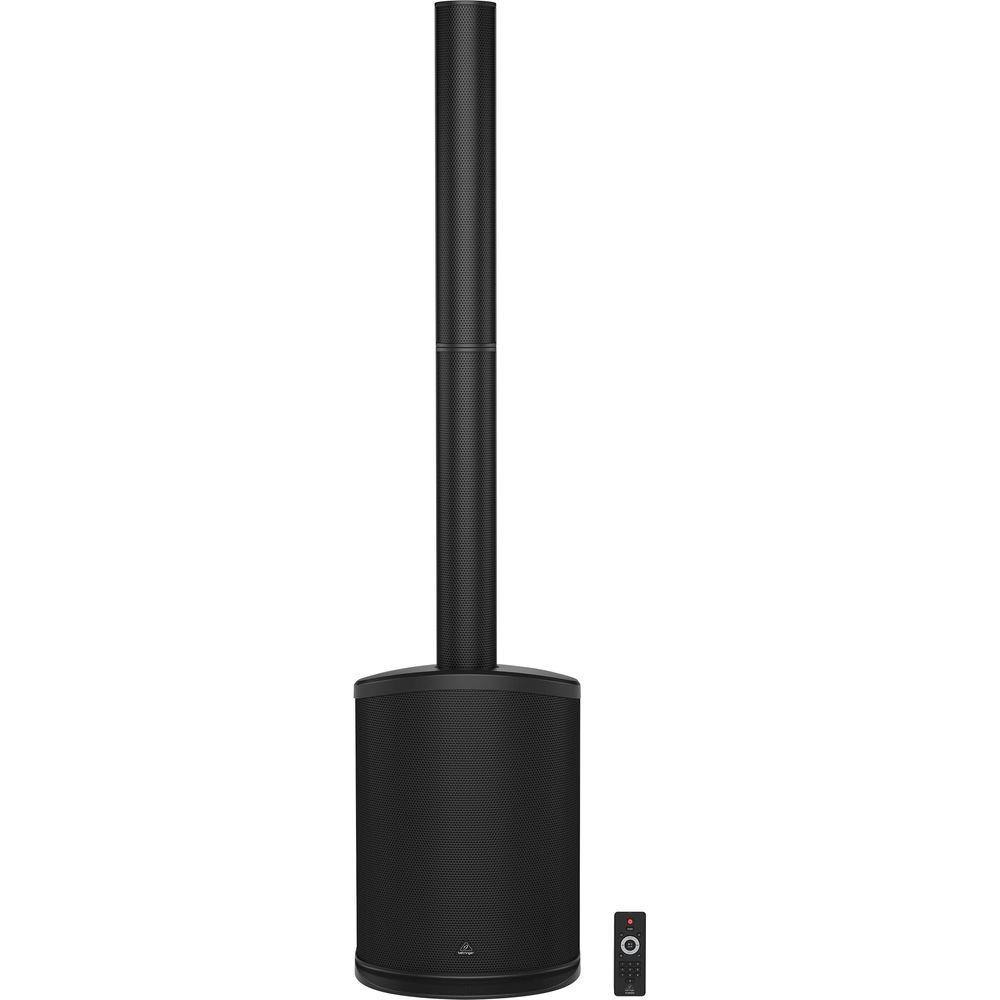

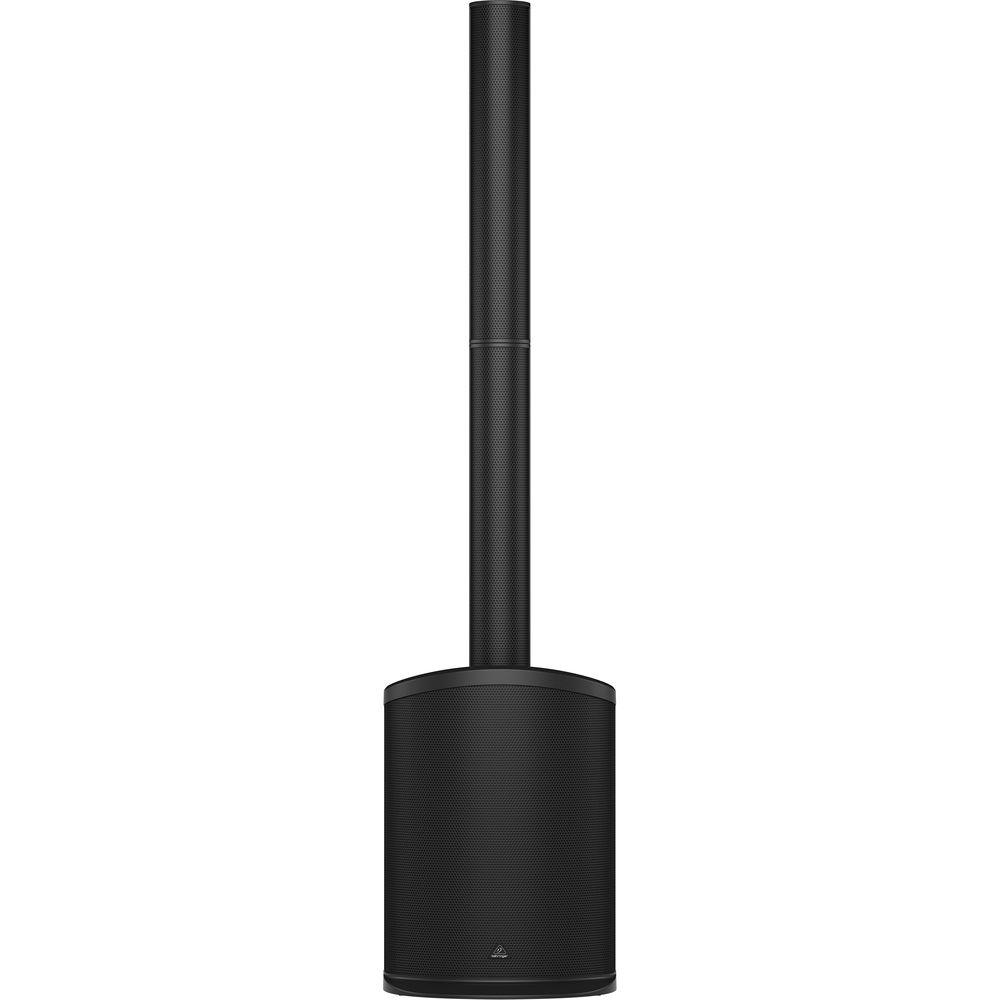

Behringer C200 Bluetooth-Enabled 200W Powered Column

User Manual for Behringer C200 Bluetooth-Enabled 200W Powered Column PA System with LED Lighting

• Product category: Portable PA Systems Behringer
• Brand: Behringer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Behringer Portable PA Systems

Product description

• Modular column loudspeaker system for portable PA applications in small- to medium-sized performance venues, houses of worship, boardroom presentations, clubs, and more

• Wide sound dispersion provides consistent sound to the audience and performers

• 200 watts of Class-D power via a bi-amp design with an electronic crossover

• 8" high-excursion, low-frequency driver for strong sub-bass response

• Four 2.5" drivers with edge-wound copper voice coils for extended high-frequency reproduction

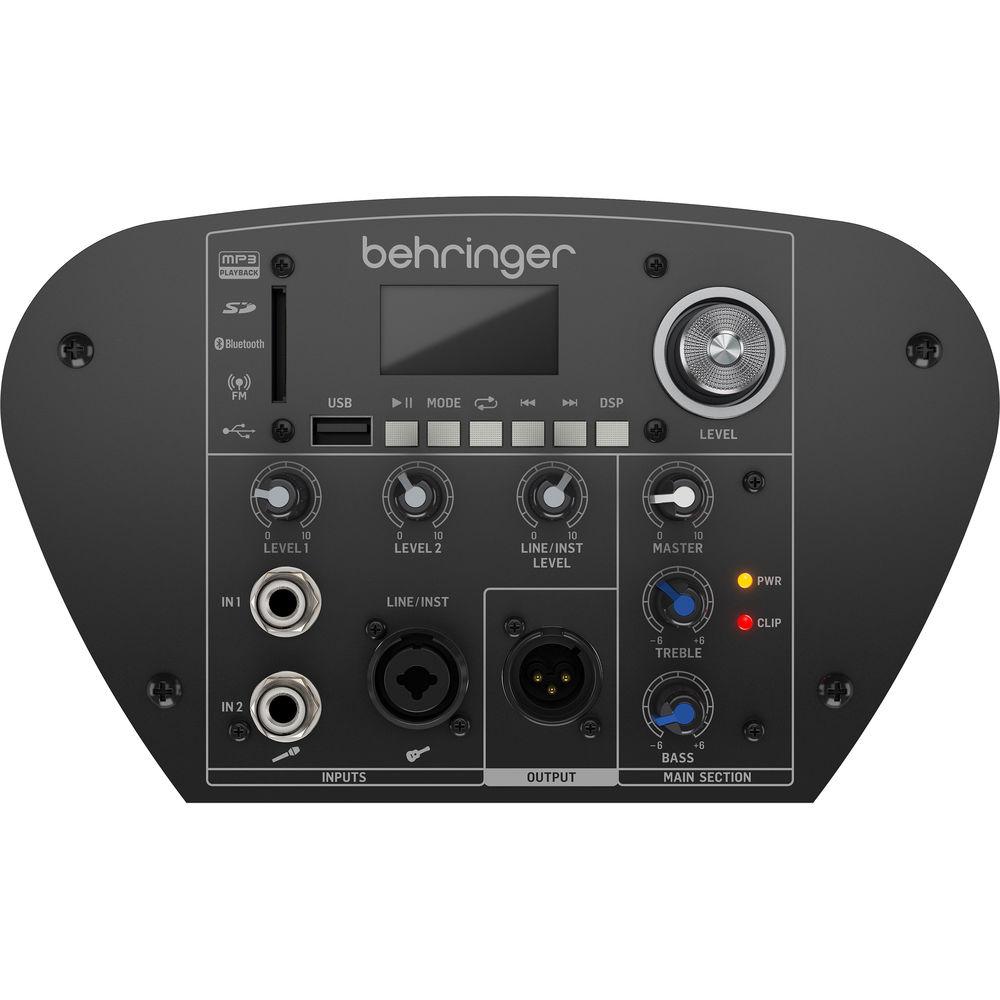

• Three-channel mixer with individual gain controls and 2-band master EQ

• Internal DSP with 3-band EQ, echo, and dedicated presets for multiple music genres

• Built-in Bluetooth receiver allows wireless audio streaming from your mobile device

• Integrated MP3 player supports playback of audio files via USB sticks and SD/MMC cards

• Built-in FM radio

• Intuitive operations via LCD display and onboard controls

• Multicolor LEDs dance in time to the music and sweep through a palette of patterns and colors

• Precision-lock system eliminates speaker cables and stands

• Integrated protective perforated steel mesh grilles

• Integral ergonomic carrying handle for ease of portability

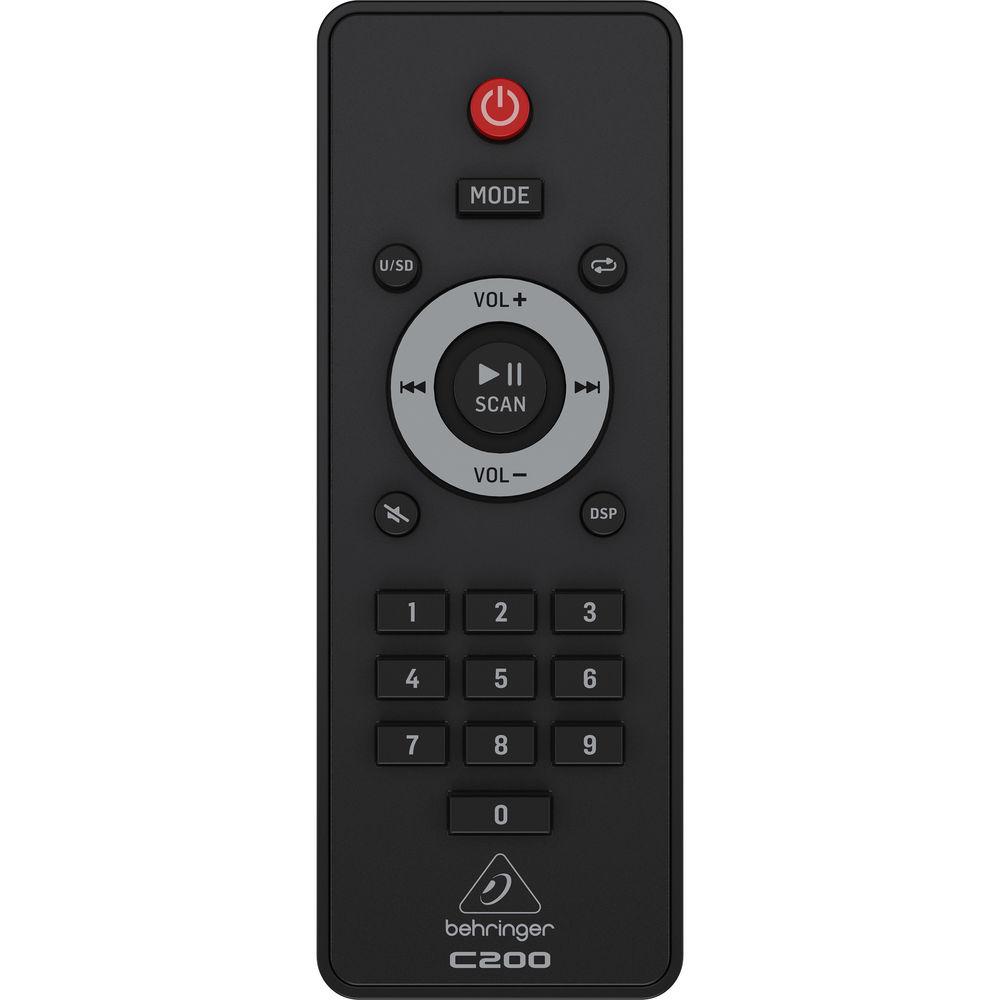

• Includes remote control for convenient command of the C200's functions at a distance

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Behringer C200 Specs

Amplifier Output Power	200 W
Amplifier Type	Class-D
LF Driver	1 x 8" / 20 cm Woofer
HF Driver	4 x 2.5" / 6.4 cm Drivers
Inputs	1 x XLR-1/4" TRS Combo Jack (Balanced) 2 x 1/4" TRS (Balanced)
Outputs	1 x 3-Pin XLR (Balanced)
USB	1 x USB Type-A
Media Card Slots	1 x SD/MMC
Maximum Card Capacity	32 GB
File System Support	FAT 16 and FAT 32
Audio File Formats Supported	MP3 (DBR and VBR)
Bit Rates	32 to 320 kb/s
Sample Rates	32 kHz, 44.1 kHz, and 48 kHz
Bluetooth Version	4.2
Bluetooth Frequency	2402 to 2480 MHz (Channel 79)
Bluetooth Profile Support	A2DP 1.2
Bluetooth Transmitter Power	4 dBm
Bluetooth Range	Up to 49.2' / 15 m (Without Interference)
Input Impedance	Line (Balanced): 20 kOhms Line (Unbalanced): 10 kOhms Mic (Balanced): 10 kOhms Mic (Unbalanced): 4.7 kOhms
Output Impedance	Line (Balanced): 470 Ohms Line (Unbalanced): 220 Ohms
Frequency Response	55 Hz to 17 kHz (-10 dB)
Maximum SPL	106 dB SPL at 1 m
THD + N	< 1%
Limiter	Optical
