User Manual for Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel Dynamics Processor Click to enlarge the picture
Contents of the user manual for the Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel
- Product category: Dynamics Processors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Dynamics Processors
 |
User manual for the Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

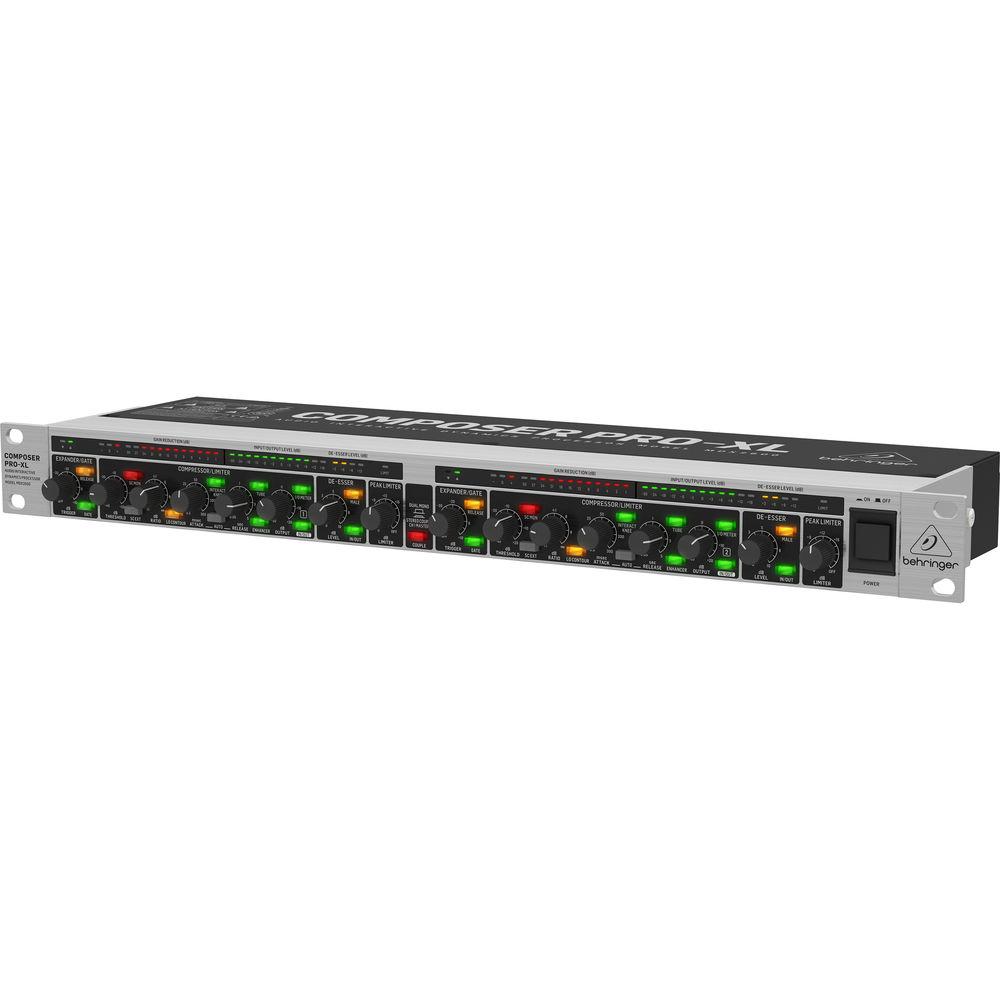

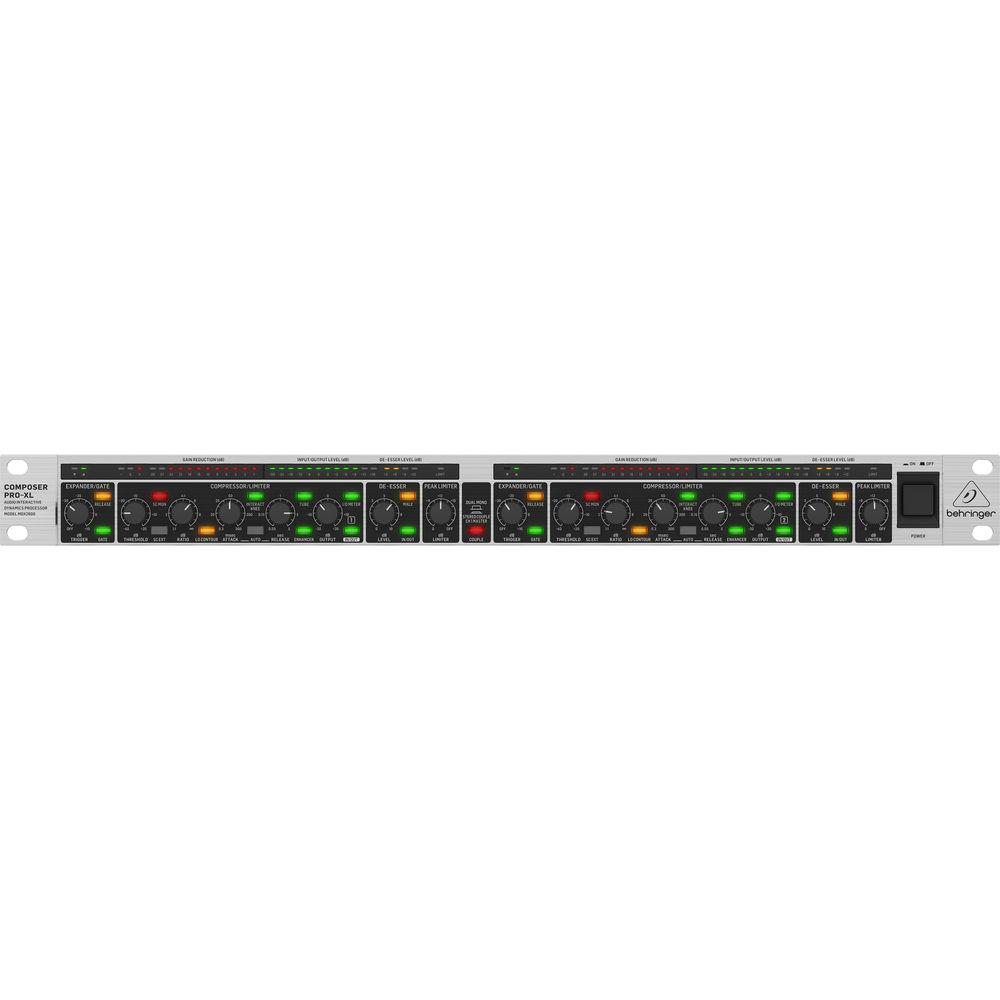

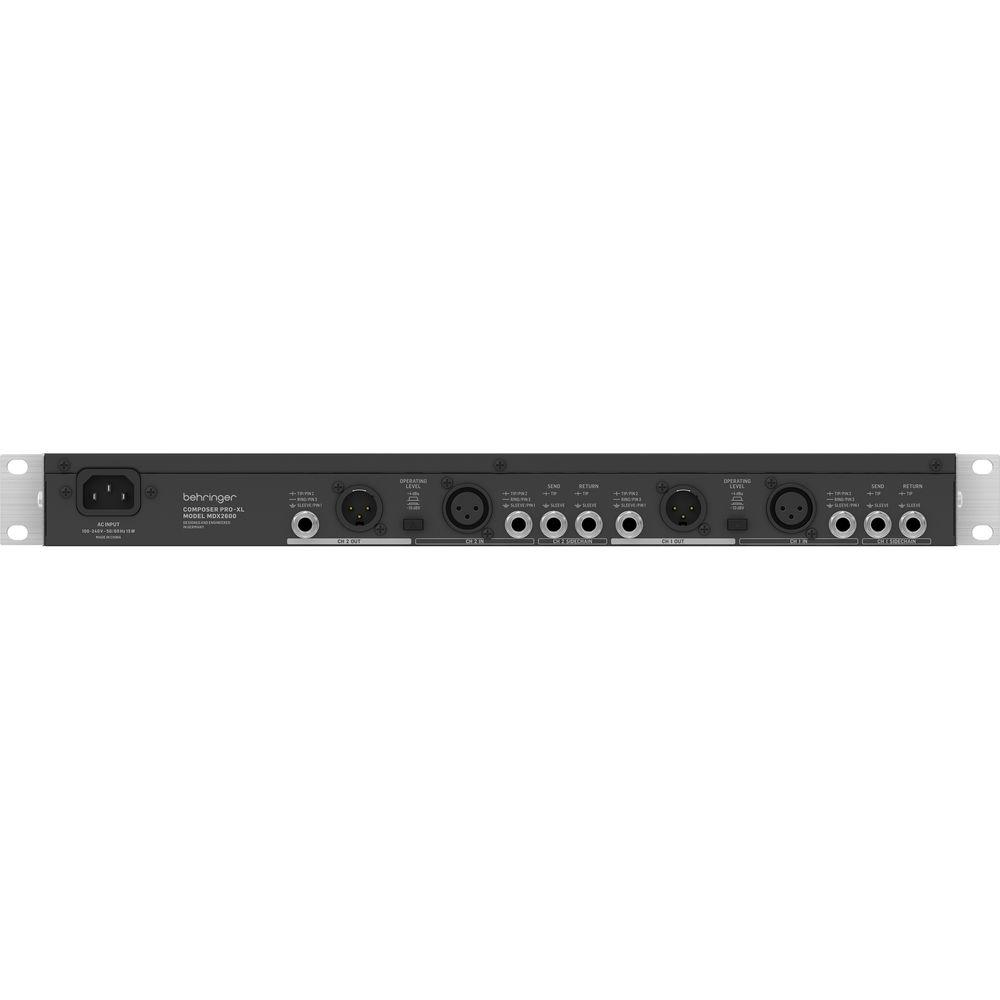

Product description The Behringer COMPOSER PRO-XL MDX2600 V2 is a 1 RU dual-channel dynamics processor offering an array of switchable circuits and modes optimized for versatile mixing enhancement of instruments and vocals in studios and live stage applications. Link the channels when dealing with stereo sources such as drum overheads, or configure them independently for separate inputs such as lead and backing vocals. Each channel boasts an expander/gate, a compressor, two-stage peak limiting, an integrated de-esser, a dynamic enhancer, and a tube simulator. Adjust attack and release times manually, or set them to auto mode for easier setup. Variable controls are also provided for threshold, ratio, output gain, de-esser level, and limiter level. The rear panel presents balanced XLR and 1/4" I/O, a dedicated switch for +4 dBu or -10 dBV operating levels, and 1/4" sidechain sends and returns, which allow processing of the internal sidechain through outboard gear, or routing an external sidechain into the MDX2600 V2. Additional sidechain functions include a listen mode and a switchable high-pass filter for fine-tuning your trigger signal. Visually monitor input/output levels and gain reduction via 12-segment LED meters, de-esser level suppression via four-segment LEDs, and signal-to-threshold indication, and limiter activity. - Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
- Integrated de-esser with switchable male/female voice mode removes excessive sibilance from vocal tracks
- IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
- Switchable dynamic enhancer boosts treble only during compression for lively audio even during heavy gain reduction
- IRC (Interactive Ratio Control) expander/gate circuitry for transparent noise suppression
- Switchable tube simulation for the extra warmth of classic tube circuitry
- Automatic or manual adjustment of attack and release times
- Switchable sidechain high-pass filter prevents pumping due to extreme low-frequency compression
- Stereo couple function with independent output level settings
- Switchable sidechain input with monitor function
- Separate 12-segment LED meters for input/output levels and gain reduction
- Dedicated "traffic light" threshold and de-esser level displays
- Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
- Relay-controlled hard bypass switch with auto-bypass function in case of power failure
- Internal switch-mode power supply for noise-free audio and low power consumption
- Occupies just 1 RU of rack space
UPC: 653341312433 In the Box Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel Dynamics Processor Limited 1-Year Warranty Extendable to 3 Years upon Online Registration within 90 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer COMPOSER PRO-XL MDX2600 V2 Dual-Channel Dynamics Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer MDX2600V2 Specs | Function | Expander/Gate, Compressor, Peak Limiter, De-Esser, Dynamic Enhancer, and Tube Simulator | | Number of Channels | 2 | | Inputs | 2 x 3-Pin XLR Female (Balanced)
2 x 1/4" TRS (Balanced) | | Outputs | 2 x 3-Pin XLR Male (Balanced)
2 x 1/4" TRS (Balanced) | | Sidechain | 2 x 1/4" TS Sends (Unbalanced)
2 x 1/4" TS Returns (Unbalanced) | | Input Impedance | Balanced at +4 dBu Operating Level: 50 kOhms
Unbalanced at +4 dBu Operating Level: 50 kOhms
Balanced at -10 dBV Operating Level: 50 kOhms
Unbalanced at -10 dBV Operating Level: 100 kOhms
Sidechain: 10 kOhms | | Output Impedance | Balanced: 100 Ohms
Unbalanced: 50 Ohms
Sidechain: 50 Ohms | | Maximum Input Level | Audio: +22 dBu
Sidechain: +20 dBu | | CMRR | Typically 60 dB at 1 kHz | | Compression Threshold | -40 to +20 dB | | Compression Ratio | 1:1 to Infinity:1 | | Attack Time | Compressor (Manual): 0.3 ms per 20 dB to 300 ms per 20 dB
Compressor (Auto): Typically 15 ms for 10 dB, 5 ms for 20 dB, 3 ms for 30 dB
Gate: < 1 ms per 50 dB (Program Dependent)
Level 1 Limiter: "Zero"
Level 2 Limiter: Typically < 5 ms (Program Dependent) | | Release Time | Compressor (Manual): 0.05 Sec per 20 dB to 5 Sec per 20 dB
Compressor (Auto): Typically 125 dB/Sec (Program Dependent)
Gate (Slow): 100 ms per 1 dB
Gate (Fast): 100 ms per 100 dB
Level 1 Limiter: "Zero"
Level 2 Limiter: Typically 20 dB per Sec (Program Dependent) | | Gate Threshold | Off to +10 dB | | Gate Ratio | 1:1 to 1:8 | | Maximum Output Level | Audio: +21 dBu (Balanced/Unbalanced)
Sidechain: +21 dBu | | Make-up Gain | Compressor: -20 to +20 dB | | Filter Settings | Dynamic Enhancer: 6 dB/Octave High-Pass Filter at 2.5 kHz
De-Esser: Program-Dependent Bandwidth at 8.6 kHz (Female) or 7.5 kHz (Male) | | Gain | Dynamic Enhancer: Up to 28 dB of Boost at 7.5 kHz
De-Esser: Up to 15 dB of Level Reduction | | Frequency Response | 10 Hz to 70 kHz (+0 dB, -3 dB) | | Signal-to-Noise Ratio (SNR) | 115 dB (Unweighted) | | Total Harmonic Distortion (THD) | 0.02% Typical at +4 dBu Operating Level, 1 kHz, Unity Gain | | Crosstalk | -90 dB at 1 kHz | | Power Requirement | 100 to 240 VAC, 50/60 Hz, 15 W | | Dimensions (W x H x D) | 19.0 x 1.7 x 5.9" / 48.3 x 4.4 x 14.9 cm | | Weight | 3.7 lb / 1.7 kg |
