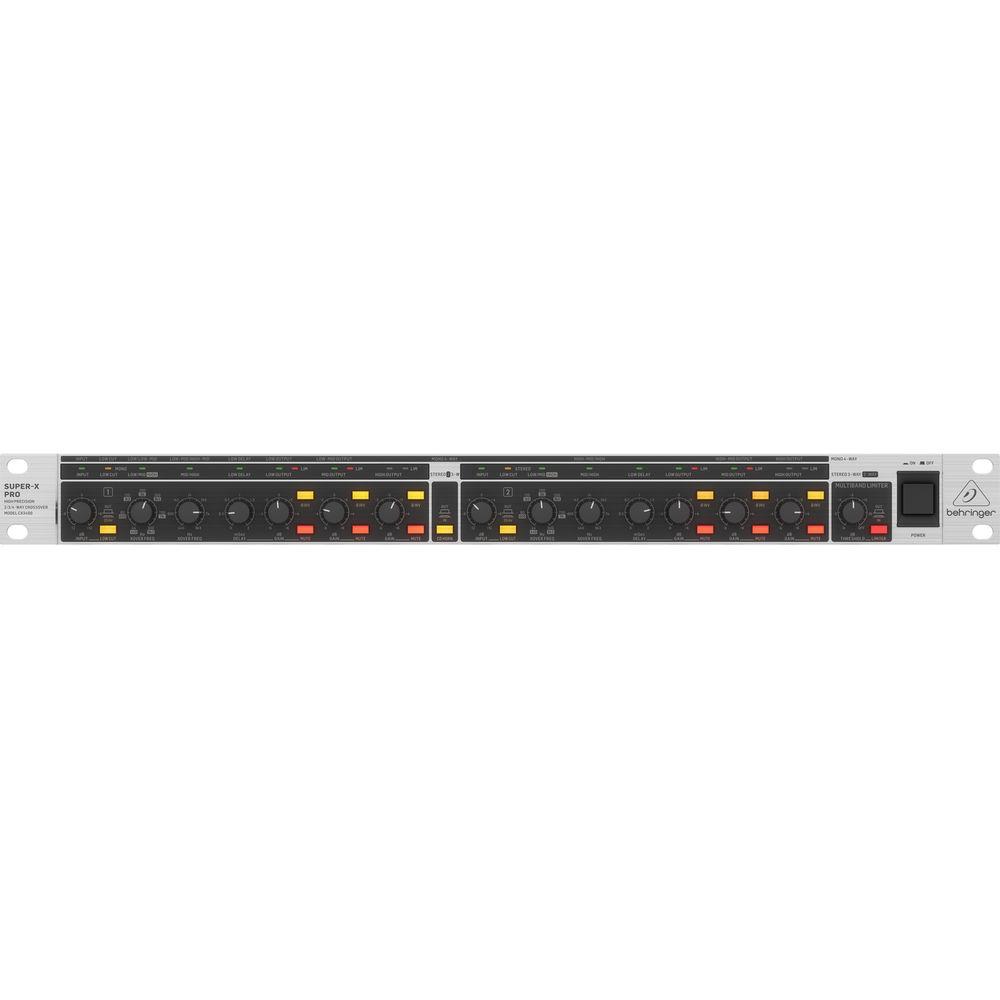

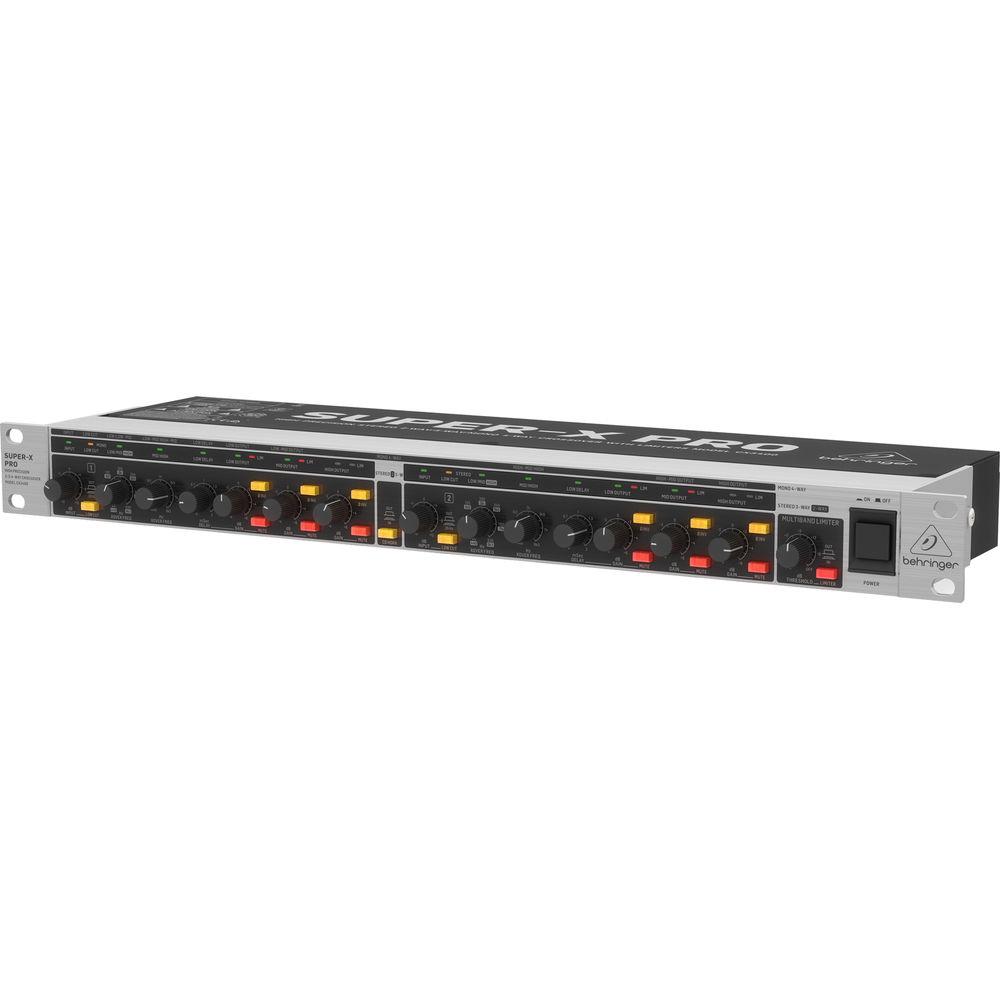

User Manual for Behringer CX-3400 V2 Super-X Pro Crossover Click to enlarge the picture
Contents of the user manual for the Behringer CX-3400 V2 Super-X Pro Crossover
- Product category: Crossovers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Crossovers
 |
User manual for the Behringer CX-3400 V2 Super-X Pro Crossover contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The CX-3400 V2 Super-X Pro Crossover from Behringer is a stereo 2-way/3-way and mono 4-way crossover that features limiters, time delay, high-frequency horn equalization, and a mono "Low Sum" output, which is ideal for subwoofer applications. It can be used to provide high-precision audio frequency separation in multiple speaker setups for sound reinforcement systems.The CX3400 V2 provides three modes of operation: 2-way stereo, for left and right lows (woofers) and highs (tweeters); and 3-way stereo, for left and right lows, mids, and highs; and 4-way mono, for lows, low-mids, high-mids, and highs. The front panel is equipped with an easy to read LED matrix, so you can see at a glance which modes have been selected and which controls are active.Furthermore, the CX3400 V2 includes a switchable pre-EQ for CD horns that ensures a flat-frequency response before equalization is applied. This raises the signal gain by 3 dB at 3.5 kHz, increases a 6 dB/octave up to 22.5 kHz, and provides consistent dispersion over the entire CD horn frequency range.In stereo mode, the CX3400 V2 can be switched to "mono bass" mode. The LF signals in the left and right channels are summed together and then routed to the channel 1 low-output connector. This connector can be used to drive your active subwoofers, passive subwoofer power amplifiers, or lighting controllers. The low-sum output is presented in mono, since people perceive extremely low-bass frequencies as being omnidirectional. - Professional stereo 2-way/3-way/mono 4-way crossover featuring state-of-the-art Linkwitz-Riley filters with 24 dB/octave
- Individual limiters on each output for optimal loudspeaker protection
- Adjustable time delay for phase alignment between drivers
- CD horn equalization for constant directivity horn compensation
- Absolutely flat summed amplitude response, zero phase difference
- "Low Sum" function provides mono output for subwoofer operation
- Individual output gain controls for all bands
- Individual output mute switches for easy band adjustment
- Individual phase reverse switches for instant phase correction
- Switchable 25 Hz low-cut filter on each input for low-frequency driver protection
- Servo-balanced and gold-plated XLR connectors for all inputs and outputs
- Ultrahigh precision potentiometers for ultimate accuracy and repeatability
- Illuminated switches for secure operation in dark stage environments
- Internal switch-mode power supply (100 to 240 VAC) for noise-free audio and low power consumption
UPC: 653341311030 In the Box Behringer CX-3400 V2 Super-X Pro Crossover AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer CX-3400 V2 Super-X Pro Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer CX3400V2 Specs | Inputs | 2 x XLR | | Outputs | 2 x XLR high-output connectors
2 x XLR low-output (LF sum) connectors | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 20.8 x 9.8 x 4.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
