User Manual for Behringer CX2310 V2 - SUPER-X PRO Stereo 2-Way Mono 3-Way Crossover with Subwoofer Output Click to enlarge the picture
Contents of the user manual for the Behringer CX2310 V2 - SUPER-X PRO
- Product category: Crossovers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Crossovers
 |
User manual for the Behringer CX2310 V2 - SUPER-X PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

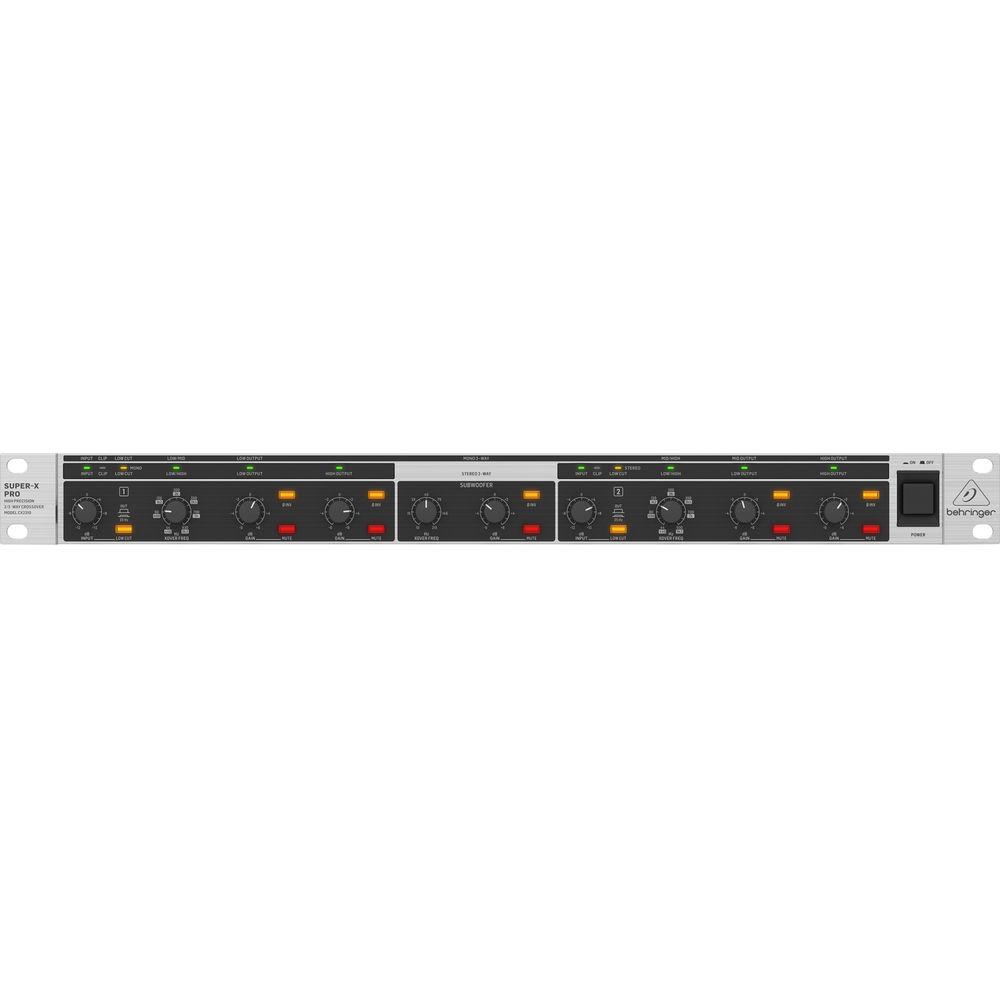

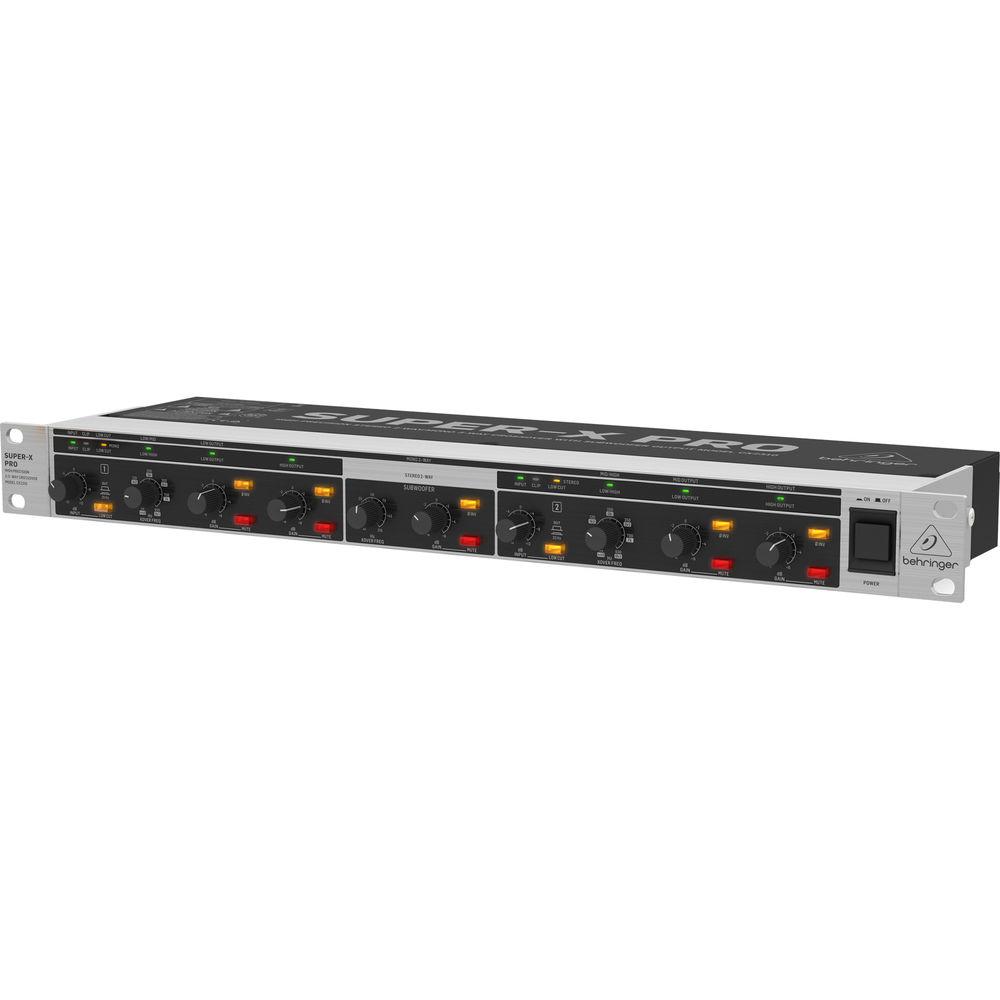

Product description The Behringer CX2310 V2 SUPER-X PRO is an active frequency crossover designed to protect and enhance any professional sound system. The two-way stereo or three-way mono operation ensures that bass content is tight and punchy, while high and midrange signals are rich, crisp and well defined. Not only does the CX2310 V2 provide accurate signal processing with protection for critical components, it also improves the overall efficiency of the sound system.
Each band features two 24 dB Linkwitz-Riley filters as well as individual polarity switches for each output that allow for quick and easy run-time compensation for various driver and horn types. Additionally, the CX2310 V2 adds a separately adjustable subwoofer output that provides an extra low-frequency band, effectively turning the unit into a stereo 2-way + mono 1-way, or a mono 4-way frequency crossover. The unit is housed in a single RU chassis and has illuminated switches for ease of use in dark environments. -
- Professional stereo 2-way/mono 3-way crossover featuring Linkwitz-Riley filters with 24 dB/octave
- Additional subwoofer output with independent frequency control
- Flat summed amplitude response, zero phase difference
- Individual output gain controls for all bands
- Individual output mute switches for easy band adjustment
- Individual phase reverse switches for instant phase correction
- Switchable 25 Hz low-cut filter on each input for low-frequency driver protection
- Servo-balanced and gold-plated XLR connectors for all inputs and outputs
- Precision potentiometers for accuracy and repeatability
- Illuminated switches for secure operation in dark stage environments
- Internal switch-mode power supply (100–240V) for noise-free audio and low power consumption
UPC: 653341311139 In the Box Behringer CX2310 V2 - SUPER-X PRO Stereo 2-Way/Mono 3-Way Crossover with Subwoofer Output Power Cord Limited 1-Year Warranty, Extended to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer CX2310 V2 - SUPER-X PRO Stereo 2-Way Mono 3-Way Crossover with Subwoofer Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer CX2310 V2 Specs | Audio Inputs | Type: XLR, electronically servo-balanced, HF filtered
Impedance: 52 kOhms balanced, 26 kOhms unbalanced
Max. Input Level: +22 dBu, balanced or unbalanced
CMRR: Typically >60 dB @ 1 kHz | | Audio Outputs | Type: XLR, electronically servo-balanced, HF filtered
Impedance: <100 Ohms, balanced or unbalanced
Max. Output Level: +21 dBu, balanced or unbalanced | | Performance | Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response: 10 Hz to 60 kHz, +0/-3 dB
Signal to Noise: +4 dBu, (20 Hz to 20 kHz, unweighted)
Low Output (Stereo / Mono): >97 dB
Mid Output (Mono): >98 dB
High Output: >95 dB stereo, >94 dB mono
Subwoofer Output (Stereo/Mono): >97 dB
Inter-Channel Crosstalk:
High to Low: <-90 dB
High to Mid: <-90 dB
Mid to Low: <-90 dB | | Crossover | Filter-Type: Linkwitz-Riley, 24 dB/octave, state-variable
Mono Mode X-Over Frequencies (x 1 / x 10)
Low/High (x 1 / x 10): 44 Hz to 930 Hz / 440 Hz to 9.3 kHz
Low/Mid (x 1 / x 10): 44 Hz to 930 Hz / 440 Hz to 9.3 kHz
Mid/High (x 1 / x 10): 44 Hz to 930 Hz / 440 Hz to 9.3 kHz
Stereo Mode X-Over Frequencies (x 1 / x 10)
Low / High (x 1 / x 10): 44 Hz to 930 Hz / 440 to 9.3 kHz
Subwoofer X-Over Frequencies: 10 Hz to 215 Hz (-3 dB) | | Low Cut Filters | Low Cut Filter Frequency: 25 Hz (-3 dB) 12 dB/octave | | Power | Switch-Mode Auto-Range Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 10 W
Mains Connection: Standard IEC connector | | Dimensions | 1.7 x 19.0 x 5.8" / 44.0 x 483.0 x 147.0 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.61 lb | | Box Dimensions (LxWxH) | 21.5 x 21.0 x 10.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
