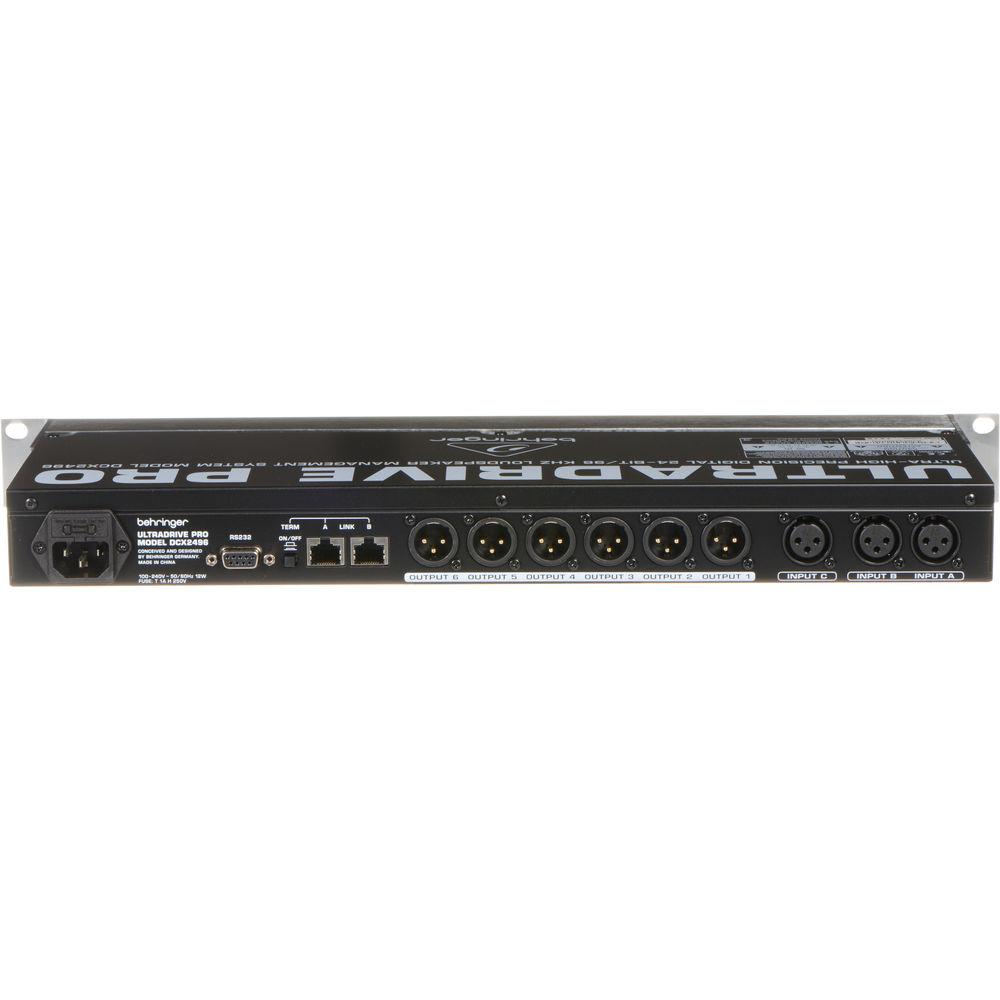

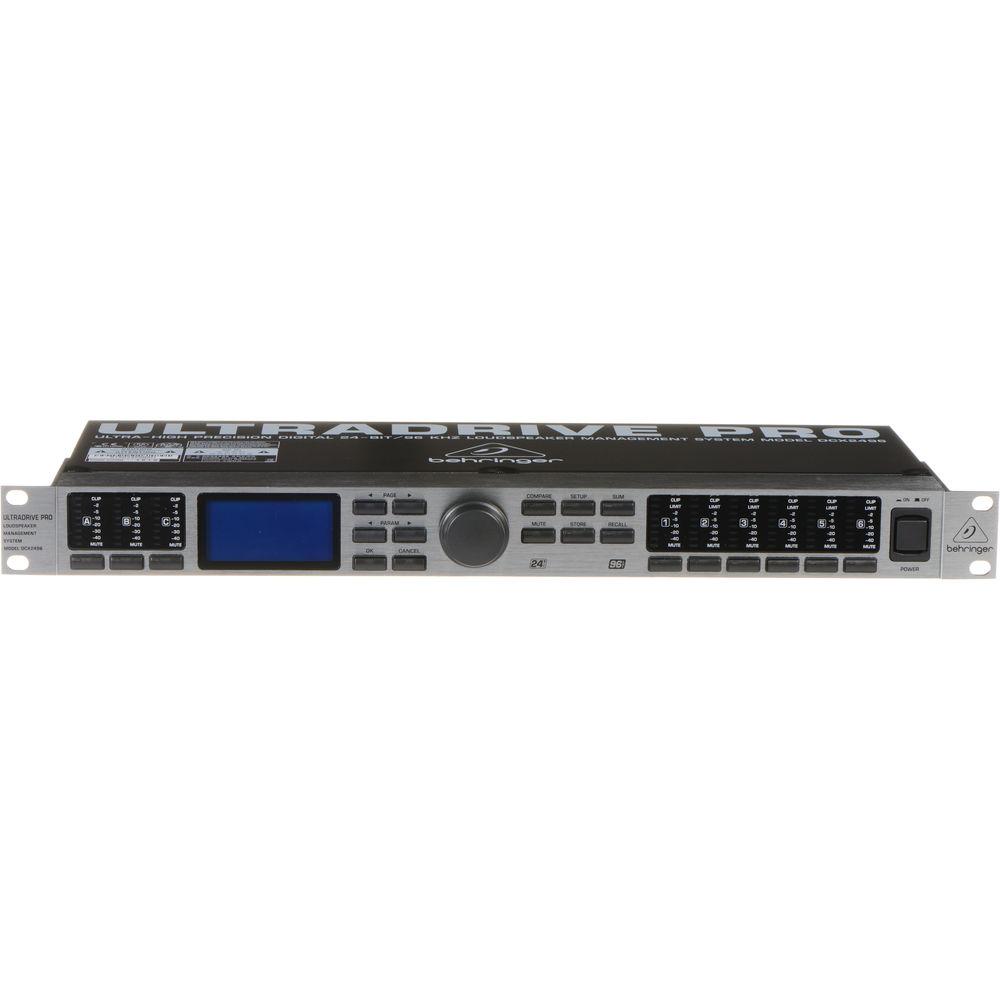

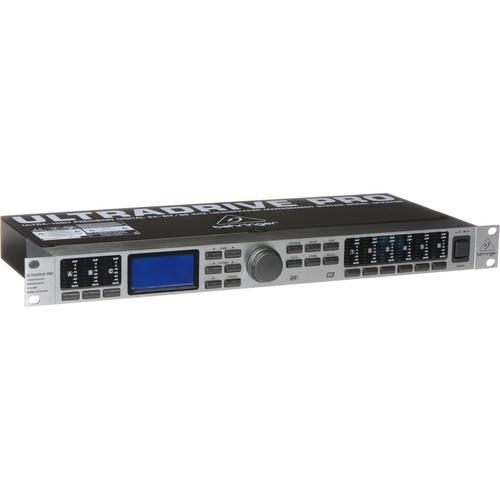

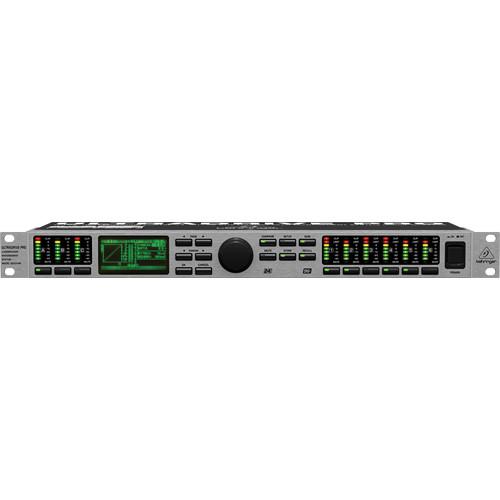

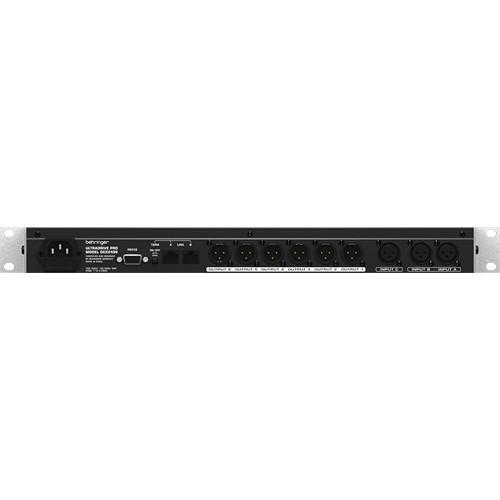

User Manual for Behringer DCX2496 ULTRADRIVE PRO - 24-Bit 96kHz Digital Loudspeaker Management System Click to enlarge the picture
Contents of the user manual for the Behringer DCX2496 ULTRADRIVE PRO - 24-Bit
- Product category: System Processors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer System Processors
 |
User manual for the Behringer DCX2496 ULTRADRIVE PRO - 24-Bit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The DCX2496 ULTRADRIVE PRO from Behringer is a digital loudspeaker management system, that provides excellent audio quality, along with a comprehensive feature list. It allows for precise set-up of multiple loudspeaker arrays, suitable for live sound, fixed installations that require control of loudspeaker systems, and other contractor-installed applications. Each of the three-inputs and six-outputs have fixed processing blocks, including gain, delay, EQ and dynamic EQ on the input channels, and gain, crossover, EQs, limiter and delays on the output side. One of the inputs can accept a stereo AES/EBU digital signal. An integrated sample rate converter assists in accepting various sample rates. Additionally, an internal input-sum signal is easily set-up. Four different mono and stereo output operating modes are available, all with individual crossover filter types with selectable roll-off characteristics. Input and output delays allow for time adjusting signals to compensate for ambient temperature changes or for adjusting arrival time differences for individual speaker clusters. EQs can be used for both musical enhancement or for level-dependent equalization. Brick-wall limiters guarantee speaker protection. Remote control of one or several units can be accomplished utilizing downloadable software for a Windows based computer. Set-ups can be saved to the software, or to an optional PCMCIA card for the ultimate in portability. Servo-balanced, gold-plated XLR connectors for all inputs and outputs guarantee excellent connectivity. - Three-input, six-output loudspeaker management system
- Four different mono- and stereo-output operating modes
- Individual crossover filter types including Butterworth, Bessel and Linkwitz-Riley, with selectable roll-off characteristics from 6dB to 48dB per octave
- Choice of high-, band- and low-pass filters for each input and output
- Dynamic EQ for level-dependent equalization and parametric EQ selectable for each channel
- "Zero" attack limiters on all output channels for optimal signal protection
- Automatic or manual-adjustable delays for all inputs and outputs allow for adjustment due to room temperature, phase and arrival time differences
- Link option via RS-485 network interface allows for linking multiple units for larger installation requirements
- Downloadable software enables single- or multiple-unit remote control utilizing a Windows based computer
- Sixty user-defined internal presets can bestored via software or on a PCMCIA card
- Internal universal power supply allows the unit to operate virtually anywhere
UPC: 696859305542 In the Box Behringer DCX2496 ULTRADRIVE PRO - 24-Bit/96kHz Digital Loudspeaker Management System AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer DCX2496 ULTRADRIVE PRO - 24-Bit 96kHz Digital Loudspeaker Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer DCX2496 Specs | Frequency Response | 10Hz to 35kHz, -1dB | | Dynamic Range | 109dB | | Input Connections | 3 x XLR | | Output Connections | 6 x XLR | | Input Impedance | 20kΩ @ 1kHz | | Output Impedance | 160Ω @ 1kHz | | Maximum Input Level | +22dBu | | Maximum Output Level | +22dBu | | Sample Rate | 32kHz to 96kHz | | RTA Mic Phantom Voltage | +15V | | Crosstalk (Main Outputs) | -100dB @ 10dBu In | | THD & Noise | 0.007% @ 0dBu In | | Dimensions | 19" x 8.5 x 1.75" (483 x 217 x 45mm) | | Weight | 6.6 lbs (3 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 18.11 x 8.661 x 3.465" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
