User Manual for Behringer DCX2496LE ULTRADRIVE 24-Bit 96kHz Digital Loudspeaker Management System Click to enlarge the picture
Contents of the user manual for the Behringer DCX2496LE ULTRADRIVE 24-Bit 96kHz Digital
- Product category: System Processors Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer System Processors
 |
User manual for the Behringer DCX2496LE ULTRADRIVE 24-Bit 96kHz Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

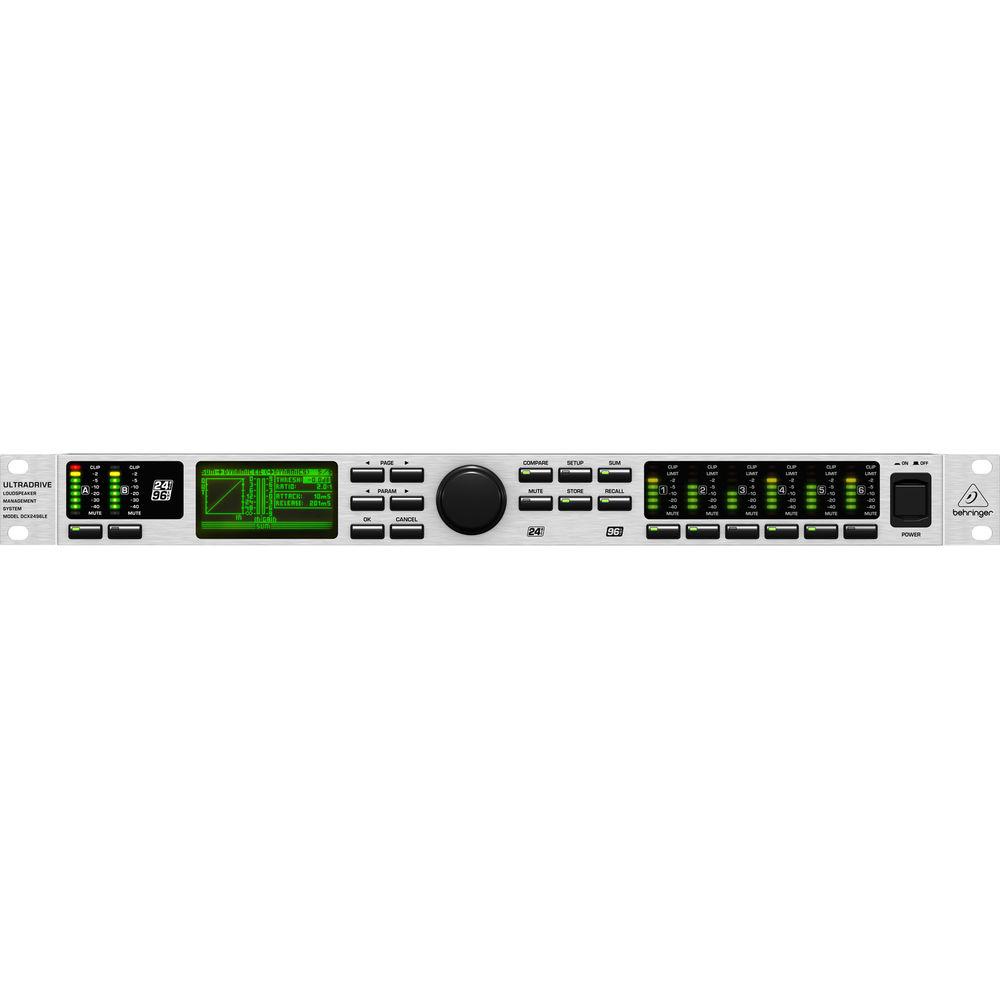

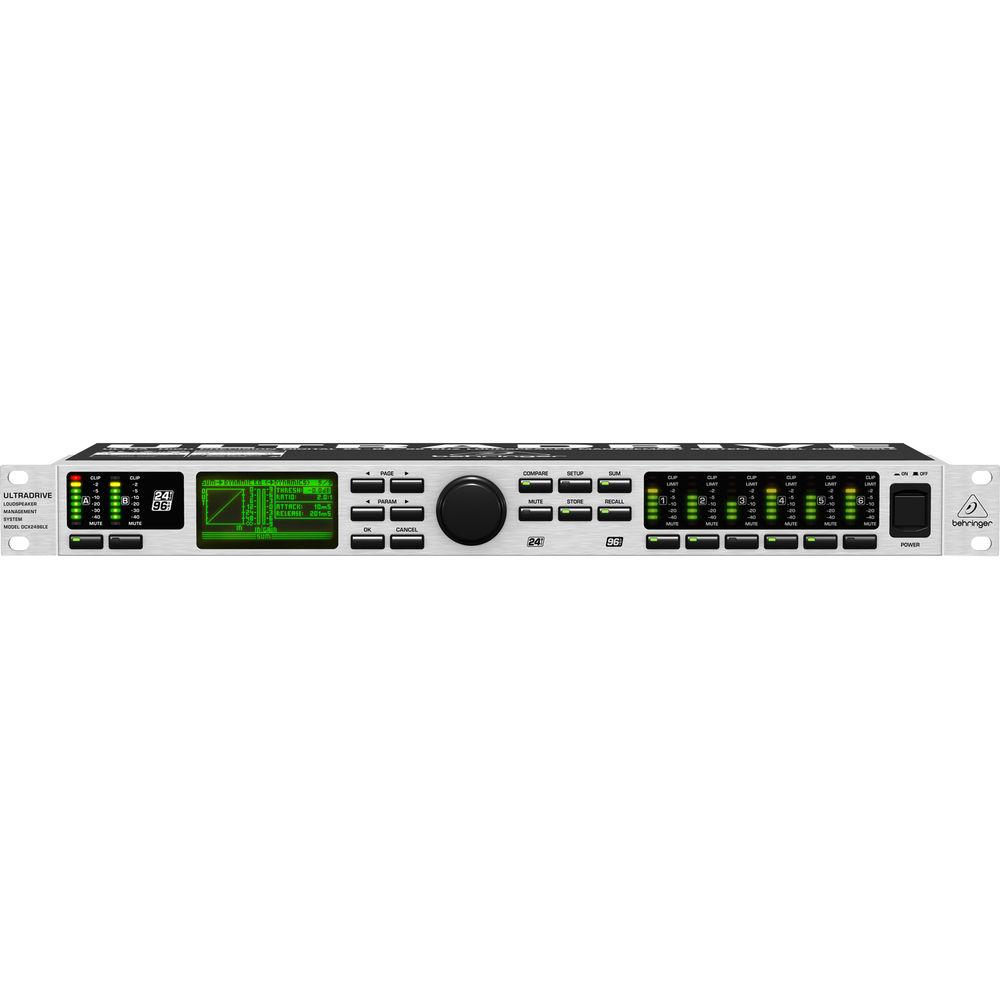

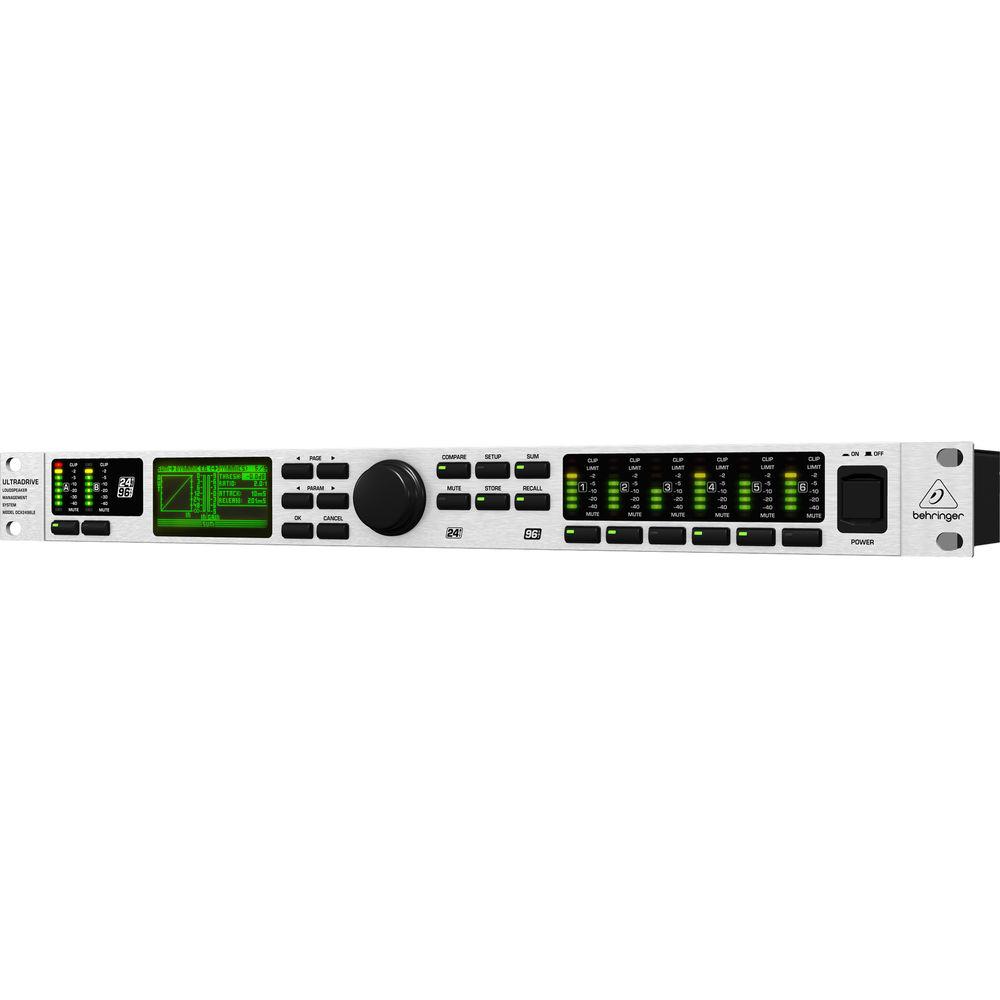

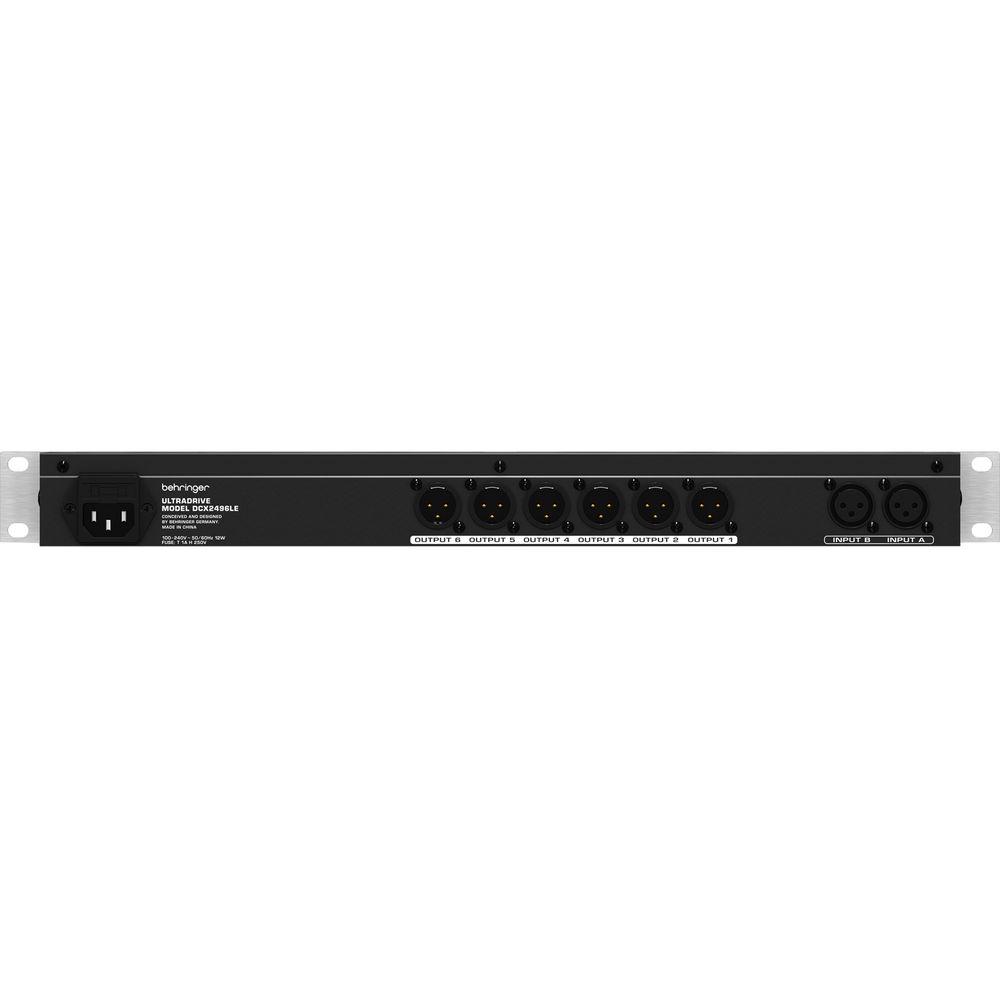

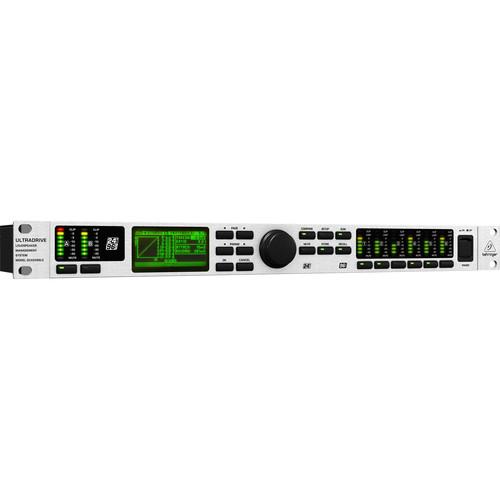

Product description The Behringer DCX2496LE ULTRADRIVE 24-Bit/96kHz Digital Loudspeaker Management System is designed for live sound and installed sound applications. The 1RU unit features two servo balanced gold-plated XLR inputs and six servo balanced gold-plated XLR outputs. The processor utilizes 24-bit 96 kHz Cirrus Logic analog to digital and digital to analog converters as well as a 32-bit Analog Device Sharc DSP to provide selectable Butterworth, Bessel, or Linkwitz-Riley Crossovers with roll-offs from 6 to 48 dB/octave in four different mono and stereo output operating modes.
The processors also enable adjustable delays for all inputs and outputs, zero-attack limiters on all output channels, and level dependent dynamic EQs, parametric EQs, low pass, band pass, and high pass EQs for all inputs and outputs. Settings are controlled from a front panel LCD via a scroll wheel and system of buttons. Eight LED meters provide visual feedback of the input and output levels. The unit includes built-in memory for storing up to 60 presets for various applications. UPC: 696859054310 In the Box Behringer DCX2496LE ULTRADRIVE 24-Bit/96kHz Digital Loudspeaker Management System Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer DCX2496LE ULTRADRIVE 24-Bit 96kHz Digital Loudspeaker Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer DCX2496LE Specs | | | Type | Electronically balanced | | Connector | XLR | | Max Input | +22 dBu | | Input Impedance | Approximately 20 kΩ at 1 kHz | | Crosstalk | -72 dB at 0 dBu in | | | | Type | Electronically balanced | | Connector | XLR | | Max Output | +22 dBu | | Output Impedance | Approx 160 Ω at 1 kHz | | Crosstalk | -100 dB at 10 dBu in | | | | Sampling Frequency | 96 kHz | | Signal Delay | < 1 ms analog input to analog output | | Frequency Response | 10 to 35,000 Hz (-1 dB) typical | | Dynamic Range | 109 dB (analog input to analog output) | | Input Noise | -90 dBu ( at -22 dBu to 112 dB) | | Output Noise | -90 dBu (at -22 dBu to 112 dB) | | THD + Noise | 0.007% at 0 dBu IN, Gain 1
0.004% at 10 dBu IN, Gain 1 | | | | Resolution | 24-bit Delta-Sigma, AKM | | Oversampling | 64x | | Dynamic Range | 112 dB typical | | | | Mains Voltage | 120V at 60 Hz | | Power Consumption | approximately 12 W | | Fuse | 100 to 240 V 1 A | | Connector | Standard IEC receptacle | | Dimensions (H x W x D) | 1.75 x 19.0 x 8.50" (44.5 x 428 x 217 mm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 20.7 x 12.1 x 4.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
