User Manual for Behringer DJX750 Professional 5-Channel DJ Mixer with Mic Input Click to enlarge the picture
Contents of the user manual for the Behringer DJX750 Professional 5-Channel DJ Mixer
- Product category: DJ Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer DJ Mixers
 |
User manual for the Behringer DJX750 Professional 5-Channel DJ Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|

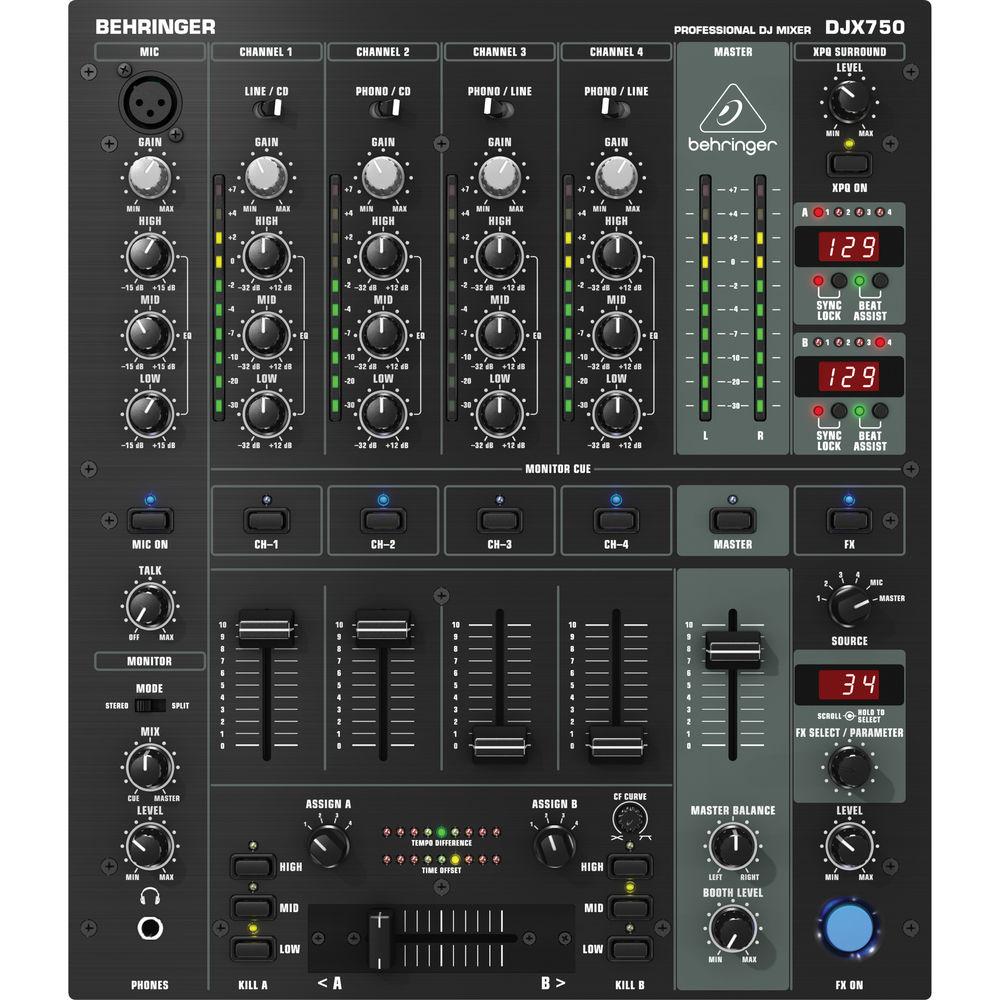

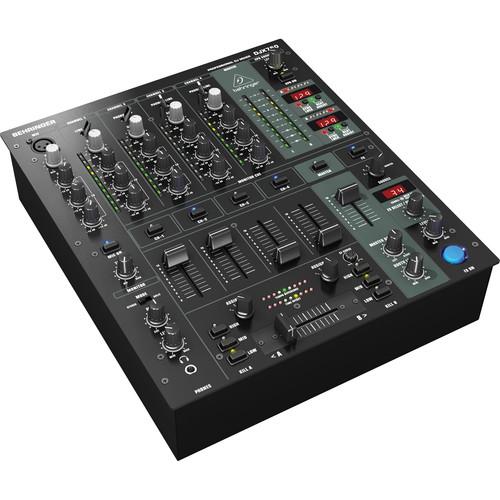

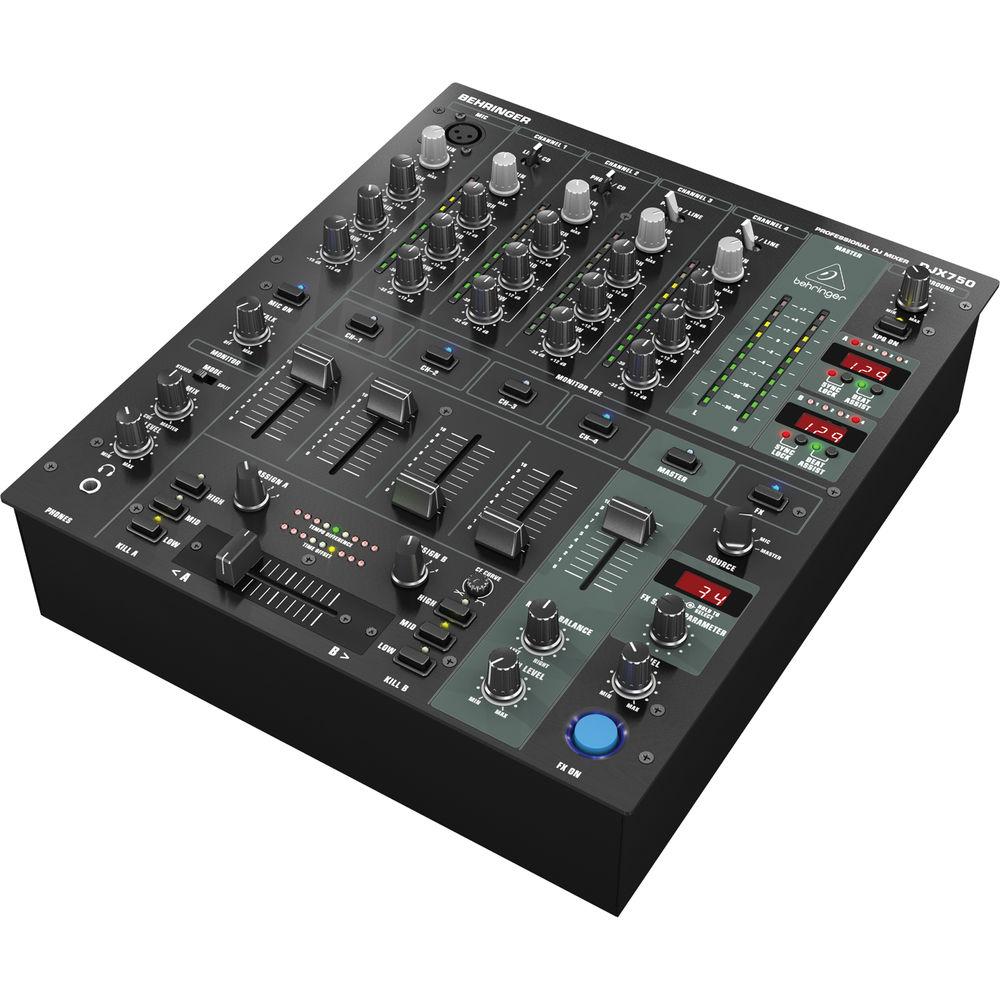

Product description Featuring advanced digital effects and dual BPM counters, the Behringer Pro Mixer DJX750 is a professional 5-channel DJ mixer with a dedicated microphone channel, well suited for clubs, parties, events, mobile DJs, and rental houses. Channels 1-4 feature four line inputs, while channels 2 through 4 are switchable to accommodate turntable inputs. All input channels include a dedicated 3-band EQ, while the microphone channel offers a talkover feature for ducking the music while making announcements.
There are 33 onboard effects including bit-crusher, filter sweeps, panning, delay, phase shifter, flangers, reverb, and more. Time-based effects can sync to the auto-BPM, ensuring a tight performance. The XPQ 3D stereo surround effect creates a broad and enhanced stereo image. The ultraglide faders are rated for up to 500K cycles for a lifetime of reliable performance. The VCA-controlled crossfader provides smooth performance and features an adjustable curve to accommodate all mixing styles. Additionally, there are two dedicated 3-way kill switches for steep frequency separation. The Behringer Pro Mixer DJX750 ships with a power cord. -
- Professional 5-channel ultra-low noise DJ mixer with stylish, black design
- Dedicated microhone channel with 3-band EQ and auto-talkover function
- Professional-quality digital effects with advanced parameter control
- Intelligent dual auto-BPM counter with time and beat sync display
- Super-smooth Ultraglide faders with up to 500,000 life cycles
- Awesome adjustable XPQ stereo surround effect
- VCA-controlled crossfader for utmost reliability and smooth audio performance
- Adjustable crossfader curve for all mixing styles
- 3-band kill EQ (-32 dB) and precise level meters with peak hold function per channel
- Additional 3-way kill switches with extremely steep frequency separation
- Monitor function with master/cue balance control and split option
UPC: 705105158587 In the Box Behringer DJX750 Professional 5-Channel DJ Mixer with Mic Input Limited 90-Day Warranty, Extended to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer DJX750 Professional 5-Channel DJ Mixer with Mic Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

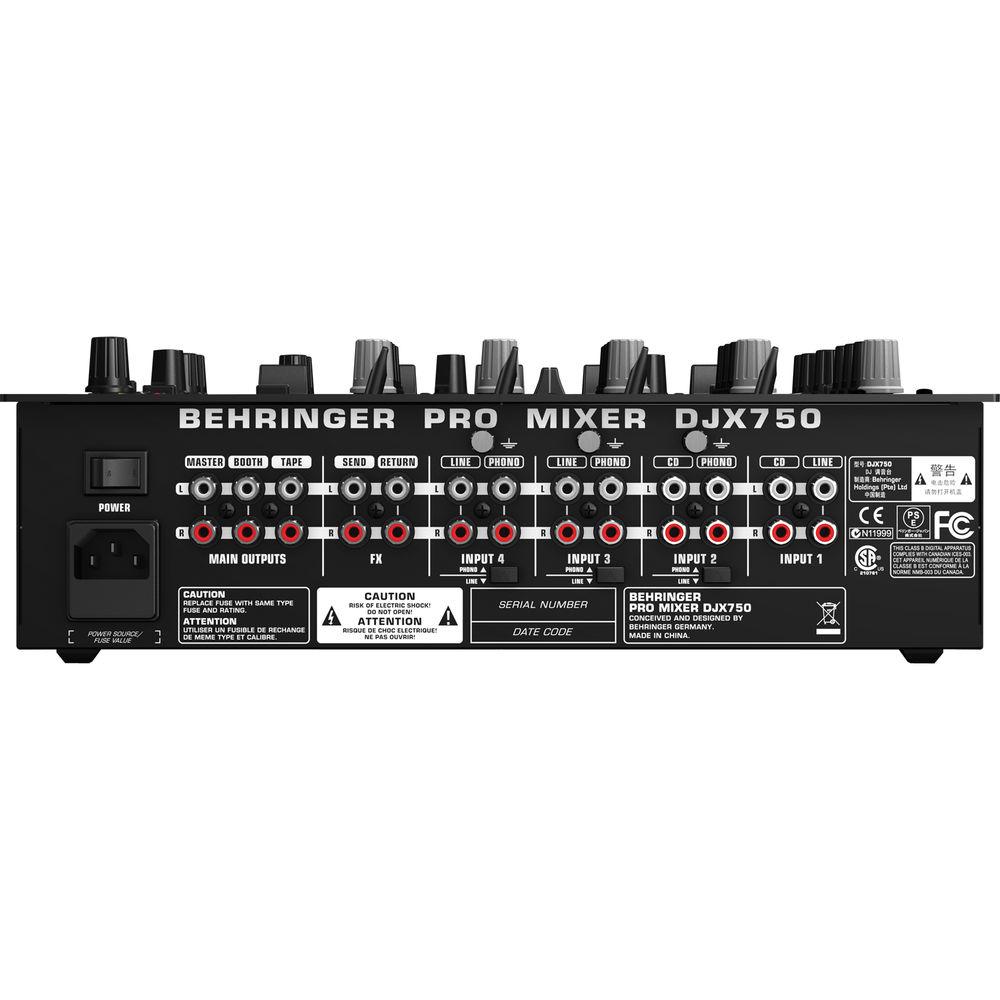

Technical parametersBehringer DJX-750 Specs | Total # Of Channels | 4 music channels + microphone channel | | Input Connectors | Channel 1: 2 x stereo RCA pairs (line / CD)
Channel 2: 2 x stereo RCA pairs (CD / phono)
Channel 3: 2 x stereo RCA pairs (line / phono)
Channel 4: 2 x stereo RCA pairs (line / phono)
Effects Return: 1 x stereo RCA
Mic: XLR | | Output Connectors | Master: 1 x stereo RCA
Booth: 1 x stereo RCA
Tape: 1 x stereo RCA
Effects Send: 1 x stereo RCA
Headphone: 1 x 1/4" / 6.35 mm
| | Audio Inputs | Mic: 40 dB gain, electronically balanced input stage
Phono: 40 dB gain, unbalanced
Line: 0 dB gain, unbalanced
CD: 0 dB gain, unbalanced
Return: 0 dB gain, unbalanced | | Audio Outputs | Master: +21 dBu maximum
Booth: +21 dBu maximum
Tape: 0 dBu typical
Send: 0 dBu typical
Headphones: 180 mW @ 75 W / 1% THD maximum | | EQ Section | Stereo Low: +12 dB / -32 dB at 50 Hz
Stereo Mid: +12 dB / -32 dB at 1.2 kHz
Stereo High: +12 dB / -32 dB at 10 kHz
Mic Low: ±15 dB at 80 Hz
Mic Mid: ±15 dB at 2.5 kHz
Mic High: ±15 dB at 12 kHz
Kill Low: -54 dB at 50 Hz
Kill Mid: -44 dB at 1 kHz
Kill High: -26 dB at 10 kHz | | Digital Effects | DSP: Freescale
A/D-D/A Converter: 24-bit Sigma-Delta, 64-/128-times oversampling
Sampling Rate: 46.875 kHz | | Signal to Noise Ratio | Line: >80 dB | | Crosstalk | >70 dB (line) | | THD | <0.03% | | Frequency Response | 10 Hz to 55 kHz +0/-3 dB | | Power | Mains Voltage: 100 to 120 VAC, 50/60 Hz
Power Consumption: 32 W
Fuse: T1 A H | | Dimensions (HxWxD) | 4.1 x 12.6 x 14.6" / 104.1 x 320.0 x 370.8 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 11.35 lb | | Box Dimensions (LxWxH) | 17.5 x 15.5 x 6.4" |
