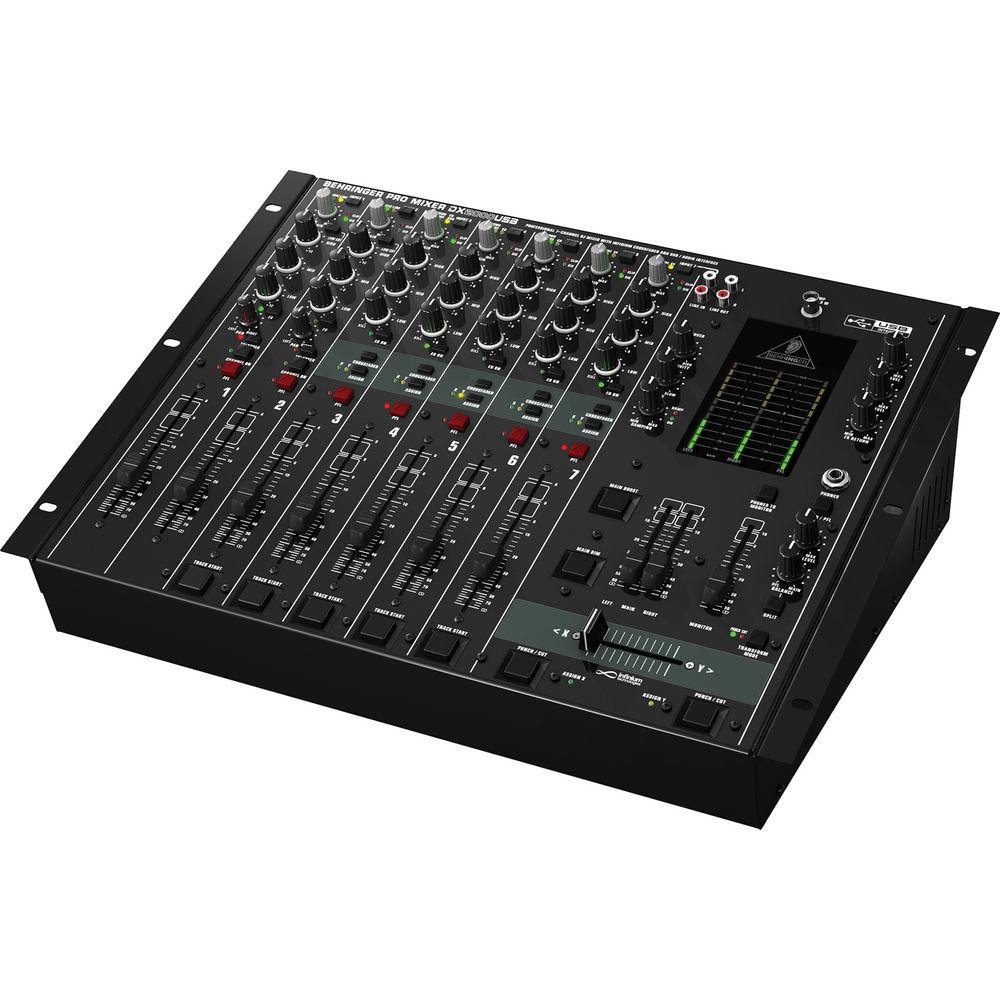

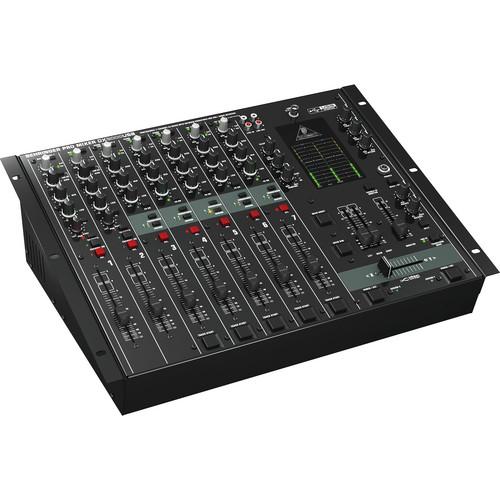

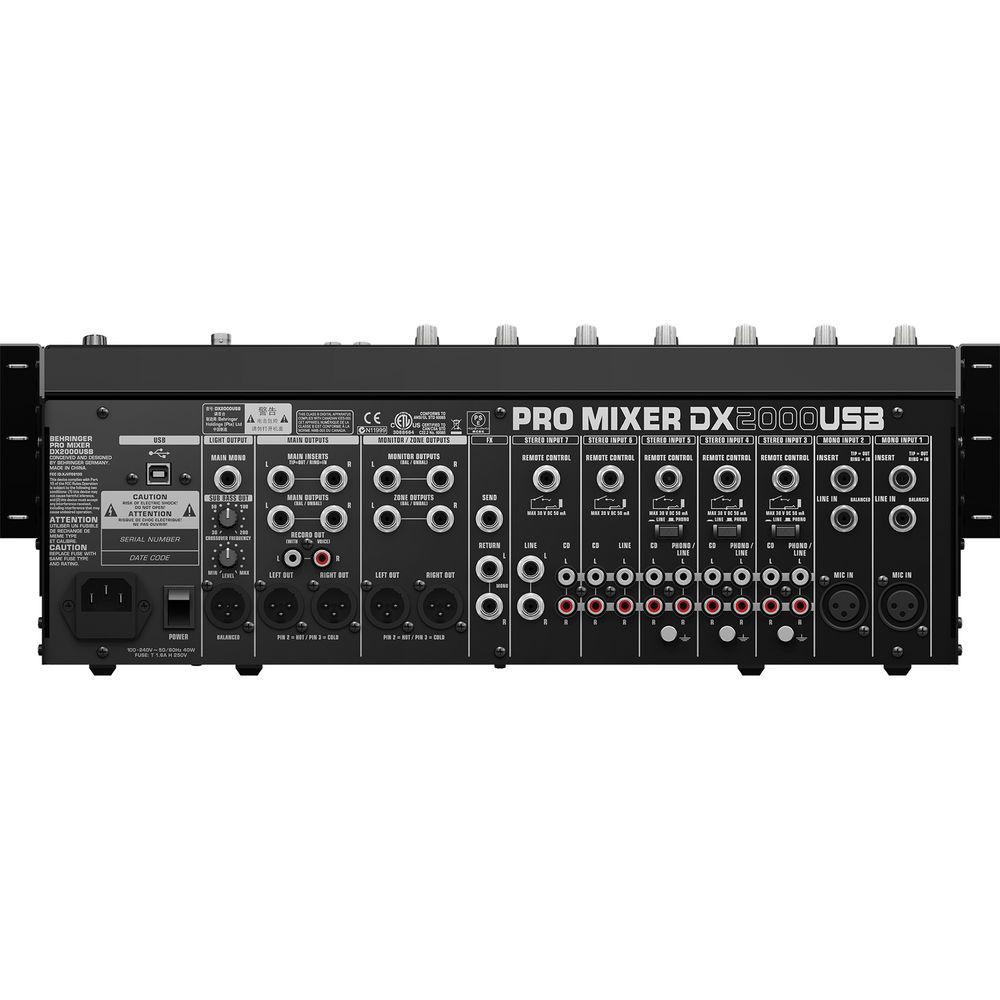

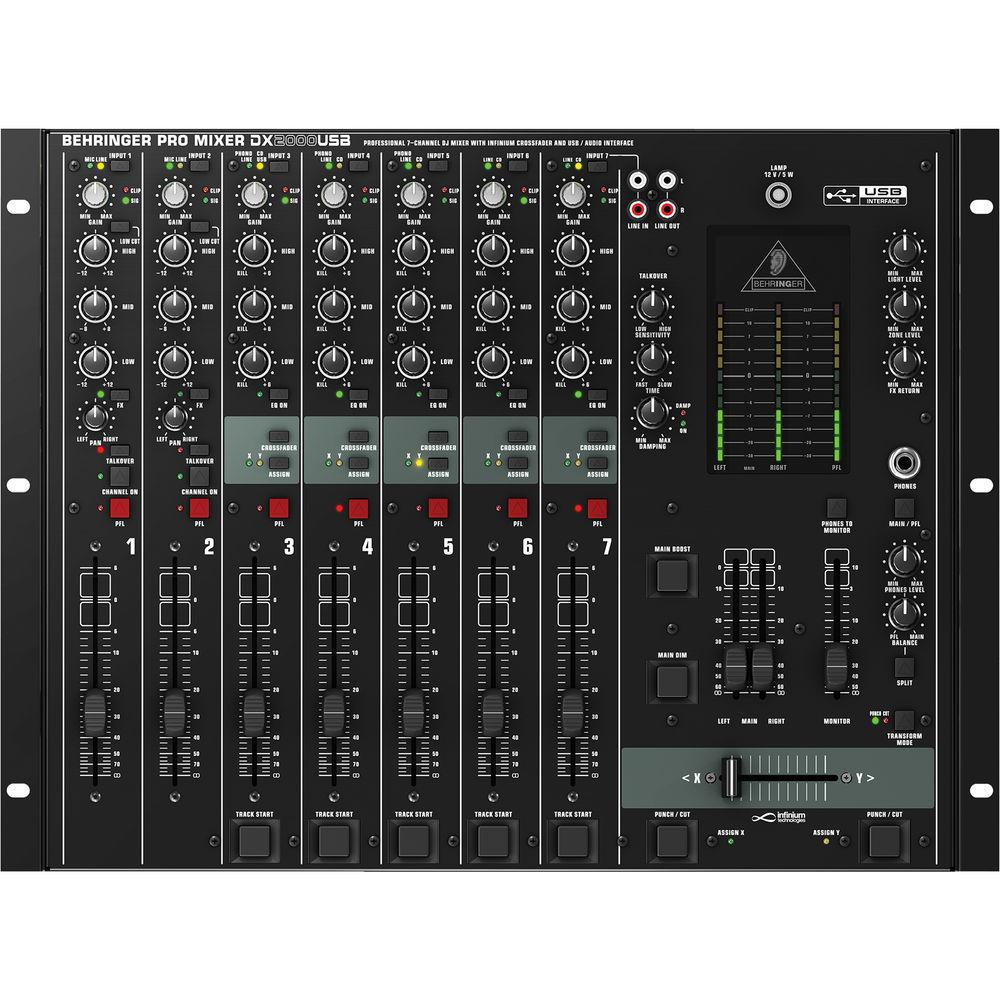

User Manual for Behringer DX2000USB Professional 7-Channel DJ Mixer Click to enlarge the picture
Contents of the user manual for the Behringer DX2000USB Professional 7-Channel DJ Mixer
- Product category: DJ Mixers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer DJ Mixers
 |
User manual for the Behringer DX2000USB Professional 7-Channel DJ Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The DX2000USB from Behringer is a professional-quality 7-channel mixer ideal for DJ applications. The mixer features 5 dual stereo inputs, plus 2 mono mic/line channels with ULN preamps, phantom power for condenser mics, gain control, and clip LEDs. It also has a 45mm infinium "contact-free" optical crossfader with adjustable friction to provide seamless track transitions and years of reliable use.
The mixer offers a built-in USB interface for recording and playback of digital files. It supports plug-and-play operation with Mac and Windows computers with no drivers or setup required.
Other features of the DX2000USB include a musical 3-band kill EQ with an on/off switch on all stereo channels, plus a headphone output with level and balance controls, a switchable split mode, and a level display. Long-wearing 100mm faders and sealed rotary controls on all of the input channels provide smooth and reliable operation. An auto-talkover function offers separate sensitivity, time, and damping controls, while main dim, main boost, punch, and cut functions deliver a variety of mix options. An XLR sub output lets you connect a subwoofer, while a zone output lets you send audio to an additional room/area. A "Planet Earth" switching power supply delivers noise-free audio, excellent transient response, and low power consumption for energy saving. - Compact chassis can easily be placed on a table or desk, or installed in a standard equipment rack using the included rack mounting brackets
- 5 dual stereo inputs, plus 2 mono mic/line channels with ULN preamps, phantom power for condenser mics, gain control, and clip LEDs
- The 45mm infinium "contact-free" optical crossfader has adjustable friction to provide seamless track transitions and years of reliable use
- Built-in USB interface supports plug-and-play operation with Mac and Windows computers with no drivers or setup required
- energyXT2.5 Compact Behringer Edition production software with a near-instant audio/MIDI sequencer is included, along with Audacity vinyl restoration and recording software, Podifier, and Golden Ear podcasting software
- Musical 3-band kill EQ with an on/off switch on all stereo channels
- Headphone output with level and balance controls, a switchable split mode, and a level display
- Long-wearing 100mm faders and sealed rotary controls on all of the input channels provide smooth and reliable operation
- Auto-talkover function offers separate sensitivity, time, and damping controls
- Main dim, main boost, punch, and cut functions deliver a variety of mix options
- An XLR sub output lets you connect a subwoofer, while a zone output lets you send audio to an additional room/area
- The "Planet Earth" switching power supply delivers noise-free audio, excellent transient response, and low power consumption for energy saving
UPC: 736211582744 In the Box Behringer DX2000USB Professional 7-Channel DJ Mixer Power Cord 2 x Rack Ears Limited 10-Year Warranty User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer DX2000USB Professional 7-Channel DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer DX2000USB Specs | Gain | Mic: +10 to +60dB
Line: -10 to +40dB
Line/CD: +17/-20dB
Phone: +17/-20dB | | Frequency Response | Mono: 10Hz - 8kHz ±3dB
Line/CD: 10Hz - 130kHz ±3dB
Phone: 20Hz - 20kHz RIAA | | Total Harmonic Distortion (THD) | Mono: 0.08%
Line/CD: 0.05%
Phone: 0.1% | | Signal to Noise Ratio | Mono: 85dB, Unweighted
Line/CD: -82dB, Unweighted
Phone: -78dB, Unweighted | | EQ Section | Mono:
Low: ±12dB @ 50Hz
Mid: ±8dB @ 750Hz
High: ±12dB @ 10kHz
Kill EQ:
Low: +6/-25dB @ 50Hz
Mid: +6/-25dB @ 1.4kHz
High: +6/-18dB @ 15kHz | | Filter | 75Hz, 18dB/Oct Low-Cut | | Output Level | Master 1/4: 0dB
Master XLR: +6dB
Monitor: 0dB (10dB Max Gain)
Zone: 0dB (10dB Max Gain)
Sends/Returns: 0dB | | USB | Type B Connector, Stereo In/Out, 48kHz Sample Rate | | Power | Voltage: 100-240VAC, 50/60Hz
Consumption: 40W | | Dimensions (HxWxD) | 2.4-6 x 17.25 x 14" (61-152 x 440 x 356mm) | | Weight | 14.3 lbs (6.5kg) | | | | Package Weight | 18.2 lb | | Box Dimensions (LxWxH) | 22.2 x 17.0 x 8.2" |
