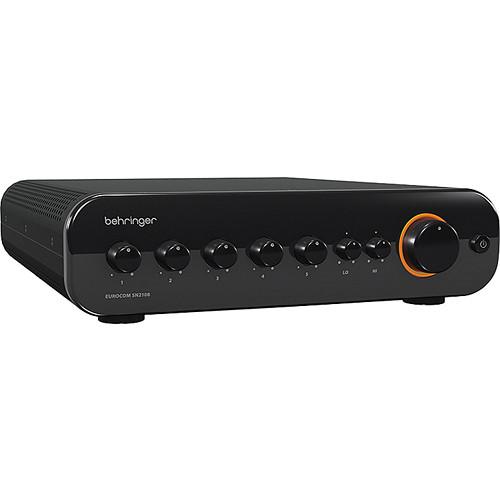

User Manual for Behringer Eurocom SN2108 80-Watt Mixer and Amplifier with 70-Volt Output Click to enlarge the picture
Contents of the user manual for the Behringer Eurocom SN2108 80-Watt Mixer and
- Product category: Mixer/Amplifiers Behringer
- Brand: Behringer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Behringer Mixer/Amplifiers
|
User manual for the Behringer Eurocom SN2108 80-Watt Mixer and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Behringer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Behringer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Behringer product will considerably shorten its lifespan!
|
Product description The Eurocom SN2108 80-Watt Mixer and Amplifier with 70-Volt Output from Behringer is a multi-function mixer and transformerless Class-D amplifier designed to be used for continuous operation in distributed music, paging, and AV applications. It can be used in retail, hospitality, office, medical, educational and industrial settings. It features three 1/4" TRS inputs that accept both balanced and unbalanced signals. It additionally has dual stereo summed RCA auxiliary inputs that can provide playback from external sources such as CD or MP3 players, radios, or television tuners. The unit has a 70-volt, two-position terminal strip speaker output.
The SN2108 has voice-activated music muting that automatically ducks background music when it senses microphone activity. It features independent DC and thermal overload protection as well as a built-in automatic limiter to prevent overload, clipping, and distortion. A switch-mode power supply is included to increase its energy efficiency. - Front Panel Controls
- The front panel features input gain control knobs for all five inputs as well as high and low EQ knobs and a master volume knob. The master volume knob is surrounded by indicator ring that displays power and clipping
UPC: 736211582249 In the Box Behringer Eurocom SN2108 80-Watt Mixer and Amplifier with 70-Volt Output Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Behringer Eurocom SN2108 80-Watt Mixer and Amplifier with 70-Volt Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBehringer SN2108 Specs | Audio Inputs | 3x 1/4" (6.35 mm) TRS
2x Stereo Summed RCA | | Audio Outputs | 1x 2-Position Terminal Block Speaker Output | | Impedance | 1/4" TRS: 600 Ω Balanced @ -50 dBv
Stereo Summed RCA: 10 kΩ Unbalanced | | Amplifier | Channels:
1x 70 V Hi-Z
Power Output Lo-Z:
80 W RMS @ 70 V (@ 1% THD, 1 kHz Sine Wave)
Minimum Impedance:
62.5 Ω | | Controls | 5x Level Control Knobs
1x Lo Tone Control Knob, +/- 15 dB @ 100 Hz
1x Hi Tone Control Knob, +/- 15 dB @ 10 kHz
1x Master Volume Knob
1x Mute Depth Knob
1x Power On/Off Button
1x Voltage Switch, 100 to 240 VAC, 50/60 Hz | | Indicators | 1x Dual Functioning Indicator Ring
Power On: Yellow
Clip: Red | | Output Circuit | Type: Transformerless Class D | | Protection | Amplifier: Thermal and DC Automatic Limiters | | Frequency Response | 50 Hz to 18 kHz, ±1 dB @ 1 W (70 V) | | Dynamic Range | Mic: 65 dB
Auxiliary: 80 dB | | THD + Noise | 0.05% @ 1 W, 1 kHz dBr into 62.5 Ω load | | Signal to Noise Ratio | 90 dB @ 1% THD+N | | Power Supply | Mains Voltage: 100 to 240 VAC, 50/60 Hz
Fuse: T 3.15 A H 250 V
Power Efficiency: 70%
Power Consumption: 38 W @ 1/8 of Maximum Rate Output
Mains Connector: Standard IEC receptacle | | Dimensions (H x W x D) | 3.3 x 12.0 x 14.2" (8.3 x 30.5 x 36.0 cm) | | Weight | 8.2 lb (3.7 kg) | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 17.5 x 15.4 x 7.5" |
